1. Producte acabatview
The ShanWan Q37 Wireless Bluetooth Controller is a versatile gaming accessory designed for multi-platform compatibility. It offers a rich gaming experience with features like customizable buttons, macro functions, motion controls, linear motor vibration, and precise joysticks and triggers. This manual provides detailed instructions for setup, operation, and maintenance of your controller.
Imatge: Frontal view of the ShanWan Q37 Wireless Bluetooth Controller in blue.
2. Configuració inicial
2.1 Càrrega del controlador
Before first use, fully charge the controller. Connect the provided USB-C cable to the controller's charging port and the other end to a USB power source (e.g., computer, wall adapter). The indicator lights will show charging status and turn off when fully charged.
2.2 Instruccions d'emparellament
The ShanWan Q37 controller supports various platforms. Follow the specific pairing instructions for your device:
- Nintendo Switch/Switch 2: Turn on your Switch console. On the HOME Menu, select 'Controllers' > 'Change Grip/Order'. Press and hold the pairing button on the controller until the indicator lights flash rapidly. Once paired, the corresponding player LED(s) will light up.
- PC (Windows): Connect via Bluetooth in your PC's settings. Alternatively, connect directly using a USB-C cable for wired mode.
- Android/iOS/iPad/macOS: Enable Bluetooth on your device and search for 'ShanWan Q37'. Select it to pair.
- Steam Deck: Follow standard Bluetooth pairing procedures for Steam Deck.
2.3 Firmware Update for Switch 2 Compatibility
For full compatibility with Switch 2 and to customize buttons, you may need to download the official 'Gamepad Space' software to upgrade the controller's firmware. Visit the official ShanWan website for the latest software version and instructions.

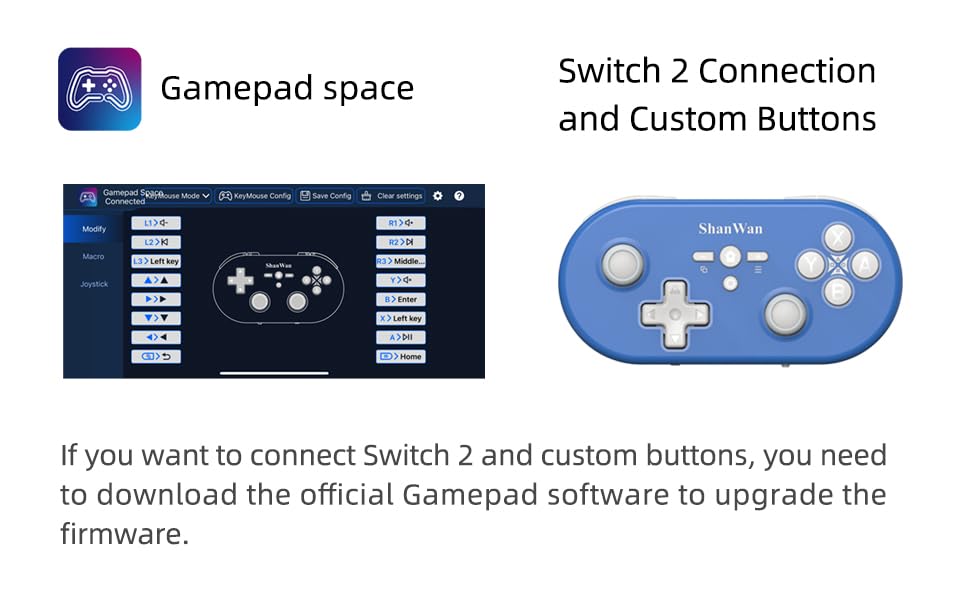

Image: Screenshot of the 'Gamepad Space' software interface for button customization and firmware updates, alongside the controller.
3. Instruccions de funcionament
3.1 Disposició i funcions dels botons
The controller features standard gaming buttons including A/B/X/Y, D-pad, L/R, L2/R2, joysticks, and function buttons (e.g., Home, Share, Plus, Minus).
3.2 Three-Position Mode Switch
The controller is equipped with a three-position mode switch (X, S, P) allowing seamless switching between different platforms:
- X-block: For PC/Android/iOS Native Games.
- S-block: For Nintendo Switch.
- P-block: For PS4 Console (Note: PS4 compatibility may require specific setup or adapter, refer to official weblloc per obtenir més informació).
Image: Diagram illustrating the three-position mode switch (X, S, P) and their corresponding platform functionalities.
3.3 Software Customization (Gamepad Space)
Download the official 'Gamepad Space' software to:
- Customize button mappings.
- Set macro functions for complex commands.
- Calibrate joysticks for optimal precision.
3.4 Funcions especials
- One-click Reconnection: Quickly reconnect to previously paired devices.
- Switch Screenshot: Dedicated button for capturing screenshots on Nintendo Switch.
4. Característiques clau
- Control de moviment giroscòpic de 6 eixos: Provides precise motion sensing for compatible games, enhancing immersive gameplay.
- Adjustable Dual Motor Vibration: Experience immersive haptic feedback with customizable vibration intensity.
- Customizable Buttons and Macros: Personalize your gaming experience by remapping buttons and setting up complex macro sequences via the 'Gamepad Space' software.
- Soft Rubber Non-slip Grip: Designed for comfortable and secure handling during extended gaming sessions.
- Botons tàctils sensibles: Engineered for optimal tactile feedback and durability.
Image: Illustration of the 6-axis body gyroscope in action.
Image: Illustration of the dual motor vibration feature.
Imatge: Primer pla view of the controller's joystick, highlighting the soft rubber non-slip material.

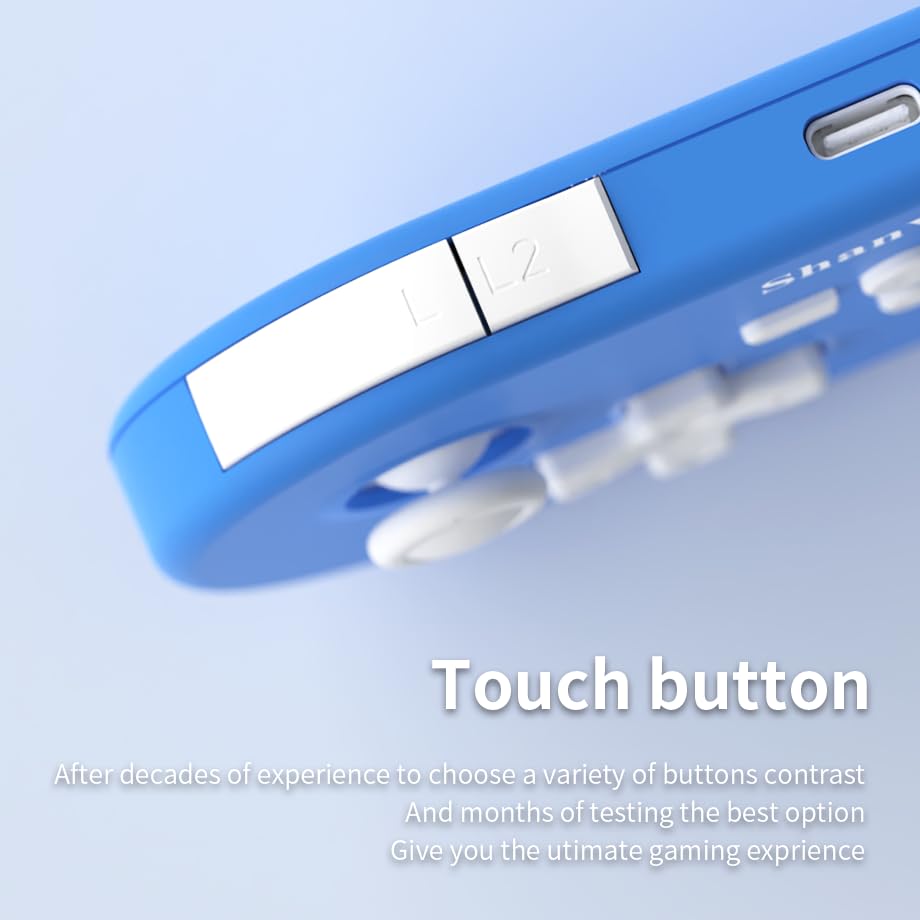

Imatge: Primer pla view of the controller's L/L2 shoulder buttons, emphasizing their design.
Image: A visual summary of key features including 6-axis body gyroscope, one-touch reconnect/wake-up, one-touch pairing, one-touch screenshot, dual motor vibration, and Switch key printing.
5. Compatibilitat
The ShanWan Q37 controller is compatible with a wide range of gaming platforms:
- Nintendo Switch / Switch 2 / Switch Lite / Switch OLED
- Steam Deck
- PC (Windows)
- dispositius Android
- iPhone / iPad (iOS / iPadOS)
- dispositius macOS
- PS4 Console (via P-block mode, specific setup may be required)
It supports simultaneous gameplay for up to 4 players on compatible systems.

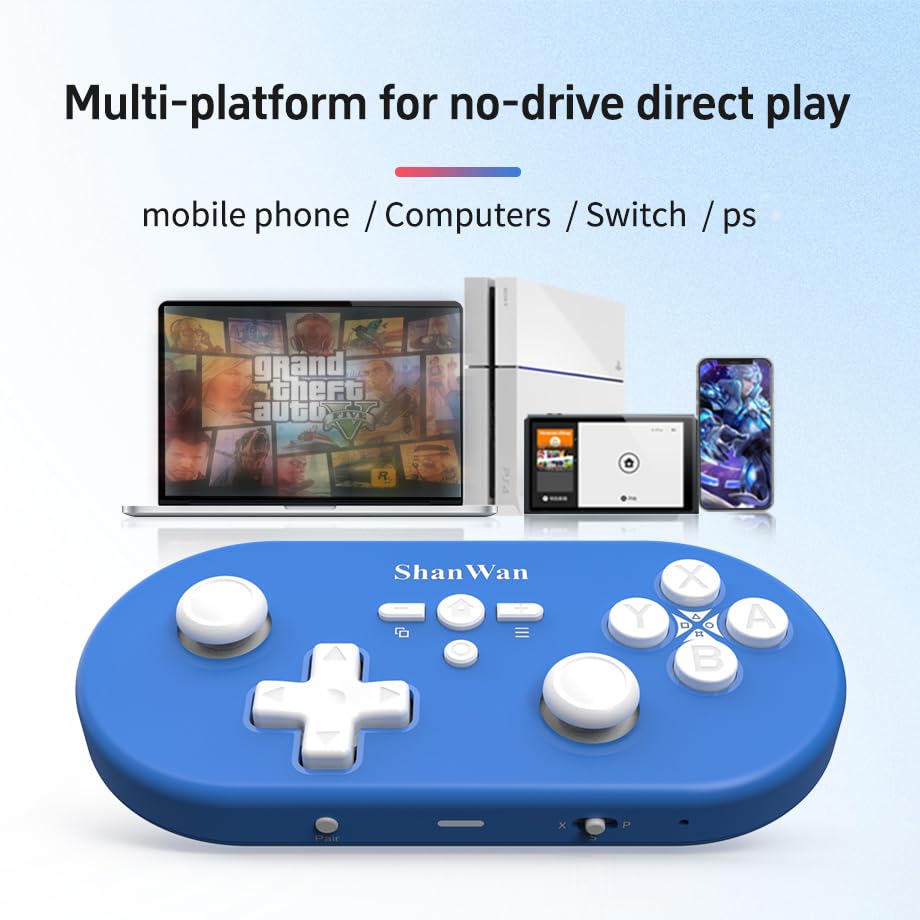

Image: Illustration showing the controller's compatibility with mobile phones, computers, Switch, and PS consoles.
6. Informació de la bateria
The controller is equipped with a 500mAh large-capacity Lithium Polymer battery. This allows for extended play sessions and convenient portability. Battery life varies depending on usage and vibration settings.
Temps de càrrega: Aproximadament 2-3 hores per a una càrrega completa.
Temps de funcionament: Up to 8-10 hours on a full charge (may vary).
7. Especificacions tècniques
| Especificació | Detall |
|---|---|
| Número de model | Q37XSP |
| Connectivitat | Wireless Bluetooth, USB-C (wired) |
| Capacitat de la bateria | Polímer de liti de 500 mAh |
| Dimensions del producte | 4.92 x 2.44 x 0.81 polzades (12.5 x 6.2 x 2.05 cm) |
| Pes de l'article | 3.2 unces (90.7 grams) |
| Control de moviment | Giroscopi de 6 eixos |
| Vibració | Dual Motor Vibration (Adjustable) |
Image: Diagram showing the precise dimensions of the ShanWan Q37 controller.
8. Solució De Problemes
8.1 El controlador no es connecta/s'emparella
- Assegureu-vos que el controlador estigui completament carregat.
- Verify the correct mode (X, S, P) is selected for your device.
- Make sure Bluetooth is enabled on your device and no other devices are interfering.
- Try restarting both the controller and your gaming device.
- If issues persist, try resetting the controller (refer to manufacturer's website for reset procedure, usually a small pinhole button).
8.2 Retard d'entrada o desconnexions
- Ensure you are within the effective range of your Bluetooth device.
- Minimize wireless interference from other devices (Wi-Fi routers, other Bluetooth devices).
- Ensure the controller's firmware is up to date using the 'Gamepad Space' software.
8.3 Els botons/joysticks no responen
- Calibrate joysticks and test button functionality using the 'Gamepad Space' software.
- Assegureu-vos que no hi hagi residus enganxats al voltant dels botons o dels joysticks.
- If using wired connection, try a different USB-C cable or port.
9. Cura i Manteniment
- Neteja: Feu servir un drap suau i sec per netejar el controlador. Per a la brutícia persistent, netegeu lleugerament.ampNetegeu el drap amb aigua o una solució de neteja suau. Eviteu productes químics agressius o materials abrasius.
- Emmagatzematge: Guardeu el controlador en un lloc fresc i sec, allunyat de la llum solar directa i de temperatures extremes.
- Cura de la bateria: Do not expose the battery to high temperatures or attempt to disassemble it. Charge the controller regularly, even if not in use, to maintain battery health.
- Eviteu les gotes: Protect the controller from physical shocks and drops, which can damage internal components.
10. Garantia i Suport
For warranty information, technical support, or further assistance, please visit the official ShanWan weblloc web o poseu-vos en contacte amb el seu servei d'atenció al client. Conserveu el rebut de compra com a comprovant de compra.
