Manual d'usuari del controlador Bluetooth sense fil ShanWan Q37

1. Introducció

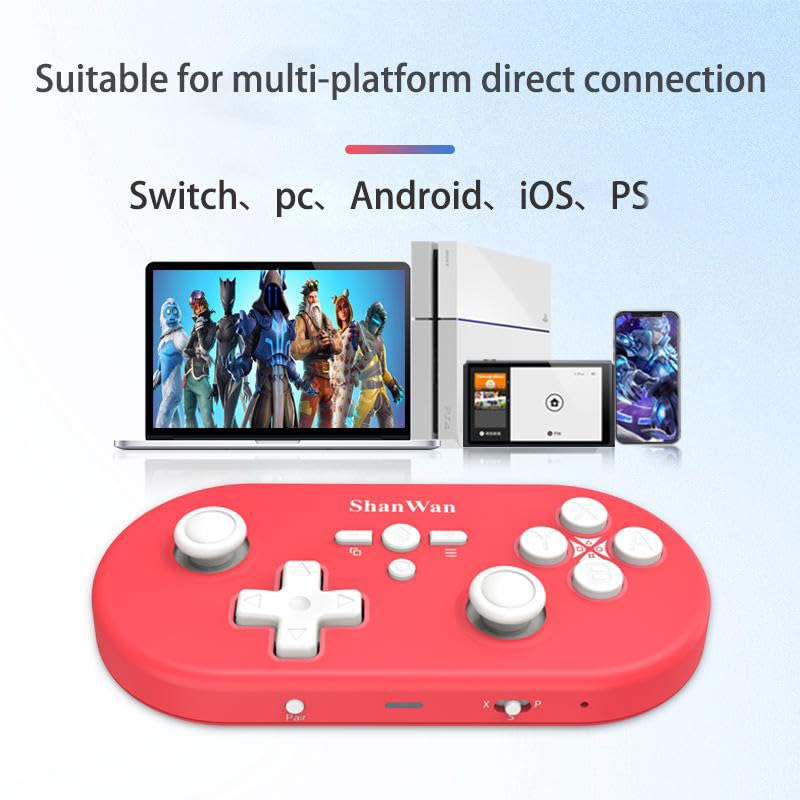

Thank you for choosing the ShanWan Q37 Wireless Bluetooth Controller. This manual provides detailed instructions to help you set up, operate, and maintain your controller, ensuring an optimal gaming experience across various platforms including Nintendo Switch, PC, Android, iOS, and PS4.

2. Contingut del paquet

• 1 x ShanWan Q37 Wireless Bluetooth Controller
• 1 x cable de càrrega USB
• 1 x Manual d'usuari (aquest document)

3. Producte acabatview

3.1 Disseny del controlador

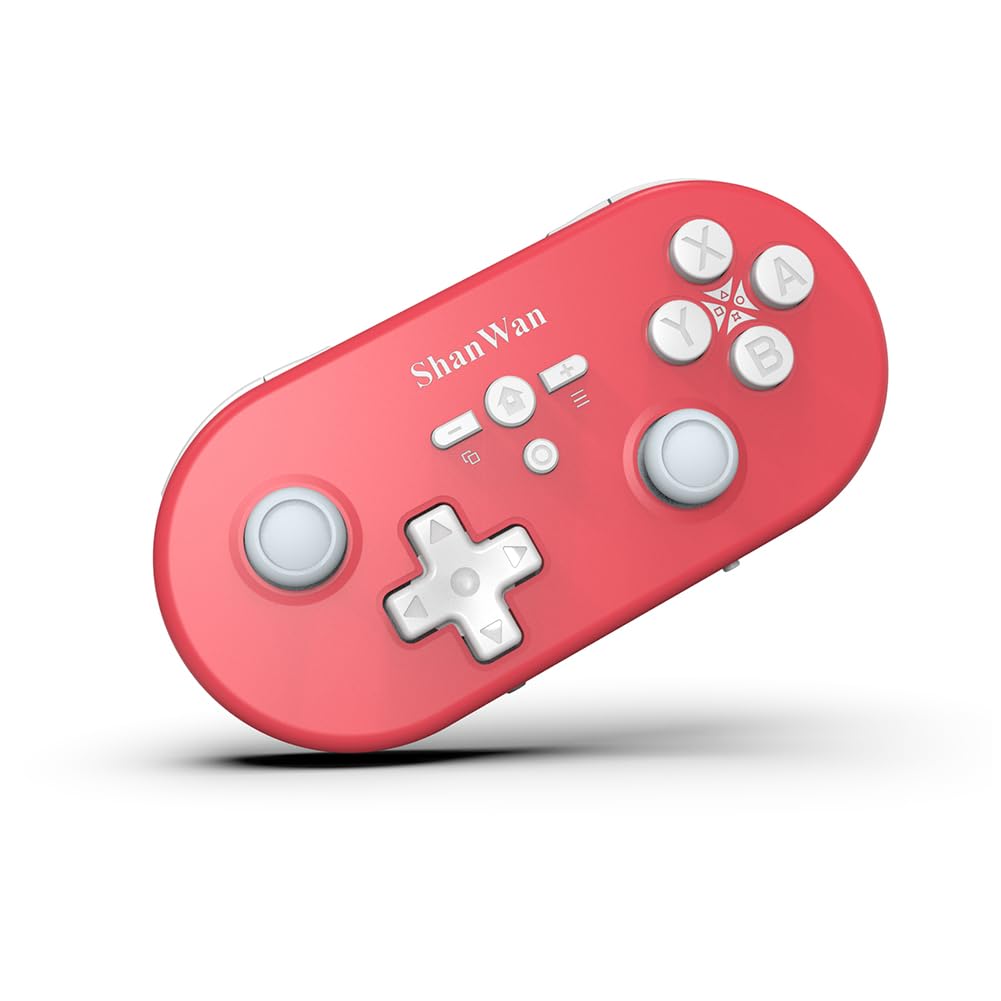

Imatge: Superior view of the ShanWan Q37 controller, showing the D-pad, left and right joysticks, A/B/X/Y buttons, and central function buttons.

The ShanWan Q37 controller features a standard layout for intuitive gaming. It includes a precise D-pad, responsive left and right joysticks, A/B/X/Y action buttons, and dedicated function buttons for Home, Select, Start, and Screenshot. The shoulder buttons (L1/R1) and triggers (L2/R2) are located on the top edge.

3.2 Dimensions

Image: The ShanWan Q37 controller with measurements indicating its length (4.92 inches), width (2.42 inches), and thickness (0.82 inches).

The compact design of the Q37 controller makes it portable and comfortable for extended gaming sessions. Its approximate dimensions are 4.92 x 2.44 x 0.81 inches, and it weighs approximately 3.2 ounces.

4. Configuració

4.1 Càrrega del controlador

Before first use, fully charge the controller. Connect the supplied USB charging cable to the USB-C port on the controller and the other end to a USB power source (e.g., computer USB port, USB wall adapter). The charging indicator light will show the charging status and turn off when fully charged. The controller is equipped with a 500mAh battery.

4.2 Emparellament inicial

The controller supports one-touch pairing for convenience.

• Per a Nintendo Switch: Go to the HOME Menu, select 'Controllers', then 'Change Grip/Order'. Press and hold the pairing button on the controller until the player LEDs begin to flash.
• Per a PC (Windows): Ensure Bluetooth is enabled on your PC. Go to 'Bluetooth & other devices' settings, click 'Add Bluetooth or other device', then 'Bluetooth'. Press and hold the pairing button on the controller until it appears in the list, then select it to pair.
• Per a Android/iOS: Enable Bluetooth on your mobile device. Go to Bluetooth settings and search for new devices. Press and hold the pairing button on the controller until it appears in the list, then select it to pair.
• Per a PS4: Connect the controller to the PS4 console using the USB cable. Press the PS button on the controller. Once paired, you can disconnect the USB cable for wireless play.

5. Instruccions de funcionament

5.1 Reconnection

After initial pairing, the controller supports one-click reconnection. Simply press the Home button on the controller to wake it up and automatically reconnect to the last paired device.

5.2 Firmware Update and Customization

To customize buttons, set macro functions, and calibrate joysticks, you can download the official Gamepad Space software. This software is also required for firmware updates, especially for compatibility with newer systems like Switch 2.

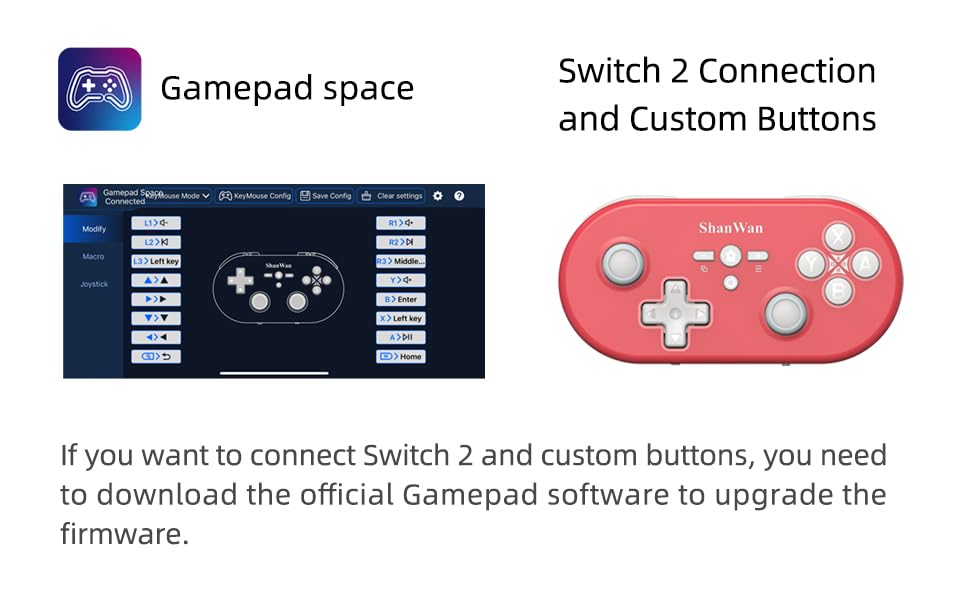

Image: A screenshot showing the 'Gamepad Space' software interface, illustrating options for modifying button assignments, setting macros, and calibrating joysticks.

Visit the official ShanWan website or refer to the QR code in the quick start guide (if provided) to download the latest version of the Gamepad Space software.

5.3 Característiques clau

The ShanWan Q37 controller is equipped with advanced features for an enhanced gaming experience:

• 6-axis Gyro Motion Control: Provides precise motion sensing for games that support it.
• Adjustable Motor Vibration: Linear motors provide immersive haptic feedback with adjustable intensity.
• One-Touch Screenshot: Capture in-game moments instantly with a dedicated button.
• Tactile Keys: Designed for optimal responsiveness and durability.
• Gaming Grade Hall Remote Rod: High-performance joysticks with 800Hz return rate, auto-calibration, and anti-slip rubber for smooth control.

Image: A collage of six images highlighting key features: 6-axis body gyroscope, one-touch reconnect/wake-up, one-touch pairing, one-touch screenshot, dual motor vibration, and Switch key printing.

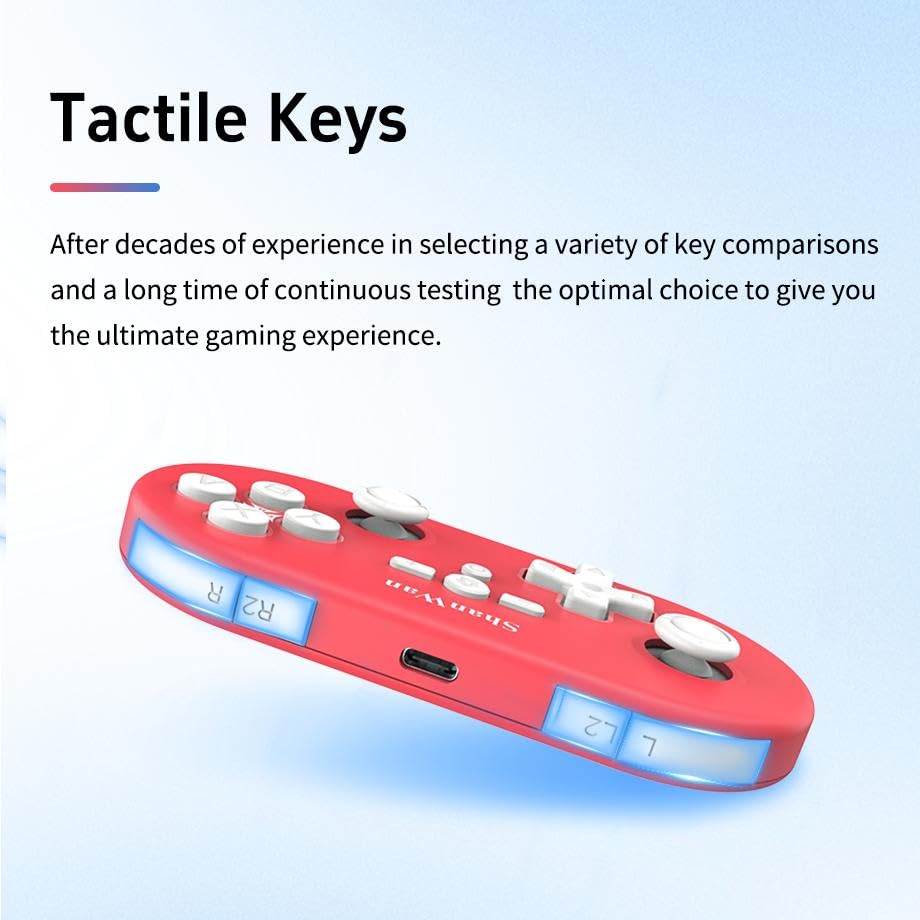

Imatge: Un costat en primer pla view of the ShanWan Q37 controller, emphasizing the tactile quality of its buttons and triggers.

Imatge: Un primer pla view of the ShanWan Q37 controller's joystick, highlighting its
