28W LED Wall Pack Light Instruction Manual

Producte acabatview

The New Sight Lighting 28W LED Wall Pack Light is a high-performance outdoor lighting fixture designed for durability and energy efficiency. Featuring an integrated dusk-to-dawn photocell sensor, it automatically illuminates at night and turns off at dawn, providing reliable security lighting. Its robust die-cast aluminum body and clear PC lens ensure longevity and resistance to harsh outdoor conditions.

Figura 1: Frontal view of the 28W LED Wall Pack Light.

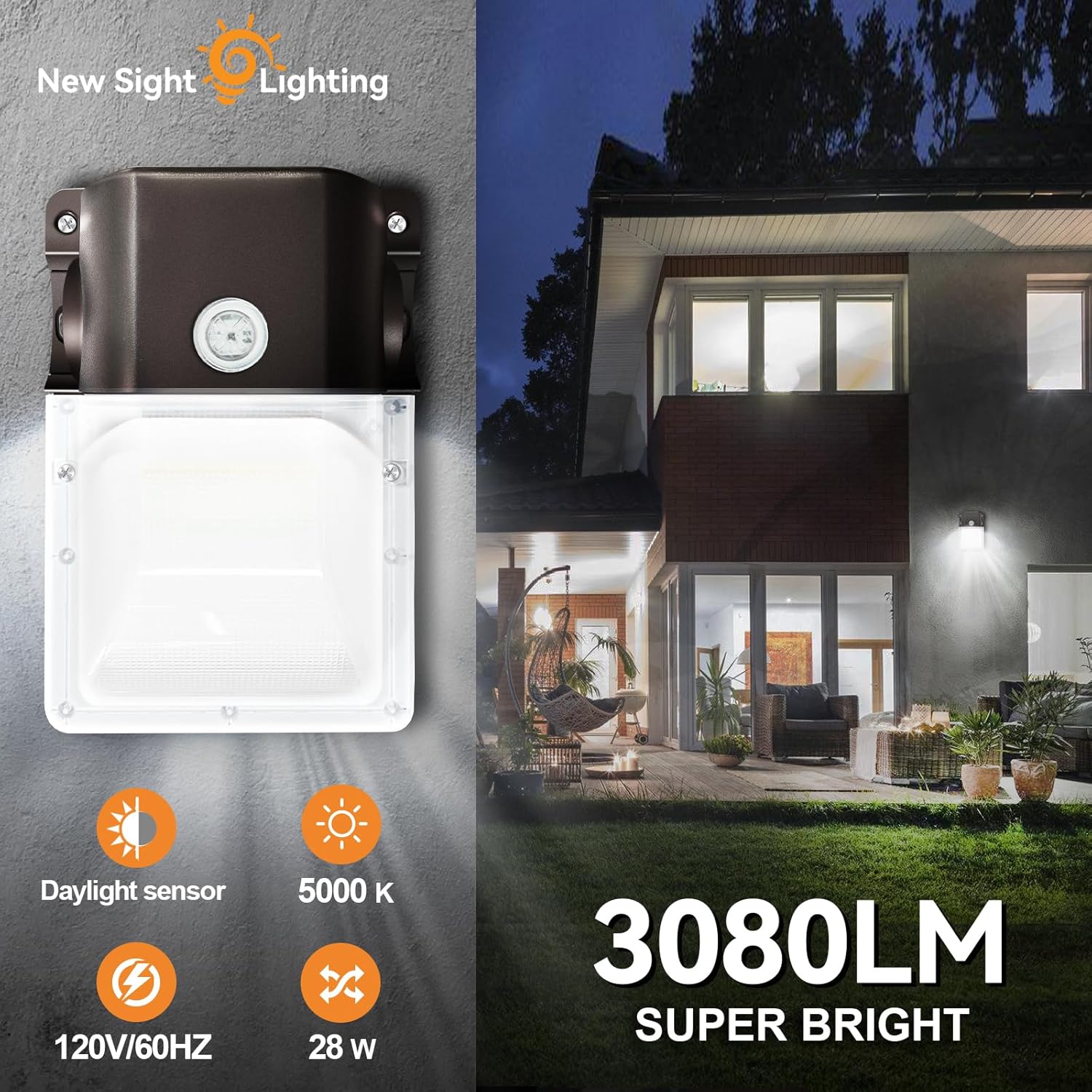

Figura 2: Mésview of key product features including 3080 lumens, 5000K daylight, 120V/60Hz operation, and 28W power consumption.

Configuració i instal·lació

This LED wall pack light is designed for straightforward installation. It is UL and FCC certified, ensuring compliance with safety and performance standards. The fixture can be installed on walls 6-8 feet high and adapts to a 4-inch round junction box (not included).

Passos d'instal·lació:

1. Unscrew the back conduit cap with a screwdriver and loosen housing side screws.
2. Remove the housing back plate and drill through holes for mounting.
3. Remove the protective film from the foam gasket (included) and stick it to the housing back plate for a secure seal.
4. Mount the housing back plate to the surface or junction box (not included) and secure with screws and anchors.
5. Use the provided screws to install the light to the junction box.
6. Fixeu la lamp lens to the back plate with the side screws.

Figura 3: Guia visual del procés d'instal·lació.

Opcions de cablejat:

The fixture offers multiple wiring options. Conduit pipes can be routed through the side entries or directly through the back. The back plate is removable to access wiring connections. A 3M tape rubber gasket is provided to ensure a seal against an electrical box or building surface, preventing moisture ingress. For direct wiring, Romex connectors can be used to secure the wiring within the fixture.

Alçada de muntatge recomanada:

For optimal illumination, the recommended mounting height is between 3.3 feet and 9.8 feet. At 9.8 feet, the light can cover an area of approximately 259 square feet.

Figure 4: Illustration of recommended mounting height and corresponding light coverage.

Instruccions de funcionament

The 28W LED Wall Pack Light features an automated dusk-to-dawn photocell sensor for convenient, hands-free operation.

Funcionalitat del capvespre a l'alba:

The integrated photocell sensor detects ambient light levels. The light will automatically turn ON at sundown/night and turn OFF at sunrise/daytime. This feature makes it ideal for outdoor security lighting, eliminating the need for manual operation.

Figure 5: Visual representation of the dusk-to-dawn sensor's automatic operation.

Sortida de llum:

The fixture provides 3080 lumens of bright, 5000K daylight illumination. It is non-dimmable, ensuring consistent light output.

Manteniment

The New Sight Lighting LED Wall Pack is designed for minimal maintenance and long-term reliability.

Durabilitat i longevitat:

• Constructed with a die-casting aluminum housing and clear lens, it is IP65 waterproof, making it suitable for wet environments. Continuous exposure to wet conditions will not negatively affect its life expectancy.
• The fixture is UV resistant, preventing color change even after prolonged UV irradiation.
• Excellent heat dissipation is achieved through the integral Die-Casting aluminum heating sink, ensuring a long lifespan for the LEDs.
• The energy-efficient LEDs have a lifespan of over 50,000 hours, eliminating the need for frequent bulb replacements.

Figure 6: Highlighting the IP65 waterproof rating and robust construction.

Resolució de problemes

If you encounter issues with your LED Wall Pack Light, please refer to the following common troubleshooting steps:

• La llum no s'encén:
  • Ensure the power supply is connected and active. Check circuit breakers.
  • Verify wiring connections are secure and correct according to the installation guide.
  • Check the photocell sensor. If it's daytime or there's sufficient ambient light, the sensor will keep the light off. Cover the sensor temporarily to simulate darkness and see if the light turns on.
• Light Flickering or Dim:
  • Confirmeu el voltage supply matches the fixture's requirements (120V).
  • Ensure the fixture is not connected to a dimmer switch, as it is non-dimmable.
  • Comproveu si hi ha connexions de cablejat soltes.
• La llum roman encesa durant el dia:
  • The photocell sensor may be obstructed or receiving insufficient light. Ensure it is clear of debris and not in a shaded area during the day.
  • External light sources (e.g., other bright lights, streetlights) might be interfering with the sensor. Relocate the fixture if possible or shield the sensor from direct external light.

Si aquests passos no resolen el problema, poseu-vos en contacte amb l'atenció al client.

Especificacions

Garantia i Suport

The New Sight Lighting 28W LED Wall Pack Light comes with a 3 any de garantia del fabricant. Aquesta garantia cobreix els defectes de materials i de mà d'obra en ús normal.

For technical support, warranty claims, or any questions regarding your product, please contact New Sight Lighting customer service through the retailer's platform or visit our official weblloc per obtenir informació de contacte.

Aplicacions

This versatile LED wall pack light is suitable for a wide range of outdoor applications, providing bright and reliable illumination for enhanced safety and visibility.

Figura 7: Examples of common applications including garages, porches, and front doors.
