YeeSite YS-075-SM

YeeSite 800W Wireless Remote Control Snow Machine Instruction Manual

Model: YS-075-SM

Marca: YeeSite

1. Producte acabatview

The YeeSite 800W Wireless Remote Control Snow Machine is designed to create realistic artificial snow effects for various indoor and outdoor events. This compact and portable unit requires no preheating, making it convenient for quick setup and operation. It features both wireless and wired control options for flexible use.

Les característiques clau inclouen:

Note: The 800W power motor produces a noise level of 70-80dB in quiet environments. Please consider this for your application.

2. Contingut del paquet

Verifiqueu que tots els elements siguin presents al paquet:

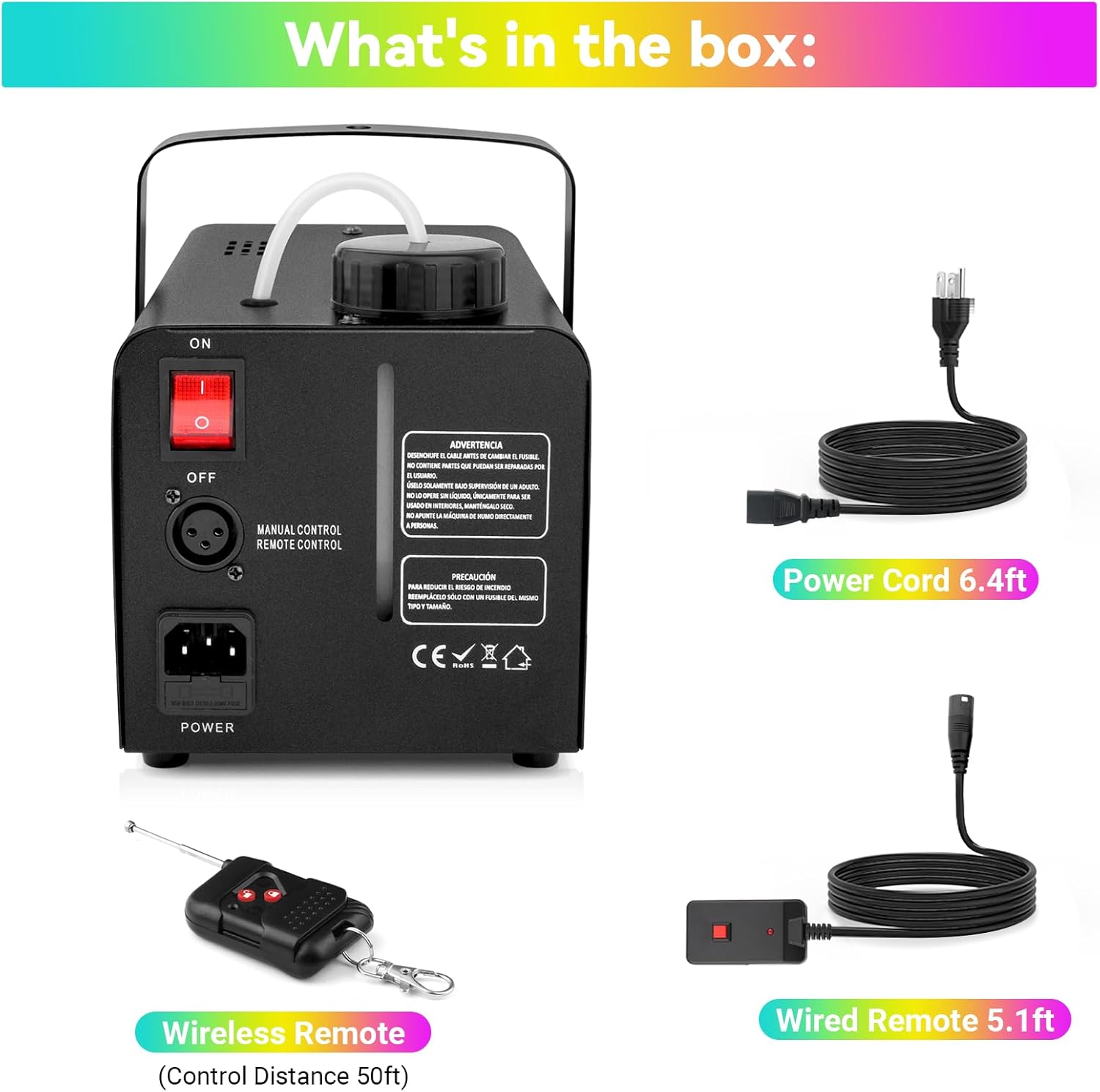

YeeSite 800W Snow Machine and accessories
Image: Contents of the YeeSite 800W Snow Machine package, including the machine, power cord, wireless remote, and wired remote.

3. Instruccions de configuració

Follow these steps to set up your YeeSite Snow Machine:

  1. Posicionar la màquina: Place the snow machine on a stable, level surface in the desired location. Ensure adequate space for snow dispersal and ventilation.
  2. Add Snow Fluid: Unscrew the cap of the built-in 500ml tank and carefully pour compatible snow machine fluid into the tank. Do not overfill. If continuous operation is desired, the inlet pipe can be inserted directly into a larger capacity snowmaking liquid container.
  3. Connectar l'alimentació: Plug the power cord into the machine's power socket and then into a standard AC 110V outlet (for USA models).
  4. Connectar el controlador: Connect either the wired remote control or the wireless receiver (for wireless remote operation) to the designated controller socket on the machine.
  5. Encès: Flip the main ON/OFF switch to the "ON" position. The machine does not require preheating.
Steps for setting up the YeeSite Snow Machine
Image: Visual guide for setting up the snow machine, showing fluid addition, power connection, and switch activation.

Important: Ensure the snow fluid is compatible with snow machines. Snow maker liquid is not included with the product.

4. Instruccions de funcionament

Once set up, operate your snow machine as follows:

  1. Activate Snow Output: Use the wired remote or the wireless remote control to start and stop the snow dispensing. Press the button on the remote to begin the snow effect.
  2. Adjust Snow Intensity: The machine produces a continuous flow of snow. For varying effects, you may need to adjust the duration of activation via the remote.
  3. Snow Evaporation: The artificial snow evaporates mess-free within approximately 10 minutes and is skin-safe.
Video: An official demonstration of the YeeSite 800W Snow Machine in operation, showcasing its snow output and ease of use with the remote control.

Nota de seguretat: Always ensure the machine is placed in a secure location where it will not be easily knocked over. Avoid direct contact with the nozzle during operation.

5. Manteniment

Proper maintenance ensures the longevity and optimal performance of your snow machine:

6. Solució De Problemes

If you encounter any issues with your YeeSite Snow Machine, please consider the following:

For any problems such as damage, poor contact, or if the machine is not working properly, please contact YeeSite customer support for assistance.

7. Especificacions

CaracterísticaEspecificació
Número de modelYS-075-SM
Poder800W
VoltageAC 110V (USA)
Capacitat del dipòsit500ml (0.13 gal)
Sortida de neu2400 cubic feet/minute
Horizontal Spray DistanceFins a 13 peus (4 m)
Cobertura vertical30-40 peus (9-12 m)
Interval remot sense filFins a 50 peus (15 m)
Longitud del cable remot amb cable5.1 peus
Longitud del cable d'alimentació6.4 peus
Pes de l'article6.56 lliures (3 kg)
Dimensions del paquet12.13 x 8.03 x 7.72 polzades
Product dimensions and specifications of the YeeSite 800W Snow Machine
Image: Detailed product dimensions and technical specifications for the YeeSite 800W Snow Machine.

8. Garantia i Suport

YeeSite is committed to providing quality products and customer satisfaction. If you encounter any problems with your snow machine, such as damage, poor contact, or if it is not working properly, please contact YeeSite customer support.

For further assistance, please refer to the contact information provided in your product packaging or visit the official YeeSite store on Amazon: YeeSite Amazon Store.
