Introducció
This manual provides detailed instructions for the safe and effective use of your Mova Fresh SweepDrive Electric Toothbrush. Please read this manual thoroughly before first use and retain it for future reference.

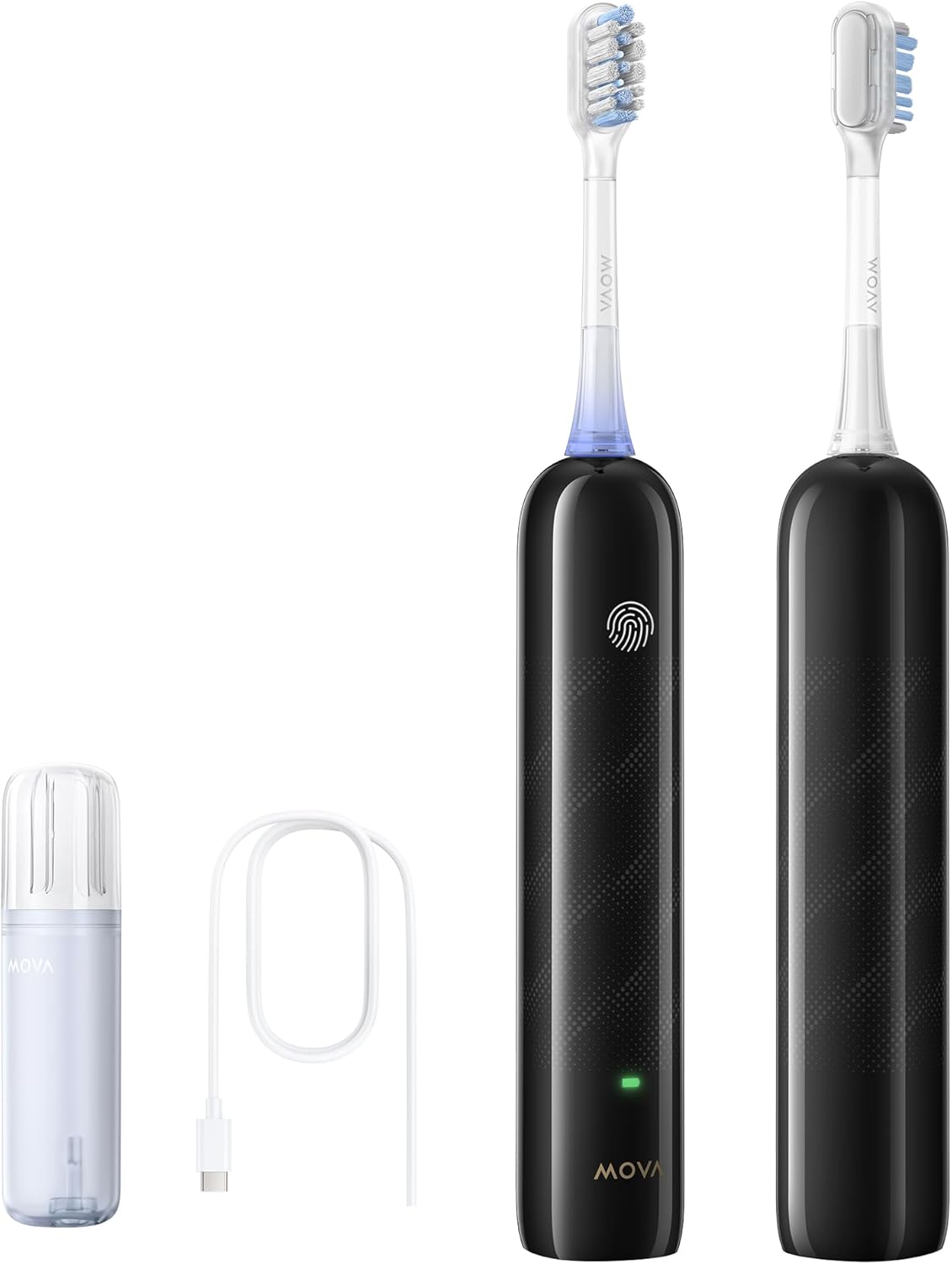

Image: The Mova Fresh SweepDrive Electric Toothbrush, including the handle, two brush heads, a brush head holder, and a USB-C charging cable.
Informació de seguretat
Si us plau, observeu les següents pautes de seguretat per evitar lesions o danys al producte:
- Aquest producte està pensat només per a adults. Mantingueu-lo fora de l'abast dels nens.
- Do not use this appliance if it appears damaged in any way.
- Do not modify or attempt to repair the product yourself. Contact customer support for assistance.
- Statements regarding dietary supplements have not been evaluated by the FDA and are not intended to diagnose, treat, cure, or prevent any disease or health condition. This product is for oral hygiene.
- Assegureu-vos que el port de càrrega estigui sec abans de connectar el cable de càrrega.
Què hi ha a la caixa
Verifiqueu que tots els components siguin presents en desembalar-lo:
- (1) Electric Toothbrush Handle
- (2) Brush Heads
- (2) Brush Head Holders
- (1) Cable de càrrega USB-C
- (1) Manual d'usuari (aquest document)
- (1) Important Safety Instructions
Image: A visual representation of all items included in the product packaging: toothbrush handle, two brush heads, two brush head holders, USB-C cable, user manual, and safety instructions.
Configuració
1. Càrrega inicial
Before first use, fully charge the toothbrush. The battery provides up to 30 days of use on a single charge.
- Locate the USB-C charging port at the bottom of the toothbrush handle.
- Ensure the port is dry.
- Connect the provided USB-C cable to the toothbrush and a compatible USB power adapter (not included).
- El llum indicador mostrarà l'estat de càrrega. Una càrrega completa sol trigar diverses hores.
Image: The electric toothbrush handle being charged via its USB-C port, illustrating the connection point.
2. Fixació del capçal del raspall
- Alineeu el capçal del raspall amb l'eix metàl·lic del mànec del raspall de dents.
- Premeu fermament el capçal del raspall cap avall fins que encaixi al seu lloc.
- To remove, pull the brush head straight off the shaft.
Instruccions de funcionament
1. Engegada/Apagada i Selecció de Mode
- Per encendre: Gently touch the power button (fingerprint icon) on the handle. The toothbrush will start in the last used mode.
- Per canviar de mode: While the toothbrush is operating, briefly touch the power button to cycle through the available modes:
- Mode sensible: Neteja suau per a dents i genives sensibles.
- Mode estàndard: Regular daily cleaning.
- Whitening & Polishing Mode: Intensive cleaning for stain removal and polishing.
- Per apagar: Press and hold the power button for 3 seconds, or the toothbrush will automatically turn off after the 2-minute brushing cycle is complete.
Image: A visual guide to the three distinct brushing modes available on the Mova Fresh SweepDrive Electric Toothbrush.
2. Tècnica de pinzellatge
- Mulleu el capçal del raspall i apliqueu-hi una petita quantitat de pasta de dents.
- Col·loqueu el capçal del raspall contra les dents amb un lleuger angle cap a la línia de les genives.
- Enceneu el raspall de dents.
- Move the brush head slowly from tooth to tooth, allowing the bristles to clean each surface. Do not scrub vigorously.
- The toothbrush features a Temporitzador intel·ligent that pauses briefly every 30 seconds to indicate when to move to a different quadrant of your mouth, ensuring an even clean. It will automatically turn off after 2 minutes.
- Intuitive Pressure Sensing: The Smart Light Ring will flash red and automatically reduce vibration if you apply too much pressure, protecting your gums and teeth from damage. Adjust your grip or pressure if this occurs.
Image: The electric toothbrush handle near teeth, showing a red light indicating the activation of the intuitive pressure sensing feature to prevent over-brushing.
Imatge: Una imatge detallada view of the brush head in action, demonstrating its cleaning motion and effectiveness in removing plaque and food particles from teeth.
Manteniment
1. Neteja del raspall de dents
- After each use, rinse the brush head thoroughly under running water while the toothbrush is still on to remove any remaining toothpaste or debris.
- Turn off the toothbrush and remove the brush head.
- Rinse both the brush head and the handle separately under running water.
- Wipe the handle with a soft cloth.
- Allow all parts to air dry before reassembling or storing.
- The toothbrush handle is IPX7 waterproof and can be rinsed under water.
Image: The electric toothbrush being held underwater, highlighting its IPX7 waterproof capability for easy cleaning.
2. Substitució del capçal del raspall
It is recommended to replace your brush head every 3 months, or sooner if the bristles appear frayed or worn. Replacement brush heads can be purchased from authorized Mova retailers.
Imatge: Un desmuntat view of the 3-in-1 brush head, showing its different bristle types and construction.
Carregant
The Mova Fresh SweepDrive Electric Toothbrush is designed for extended battery life, offering up to 30 days of use on a single charge (based on two 2-minute brushing sessions per day in Standard Mode).
- Feu servir el cable USB-C proporcionat per carregar.
- The charging port is located at the base of the handle. Ensure it is dry before connecting the cable.
- The indicator light will signal charging status.
- When traveling, the toothbrush can be stored in its brush head holder for portability.
Image: A person placing the electric toothbrush into a travel case, demonstrating its portability and ease of storage.
Resolució de problemes
| Problema | Causa possible | Solució |
|---|---|---|
| El raspall de dents no s'encén. | Bateria baixa o no carregada. | Charge the toothbrush fully using the provided USB-C cable. |
| Toothbrush stops or reduces vibration during use. | Excessive pressure applied (pressure sensor activated). | Reduce pressure on your teeth and gums. The Smart Light Ring will flash red when too much pressure is detected. |
| Difficulty changing modes or turning off. | Incorrect button press duration. | Briefly touch the power button to cycle modes. Press and hold for 3 seconds to turn off manually. |
| Brush head feels loose. | Brush head not fully seated. | Ensure the brush head is pushed down firmly until it clicks into place on the metal shaft. |
Especificacions
- Model: Fresh SweepDrive
- Font d'alimentació: Alimentat per piles (pila d'1 A inclosa)
- Durada de la bateria: Up to 30 days (based on typical use)
- Vibracions: Up to 66,000 vibrations/min
- Classificació impermeable: IPX7
- Dimensions del producte: 5.51 x 1.14 x 1.22 polzades
- Pes: 5.22 unces
- Característiques especials: Intuitive Pressure Sensing, 3-in-1 Brush Head, Portable
Garantia i Suport
Mova products are manufactured with quality and reliability in mind. For warranty information, technical support, or to purchase replacement parts (such as brush heads), please visit the official Mova website or contact Mova customer service. Keep your purchase receipt as proof of purchase.
Fabricant: Mova
Data de primera disponibilitat: 24 de febrer de 2025
