Canyon Grand Canyon:ON 7 Electric Mountain Bike User Manual

1. Introducció

The Canyon Grand Canyon:ON 7 is a robust and capable electric mountain bike designed to enhance your riding experience. Equipped with a Bosch Performance Line CX motor and an integrated 625 Wh battery, this e-MTB provides seamless pedal assistance, enabling longer rides and easier climbs. Its 120mm RockShox suspension absorbs impacts for a smooth, controlled ride, while the Shimano Deore 12-speed drivetrain ensures precise gear changes across various terrains. This manual provides essential information for the safe assembly, operation, maintenance, and care of your Grand Canyon:ON 7.

2. Informació de seguretat

Your safety is paramount. Please read and understand all instructions before operating your electric bicycle. Failure to follow these instructions could result in serious injury or damage to the bicycle.

• Always Wear a Helmet: Ensure your helmet meets safety standards and is properly fitted.
• Inspecció prèvia a la marxa: Before each ride, check tire pressure, brake function, quick releases, and battery charge level.
• Understand Local Laws: Familiarize yourself with local regulations regarding electric bicycle use.
• Frenatge: Practice braking to understand the stopping power of your hydraulic disc brakes. Use both front and rear brakes simultaneously for optimal control.
• Cura de la bateria: Handle the battery with care. Do not expose it to extreme temperatures or puncture it. Refer to the battery section for charging guidelines.
• Advertència de la proposta 65: Aquest producte pot contenir substàncies químiques que l'estat de Califòrnia sap que causen càncer i defectes congènits o altres danys reproductius. Per a més informació, visiteu www.P65Warnings.ca.gov.

3. Desembalatge i configuració inicial

Your Canyon Grand Canyon:ON 7 arrives 95% pre-assembled in a specially designed Bike Guard box. Necessary tools for final assembly are included.

3.1. Desembalatge

1. Carefully remove the bicycle and packaging materials from the box.
2. Remove all protective wrapping and zip ties. Retain the packaging for potential returns or future transport.

3.2. Passos de muntatge

1. Instal·lar manillars: Attach the handlebars to the stem, ensuring they are centered and the brake levers and shifters are in a comfortable position. Tighten the stem bolts securely according to torque specifications.
2. Instal·leu la roda davantera: Insert the front wheel into the fork dropouts. Ensure the disc rotor is correctly seated in the brake caliper. Secure the thru-axle firmly.
3. Instal·lar pedals: Identify the left (L) and right (R) pedals. Apply a small amount of grease to the pedal threads. Screw the right pedal clockwise and the left pedal counter-clockwise into the crank arms. Tighten securely with a pedal wrench.
4. Adjust Seat Post: Insert the seat post into the frame and adjust the saddle height to your preference. Ensure the minimum insertion mark on the seat post is not visible. Tighten the seat post clamp.
5. Càrrega inicial de la bateria: Before your first ride, fully charge the integrated 625Wh battery. Refer to the 'Battery Charging and Care' section for detailed instructions.

If you are not mechanically inclined, it is recommended to seek assistance from a professional bicycle mechanic for assembly and initial setup.

4. Components mésview

The Grand Canyon:ON 7 features high-quality components designed for performance and durability.

Figura 4.1: Complet view of the Canyon Grand Canyon:ON 7 electric mountain bike in pistachio color.

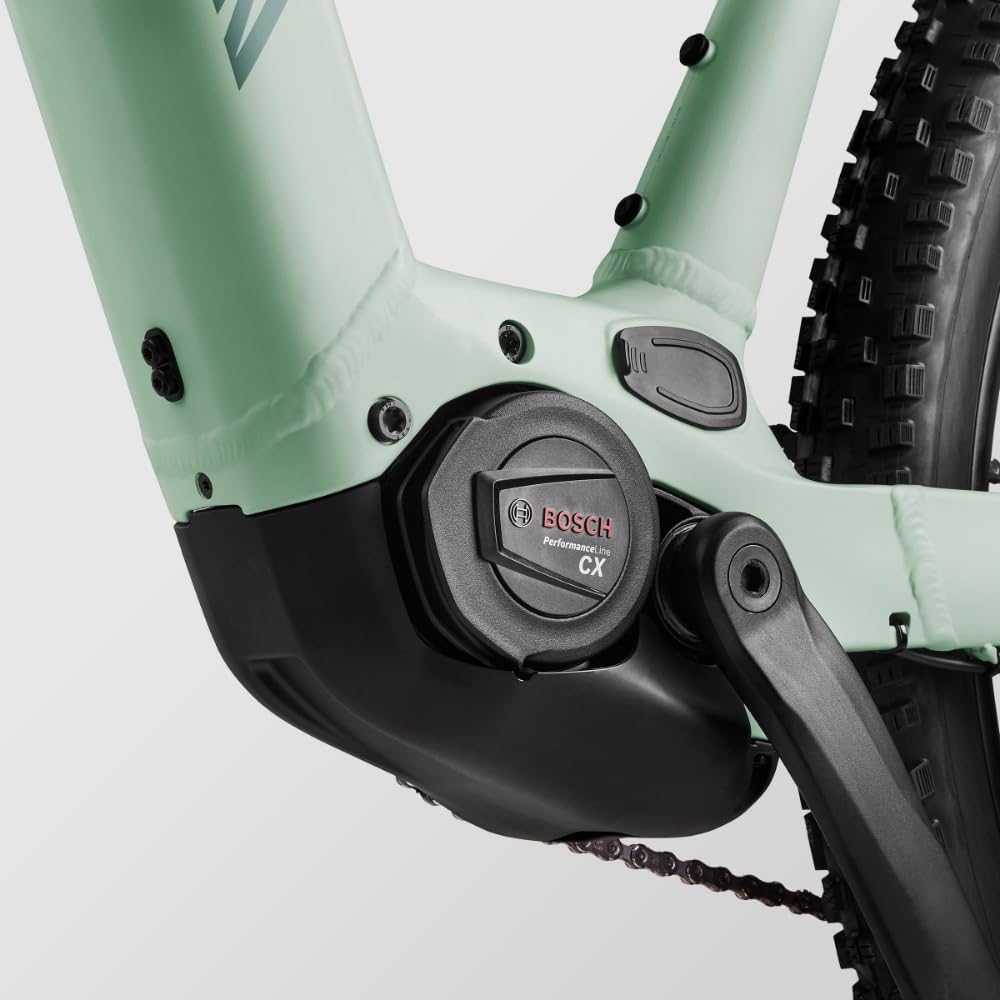

Figura 4.2: Close-up of the Bosch Performance Line CX motor, providing powerful pedal assistance.

Figura 4.3: lateral view of the bike's frame, highlighting the integrated battery and Bosch motor housing.

Figura 4.4: The RockShox Judy Silver suspension fork, offering 120mm of travel for a smooth ride.

Figura 4.5: The Shimano Deore 12-speed rear derailleur and cassette, providing a wide range of gears.

Figura 4.6: Close-up of the SRAM DB 8 hydraulic disc brake caliper and rotor on the front wheel.

Figura 4.7: Detail of the Schwalbe Nobby Nic tire tread, designed for grip on various terrains.

4.1. Components clau

• Motor: Bosch Performance Line CX, 85 Nm torque, providing powerful and natural-feeling pedal assistance.
• Bateria: Integrated 625Wh battery, offering extended range for long rides.
• Tenidor: RockShox Judy Silver, 120mm travel, designed to absorb shocks and maintain control on rough trails.
• Transmissió: Shimano Deore 12-speed, ensuring smooth and reliable shifting across a wide gear range.
• Frens: SRAM DB 8 hydraulic disc brakes, providing consistent and powerful stopping performance in all conditions.
• Rodes: 29-inch, tubeless-ready wheels for improved traction and reduced risk of flats.

5. Instruccions de funcionament

5.1. Bosch eBike System

Your Grand Canyon:ON 7 is equipped with a Bosch eBike system. Refer to the separate Bosch user manual for detailed instructions on the display unit and motor functions. Generally, the system is operated via a control unit on the handlebars and a display unit.

1. Encès/apagat: Press the power button on the display unit or battery to turn the system on or off.
2. Assist Modes: Use the control unit to cycle through assist modes:
   • Ressò: Minimum assistance for maximum range.
   • Tour: Moderate assistance for extended tours.
   • eMTB: Dynamic assistance that adapts to your pedaling power, ideal for varied terrain.
   • Turbo: Maximum assistance for powerful acceleration and steep climbs.
3. Assistència a la marxa: Some Bosch systems include a walk assist function, useful for pushing the bike uphill. Consult your Bosch manual for activation.

5.2. Canvi de marxes

The Shimano Deore 12-speed drivetrain allows you to select the appropriate gear for different speeds and inclines.

• Use the right-hand shifter to change gears on the rear cassette.
• Shift to an easier (larger cog) gear when climbing or starting from a stop.
• Shift to a harder (smaller cog) gear when descending or riding at higher speeds.
• Always pedal lightly when shifting to ensure smooth transitions and prevent damage to the drivetrain.

5.3. Frenatge

The SRAM DB 8 hydraulic disc brakes provide powerful and reliable stopping. Proper braking technique is crucial for safety.

• The right lever controls the rear brake, and the left lever controls the front brake.
• Apply both brakes simultaneously for controlled deceleration and maximum stopping power.
• Avoid sudden, hard braking with only the front brake, especially on loose surfaces, as this can cause the front wheel to lock up and lead to a fall.
• Modulate brake pressure to maintain control, particularly on descents or slippery terrain.

6. Càrrega i cura de la bateria

The integrated 625Wh battery is a key component of your e-bike. Proper charging and care will ensure its longevity and performance.

6.1. Carregant la bateria

1. Locate the charging port on the bike frame.
2. Connect the charger to the charging port, then plug the charger into a standard electrical outlet.
3. The charging indicator on the battery or display will show the charging status.
4. Charge the battery fully before the first ride and whenever the charge level is low.
5. Always use the original Canyon-supplied charger or a Bosch-approved replacement.

6.2. Battery Care Tips

• Emmagatzematge: Store the battery in a cool, dry place, ideally between 10°C and 20°C (50°F and 68°F). Avoid direct sunlight or extreme temperatures.
• Emmagatzematge a llarg termini: If storing the bike for an extended period, charge the battery to 60-80% and check its charge every few months, recharging if necessary.
• Neteja: Clean the battery and contacts with a dry cloth. Do not use high-pressure water or solvents.
• Eviteu les descàrregues profundes: Try to avoid completely draining the battery regularly, as this can reduce its lifespan.

7. Manteniment

Regular maintenance is crucial for the safety, performance, and longevity of your Grand Canyon:ON 7.

7.1. Regular Checks (Before Each Ride)

• Pneumàtics: Check tire pressure and inspect for cuts or wear.
• Frens: Ensure brake levers feel firm and brakes engage effectively. Check disc rotors for damage.
• Quick Releases/Thru-Axles: Confirm all quick releases and thru-axles are securely tightened.
• Bateria: Comproveu el nivell de càrrega de la bateria.
• Perns: Quickly check visible bolts (stem, seatpost, crank arms) for tightness.

7.2. Manteniment periòdic

• Neteja: Clean your bike regularly with mild soap and water. Avoid high-pressure washers directly on bearings or electrical components.
• Lubricació de la cadena: Keep the chain clean and lubricated, especially after riding in wet or dusty conditions.
• Drivetrain Inspection: Inspect chain, cassette, and chainring for wear. Replace worn components to maintain shifting performance.
• Pastilles de fre: Check brake pad wear regularly. Replace pads before they are completely worn down.
• Suspensió: Follow RockShox's recommendations for fork service intervals. Keep stanchions clean.
• Servei professional: Have your bike inspected by a qualified mechanic at least once a year, or more frequently if you ride often or in challenging conditions.

8. Solució De Problemes

This section addresses common issues you might encounter. For complex problems, consult a professional bike mechanic or Canyon support.

• El motor no ajuda:
  • Ensure the battery is charged and properly seated.
  • Check that the e-bike system is powered on.
  • Verify that an assist mode is selected.
  • Check for any error codes on the Bosch display and consult the Bosch manual.
• La bateria no es carrega:
  • Ensure the charger is correctly plugged into both the bike and the wall outlet.
  • Comproveu el funcionament de la presa de corrent.
  • Inspeccioneu el cable de càrrega i el port per si hi ha danys.
• Brakes Squealing or Ineffective:
  • Clean disc rotors and brake pads with a specific disc brake cleaner.
  • Check for contamination (oil, grease) on rotors or pads.
  • Inspect brake pads for wear; replace if necessary.
  • If brakes feel spongy, they may need bleeding by a professional.
• Shifting Issues (Skipping Gears, Slow Shifting):
  • Check if the chain is clean and lubricated.
  • Inspect the derailleur hanger for bends.
  • Adjust derailleur cable tension. For persistent issues, professional adjustment is recommended.

9. Especificacions

Below are the key specifications for the Canyon Grand Canyon:ON 7.

• Tipus de bicicleta: Bicicleta de muntanya elèctrica
• Marca: Canó
• Nom del model: Grand Canyon:ON 7
• Material del marc: Alumini
• Tipus de suspensió: Front (120mm RockShox Judy Silver)
• Mida de la roda: 29 polzades
• Nombre de velocitats: 12
• Estil de fre: Disc (SRAM DB 8)
• Font d'alimentació: Elèctric
• Electric Assist Type: Assistència de pedals
• Motor: Bosch Performance Line CX
• Bateria: 625 Wh (integrated)
• Pes màxim recomanat: 260 lliures
• Muntatge requerit: Yes (95% pre-assembled)
• Components inclosos: Reflectors, tools for assembly

9.1. Component Highlights

Figura 9.1: Detailed table of key components and their specifications.

10. Sizing and Fit

Choosing the correct size is essential for comfort and performance. The Grand Canyon:ON 7 is available in multiple sizes to suit various rider heights.

US Regular

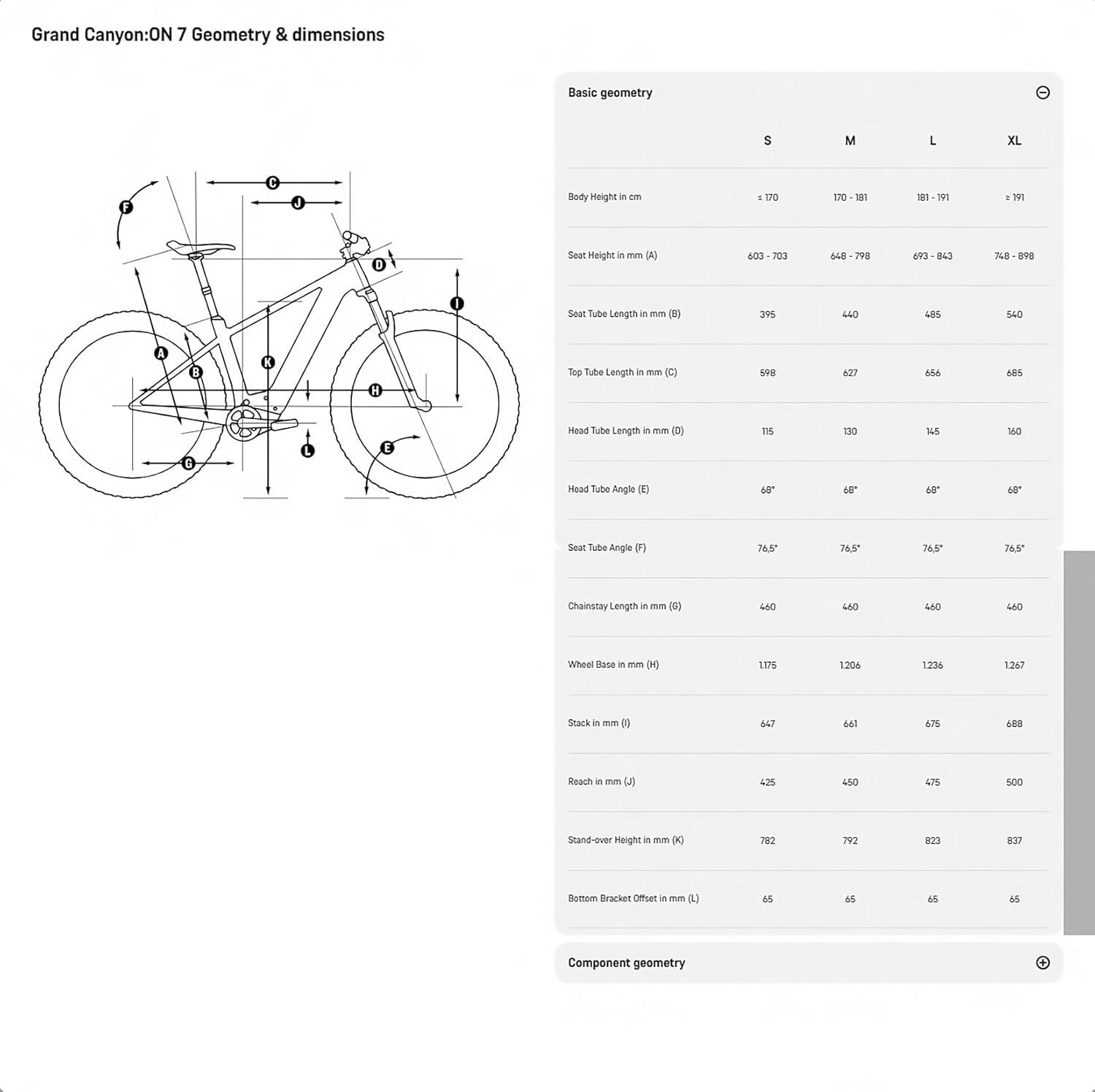

Figura 10.1: Geometry and dimensions diagram for the Grand Canyon:ON 7, illustrating key measurements.

Figura 10.2: Visual size chart for the Grand Canyon:ON 7, correlating rider height and inner leg length to bike size.

11. Garantia i Suport

Canyon is committed to providing quality products and support.

• Canyon Warranty: Your Canyon Grand Canyon:ON 7 comes with a 6-year warranty on Canyon engineered components.
• Garanties dels components: All other components (e.g., Bosch motor, RockShox fork, Shimano drivetrain, SRAM brakes) are covered by their respective manufacturers' warranty policies.
• Política de devolució: A 30-day return policy is available for your purchase. Please refer to your purchase documentation for specific return instructions.
• Atenció al client: For warranty claims, technical assistance, or general inquiries, please refer to the contact information provided with your purchase or visit the official Canyon weblloc.
