Cecotec Bolero Dresscode Dry 10500 Inverter Heat Pump Dryer

Introducció

This manual provides essential information for the safe and efficient operation, installation, and maintenance of your Cecotec Bolero Dresscode Dry 10500 Inverter Heat Pump Dryer. Please read these instructions thoroughly before using the appliance and retain them for future reference.

Informació de seguretat

Seguiu sempre les següents pautes de seguretat per evitar lesions o danys a l'aparell:

• Ensure the dryer is installed on a stable, level surface in a well-ventilated area.
• No bloquejar les obertures de ventilació.
• Connecteu l'aparell a una presa de corrent amb connexió a terra.
• No assequeu articles que s'hagin embrutat amb substàncies inflamables.
• Regularly clean the lint filter to maintain efficiency and prevent fire hazards.
• Mantingueu els nens i les mascotes lluny de l'aparell durant el funcionament.
• Unplug the dryer before performing any maintenance or cleaning.

Producte acabatview

The Cecotec Bolero Dresscode Dry 10500 Inverter is a 10 kg capacity heat pump dryer designed for efficient and gentle garment care. It features an Inverter Motor Plus for quiet and durable operation, along with advanced functions for optimal drying results.

Característiques principals:

• Capacitat de 10 kg: Suitable for large laundry loads.
• Tecnologia de la bomba de calor: Energy-efficient and gentle drying.
• Inverter Motor Plus: Ensures quiet, long-lasting, and energy-efficient performance.
• 14 programes d'assecat: Versatile options for various fabric types and moisture levels.
• Woolmark Certification: Provides optimal care for wool garments.
• UV Care Feature: Uses ultraviolet light to sterilize clothes during drying, reducing bacteria.
• Light Ironing Function: Reduces wrinkles, simplifying the ironing process.
• Mode de confort: Ultra-quiet operation for minimal disturbance.
• Funció d'inici retardat: Program the drying cycle to start at a convenient time.
• My Fav Function: Save and quickly access your preferred drying program.
• KidLock Function: Prevents accidental program changes by children.
• Eficiència energètica: Rated A+++ (old scale) / C (new scale) for reduced power consumption.

Dimensions i pes:

Refer to the image below for the physical dimensions of the dryer.

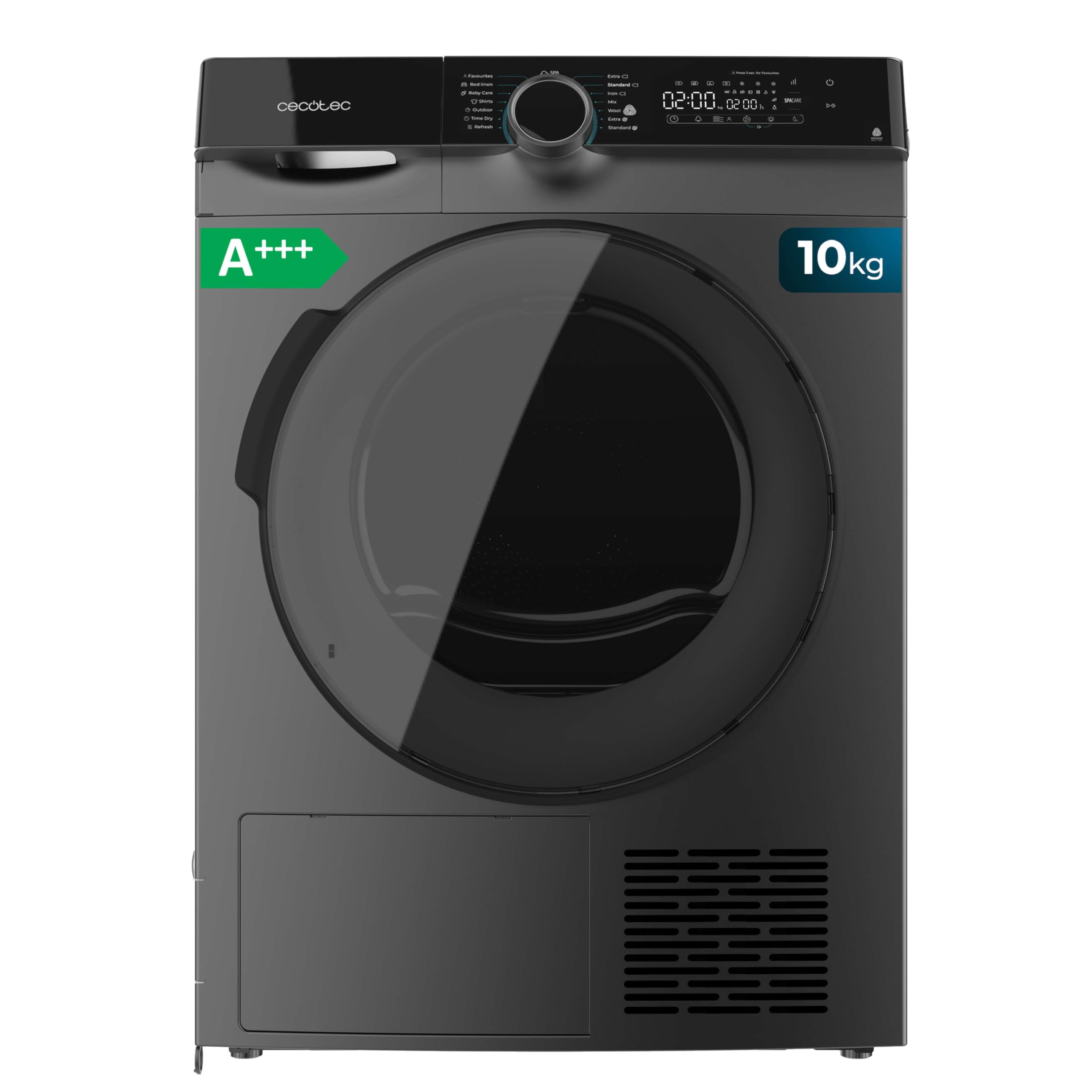

Imatge: Anvers view of the Cecotec Bolero Dresscode Dry 10500 Inverter dryer, illustrating its dimensions: Height 85 cm, Width 60 cm, Depth 68 cm.

• Alçada: 85 cm
• Amplada: 60 cm
• Profunditat: 68 cm
• Pes: 47.75 kg

Tauler de control:

The control panel allows you to select programs and activate various functions. Familiarize yourself with the dial and buttons for optimal use.

Image: A user's hand adjusting the program selection dial on the dryer's control panel, showing various program options and digital display.

Configuració i instal·lació

1. Desembalatge

Carefully remove all packaging materials. Inspect the dryer for any transit damage. Keep packaging materials away from children.

2. Col·locació

Place the dryer on a firm, level floor. Ensure there is adequate space around the appliance for ventilation. Do not install the dryer in areas prone to freezing temperatures or excessive humidity. Adjust the leveling feet to ensure stability.

3. Connexió elèctrica

Connect the dryer to a dedicated, grounded electrical outlet that matches the voltage and current requirements specified on the appliance's rating label. Do not use extension cords or adapters.

Instruccions de funcionament

1. Càrrega de la bugaderia

Open the dryer door and load your laundry. Do not overload the dryer; ensure clothes can tumble freely. For best results, sort laundry by fabric type and drying requirements.

Image: A man carefully placing folded laundry into the open drum of the Cecotec dryer.

2. Selecció del programa

Turn the program selection dial to choose one of the 14 available drying programs. The display will show the estimated drying time. Consult the program guide in the full manual for detailed descriptions of each program.

3. Funcions especials

• UV Care: Activate this function for enhanced sterilization of garments using UV light during the drying cycle. This helps eliminate bacteria and ensures thorough cleaning.


Image: A teddy bear and soft blanket inside the dryer drum, with an overlay graphic indicating UV sterilization against germs.

• Light Ironing: Seleccioneu aquesta opció per reduir la creasing and make ironing easier after the drying cycle.
• Comfort Mode (Silence): For ultra-quiet operation, activate Comfort Mode. This is ideal for running the dryer during night hours or in environments where noise reduction is critical.


Image: A Cecotec dryer operating in a quiet setting, with a cat sleeping undisturbed in a pet bed nearby, highlighting the Comfort Mode.

• Inici retardat: Use this function to set a delayed start time for your drying cycle, allowing your laundry to be ready when you need it.
• My Fav: After selecting your preferred program and options, use the My Fav function to save these settings for quick access in future cycles.

Image: A user interacting with the dryer's control panel, specifically selecting the 'My Fav' (My Favorites) program option.

4. KidLock Function

To prevent accidental changes to the drying program by children, activate the KidLock function. Refer to the full manual for specific instructions on how to engage and disengage this safety feature.

Manteniment

Un manteniment regular garanteix un rendiment òptim i allarga la vida útil de l'assecadora.

1. Neteja del filtre de pelusa

Clean the lint filter after every drying cycle. Pull out the filter, remove accumulated lint, and rinse if necessary. A clogged lint filter reduces drying efficiency and can be a fire hazard.

2. Buidatge del dipòsit d'aigua

The heat pump dryer collects condensed water in a removable tank. Empty this tank after each cycle. If the tank is full, the dryer will pause operation.

3. Neteja del condensador

Periodically clean the condenser unit as instructed in the full manual. This typically involves removing the condenser cover and gently cleaning any accumulated lint or debris.

4. Neteja exterior

Netegeu les superfícies exteriors de l'assecadora amb un drap suau i sec.amp tela. No utilitzeu netejadors abrasius ni dissolvents.

Resolució de problemes

If you encounter issues with your dryer, refer to the following common solutions before contacting customer service:

• L'assecadora no arrenca: Check if the power cord is securely plugged in, the door is fully closed, and the program is selected.
• La roba no s'asseca correctament: Ensure the lint filter is clean, the water tank is empty, and the load size is appropriate for the selected program.
• Soroll inusual: Check for foreign objects in the drum or filter area. Ensure the dryer is level.
• Codis d'error: Consult the comprehensive troubleshooting section in the full user manual for specific error code meanings and solutions.

Especificacions

Informació sobre l'etiqueta energètica:

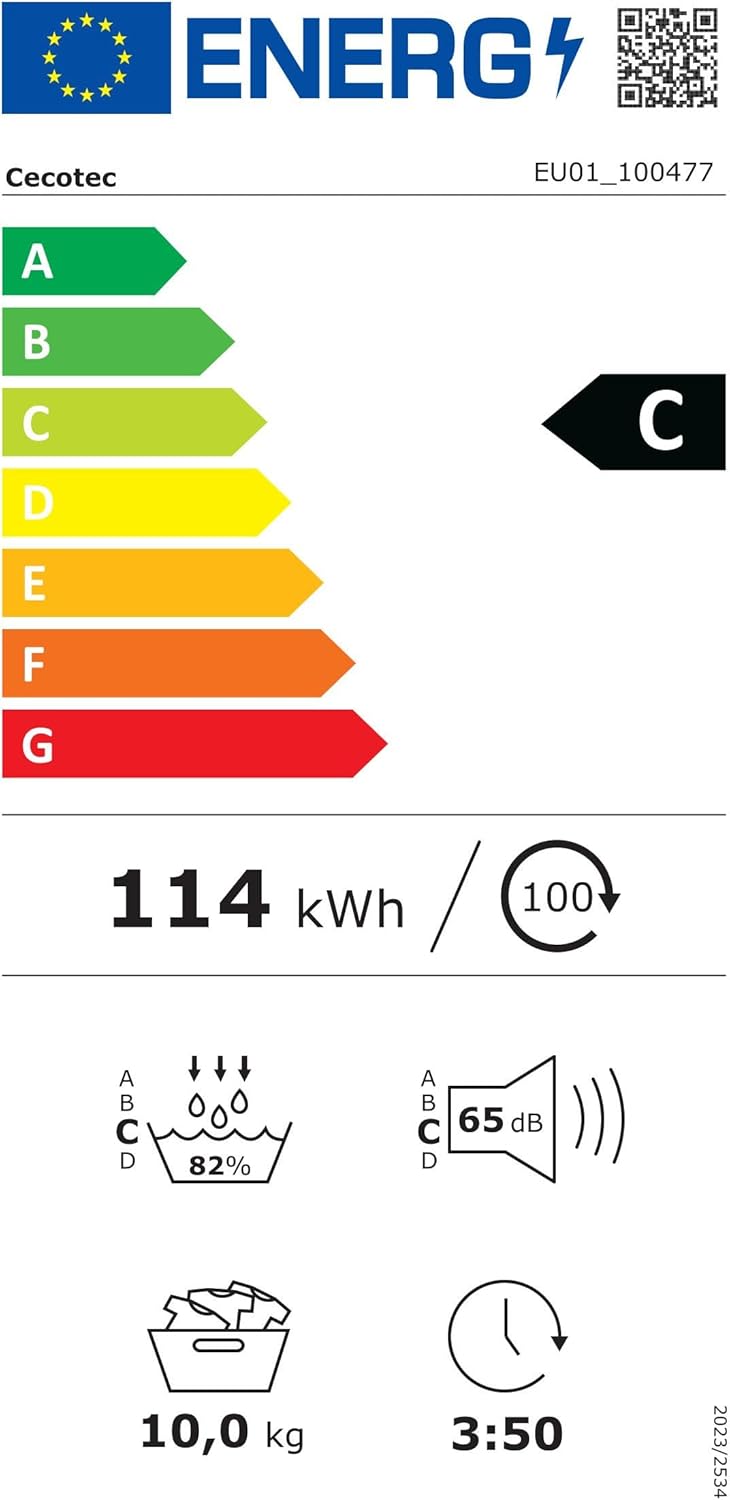

Image: The EU Energy Label for the Cecotec dryer, indicating its energy efficiency class C, annual energy consumption, capacity, noise level, and program duration.

For detailed energy information, visit the Base de dades EPREL.

Garantia i Suport

Your Cecotec Bolero Dresscode Dry 10500 Inverter Heat Pump Dryer comes with a standard manufacturer's warranty. Please refer to the warranty card included with your purchase for specific terms and conditions, including coverage duration and claim procedures.

For technical support, spare parts, or service inquiries, please contact Cecotec customer service through their official weblloc web o la informació de contacte que es proporciona a la documentació del producte.
