Run Bison 18W LED Emergency Driver Instruction Manual

1. Introducció

The Run Bison 18W LED Emergency Driver is designed to provide emergency illumination for LED light fixtures during a power outage. This driver ensures a minimum of 90 minutes of illumination, making it suitable for various commercial lighting applications. It is UL listed, ensuring compliance with safety standards.

This emergency driver is compatible with LED commercial lights with an input power between 10W and 150W that feature a 0-10V dimming function. It also supports 10W-16W LED lights without a 0-10V dimming function. The unit includes a test switch/pilot light for monitoring system operation.

2. Informació de seguretat

Llegiu atentament totes les instruccions abans de la instal·lació i l'ús. Si no seguiu aquestes instruccions, podeu patir descàrregues elèctriques, incendis o altres perills.

• La instal·lació ha de ser realitzada per un electricista qualificat d'acord amb les normes elèctriques nacionals i locals.
• Assegureu-vos que l'alimentació estigui desconnectada a l'interruptor automàtic abans de la instal·lació o el manteniment.
• Do not use this device with incompatible lighting fixtures or outside its specified voltage gamma.
• The emergency driver contains a rechargeable battery. Do not expose to fire or extreme temperatures.
• Eliminar les bateries correctament d'acord amb la normativa local.

3. Contingut del paquet

Verifiqueu que tots els components siguin presents abans de començar la instal·lació:

• Controlador de còpia de seguretat d'emergència LED
• Installation accessories (e.g., test switch/pilot light, wiring connectors)

4. Especificacions

5. Configuració i instal·lació

Before installation, ensure the main power supply to the fixture is turned off at the circuit breaker.

5.1 Producte acabatview

Image: The 18W LED Emergency Driver unit, highlighting its key features such as 24+ hours charging time, 90 minutes backup, 18W output power, 120mA max input current, 100-277V compatibility, and 0-10V dimming capability.

5.2 Dimensions

Image: A diagram showing the physical dimensions of the emergency LED driver (13.6 inches long, 1.6 inches wide, 1 inch high) and the separate LED indicator test switch.

5.3 Esquema de cablejat

Image: A detailed wiring diagram illustrating connections for the emergency LED driver, normal LED driver, LED module, dimmer, and test switch. It shows AC line (red), Neutral (white), AC line switch (black), Ground (green), Dimmer (purple/pink), and connections to the emergency driver (gray/orange) and normal LED driver (brown/blue).

1. Connecteu l'alimentació de CA: Connect the AC line (red wire) and Neutral (white wire) from the building's power supply to the corresponding inputs on the emergency driver.
2. Connect to AC Line Switch: Connect the AC line switch (black wire) to the designated input on the emergency driver.
3. Connexió a terra: Ensure the ground wire (green wire) is properly connected to a suitable ground.
4. Connexions del regulador (si escau): If using a 0-10V dimmable fixture, connect the dimmer's purple (+) and pink (-) wires to the corresponding Dim+ and Dim- terminals on the emergency driver.
5. Connect to LED Module: Connect the emergency driver's output wires (gray and orange) to the LED module. Ensure correct polarity.
6. Connect to Normal LED Driver: Connect the emergency driver to the normal LED driver using the brown (L) and blue (N) wires as indicated.
7. Install Test Switch/Pilot Light: Mount the test switch/pilot light in an accessible location and connect its wires to the emergency driver as per the diagram.

5.4 Compatible Lighting Fixtures

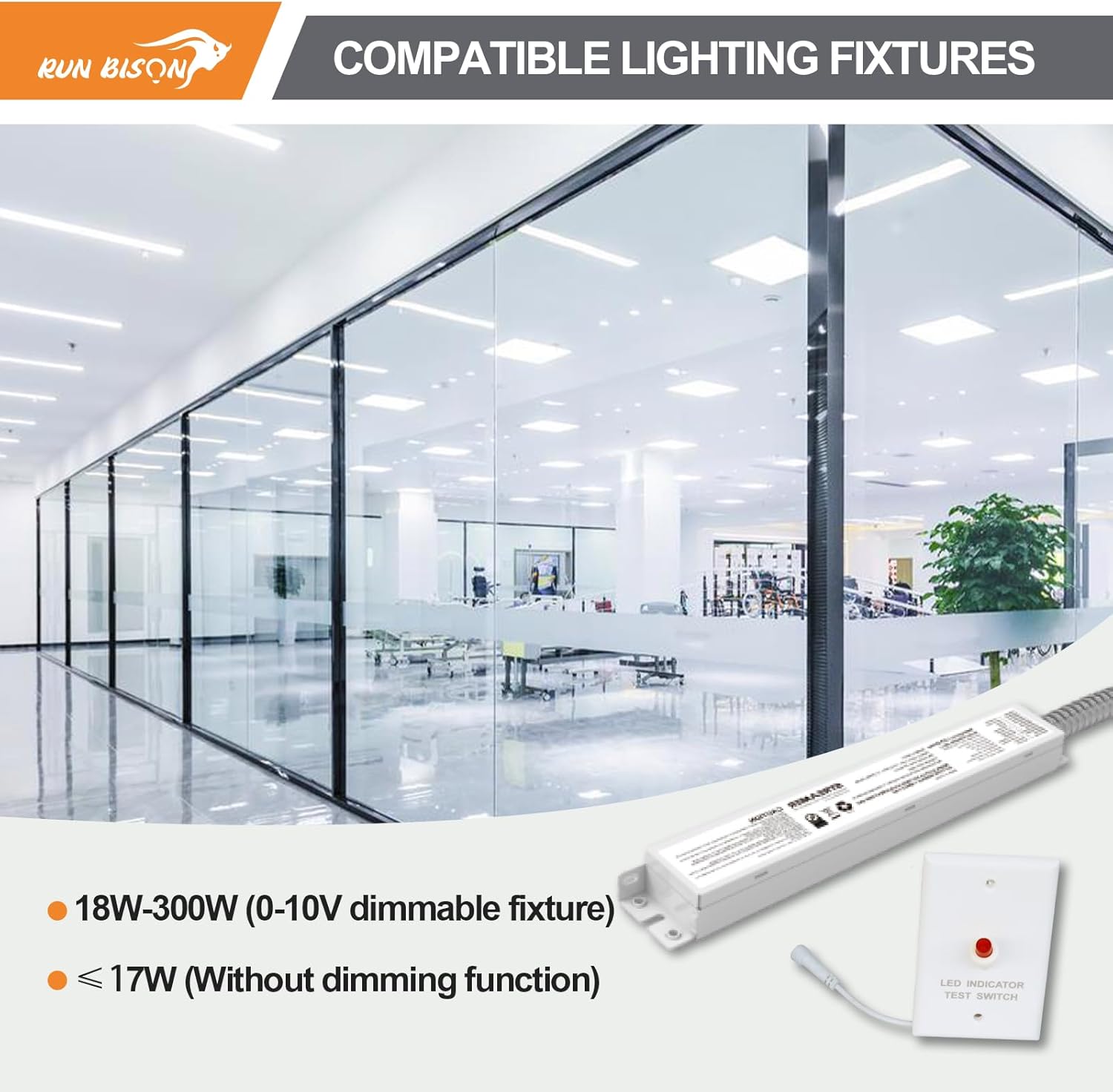

Image: The emergency LED driver shown alongside various commercial lighting fixtures, indicating compatibility with 18W-300W (0-10V dimmable fixtures) and ≤17W (without dimming function) LED lights.

5.5 Aplicació Examples

Image: A collage of commercial environments demonstrating the wide application of the emergency LED driver with different light types, including LED Panel Light, LED High Bay Light, LED Troffer Light, and LED Wrap Light.

6. Instruccions de funcionament

6.1 Funcionament normal

When AC power is present, the emergency driver charges its internal battery. The pilot light on the test switch will illuminate, indicating that the battery is charging and the system is ready for emergency operation.

6.2 Mode d'emergència

Upon loss of normal AC power, the emergency driver automatically switches to emergency mode, providing power to the connected LED fixture for over 90 minutes. The pilot light on the test switch will typically turn off or change color to indicate emergency operation.

6.3 Rest Mode

To conserve battery life during storage or extended periods without AC power, the emergency driver can be put into 'Rest Mode'. Press and hold the test switch for more than 3 seconds while in emergency mode to activate this feature. In rest mode, the leakage current is significantly reduced, extending the battery's storage time.

6.4 Testing the System

Press the test switch briefly to simulate a power outage and verify that the emergency lighting system is functioning correctly. The connected LED fixture should illuminate in emergency mode. Release the button to return to normal operation.

7. Manteniment

Regular maintenance ensures the longevity and reliability of your emergency LED driver.

• Càrrec inicial: Allow the unit to charge for at least 24 hours after initial installation to ensure the battery is fully charged and ready for emergency use.
• Prova mensual: Conduct a monthly 30-second test using the test switch to ensure the emergency function is operational.
• Proves anuals: Perform an annual 90-minute discharge test. Disconnect AC power to the unit and allow it to operate in emergency mode for the full 90 minutes. Reconnect AC power and allow the battery to recharge for 24 hours.
• Substitució de la bateria: The internal battery is designed for a long life, but its capacity will diminish over time. If the unit fails to provide 90 minutes of emergency illumination during the annual test, the battery may need replacement. Contact a qualified technician for service.
• Neteja: Keep the unit clean and free from dust. Use a dry cloth for cleaning. Do not use liquid cleaners.

8. Solució De Problemes

If you encounter issues with your emergency LED driver, refer to the following common problems and solutions:

Si els passos de resolució de problemes no resolen el problema, poseu-vos en contacte amb l'atenció al client.

9. Garantia i Suport

9.1 Garantia

This Run Bison LED Emergency Driver is covered by a Garantia del fabricant de 5 anys from the date of purchase. This warranty covers defects in materials and workmanship under normal use. It does not cover damage caused by improper installation, misuse, abuse, or acts of nature.

9.2 Atenció al client

For technical assistance, warranty claims, or any questions regarding your Run Bison LED Emergency Driver, please contact Run Bison customer support. Refer to your purchase documentation or the manufacturer's weblloc per obtenir informació de contacte.
