Pagani Design PD1671 Men's Automatic Watch Instruction Manual

1. Introducció

Thank you for choosing the Pagani Design PD1671 Men's Automatic Watch. This manual provides essential information for the proper setup, operation, and maintenance of your timepiece. Please read these instructions carefully to ensure optimal performance and longevity of your watch.

Imatge 1.1: Frontal view of the Pagani Design PD1671 automatic watch, showcasing its black dial, stainless steel case, and bracelet.

2. Producte acabatview

The Pagani Design PD1671 is an automatic mechanical watch featuring a Japan NH35 movement, sapphire glass, and a stainless steel construction. It is designed for durability and precision.

Components clau:

• Cas: The main body of the watch, made from stainless steel.
• Corona: Located on the side of the case, used for winding and setting time/date.
• Bisell: A rotating ring on the top of the case, typically used for timing.
• Marca: The watch face displaying time markers and hands.
• Mans: Agulles d'hores, minuts i segons per a la indicació de l'hora.
• Strap/Bracelet: Stainless steel bracelet for securing the watch to the wrist.
• Fons de la caixa: The rear cover of the watch, often transparent to display the movement.

Imatge 2.1: View of the watch's transparent case back, revealing the intricate automatic mechanical movement.

3. Configuració

3.1 Enrotllament inicial

Your Pagani Design PD1671 watch is equipped with an automatic mechanical movement. Before initial use or if the watch has stopped, it needs to be manually wound. To do this:

1. Assegureu-vos que la corona estigui a la posició 0 (completament empenta cap a dins).
2. Rotate the crown clockwise approximately 30-40 times. This will build up a power reserve to start the watch.
3. The watch will begin to run. Subsequent wrist movement will keep the watch wound.

3.2 Configuració de l'hora

Per establir l'hora correcta:

1. Estireu la corona fins a la posició 2 (la posició més externa). La maneta dels segons s'aturarà.
2. Rotate the crown to move the hour and minute hands clockwise until the desired time is set. To avoid confusion between AM/PM for the date change, it is recommended to set the time past 12 AM/PM to observe when the date changes.
3. Once the time is set, push the crown back to position 0. The second hand will resume movement.

3.3 Configuració de la data

To set the correct date:

1. Estireu la corona fins a la posició 1 (la posició central).
2. Rotate the crown counter-clockwise to adjust the date. Avoid setting the date between 9 PM and 3 AM, as this is when the date change mechanism is engaged and could be damaged.
3. Un cop configurada la data, torneu a prémer la corona a la posició 0.

Image 3.1: Detail of the watch crown, used for winding and setting the time and date.

3.4 Ajust del braçalet

The stainless steel bracelet can be adjusted to fit your wrist. This typically involves removing or adding links. For proper fit and to avoid damage, it is recommended to have this adjustment performed by a qualified watchmaker or jeweler.

4. Funcionament del rellotge

4.1 Moviment automàtic

Your watch is powered by an automatic mechanical movement, which winds itself through the natural motion of your wrist. When fully wound, it has a power reserve of approximately 41 hours. If the watch is not worn for an extended period, it may stop and will need to be manually wound as described in Section 3.1.

4.2 Resistència a l'aigua

The Pagani Design PD1671 watch is water-resistant to 100 meters (10 ATM). This rating makes it suitable for swimming, snorkeling, and showering. However, it is not suitable for scuba diving. Always ensure the crown is fully pushed in before exposing the watch to water. Do not operate the crown while the watch is wet or submerged.

4.3 Rotating Bezel

The unidirectional rotating bezel can be used to measure elapsed time. Align the triangle marker on the bezel with the minute hand at the start of an event. The minute hand's position relative to the bezel's markings will then indicate the elapsed time.

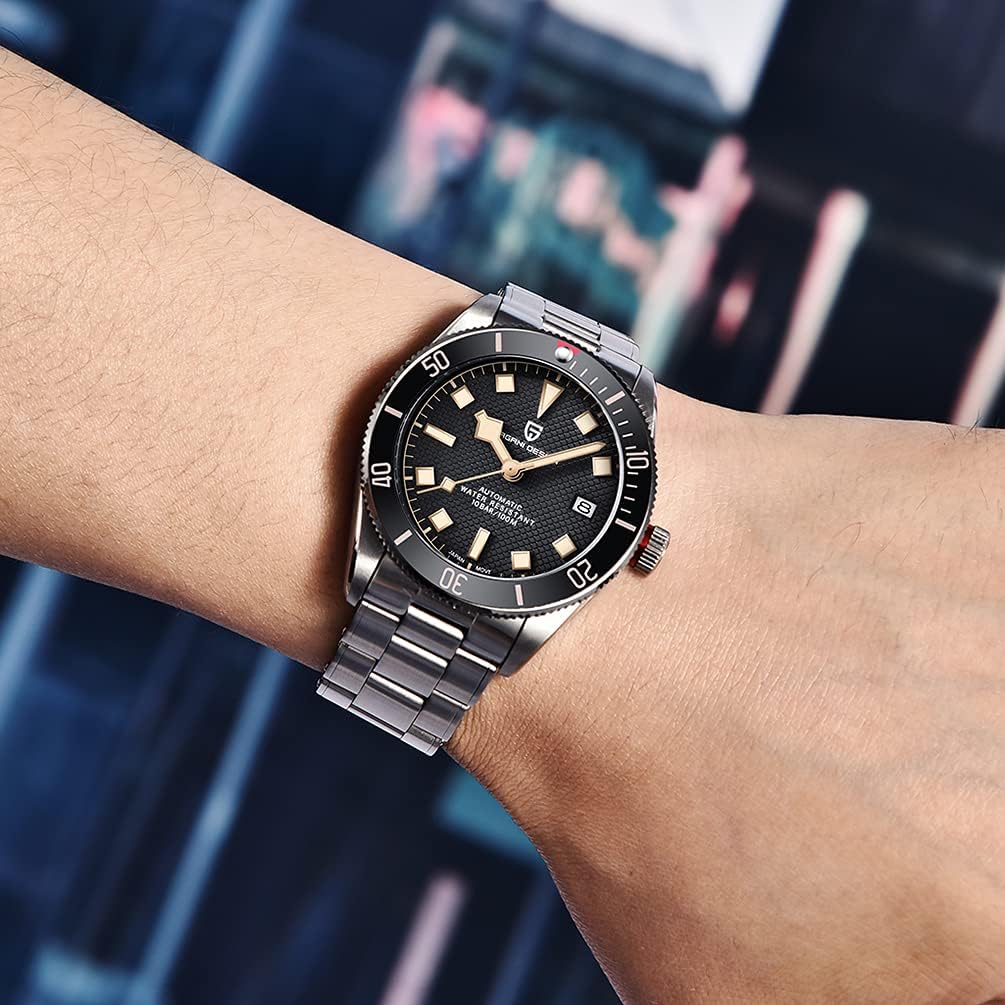

Image 4.1: The Pagani Design PD1671 watch worn on a wrist, demonstrating its fit and appearance.

5. Manteniment

5.1 Neteja

Per mantenir l'aspecte del rellotge:

• Wipe the case and sapphire glass with a soft, dry cloth.
• For the stainless steel bracelet, use a soft brush and mild soapy water to remove dirt, then rinse thoroughly with clean water and dry completely.
• Eviteu utilitzar productes químics agressius o materials abrasius, ja que poden danyar l'acabat del rellotge.

5.2 Emmagatzematge

When not wearing your watch, store it in a cool, dry place away from direct sunlight, extreme temperatures, and strong magnetic fields. A watch box or pouch is ideal for protection.

5.3 Professional Service

Like all mechanical timepieces, your watch requires periodic professional servicing to ensure its accuracy and longevity. It is recommended to have your watch serviced every 3-5 years by a qualified watch technician.

6. Solució De Problemes

6.1 El rellotge no funciona o s'atura amb freqüència

• Reserva d'energia insuficient: Manually wind the watch by rotating the crown clockwise 30-40 times (crown in position 0). Wear the watch regularly to keep it wound.
• Manca de moviment: Automatic watches require wrist movement. If you have a sedentary lifestyle, manual winding may be needed more often, or consider a watch winder.

6.2 Date Not Changing at Midnight

• The watch might be set to PM when it should be AM, or vice-versa. Advance the time by 12 hours to correct the AM/PM cycle.
• Assegureu-vos que la corona estigui completament empenta després de configurar la data.

6.3 Condensation Under the Crystal

• Small amounts of condensation that disappear quickly are usually not a concern.
• If condensation persists or appears as large droplets, it indicates moisture ingress. Immediately take the watch to a professional for inspection and repair to prevent damage to the movement.

7. Especificacions

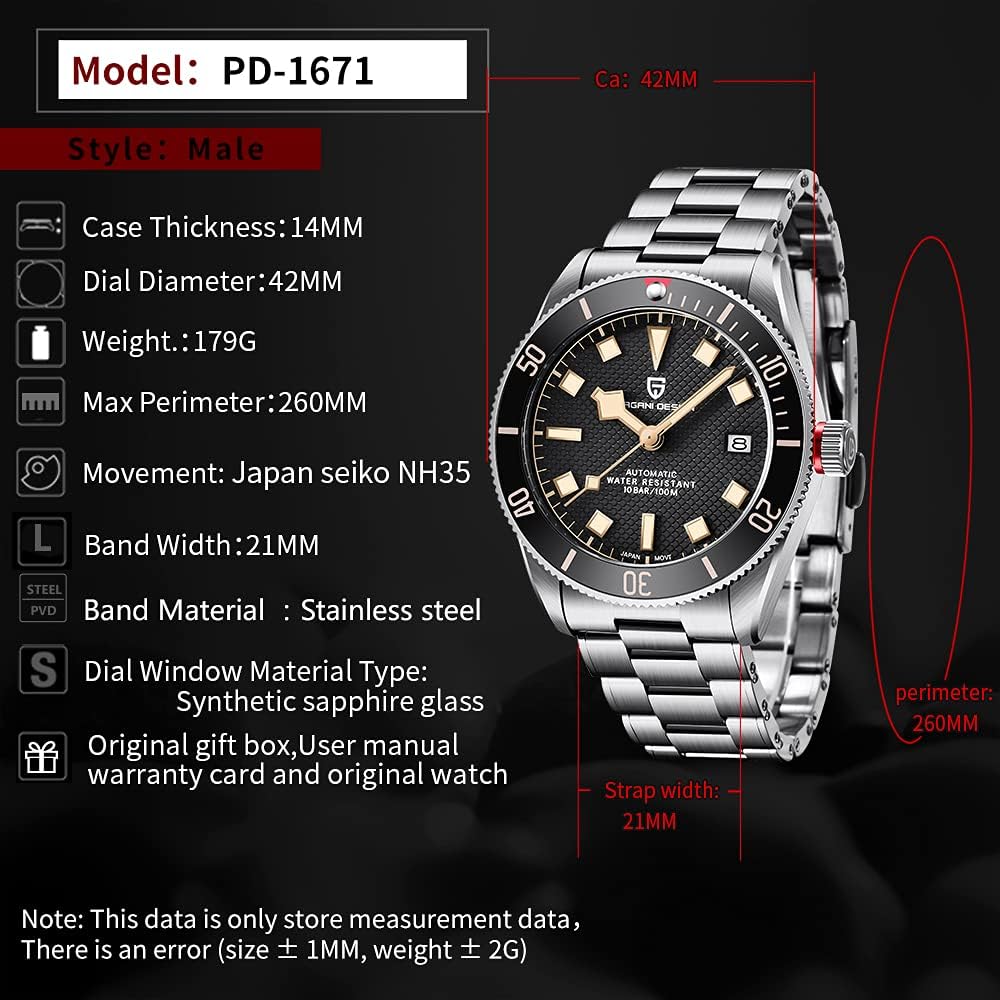

Image 7.1: Visual representation of the watch's dimensions and key features.

8. Garantia i assistència

Your Pagani Design PD1671 watch comes with a Garantia de servei postvenda de 12 mesos des de la data de compra, que cobreix els defectes de fabricació. A més, Política de reemborsament de 30 dies is available for returns without reason.

For any questions, concerns, or warranty claims regarding your watch, please contact the seller or authorized service center. Please retain your proof of purchase for warranty validation.
