1. Producte acabatview
The Phomemo M834 is a portable wireless thermal printer designed for convenient printing on the go. It offers high-resolution 300 dpi printing without the need for ink, toner, or ribbons, utilizing thermal technology. This printer supports various paper sizes and types, and connects via Bluetooth to smartphones or USB to PCs, making it compatible with a wide range of operating systems.

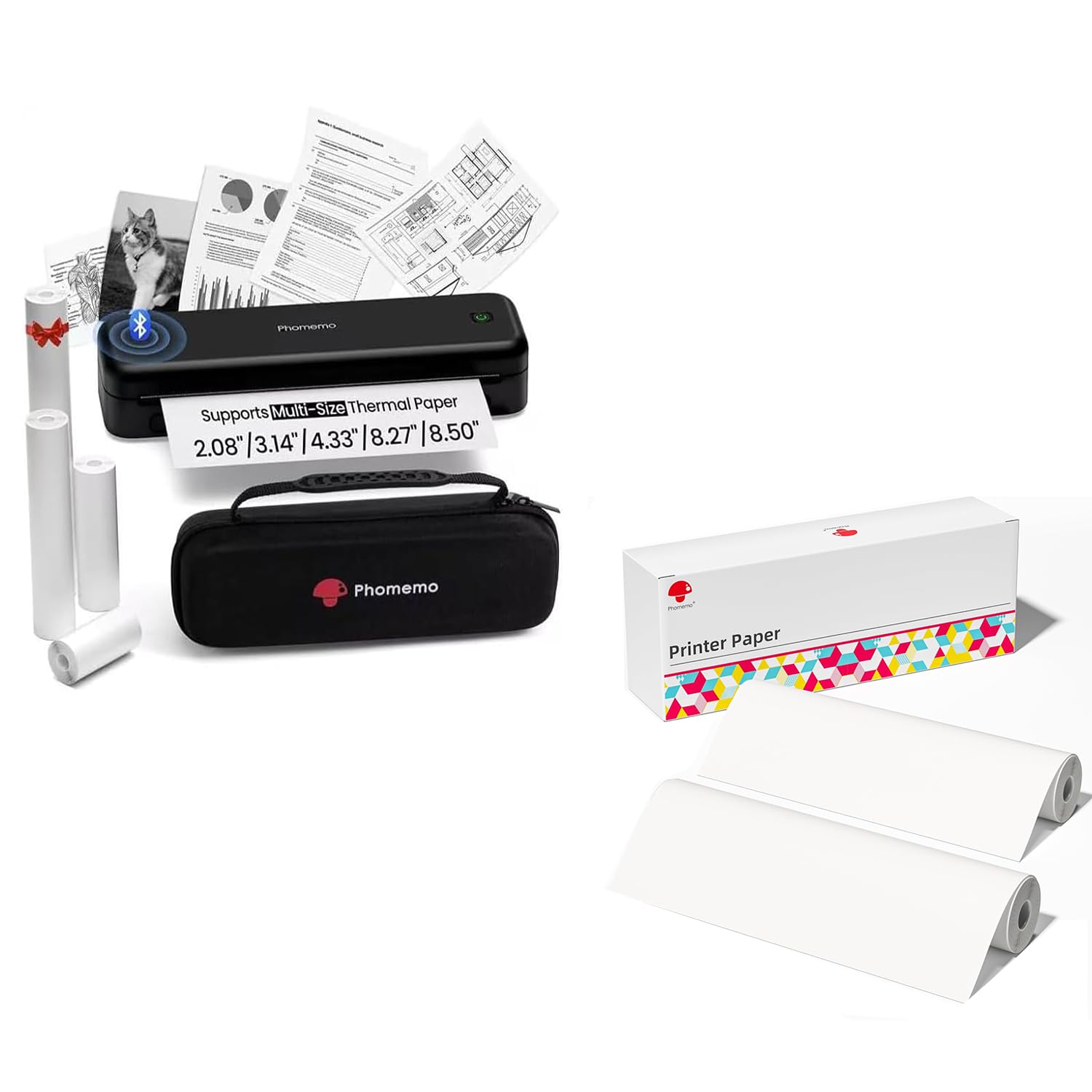

Image 1.1: Phomemo M834 Portable Printer with included accessories and supported paper sizes.
Característiques principals:
- Enhanced Print Clarity: 300 dpi resolution for sharp, clear documents.
- Versatile Paper Support: Compatible with US Letter, A4, 4.33'', 3.14'', 2.08'' paper sizes, including roll, fold, and ordinary thermal paper.
- Durada de la bateria ampliada: Equipped with a 2600mAh rechargeable battery, capable of printing over 160 pages continuously.
- Àmplia compatibilitat de dispositius: Supports Bluetooth connection for Android/iOS and USB connection for Windows 10/11, Linux, ChromeOS, and macOS.
- Tecnologia sense tinta: Uses thermal printing, eliminating the need for ink cartridges, toner, or ribbons.
2. Guia de configuració
2.1 What's in the Package
Before you begin, ensure all components are present in your package:
Image 2.1: Contents of the Phomemo M834 package, including the printer, various thermal paper rolls, a user guide, a USB-C cable, and a USB-C to USB adapter.
- Phomemo M834 Portable Printer
- Thermal Paper Roll(s) (various widths)
- Estoig de la impressora
- Guia d'usuari
- Cable USB-C
- Adaptador USB-C a USB
2.2 Càrrega de la impressora
The printer comes with a built-in 2600mAh rechargeable battery. For optimal performance, fully charge the printer before first use.
- Connect the provided USB-C cable to the printer's charging port.
- Connecteu l'altre extrem del cable USB-C a un adaptador de corrent USB (no inclòs) o al port USB d'un ordinador.
- The indicator light will show charging status (refer to the LED indicator section in the user guide for details).
- Una càrrega completa sol trigar aproximadament 3-4 hores.
Image 2.2: The Phomemo M834 features a 2600mAh large capacity battery, supporting fast charging via USB-C and enabling over 160 sheets of continuous printing.
2.3 Càrrega de paper tèrmic
The Phomemo M834 supports various types and sizes of thermal paper. Only use thermal paper with this printer. Regular copy paper is not compatible.
Image 2.3: The Phomemo M834 supports 5 different sizes (2.08", 3.14", 4.33", A4, US Letter) and 4 types of thermal paper, including single sheets, continuous folding paper, inner roll paper, and stickers.
- Open the printer's paper cover.
- Insert the thermal paper roll or stack, ensuring the printable side (usually smoother) is facing the print head. For roll paper, ensure it feeds smoothly from the bottom.
- Adjust the paper guides to fit the width of your paper snugly, but without creasing això.
- Tanqueu la coberta del paper de manera segura.
Imatge 2.4: Ex.ample of Phomemo thermal printer paper rolls.
2.4 Connexió al dispositiu
The Phomemo M834 offers both Bluetooth and USB connectivity.
Image 2.5: The Phomemo M834 printer demonstrates multiple system compatibility, connecting via Bluetooth to iOS, Android, and tablets, and via USB to Windows, macOS, Chrome OS, and Linux.
2.4.1 Bluetooth Connection (for Smartphones/Tablets)
- Assegureu-vos que la impressora estigui engegada.
- Activeu el Bluetooth al telèfon intel·ligent o a la tauleta.
- Download and install the Phomemo app from your device's app store.
- Open the Phomemo app and follow the in-app instructions to search for and connect to your M834 printer.
2.4.2 USB Connection (for PCs)
- Assegureu-vos que la impressora estigui engegada.
- Connect the printer to your PC using the provided USB-C cable and adapter if necessary.
- Install the appropriate printer drivers for your operating system (Windows, macOS, Linux, ChromeOS). Drivers can typically be found on the official Phomemo weblloc.
- Un cop instal·lats els controladors, la impressora hauria d'aparèixer a la llista d'impressores del sistema.
3. Instruccions de funcionament
3.1 Encès/Apagat
- Per encendre: Premeu i manteniu premut el botó d'engegada fins que s'il·lumini l'indicador lluminós.
- Per apagar: Premeu i manteniu premut el botó d'engegada fins que l'indicador lluminós s'apagui.
3.2 Printing from the Phomemo App (Bluetooth)
- Ensure your printer is connected via Bluetooth to your smartphone/tablet.
- Obriu l'aplicació Phomemo.
- Select the document, image, or text you wish to print within the app.
- Adjust print settings (e.g., number of copies, density) as needed.
- Tap the print button to initiate printing.
3.3 Printing from a PC (USB)
- Ensure your printer is connected via USB to your PC and drivers are installed.
- Obriu el document o file you wish to print (e.g., Word, PDF, Excel, image).
- Anar a 'File' > 'Print' (or use the print shortcut Ctrl+P/Cmd+P).
- Select 'Phomemo M834' from the list of available printers.
- Adjust print settings as required (e.g., paper size, orientation).
- Feu clic a "Imprimeix".
Image 3.1: The Phomemo M834 delivers high-definition printouts with 300 DPI, resulting in significantly clearer text and images compared to standard 203 DPI printers.
4. Manteniment
4.1 Neteja del capçal d'impressió
La neteja regular del capçal d'impressió garanteix una qualitat d'impressió òptima i allarga la vida útil de la impressora.
- Ensure the printer is powered off and disconnected from any power source.
- Obriu la coberta del paper.
- Gently wipe the print head (the dark strip inside the printer) with a cotton swab lightly dampamb alcohol isopropílic.
- Deixeu que el capçal d'impressió s'assequi completament abans de tancar la tapa i engegar la impressora.
4.2 Cura de la bateria
- Eviteu descarregar completament la bateria amb freqüència.
- If storing the printer for an extended period, charge it to about 50-70% and recharge every few months to prevent deep discharge.
- Feu servir només el cable USB-C proporcionat per carregar.
4.3 Manipulació del paper
- Always use high-quality thermal paper to prevent damage to the print head and ensure clear prints.
- Store thermal paper in a cool, dry place away from direct sunlight and heat to preserve its printability.
- Do not use wrinkled or damaged paper.
5. Solució De Problemes
Si teniu problemes amb la impressora Phomemo M834, consulteu els problemes i solucions més comuns següents:
| Problema | Causa possible | Solució |
|---|---|---|
| La impressora no s'encén | Bateria baixa; el botó d'engegada no s'ha premut correctament | Charge the printer; Press and hold the power button for a few seconds. |
| Poor print quality (faint, streaky) | Print head dirty; Low battery; Poor quality thermal paper | Clean the print head (Section 4.1); Charge the printer; Use high-quality thermal paper. |
| No es pot connectar mitjançant Bluetooth | Bluetooth off on device; Printer not in pairing mode; App issue | Ensure Bluetooth is enabled; Restart printer and device; Reinstall Phomemo app. |
| Cannot print from PC via USB | Drivers not installed; Loose USB connection; Incorrect printer selected | Install/reinstall printer drivers; Check USB cable connection; Select 'Phomemo M834' in print dialog. |
| El paper no s'alimenta | Paper loaded incorrectly; Paper jam; No paper | Re-load paper correctly (Section 2.3); Clear any obstructions; Ensure paper is loaded. |
6. Especificacions
Detailed technical specifications for the Phomemo M834 Portable Wireless Thermal Printer:
| Característica | Especificació |
|---|---|
| Nom del model | M834 |
| Tecnologia d'impressió | Tèrmica |
| Resolució d'impressió màxima | 300 ppp (monocrom) |
| Tecnologia de connectivitat | Bluetooth, USB |
| Interfície del maquinari | USB |
| Capacitat de la bateria | 2600 mAh |
| Mida màxima del suport | US Letter (8.5 x 11 inches / 216 mm) |
| Mides de paper admeses | US Letter, A4, 4.33'', 3.14'', 2.08'' |
| Mitjans impresos | Thermal Paper (plain, roll, fold, stickers) |
| Capacitat màxima del full d'entrada | 30 sheets (for folded paper) |
| Sortida de la impressora | Monocrom |
| Impressió a doble cara | No (Simplex) |
| Color | Negre |
| Número de model de l'article | M834 |
7. Garantia i Suport
7.1 Informació de la garantia
The Phomemo M834 Portable Wireless Thermal Printer comes with a garantia limitada. Please refer to the warranty card included in your package or visit the official Phomemo weblloc web per obtenir informació detallada sobre els termes i condicions de la cobertura i la durada de la garantia.
7.2 Atenció al client
For further assistance, technical support, or inquiries regarding your Phomemo M834 printer, please contact Phomemo customer service through their official weblloc web o la informació de contacte que es proporciona a l'embalatge del producte.
