Tronsmart Mirtune C3 Plus Bluetooth Speaker User Manual

Introducció

This manual provides detailed instructions for the safe and efficient operation of your Tronsmart Mirtune C3 Plus Bluetooth Speaker. Please read this manual thoroughly before using the product and retain it for future reference.

The Tronsmart Mirtune C3 Plus Bluetooth speaker is designed to provide exceptional sound quality and convenience for music lovers on the go. It features powerful 30W stereo sound and Bluetooth 5.3 technology, ensuring a strong and stable connection for seamless streaming. Its IPX7 waterproof rating and durable dust-resistant exterior make it a reliable choice for outdoor adventures, picnics, or poolside gatherings. True Wireless Stereo (TWS) pairing allows you to connect two speakers for an enhanced stereo experience. With up to 18 hours of playtime, this speaker ensures continuous music playback for any event. Its modern design and compact size make it an essential companion for music enthusiasts. Available in black.

Característiques del producte

• Provides powerful 30W stereo sound with seamless Bluetooth 5.3 connection.
• Enables True Wireless Stereo pairing with enhanced stereo sound through dual speakers.
• Features IPX7 water and dust resistance for reliable outdoor use.
• 18 hours of continuous playback ensures you enjoy music throughout long events.
• Great for picnics, poolside gatherings, and adventure trips.
• Micròfon integrat per a trucades de mans lliures.
• Disseny portàtil i compacte.

Contingut del paquet

Si us plau, comproveu el contingut del paquet en desembalar-lo per assegurar-vos que hi hagi tots els elements:

• Tronsmart Mirtune C3 Plus Bluetooth Speaker
• Cable de càrrega (USB-C)
• Manual d'usuari
• Auxiliary Cable (if applicable, not explicitly mentioned but common)

Image: The Tronsmart Mirtune C3 Plus Bluetooth Speaker, showcasing its sleek black design and portable form factor.

Configuració

Carregant l'altaveu

Before first use, fully charge the speaker. Connect the provided USB-C charging cable to the speaker's charging port and the other end to a compatible USB power adapter (not included) or a computer's USB port. The charging indicator light will show the charging status.

Encès/Apagat

Per encendre l'altaveu, premeu i manteniu premut el botó d'engegada (⏻) for 2-3 seconds until you hear an audible prompt or see the indicator light illuminate. To power off, press and hold the power button again for 2-3 seconds.

Emparellament Bluetooth

1. Assegureu-vos que l'altaveu estigui encès i en mode d'emparellament Bluetooth. Normalment, l'indicador lluminós Bluetooth parpellejarà ràpidament.
2. Al dispositiu (telèfon intel·ligent, tauleta, ordinador), activeu el Bluetooth i cerqueu els dispositius disponibles.
3. Select "Tronsmart Mirtune C3 Plus" from the list of devices.
4. Un cop connectat, l'indicador lluminós del Bluetooth s'il·luminarà fixament i sentireu un so de confirmació.

Imatge: Superior view of the Tronsmart Mirtune C3 Plus speaker, showing the power button, Bluetooth indicator, and other control buttons.

Instruccions de funcionament

Controls bàsics

• Botó d'encendre (⏻): Manteniu premut per encendre/apagar.
• Botó Reproduir/Pausa (▶/‖): Premeu una vegada per reproduir o posar en pausa la música.
• Pujar volum (+): Premeu per augmentar el volum. Mantingueu premut per a la pista següent.
• Baixar volum (-): Premeu per baixar el volum. Mantingueu premut per passar a la pista anterior.
• Botó de mode (M): Press to switch between Bluetooth, AUX, or other available modes.

Vinculació True Wireless Stereo (TWS).

To achieve an enhanced stereo sound experience, you can pair two Tronsmart Mirtune C3 Plus speakers together:

1. Assegureu-vos que tots dos altaveus estiguin encesos i no connectats a cap altre dispositiu Bluetooth.
2. On one speaker (this will be the primary speaker), press the TWS button (often indicated by a chain link icon or "TWS"). The speaker will enter TWS pairing mode.
3. The primary speaker will automatically search for the secondary speaker. Once connected, you will hear a confirmation sound, and the TWS indicator light will become solid on both speakers.
4. Ara, connecteu el dispositiu a l'altaveu principal mitjançant Bluetooth tal com es descriu a la secció "Emparellament per Bluetooth".

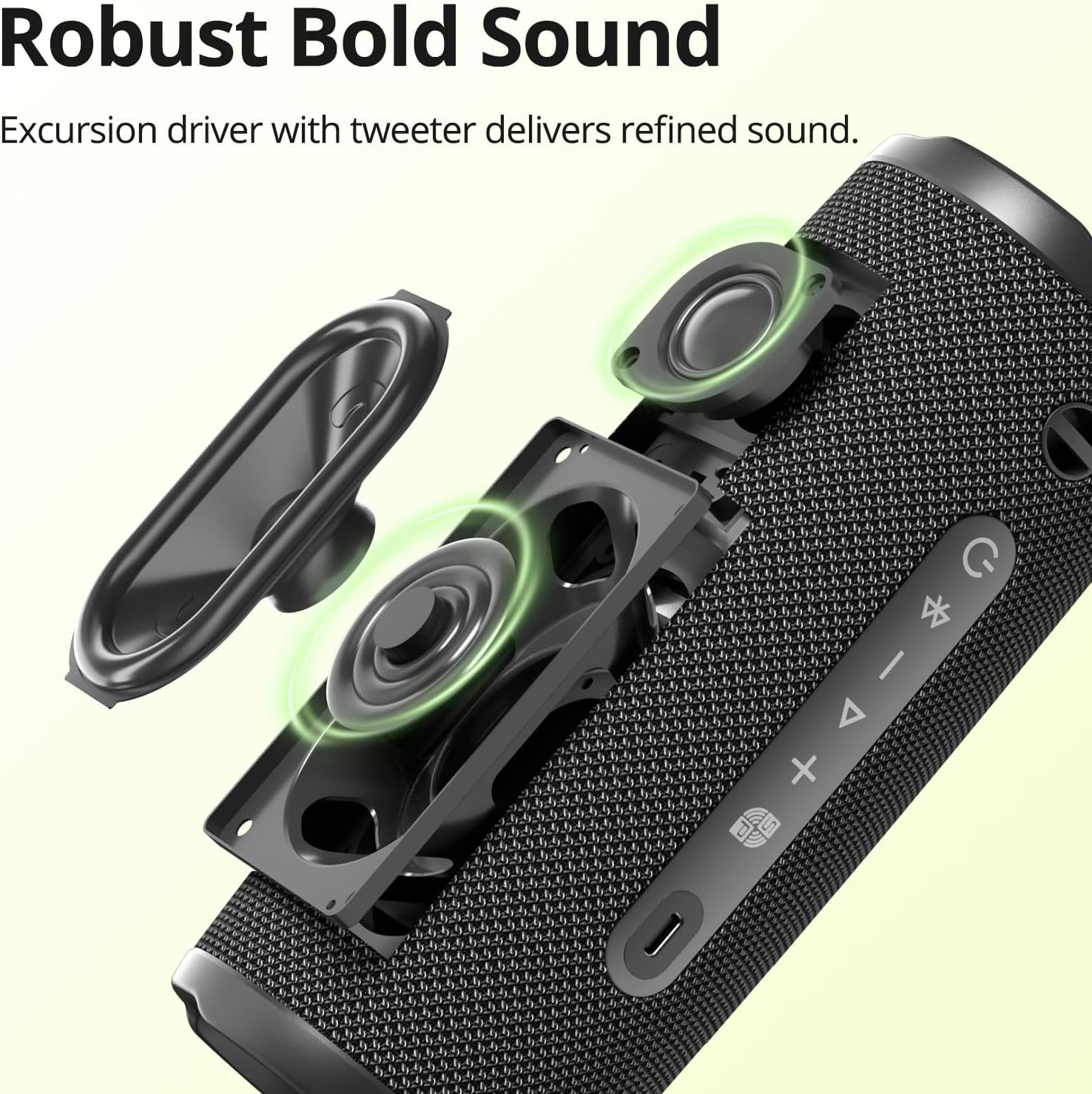

Imatge: Una explosió view diagram illustrating the internal components of the Tronsmart Mirtune C3 Plus speaker, highlighting its robust sound drivers.

Water and Dust Resistance (IPX7)

The speaker is rated IPX7, meaning it can be submerged in water up to 1 meter for 30 minutes. This makes it suitable for use near water, but it is not designed for prolonged submersion. Ensure the charging port cover is securely closed before exposing the speaker to water.

Image: The Tronsmart Mirtune C3 Plus speaker resting on wet rocks, illustrating its IPX7 waterproof capability, ready for poolside or outdoor listening.

Manteniment

• Neteja: Netegeu l'altaveu amb un suau, damp tela. No utilitzeu netejadors abrasius ni dissolvents.
• Emmagatzematge: Guardeu l'altaveu en un lloc fresc i sec, allunyat de la llum solar directa i de temperatures extremes.
• Cura de la bateria: Per allargar la durada de la bateria, eviteu descarregar-la completament amb freqüència. Carregueu l'altaveu regularment, fins i tot si no l'utilitzeu durant períodes prolongats.
• Exposició a l'aigua: After exposure to water, ensure the charging port is dry before charging.

Resolució de problemes

Especificacions

Garantia i Suport

For warranty information and customer support, please refer to the official Tronsmart weblloc web o contacteu directament amb el servei d'atenció al client. Conserveu el rebut de compra com a comprovant de compra per a reclamacions de garantia.

Fabricant: Tronsmart

ASIN: B0DPXLX72X

Primera data disponible: 9 de desembre de 2024
