Manual d'instruccions de la caixa d'ordinador Xigmatek Bano EN44250

1. Introducció

This manual provides comprehensive instructions for the installation, operation, maintenance, and troubleshooting of your Xigmatek Bano EN44250 computer case. Please read this manual thoroughly before beginning assembly to ensure proper setup and optimal performance.

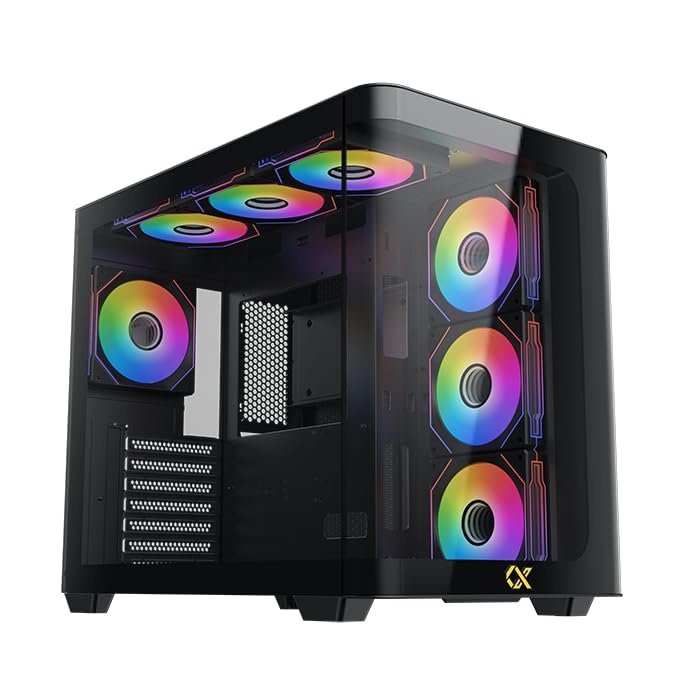

Figure 1: Xigmatek Bano EN44250 Computer Case (Exterior View)

2. Característiques

• Material: Constructed from high-quality steel alloy for durability and long-term use.
• Suport de la placa base: Compatible with E-ATX, ATX, Micro ATX, and Mini ITX motherboards.
• Sistema de refrigeració: Supports both air and liquid cooling solutions, with multiple fan and radiator mounting options.
• Baies en cotxe: Features five internal drive bays compatible with both 2.5-inch and 3.5-inch hard drives/SSDs.
• Panell d'E/S: Equipped with one USB 3.0 port, two USB 2.0 ports, and HD audio jacks for seamless connectivity.
• Disseny: Stylish black finish with a curved tempered glass panel for showcasing internal components and superior airflow.
• Ranures d'expansió: Includes 7 expansion slots.
• PSU Mounting: Supports rear-mounted power supplies.

Figure 2: Internal Layout of the Case

3. Instruccions de configuració

3.1 Preparació del cas

1. Desembaleu la caixa i traieu tots els materials d'embalatge.
2. Carefully remove the tempered glass side panel by unscrewing the thumb screws. Place it on a soft, flat surface to prevent scratches.
3. Identify the accessory box inside the case, which contains screws, standoffs, and cable ties.

3.2 Instal·lació de la placa base

1. Install the I/O shield (if not pre-installed) into the rear opening of the case.
2. Align your motherboard with the pre-installed standoffs. If your motherboard form factor (E-ATX, ATX, Micro ATX, Mini ITX) requires additional standoffs, install them in the appropriate holes.
3. Carefully place the motherboard onto the standoffs and secure it with the provided screws.

3.3 Instal·lació de la unitat d'alimentació (PSU).

1. Mount the PSU into the designated rear compartment of the case.
2. Fixeu la font d'alimentació amb els cargols de la part posterior de la carcassa.
3. Route the necessary power cables through the cable management cutouts to the motherboard and other components.

3.4 Storage Drive Installation (2.5"/3.5" HDDs/SSDs)

1. Locate the internal drive bays. The case supports five drive bays compatible with 2.5-inch and 3.5-inch drives.
2. For 3.5-inch drives, slide the drive into the tool-less tray (if applicable) or secure it with screws.
3. For 2.5-inch drives, secure them to the designated mounting points or adapters.
4. Connecteu els cables d'alimentació i de dades SATA a cada unitat instal·lada.

3.5 Cooling System Installation (Fans/Radiators)

The Xigmatek Bano EN44250 supports various fan and radiator configurations for optimal airflow. Refer to the diagrams below for compatible sizes and locations.

Figure 3: Fan and Radiator Mounting Options (Side View)

Figure 4: Fan and Radiator Mounting Options (Top View)

1. Install case fans or liquid cooling radiators into the desired mounting positions using the appropriate screws.
2. Connect fan power cables to the motherboard fan headers or a fan controller.

3.6 Connexions del panell frontal d'E/S

Connect the front I/O panel cables to the corresponding headers on your motherboard. These include:

• Capçalera USB 3.0
• Capçaleres USB 2.0
• HD Audio header
• Power switch, reset switch, HDD LED, and power LED headers

Figure 5: Front I/O Panel

4. Directrius de funcionament

Once all components are installed and connected, replace the side panel. Ensure all cables are neatly managed to avoid obstructing airflow. Power on your system using the front panel power button. Monitor temperatures and fan speeds to ensure optimal cooling performance.

5. Manteniment

Regular maintenance helps prolong the life of your computer components and ensures efficient cooling.

• Neteja de pols: Periodically clean dust filters (if present) and internal components using compressed air. Ensure the system is powered off and unplugged before cleaning.
• Gestió de cables: Review cable routing periodically to ensure no cables are obstructing fan blades or airflow paths.
• Neteja exterior: Netegeu les superfícies exteriors amb un damp drap. Eviteu productes de neteja o dissolvents abrasius.

6. Solució De Problemes

Si teniu problemes durant o després del muntatge, tingueu en compte els passos habituals següents per resoldre problemes:

• El sistema no s'encén:
  • Check all power connections, including the PSU to wall outlet, PSU to motherboard (24-pin and CPU 8-pin), and front panel power switch header.
  • Assegureu-vos que l'interruptor de la font d'alimentació estigui a la posició "ON".
• Sense sortida de pantalla:
  • Verify that your monitor is connected to the graphics card (not the motherboard I/O if using a dedicated GPU).
  • Torneu a col·locar els mòduls de la targeta gràfica i de la RAM.
• Problemes de sobreescalfament:
  • Ensure all case fans are spinning and correctly oriented for optimal airflow (intake/exhaust).
  • Check CPU cooler installation and thermal paste application.
  • Netegeu qualsevol acumulació de pols dels ventiladors i els radiadors.
• L'USB/àudio del panell frontal no funciona:
  • Verifiqueu que els connectors USB i d'àudio del panell frontal estiguin connectats correctament a la placa base.

7. Especificacions

8. Garantia i Suport

For warranty information and technical support, please refer to the official Xigmatek weblloc web o poseu-vos en contacte amb el vostre distribuïdor local. Conserveu el comprovant de compra per a reclamacions de garantia.

Recursos en línia: www.xigmatek.com
