1. Introducció
The Radtel RT-900 GMRS Radio is a professional-grade handheld walkie-talkie designed for long-range communication. It features an 8W high-power transmitter, 256 programmable channels, and support for Air Band and NOAA Weather reception. This manual provides essential information for setting up, operating, and maintaining your RT-900 radio.

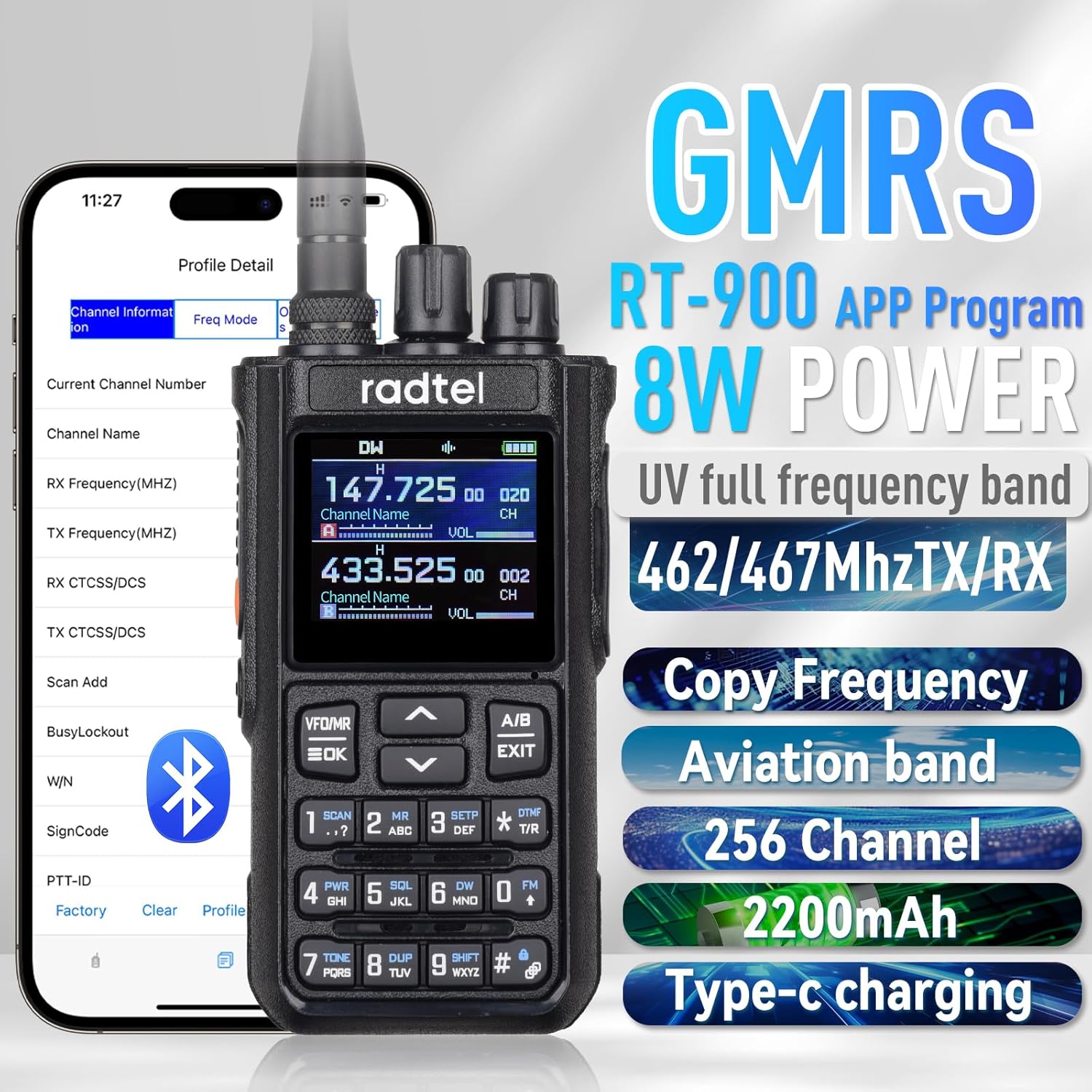

Figure 1: Radtel RT-900 GMRS Radio and its components.
2. Què hi ha a la caixa
- Radtel RT-900 Radio Unit
- Bateria de 2200 mAh
- Professional Belt Clip
- Carregador d'escriptori
- Antena
- Cable de càrrega tipus C.
- Manual d'usuari (aquest document)
3. Característiques clau
- Professional-Grade Long Range & Aviation Band Support: 8W high-power transmitter covering up to 5 miles in open areas. Features 256 programmable channels, including aviation radio bands (108-136MHz AM).
- Smart VOX Hands-Free & Noise Cancellation: Voice Activated Operation (VOX) for hands-free communication. Advanced noise reduction technology ensures clear voice transmission.
- Dual Programming + NOAA Weather: Supports programming via Bluetooth app (iOS/Android) and PC software (CHIRP protocols compatible). Preloaded with NOAA weather channels.
- Durability & Color LCD Display: 1.77-inch color LCD displays real-time radio data, battery status, and functions. Ergonomic, lightweight (440g) and rugged construction for outdoor use.
- Bateria de llarga durada de 2200 mAh: Provides 16-hour continuous usage with convenient USB-C fast charging.
Figura 2: Mésview of RT-900 GMRS features.
4. Guia de configuració
4.1 Instal·lació i càrrega de la bateria
Before first use, fully charge the 2200mAh battery. Connect the Type-C charging cable to the radio and a compatible USB power source (e.g., wall adapter, computer, car charger). The charging indicator will show status.
Figure 3: Type-C charging of the RT-900 radio.
4.2 Fixació de l'antena
Enrosqueu l'antena en sentit horari al connector de l'antena a la part superior de la ràdio fins que quedi ben ajustada amb els dits. No l'estrengueu massa.
4.3 Encès inicial
Gireu el botó d'engegada/volum en sentit horari per encendre la ràdio. Ajusteu el botó per ajustar el nivell de volum desitjat.
4.4 Canals de programació
The RT-900 supports dual programming modes:
- Programació d'aplicacions Bluetooth: Use the dedicated mobile app (available for iOS and Android) to configure channels and settings via Bluetooth.
- PC Software Programming: Connect the radio to a computer using a programming cable (not included) and use compatible PC software (e.g., CHIRP) for advanced channel management.
Figure 4: Programming the RT-900 via a smartphone app.
For Android users, the app can be downloaded from: Radtel Android App
Video: RT900 programming on PC
This video demonstrates the process of programming the Radtel RT-900 radio using PC software, including connecting the radio and reading/writing data.
5. Instruccions de funcionament
5.1 Comunicació bàsica
- Selecció de canals: Use the up/down arrow keys to navigate through programmed channels.
- Premeu per parlar (PTT): Press and hold the PTT button on the side of the radio to transmit. Release to listen.
- Ajust de volum: Rotate the top knob to adjust the listening volume.
5.2 Pantalla i modes
The 1.77-inch color LCD provides clear information on current frequencies, channel numbers, channel names, battery status, and various function indicators.
Figure 5: Large LCD display showing multi-display options.
Video: RT-900 GMRS Display Video
This video showcases the various display modes and information presented on the RT-900's color LCD screen.
Video: Switch between RT900 VFO mode and MR mode
This short video demonstrates how to switch between VFO (Variable Frequency Oscillator) mode and MR (Memory Recall) mode on the RT-900 radio.
5.3 Funcions avançades
- VOX (Central Operada per Veu): Enables hands-free transmission when your voice is detected. Activate and adjust sensitivity through the radio's menu or programming software.
- Receptor meteorològic de la NOAA: Access NOAA weather channels for real-time weather alerts and forecasts.
- Air Band Reception: Listen to aviation communications on the 108-136MHz AM band.
- Ràdio FM: The radio includes an FM broadcast receiver for entertainment.
Figure 6: Air Band Receive capability.
Video: Frequency Expansion for RT900
This video demonstrates how to expand the frequency range of the RT-900 radio, allowing access to additional frequencies beyond the default GMRS channels.
6. Manteniment
- Neteja: Utilitzeu un suau, damp drap per netejar l'exterior de la ràdio. No utilitzeu productes químics agressius ni dissolvents.
- Cura de la bateria: Per allargar la durada de la bateria, eviteu descarregar-la completament amb freqüència. Guardeu la ràdio i la bateria en un lloc fresc i sec quan no les feu servir durant períodes prolongats.
- Emmagatzematge: Guardeu la ràdio en un lloc sec, allunyat de la llum solar directa i de temperatures extremes.
- Cura de l'antena: Assegureu-vos que l'antena estigui ben connectada. Eviteu doblegar o forçar l'antena, ja que això pot danyar el connector.
7. Solució De Problemes
| Problema | Causa possible | Solució |
|---|---|---|
| La ràdio no s'encén. | Bateria baixa o gastada; instal·lació incorrecta de la bateria. | Carregueu la bateria completament. Assegureu-vos que la bateria estigui instal·lada correctament. |
| No es pot transmetre ni rebre. | Incorrect frequency/channel; antenna not connected; out of range; squelch too high. | Verify frequency/channel settings. Ensure antenna is secure. Move closer to other radios. Adjust squelch level. |
| Mala qualitat d'àudio / Soroll. | Weak signal; interference; squelch setting. | Move to an area with better signal. Check for sources of interference. Adjust squelch. Ensure noise reduction is enabled if desired. |
| Radio locks up or malfunctions. | Software glitch; internal issue. | Perform a soft reset (power off, remove battery, wait 30 seconds, reinsert battery, power on). If issues persist, contact customer support. |
8. Especificacions
- Marca: Radtel
- Model: RT-900
- Pes de l'article: 15.2 unces
- Dimensions del producte: 0.13 x 0.17 x 0.86 polzades
- País d'origen: Xina
- Bateries: 1 bateria de 9 V (inclosa)
- Nombre de canals: 256
- Característica especial: Càrrega tipus C
- Interval de freqüència: 462/467MHz TX/RX (GMRS), 108-136MHz AM (Air Band Receive)
- Interval de conversa màxim: 8 Kilometers (approx. 5 miles in open areas)
- Tecnologia del sintonitzador: AM/FM
- Nivell de resistència a l'aigua: No resistent a l'aigua
9. Garantia i assistència
The Radtel RT-900 GMRS Radio comes with a 1 anys de garantia. Radtel also offers lifetime firmware upgrades i 24/7 expert technical support for worry-free ownership.
For technical assistance or warranty claims, please refer to the contact information provided with your purchase or visit the official Radtel weblloc.
