Manual d'instruccions del marc de llit Boucle de mida completa WEUP

1. Informació important de seguretat

Si us plau, llegiu i enteneu totes les instruccions abans del muntatge i l'ús. Conserveu aquest manual per a futures consultes.

• Proper assembly is required. Ensure all components are securely fastened before use.
• Do not exceed the weight limit of the bed frame.
• Mantenir allunyat de fonts de calor i flames obertes.
• Aquest producte no està pensat per ser utilitzat per nens sense la supervisió d'un adult.
• Reviseu regularment tots els cargols i connexions per assegurar-vos que estiguin ben ajustats.

2. Producte acabatview

The WEUP Full Size Boucle Bed Frame (SZLY-L-BD01) is an upholstered platform bed designed for comfort and durability. It features a soft boucle fabric, a curved anti-collision headboard, and a sturdy construction that does not require a box spring.

Image 2.1: The WEUP Full Size Boucle Bed Frame, showcasing its design and cream-soft teddy fabric.

Característiques principals:

• Soft Boucle Fabric: Upholstered in a thick, cloud-like teddy fabric with premium foam fillings for a soft touch and enhanced back support.
• Curved Anti-collision Design: Features a stylish curve-shaped headboard and footboard to reduce injuries from everyday bumps.
• Construcció sòlida: Built with sturdy legs, a metal frame, and solid wood slats for stability and noise-free sleep.
• Adjustable Headboard: Offers 3 height levels to accommodate mattresses between 8-12 inches thick.
• Muntatge fàcil: Velcro connects the slats for quick installation, with all necessary tools and clear instructions provided. No box spring required.

3. Instruccions de muntatge i instal·lació

Follow these steps carefully to assemble your WEUP Full Size Boucle Bed Frame. It is recommended to have two people for assembly.

3.1. Desembalatge i comprovació de components

1. Carefully unpack all components from the packaging. Lay them out on a clean, soft surface to prevent scratches.
2. Verify that all parts and hardware listed in the included parts list are present. If any parts are missing or damaged, contact customer support immediately.

3.2. Passos de muntatge

1. Muntar el capçal: Attach the headboard legs to the main headboard panel using the provided screws. Ensure the headboard is oriented correctly. The headboard height is adjustable; select your desired height (high, middle, or low) by aligning the screws with the corresponding holes.

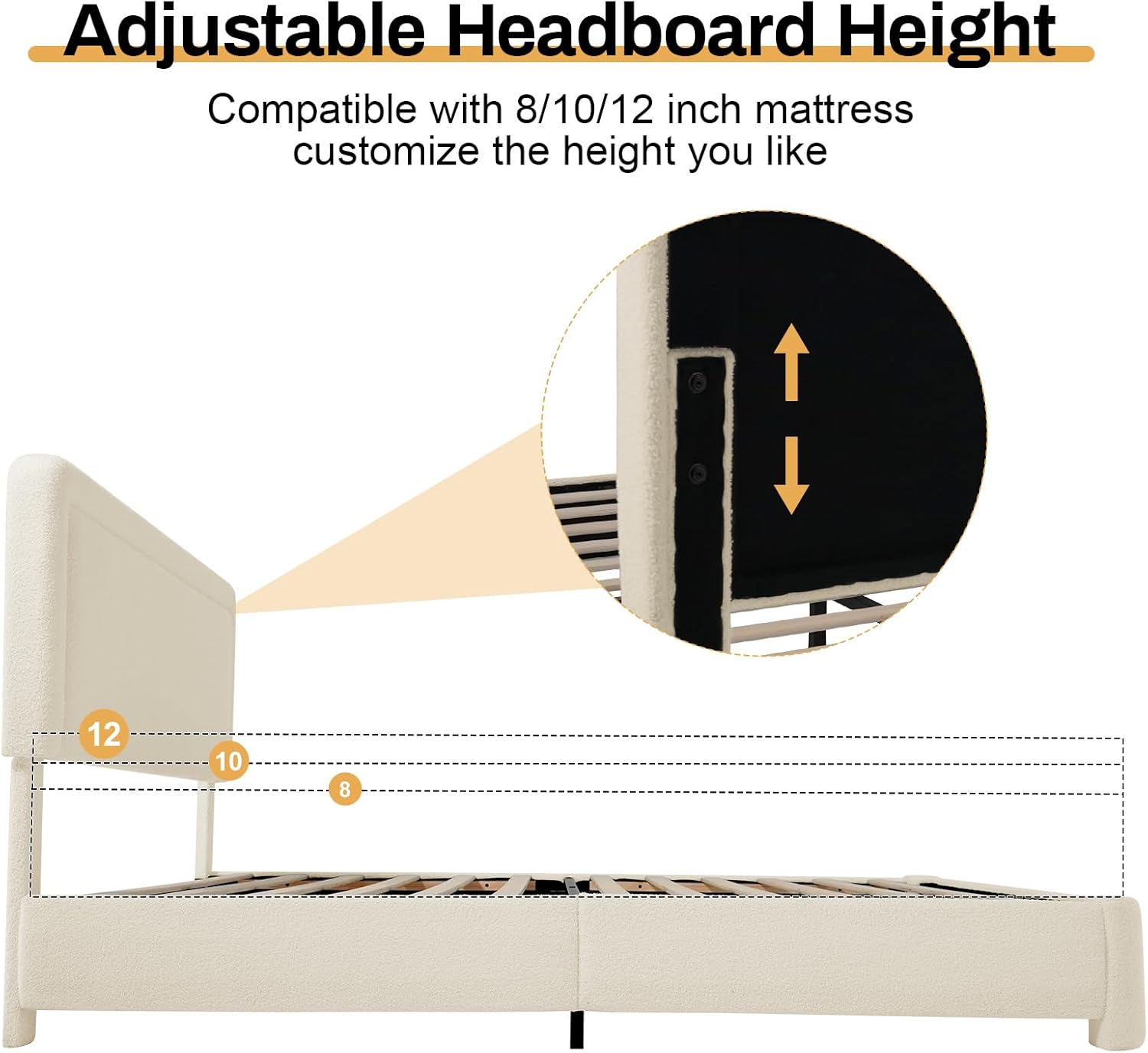

Image 3.1: The adjustable headboard feature, allowing customization for different mattress heights.
2. Fixeu els rails laterals: Connect the side rails to the assembled headboard using the designated hardware. Make sure the connections are secure but do not overtighten until all parts are aligned.
3. Install Footboard: Attach the footboard to the side rails. Ensure all corners are flush and aligned.
4. Assemble Middle Support: Connect the middle support beam and legs. Adjust the height of the middle support legs to ensure they firmly touch the floor, providing central stability.
5. Col·locar llistons: Unroll the wooden slats across the bed frame. The slats are connected by Velcro for easy positioning and to prevent movement and noise. Secure the slats to the frame using the provided screws. Do not overtighten.


Image 3.2: Detail of the sturdy metal frame and the convenient Velcro slat system for noise-free support.

6. Ajustament final: Un cop tots els components estiguin al seu lloc i alineats, estrenyeu completament tots els cargols i perns.

4. Instruccions de funcionament

4.1. Adjusting Headboard Height

The headboard of your WEUP bed frame can be adjusted to three different height levels to best suit your mattress thickness (8-12 inches).

1. To adjust, carefully remove your mattress and any bedding.
2. Loosen the screws connecting the headboard to its support legs.
3. Slide the headboard up or down to align with your desired height setting.
4. Securely tighten the screws in the new position. Ensure both sides are adjusted evenly.

5. Manteniment

Un manteniment regular ajudarà a allargar la vida útil i l'aspecte del marc del llit.

5.1. Cura dels teixits

• For general cleaning, gently vacuum the boucle fabric using an upholstery attachment to remove dust and debris.
• En cas de vessaments, eixugueu immediatament amb un drap net i sec. No fregueu, ja que això pot estendre la taca.
• For tougher stains, use a mild fabric cleaner following the product's instructions, testing on an inconspicuous area first.

Image 5.1: Detail of the soft boucle fabric and rounded corners, highlighting the material's texture.

5.2. Manteniment del marc

• Periodically check all screws and bolts to ensure they are tight. Loose connections can lead to instability and noise.
• Ensure the middle support legs are properly adjusted and making firm contact with the floor.

6. Solució De Problemes

6.1. Sorolls de grinyols

• Causa: Loose connections or uneven support.
• Solució: Tighten all screws and bolts on the frame, especially where the side rails connect to the headboard and footboard, and where the slats attach. Ensure the middle support legs are correctly adjusted and bearing weight.

6.2. Headboard Instability

• Causa: Screws not fully tightened or incorrect height adjustment.
• Solució: Re-tighten all screws securing the headboard. Ensure the headboard is set to an appropriate height for your mattress, preventing excessive gaps or pressure.

7. Especificacions

Image 7.1: Detailed dimensions of the WEUP Full Size Boucle Bed Frame.

8. Garantia i Suport

8.1. Informació de la garantia

The WEUP Full Size Boucle Bed Frame comes with a Garantia de per vidaAquesta garantia cobreix els defectes de fabricació i assegura la qualitat i la durabilitat del vostre producte.

8.2. Atenció al client

For any questions, assistance with assembly, or warranty claims, please contact WEUP customer support. Refer to the contact information provided with your purchase or visit the official WEUP weblloc per obtenir més informació.
