1. Introducció
This manual provides detailed instructions for the installation, operation, and maintenance of your Renogy PUH 1000W Pure Sine Wave Inverter. This device converts 12V DC power from batteries into 120V AC power, suitable for various applications including RVs, trucks, camping, and off-grid living. It features a built-in transfer switch for seamless power transitions and Bluetooth connectivity for remote monitoring.
2. Informació de seguretat
Si us plau, llegiu i comprengui totes les instruccions de seguretat abans d'instal·lar o fer funcionar l'inversor. Si no segueix aquestes instruccions, es poden produir descàrregues elèctriques, incendis o lesions greus.
- Seguretat elèctrica: Ensure all wiring is correctly sized and connections are secure. Incorrect wiring can cause severe damage or injury.
- Ventilació: Install the inverter in a well-ventilated area to prevent overheating. Do not block cooling vents.
- Medi ambient: Avoid exposure to moisture, direct sunlight, heat sources, and flammable materials.
- Posada a terra: The inverter must be properly grounded. Refer to local electrical codes for specific requirements.
- Certificacions: This inverter is designed to meet UL 458 & CSA C22.2 No. 107.1 certifications, ensuring safety and quality.
- Característiques de protecció: The unit includes LED indicators for overload, over temperature, low temperature, overvoltage, short circuit, and undervoltage protection, along with a Ground Fault Circuit Interrupter (GFCI).
3. Contingut del paquet
Verifiqueu que tots els elements estiguin inclosos al vostre paquet:
- Renogy PUH 1000W Pure Sine Wave Inverter
- Remote Control with 16.4FT Cable
- Battery Cables (Red and Black, AWG 3ft x2)
- Manual d'usuari
4. Característiques del producte
- Sortida d'ona sinusoïdal pura: Provides high-quality AC power, similar to grid power, protecting sensitive electronics and appliances.
- Built-in Transfer Switch: Automatically switches to grid power within 20ms, ensuring uninterrupted power during outages.
- Connectivitat Bluetooth: Monitor inverter status and settings remotely via the Renogy APP.
- Alta eficiència: Conversion efficiency greater than 92%, minimizing power loss.
- Proteccions de seguretat múltiples: Includes overload, over temperature, low temperature, overvoltage, short circuit, undervoltage, and GFCI protection.
- Funcionament de baix soroll: Fan noise is less than 51dB when on, and less than 20dB when off, ensuring quiet operation.
- Compatibilitat versàtil: Compatible with various battery types including Lithium (LI), Sealed Lead Acid (SLD), Absorbed Glass Mat (AGM), Gel, and Flooded (FLD).
5. Configuració i instal·lació
Proper installation is critical for the safe and efficient operation of your inverter. Consult a qualified electrician if you are unsure about any steps.
5.1 Muntatge de l'inversor
- Choose a dry, cool, and well-ventilated location.
- Ensure adequate clearance around the inverter for airflow, especially around the cooling fans.
- Munteu l'inversor de manera segura amb el maquinari adequat.

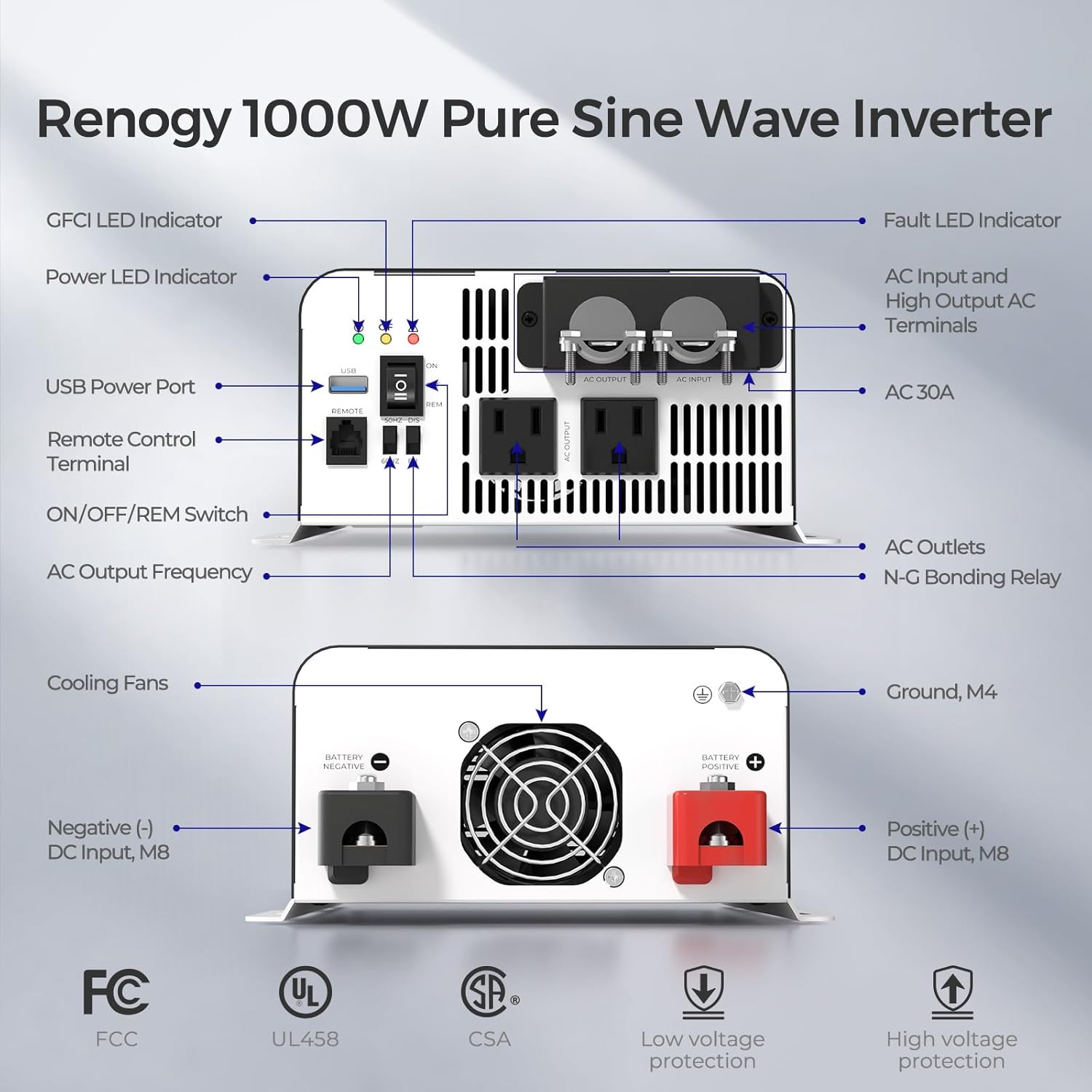

5.2 Connexions de cablejat
- DC Input (Battery Connection): Connect the included red cable to the positive (+) terminal of your 12V battery bank and the positive (+) M8 terminal on the inverter. Connect the black cable to the negative (-) terminal of your battery bank and the negative (-) M8 terminal on the inverter. Ensure connections are tight.
- AC Input (Shore Power/Grid): If using the transfer switch feature, connect your AC input source (e.g., shore power) to the AC Input terminals.
- Sortida de CA: Connect your AC loads (appliances) to the AC Output terminals or directly to the AC outlets on the inverter.
- Posada a terra: Connect the inverter's ground terminal (M4) to a reliable earth ground.
- Comandament a distància: Plug the remote control cable into the dedicated remote control terminal.
6. Instruccions de funcionament
6.1 Engegada/apagada
- Assegureu-vos que totes les connexions estiguin ben fixades abans d'encendre.
- Use the ON/OFF/REM switch on the inverter or the remote control to power the unit on or off.
- The Power LED indicator will illuminate when the inverter is active.
6.2 Using the Built-in Transfer Switch
The inverter's built-in transfer switch allows for automatic switching between inverter power and an external AC source (e.g., shore power). When an external AC source is detected, the inverter will automatically bypass battery power and supply AC directly from the external source. If the external AC source is lost, the inverter will seamlessly switch back to providing AC power from the battery bank.
Note: The transfer switch functionality requires the inverter to be powered on (12V supply) to allow AC pass-through, even when not actively inverting. If the inverter is completely off, AC power will not pass through.
6.3 Monitorització Bluetooth
Download the Renogy APP on your smartphone or tablet to monitor the inverter's performance. The app provides real-time data on output voltage, current, frequency, battery voltage, and temperature. It also allows for remote control and configuration.
7. Manteniment
Regular maintenance ensures the longevity and optimal performance of your Renogy inverter.
- Neteja: Periodically clean the exterior of the inverter and ensure cooling vents are free from dust and debris. Use a dry cloth.
- Connexions: Regularly check all electrical connections (DC input, AC input/output, ground) for tightness and corrosion. Tighten as necessary.
- Salut de la bateria: Monitor your battery bank's health and charge levels, as poor battery performance can affect inverter operation.
- Medi ambient: Assegureu-vos que l'entorn d'instal·lació es mantingui dins dels rangs de temperatura i humitat especificats.
8. Solució De Problemes
Aquesta secció tracta problemes comuns que podeu trobar amb el vostre inversor.
| Problema | Causa possible | Solució |
|---|---|---|
| L'inversor no s'encén | Vol de bateria baixatage; Loose DC connections; Blown fuse | Comproveu el volum de la bateriatage and charge if necessary; Inspect and tighten DC cables; Check and replace fuses if needed. |
| Sense sortida de CA | Overload; Over-temperature; Short circuit; GFCI tripped | Reduce load; Allow inverter to cool; Check for short circuits in wiring/appliances; Reset GFCI. |
| AC pass-through not working when inverter is off | Inverter requires 12V power to operate the transfer switch. | Ensure the inverter is powered on (even if not actively inverting) for the transfer switch to function and allow AC pass-through. |
| Inverter randomly starts at 50Hz instead of 60Hz | Internal frequency setting issue (rare) | Contact Renogy customer support for assistance. Using incorrect frequency can damage appliances. |
| Problemes de connexió Bluetooth | Inverter not powered on; Bluetooth disabled on device; App issues | Ensure inverter is on; Enable Bluetooth on your device; Restart the Renogy APP or reinstall it. |
9. Especificacions
| Característica | Especificació |
|---|---|
| Nom del model | RIV1210PU-126 |
| Potència contínua | 1000W |
| Potència de sobretensió | 2000W |
| Entrada Voltage | 12 Volts DC |
| Vol. De sortidatage | 120 volts de corrent altern |
| Forma d'ona | Onda senyal pura |
| Eficiència de conversió | >92% |
| Dimensions del producte | 15.3 x 8.1 x 3.8 polzades (388.5 x 205.5 x 95.3 mm) |
| Pes de l'article | 10.52 lliures |
| Consum d'energia inactiu | <12W |
| Noise Level (Fan On) | <51dB |
| Noise Level (Fan Off) | <20dB |
10. Garantia i Suport
Renogy products are designed for reliability and performance. For warranty information, please refer to the warranty card included with your product or visit the official Renogy website. For technical assistance, troubleshooting, or customer service, please contact Renogy support directly.
Renogy Customer Support:
- Visit the Renogy weblloc web per a preguntes freqüents i recursos de suport.
- Contact Renogy via their official support channels for professional technical guidance.
