EMKE Electric Towel Radiator with WiFi Thermostat (Model: 76.2x40 cm, 400W) - Instruction Manual

1. Introducció i presentació del producteview

This manual provides essential information for the safe and efficient use of your EMKE Electric Towel Radiator. Please read these instructions carefully before installation and operation, and retain them for future reference.

The EMKE Electric Towel Radiator is designed for heating towels and providing supplementary warmth in bathrooms. It features a robust low-carbon steel construction for efficient heat conductivity and durability. The integrated WiFi thermostat allows for smart control via an app or voice commands, offering various operating modes and programmable schedules.

Figure 1: EMKE Electric Towel Radiator (Anthracite, 76.2x40 cm).

2. Informació de seguretat

Instruccions importants de seguretat:

• Ensure the power supply is disconnected before any installation or maintenance procedures.
• This appliance is rated IP44, providing protection against splashing water, making it suitable for bathroom use. However, avoid direct water jets.
• Do not cover the radiator with items that obstruct airflow, as this can lead to overheating.
• Keep children away from the appliance during operation, especially when it is hot. The child lock function should be activated for safety.
• Only use the appliance for its intended purpose as a towel radiator and supplementary heater.
• Any repairs or servicing should be performed by qualified personnel.

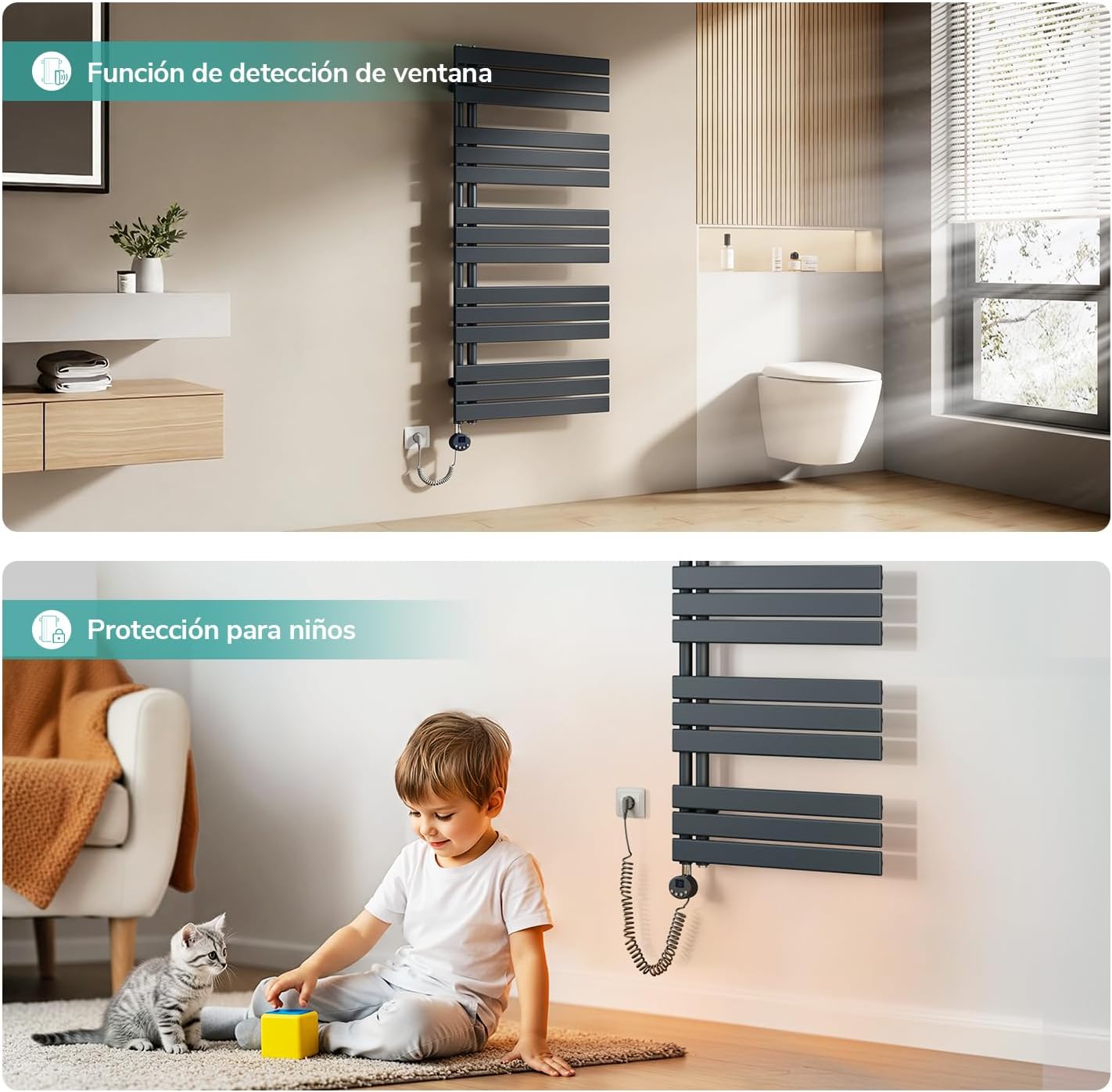

Figure 2: Child protection feature and window detection function for enhanced safety and energy efficiency.

3. Contingut del paquet

Before beginning installation, verify that all components are present and undamaged.

• Towel radiator unit
• Thermostat control head for the heating element
• Mounting kit (brackets, screws, wall plugs)
• Manual d'instal·lació

Note: The electric heating element is pre-installed on the left side of the towel radiator and is filled with antifreeze liquid. The power cable length is approximately 1.4 meters.

4. Instal·lació

The towel radiator comes with a pre-installed electric heating element and is filled with antifreeze liquid.

1. Preparació: Ensure the main power supply to the installation area is disconnected.
2. Mounting the Radiator: Use the provided mounting kit to securely fix the towel radiator to the wall. Refer to the detailed diagrams in the included installation manual for precise measurements and drilling instructions.
3. Attaching the Thermostat Head: Simply fix the thermostat control head onto the pre-installed heating element.
4. Connexió d'alimentació: Once the radiator is securely mounted and the thermostat head is attached, connect the power cable to a suitable electrical outlet. Ensure the connection is made with the power still disconnected, and only energize the unit after confirming the completion of the entire installation.

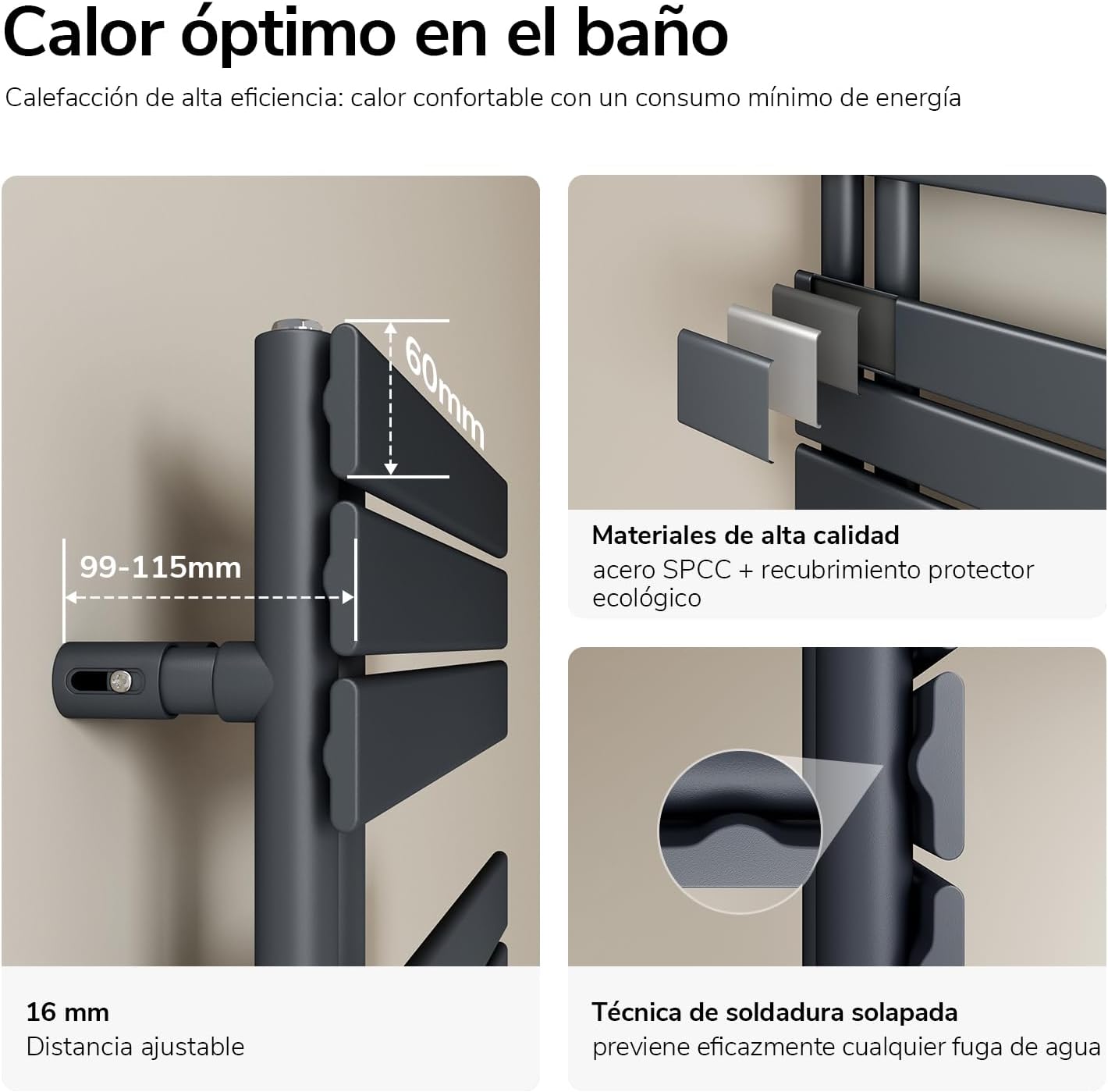

Figure 3: High-quality materials (SPCC steel) and seamless welding technique for durability and leak prevention.

5. Instruccions de funcionament

Your EMKE Electric Towel Radiator offers convenient control options.

5.1 Control manual

The thermostat control head features buttons for manual adjustment:

• Botó d'encesa: Encén/apaga la unitat.
• Temperature/Time Decrease (-): Reduces temperature or timer setting.
• Temperature/Time Increase (+): Increases temperature or timer setting.
• Mode Change Button: Passa ciclicament pels modes de funcionament disponibles.

Figure 4: Thermostat control panel with ambient temperature sensor (7-30°C) and programmable timer (7 days, 24 hours).

5.2 Smart Control (WiFi)

Control your towel radiator remotely using the Tuya/Smart Life application or via voice commands with Google Home and Alexa.

1. Descarregar l'aplicació: Download the Tuya or Smart Life app from your smartphone's app store.
2. Maridatge: Follow the in-app instructions to pair your towel radiator with your home WiFi network.
3. Comandament a distància: Adjust room temperature (7–30 °C), program 24/7 schedules, and select operating modes from your smartphone.
4. Control de veu: Integrate with Google Home or Alexa for hands-free control.

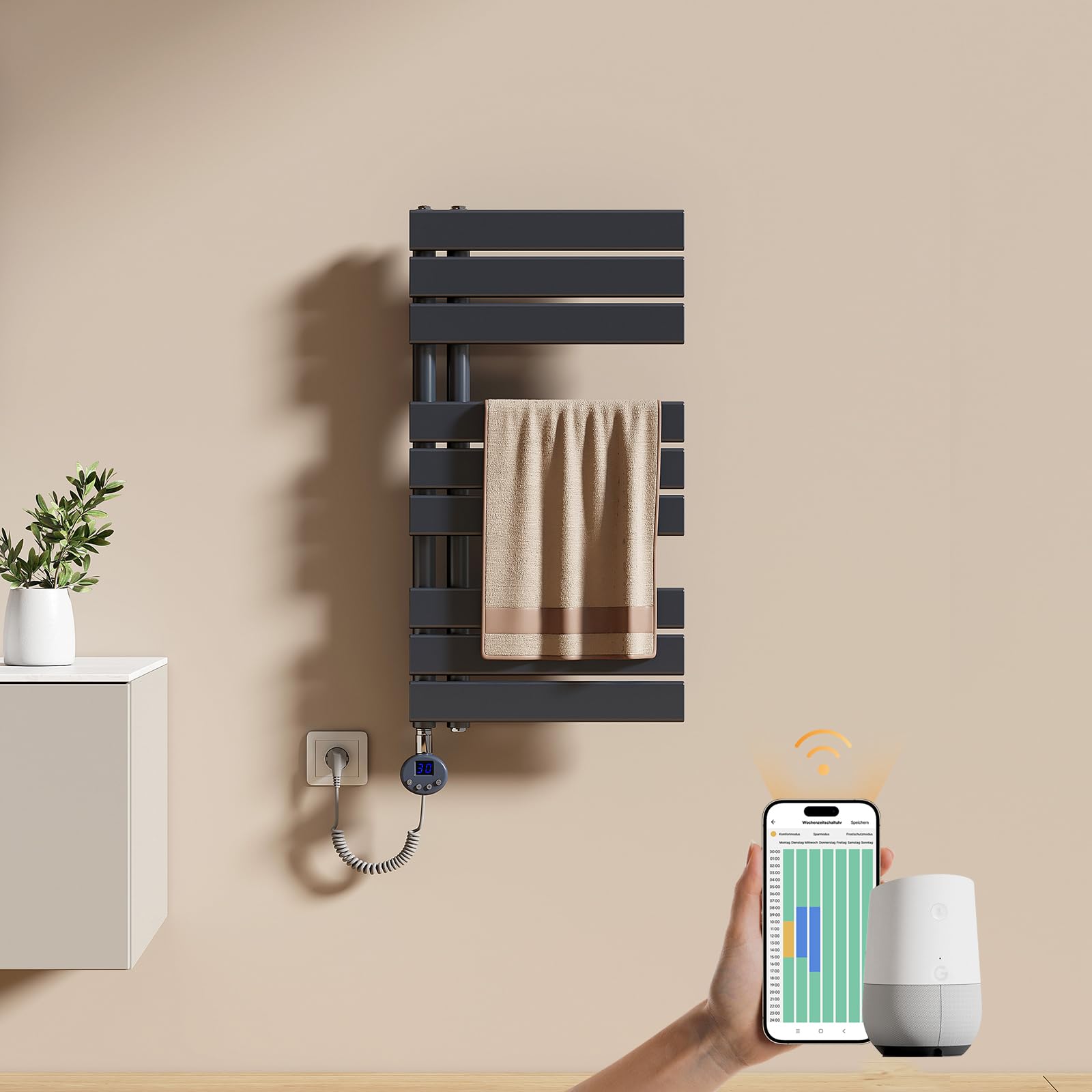

Figure 5: Remote control via smartphone app and voice commands for convenient operation.

5.3 Modes de funcionament

Choose from four distinct operating modes:

• Comfort Mode (7-30°C): Maintains a comfortable room temperature.
• Eco Mode (7-30°C): Energy-saving mode, typically a few degrees lower than Comfort.
• Boost Mode (70°C): Provides rapid heating for a short period.
• Antifreeze Mode (<7°C): Evita que les canonades es congelin mantenint una temperatura mínima.

Figura 6: Mésview of the four temperature adjustment modes for different time intervals.

5.4 característiques addicionals

• Funció de memòria: The device saves your preferred settings even after power loss.
• Bloqueig per a nens: Ensures safe use by preventing accidental changes to settings.
• Window Detection Function: Automatically detects open windows and temporarily pauses heating to save energy.
• Compensació de temperatura: Allows for fine-tuning of the temperature sensor reading (e.g., -2°C compensation shown in image).

Figure 7: Temperature compensation feature for accurate readings and memory function to retain settings.

6. Manteniment

To ensure the longevity and optimal performance of your EMKE Electric Towel Radiator, follow these maintenance guidelines:

• Neteja: Desconnecteu l'alimentació abans de netejar. Feu servir un drap suau iamp cloth to wipe the surface. Avoid abrasive cleaners or solvents that could damage the finish.
• Inspecció: Periodically check the power cable and plug for any signs of damage. Ensure all mounting brackets are secure.
• No hi ha peces reparables per l'usuari: The internal components, including the heating element and antifreeze liquid, are not user-serviceable. Do not attempt to open or repair the unit yourself.

7. Solució De Problemes

If you encounter issues with your EMKE Electric Towel Radiator, refer to the following common troubleshooting steps:

• Sense energia:
  • Comproveu si el cable d'alimentació està ben connectat a una presa de corrent que funcioni.
  • Verifiqueu que l'interruptor automàtic no s'hagi disparat.
  • Ensure the power button on the thermostat is pressed.
• El radiador no escalfa:
  • Check the temperature setting; ensure it is higher than the current room temperature.
  • Verify that the correct operating mode is selected (e.g., not Antifreeze mode if you expect significant heat).
  • If using smart control, check the app for any error messages or connectivity issues.
  • Ensure the window detection function is not active due to an open window.
• Problemes de connectivitat de l'aplicació:
  • Ensure your smartphone is connected to the same WiFi network as the radiator during setup.
  • Restart your router and the radiator.
  • Re-attempt the pairing process in the Tuya/Smart Life app.

Si el problema persisteix després d'intentar aquests passos, poseu-vos en contacte amb l'atenció al client.

8. Especificacions

Detailed technical specifications for the EMKE Electric Towel Radiator (Model: 76.2x40 cm, 400W Anthracite):

Figure 8: Dimensional drawing and specification table for various EMKE towel radiator models.

9. Garantia i Suport

For warranty information, please refer to the documentation provided with your purchase or visit the official EMKE website. If you require technical assistance, troubleshooting beyond this manual, or have questions regarding your product, please contact EMKE customer support.

Informació de contacte: Please refer to your purchase receipt or the EMKE brand weblloc web per obtenir les dades de contacte més actualitzades.
