NICRON B200 Rechargeable Flashlight User Manual

1. Introducció

Thank you for choosing the NICRON B200 Rechargeable Flashlight. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your device. Please read this manual thoroughly before use and retain it for future reference.

Image 1.1: The NICRON B200 Rechargeable Flashlight. This image displays the flashlight from a slight angle, highlighting its black anodized aluminum body, textured grip, and the main lens. The NICRON brand and B200 model number are visible on the side.

Image 1.2: The NICRON B200 demonstrating its long beam capability. The flashlight illuminates a distant landscape, showcasing its 1000-meter illumination distance and 1600 lumens output.

2. Informació de seguretat

Please observe the following safety precautions to prevent injury or damage to the flashlight:

• Do not shine the light directly into eyes. The high lumen output can cause temporary vision impairment.
• Mantenir fora de l'abast dels nens.
• Do not disassemble the flashlight head or battery compartment. This may damage the device and void the warranty.
• Feu servir només el cable de càrrega proporcionat o un cable de tipus C certificat per carregar.
• Eviteu exposar la llanterna a temperatures extremes o a la llum solar directa durant períodes prolongats.
• Ensure the charging port cover is securely closed before exposing the flashlight to water to maintain its IPX8 waterproof rating.

3. Contingut del paquet

Verifiqueu que tots els elements siguin presents al vostre paquet:

• NICRON B200 Flashlight (x1)
• Rechargeable Lithium-Ion Battery (pre-installed) (x1)
• Cable de càrrega USB tipus C (x1)
• Corda (x1)
• Manual d'usuari (x1)

Image 3.1: Contents of the NICRON B200 package. This image shows the retail box, the flashlight itself, a USB-C charging cable, a lanyard, and the user manual, laid out neatly.

4. Producte acabatview

Familiarize yourself with the main components of your NICRON B200 flashlight:

• Cap: Contains the LED emitter and reflector.
• Cos: Main housing, providing grip and protecting internal components.
• Interruptor lateral: Controls power and mode selection.
• Port de càrrega: Port USB tipus C per recarregar la bateria interna.
• Llum indicador de càrrega: Mostra l'estat de càrrega.
• Tail Cap: End cap, often with a lanyard hole.

Imatge 4.1: Primer pla view of the NICRON B200 flashlight's head, showing the high-performance LED and the side switch with its integrated charging indicator light.

5. Configuració

5.1 Càrrega inicial

Your NICRON B200 flashlight comes with a pre-installed rechargeable Lithium-Ion battery. For optimal performance, fully charge the flashlight before first use.

1. Locate the USB Type-C charging port on the flashlight body.
2. Open the rubber cover protecting the charging port.
3. Connect the provided USB Type-C cable to the flashlight and plug the other end into a USB power source (e.g., computer, wall adapter, power bank).
4. The charging indicator light on the side switch will illuminate VERMELL durant la càrrega.
5. Once fully charged, the indicator light will turn VERD.
6. Disconnect the charging cable and securely close the rubber cover to maintain water resistance.

Image 5.1: The NICRON B200 flashlight connected to a USB Type-C charging cable, with a close-up showing the Type-C port and the green charging indicator light.

6. Instruccions de funcionament

6.1 Encès/Apagat

• Encendre: Press and hold the side switch for approximately 0.5 seconds. The flashlight will turn on in the last used mode (memory function).
• Apagar: Press and hold the side switch for approximately 0.5 seconds.

6.2 Canvi dels modes d'il·luminació

The NICRON B200 features 6 lighting modes: High, Medium, Low, Moonlight, Strobe, and SOS.

• Normal Modes (High, Medium, Low, Moonlight): While the flashlight is on, single-click the side switch to cycle through modes in the order: High → Medium → Low → Moonlight → High.
• Mode estroboscòpic: From any normal mode, double-click the side switch to activate Strobe mode.
• Mode SOS: From Strobe mode, double-click the side switch again to activate SOS mode.
• Return to Normal Modes: From Strobe or SOS mode, single-click the side switch to return to the last used normal mode.

6.3 Funció de bloqueig

To prevent accidental activation, the B200 features a lockout function:

• Tancar: While the flashlight is off, press and hold the side switch for 3 seconds. The flashlight will flash twice to indicate it is locked.
• Per desbloquejar: While the flashlight is locked, press and hold the side switch for 3 seconds. The flashlight will flash once to indicate it is unlocked and will turn on in Moonlight mode.

Imatge 6.1: Un sobreview of the NICRON B200's key features, including max output (1600 lumens), runtime (648 hours), beam distance (1000 meters), and waterproof rating (IP68), with illustrative icons.

7. Aplicacions

The NICRON B200 flashlight is designed for a wide range of uses, including:

• Urgències: Providing reliable light during power outages o situacions inesperades.
• Activitats a l'aire lliure: Ideal per camping, hiking, searching, and prospecting.
• Ús professional: Suitable for search and rescue operations, car repair, and general inspection tasks.
• Ús domèstic: Everyday tasks requiring bright, focused illumination.

Image 7.1: Various usage scenarios for the NICRON B200 flashlight, including search and rescue, outdoor searching, checking bicycle components, and car repair, demonstrating its versatility.

8. Manteniment

8.1 Neteja

• Netegeu el cos de la llanterna amb un drap net i suau.
• Per a la brutícia tossuda, utilitzeu una mica damp tela. No utilitzeu productes químics aggressivs ni netejadors abrasius.
• Mantingueu la lent neta per a una sortida de llum òptima. Feu servir un drap de neteja de lents si cal.

8.2 Cura de la bateria

• Recharge the battery regularly, even if the flashlight is not in frequent use, to maintain battery health.
• Eviteu descarregar completament la bateria durant períodes prolongats.
• If storing for a long time, charge the battery to approximately 50% capacity.

8.3 Emmagatzematge

• Store the flashlight in a cool, dry place, away from direct sunlight and extreme temperatures.
• Ensure the lockout function is activated during storage to prevent accidental activation.

9. Solució De Problemes

10. Especificacions

Detailed technical parameters for the NICRON B200 Flashlight:

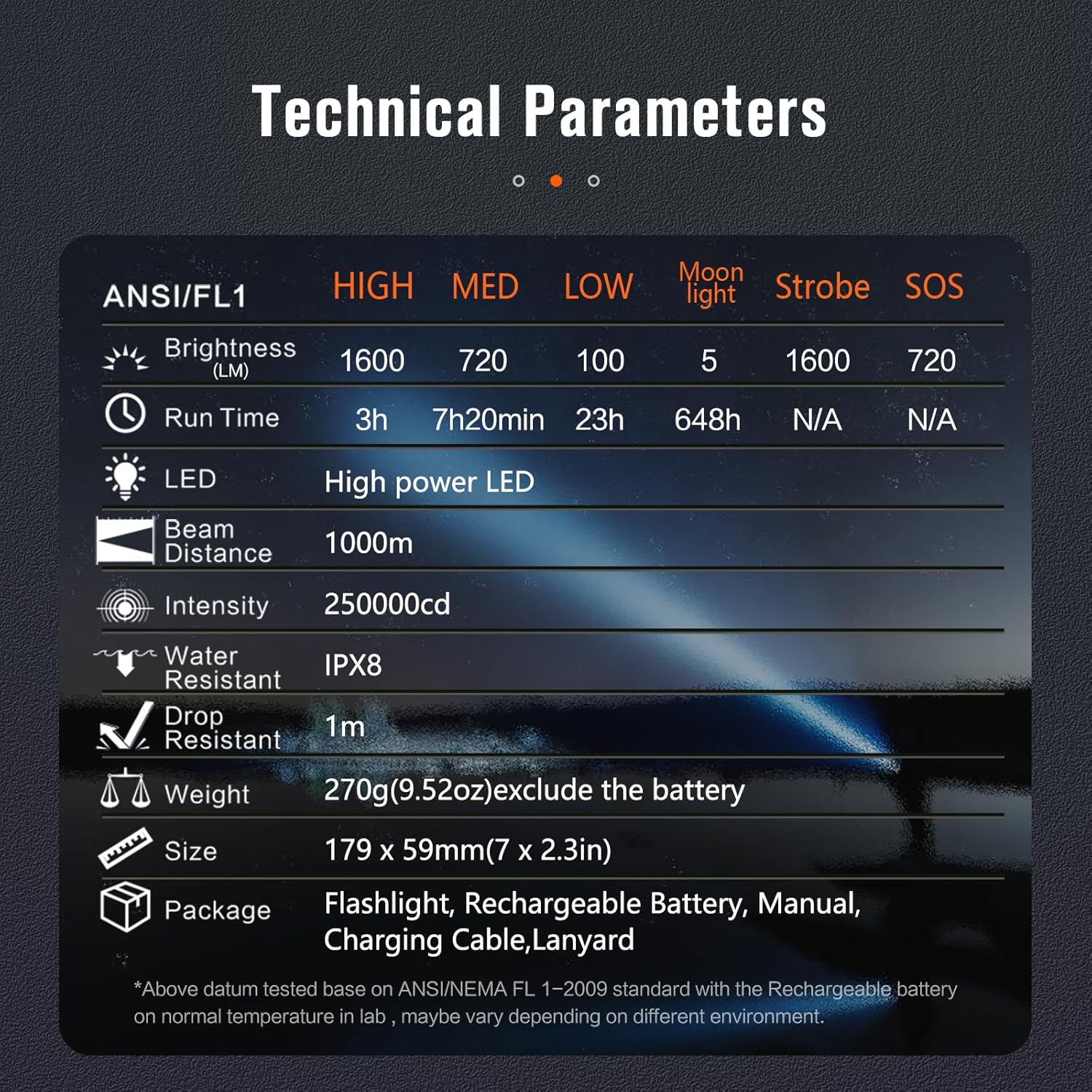

Image 10.1: A table detailing the technical specifications of the NICRON B200, including brightness levels, runtimes, LED type, beam distance, intensity, water resistance, drop resistance, weight, and size.

Image 10.2: The NICRON B200 flashlight submerged in water, illustrating its IPX8 waterproof rating, capable of being submerged up to 2 meters.

Image 10.3: A visual comparison of the NICRON B200 flashlight's size next to a smartphone, along with its weight, providing a clear understanding of its dimensions and portability.

Note: All data is based on NICRON laboratory testing. Actual performance may vary depending on environmental conditions and usage.

11. Garantia i Suport

11.1 Política de garantia

NICRON offers a One-Year product replacement policy for any quality problems with the LED flashlight. This warranty covers manufacturing defects and issues arising from normal use.

The warranty does not cover damage caused by misuse, unauthorized modification, disassembly, negligence, accidents, or use in conditions beyond the product's specifications.

11.2 Atenció al client

If you encounter any issues or have questions regarding your NICRON B200 flashlight, please contact our support team. For assistance, navigate to your order history on Amazon and click “Get Help With Order” under your order ID. Our support team aims to resolve your problems within 24 hours.

For general inquiries or to learn more about NICRON products, visit the official NICRON store on Amazon: NICRON Store.
