VECYS 3-in-1 Water Dispenser with Ice Maker User Manual

1. Introducció

Thank you for choosing the VECYS 3-in-1 Water Dispenser with Ice Maker. This innovative appliance provides instant hot, cold, and fresh water, along with convenient ice production. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your new appliance. Please read it thoroughly before use and retain it for future reference.

Image 1.1: The VECYS 3-in-1 Water Dispenser, showcasing its sleek design and the open ice-making compartment.

2. Informació de seguretat

Your safety and the safety of others are very important. Please read all instructions before operating this appliance to reduce the risk of fire, electric shock, or injury.

• Pany de seguretat infantil: The hot water dispenser is equipped with a child safety lock to prevent accidental scalding. Always engage this lock when not in use, especially in households with children.
• Col·locació adequada: Place the dispenser on a flat, stable surface away from direct sunlight and heat sources. Ensure adequate ventilation around the unit.
• Seguretat elèctrica: Plug the unit into a grounded electrical outlet. Do not use extension cords or adapters. Do not operate if the power cord is damaged.
• Qualitat de l'aigua: Use only potable water. Do not use any other liquids in the dispenser.
• Neteja: Unplug the unit before cleaning. Do not immerse the unit in water.
• Manteniment: No intenteu reparar ni desmuntar la unitat vosaltres mateixos. Encarregueu tot el manteniment a personal qualificat.

Image 2.1: Illustration of the child safety lock feature, designed to prevent accidental hot water dispensing.

3. Característiques del producte

The VECYS 3-in-1 Water Dispenser is designed for convenience and efficiency, offering multiple functionalities in one compact unit.

• Triple Functionality: Provides hot water, cold water, and fresh water dispensing, along with integrated ice making. All three functions can operate simultaneously.
• Powerful Ice Making: Equipped with a high-performance compressor, this unit can produce up to 27 pounds of bullet-shaped ice daily. Each cycle yields 9 ice cubes in approximately 6-8 minutes.
• Pany de seguretat infantil: The hot water faucet features a safety lock to prevent accidental burns, ensuring safe operation for all users.
• Disseny energèticament eficient: The ice-making mechanism utilizes a high-performance compressor for superior efficiency and stable product performance.
• Versatile Water Supply: Compatible with standard 3 or 5-gallon water bottles, and also supports manual water addition for ice making.

Image 3.1: Visual representation of the 3-in-1 dispensing functions: hot water, cold water, fresh water, and ice cubes.

Image 3.2: Details on ice production: 27 lbs/day, bullet-shaped ice, ice in minutes, 9 pieces per cycle.

4. Configuració

Follow these steps to set up your VECYS 3-in-1 Water Dispenser:

1. Desembalatge: Traieu amb cura el dispensador del seu embalatge. Inspeccioneu-lo per detectar qualsevol dany durant l'enviament.
2. Col·locació: Choose a location that is flat, stable, and within reach of a grounded electrical outlet. Ensure there is at least 4 inches of clearance from walls for proper ventilation. Avoid direct sunlight or heat sources.
3. Water Bottle Installation (for barreled water supply):
   • Netegeu el coll d'una ampolla d'aigua nova de 3 o 5 galons.
   • Traieu el tap protector de l'ampolla d'aigua.
   • Carefully invert the water bottle and place it firmly onto the piercing probe on top of the dispenser. Ensure it is seated securely.
4. Manual Water Addition (for ice making without a bottle):
   • Open the top cover of the dispenser.
   • Pour potable water directly into the reservoir for ice making. Do not overfill.
5. Buidat inicial: Before first use, dispense at least 1 liter of water from both the hot and cold faucets to flush the system. Discard this water.
6. Connexió d'alimentació: Connecteu el cable d'alimentació a una presa de terra de 120 V CA.

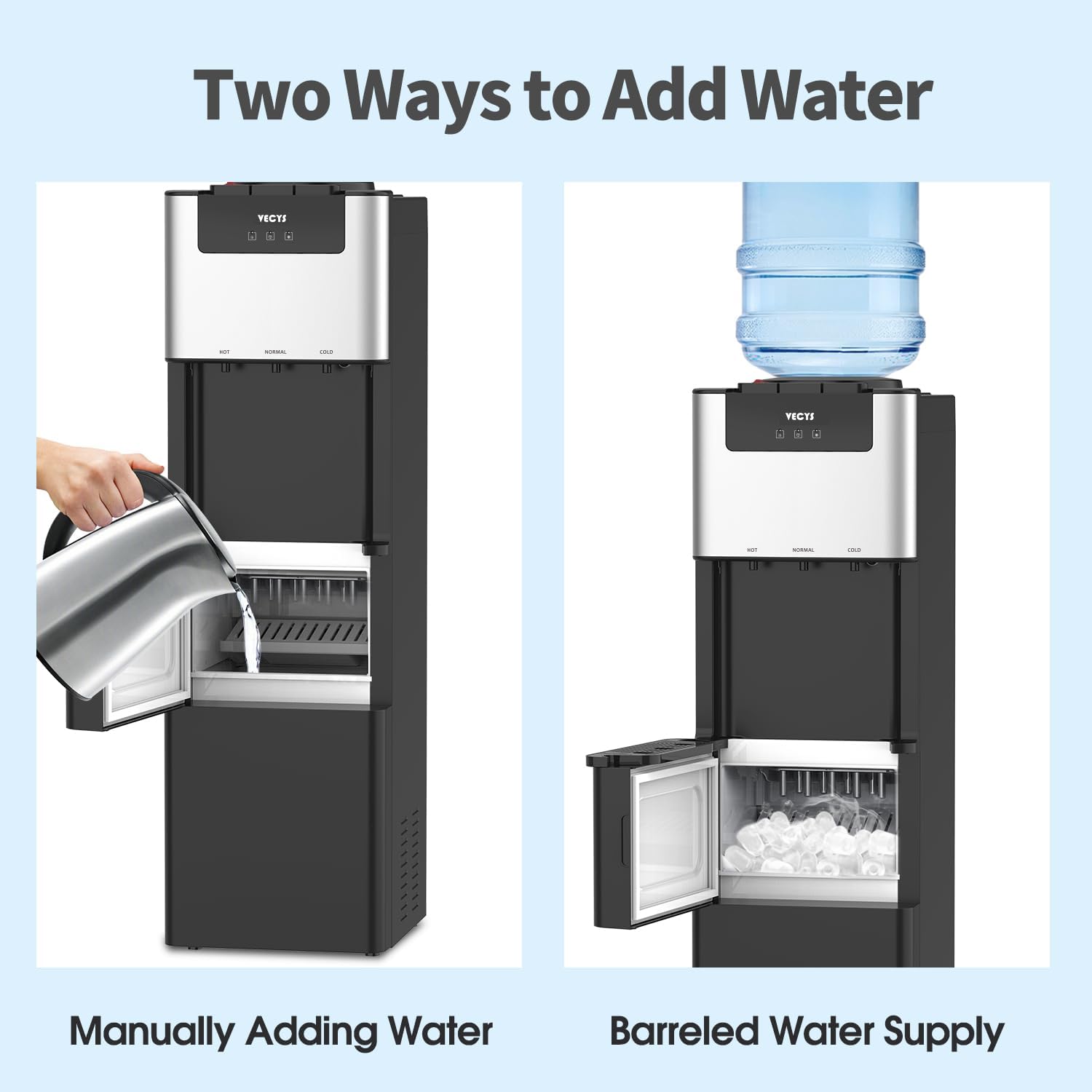

Image 4.1: Demonstrates the two methods of water supply: manually adding water for ice making and using a barreled water bottle.

5. Instruccions de funcionament

Operating your VECYS water dispenser is straightforward:

5.1 Dispensació d'aigua

• Aigua freda: Place your cup under the cold water faucet. Press the cold water button/lever to dispense.
• Aigua calenta: Place your cup under the hot water faucet. To dispense hot water, first push the child safety lock button, then press the hot water button/lever. Release the button/lever to stop dispensing.
• Normal/Fresh Water: Place your cup under the normal water faucet. Press the normal water button/lever to dispense.

Imatge 5.1: acabatview of the water dispensing points for cold, fresh, and hot water.

5.2 Fabricació de gel

• Ensure there is sufficient water in the reservoir (either from the installed bottle or manually added).
• The ice maker will automatically begin producing ice when the water level is adequate and the ice bin is not full.
• Ice cubes will be dropped into the ice storage bin. Use the provided ice scoop to retrieve ice.
• Note: This unit is not a freezer. Ice will melt over time, and the melted water will return to the reservoir for re-use in ice production.

6. Manteniment

Regular cleaning and maintenance will ensure the longevity and optimal performance of your dispenser.

• Neteja exterior: Netegeu les superfícies exteriors amb un damp tela. No utilitzeu netejadors abrasius ni dissolvents.
• Safata de degoteig: The drip tray should be emptied and cleaned regularly to prevent overflow and bacterial growth. Simply slide it out, empty, wash with mild soap and water, rinse, and replace.
• Contenidor de gel: Periodically remove and clean the ice storage bin with mild soap and water. Ensure it is completely dry before replacing.
• Neteja/desincrustació interna: For thorough internal cleaning and descaling, especially if you notice mineral buildup or a change in water taste, consult a qualified technician or follow specific descaling instructions provided by VECYS support. This typically involves using a food-grade descaling solution.
• Water Bottle Area: Clean the area where the water bottle sits regularly to prevent dust and debris accumulation.

Image 6.1: Illustrates features like regular cleaning access and the removable drip water tray for easy maintenance.

7. Solució De Problemes

If you encounter issues with your VECYS water dispenser, refer to the table below for common problems and solutions.

If the problem persists after attempting these solutions, please contact VECYS customer support for assistance.

8. Especificacions

Detailed specifications for the VECYS 3-in-1 Water Dispenser with Ice Maker:

Image 8.1: Visual summary of key specifications including water refrigeration capacity, water tank capacity, water temperature, ice making capacity, ice making time, and ice storage.

9. Garantia i Suport

VECYS is committed to customer satisfaction and product quality.

• One-Year Replacement Warranty: If you encounter any quality issues with your VECYS 3-in-1 Water Dispenser within one year of purchase, VECYS will provide a brand-new replacement unit instead of repair.
• Atenció al client: For any questions, concerns, or warranty claims, please contact VECYS customer support. Refer to your purchase documentation or the VECYS official weblloc per obtenir informació de contacte.
