1. Informació important de seguretat
Si us plau, llegiu atentament totes les instruccions abans de la instal·lació i l'ús. Conserveu aquest manual per a futures consultes.
- Seguretat elèctrica: Ensure the toilet is connected to a properly grounded electrical outlet. Do not immerse the unit in water. Disconnect power before cleaning or servicing.
- Subministrament d'aigua: Ensure water supply is turned off during installation. Use only potable water.
- Instal·lació: Professional installation by a qualified plumber and electrician is recommended to ensure proper function and safety.
- Neteja: Feu servir netejadors suaus i no abrasius. Eviteu productes químics agressius que puguin danyar les superfícies.
- Children and Individuals with Reduced Capabilities: Aquest aparell el poden utilitzar nens a partir de 8 anys i persones amb capacitats físiques, sensorials o mentals reduïdes o amb manca d'experiència i coneixements si han rebut supervisió o instruccions sobre l'ús de l'aparell d'una manera segura i entenen els perills que comporta. . Els nens no han de jugar amb l'aparell. La neteja i el manteniment dels usuaris no els han de fer els nens sense supervisió.
2. Contingut del paquet
Verifiqueu que tots els components siguin presents abans de començar la instal·lació:
- CANEST Smart Toilet Unit (TC-300BK)
- Comandament a distància sense fil
- Brida de segellat
- Plantilla de cartró d'instal·lació
- Manual d'usuari (aquest document)
- Vàlvula d'angle
- Kit d'accessoris de muntatge
3. Producte acabatview
The CANEST TC-300BK Smart Toilet integrates advanced features for enhanced hygiene and comfort.
Figura 3.1: Davant view of the CANEST Smart Toilet TC-300BK. This image displays the sleek, one-piece design of the smart toilet, featuring a white ceramic body and a dark grey top panel with an integrated LED display. A remote control is mounted on the wall to the left.
Característiques principals:
- Seient calefactat: Adjustable temperature settings for comfort.
- Funcions del bidet: Rear wash, front wash, and oscillating cleanse with adjustable water temperature and pressure.
- Assecador d'aire calent: Adjustable temperature for post-wash drying.
- Broquet autonetejant: Automatic cleaning of the bidet nozzle before and after each use.
- Sensor de peu: Activates lid opening or flushing for hands-free operation.
- Desodorització automàtica: Sistema integrat per mantenir un ambient de bany fresc.
- Llum nocturna: Soft LED illumination for nighttime visibility.
- Comandament a distància: Wireless control for all functions.
- Esbandida potent: 1.28 GPF pump-assisted flush with Jet Siphon technology.
- Soft Close Lid & Seat: Evita els cops i redueix el soroll.
4. Configuració i instal·lació
Installation of the CANEST Smart Toilet TC-300BK requires plumbing and electrical connections. It is strongly recommended that installation be performed by a qualified professional.
Comprovacions prèvies a la instal·lació:
- Assegureu-vos que la mesura aproximada sigui de 12 cm des de la paret fins al centre del tub de desguàs.
- Verify availability of a grounded electrical outlet (120V AC, 60Hz) within reach of the toilet's power cord.
- Confirm water supply line is accessible and can be shut off.
Figura 4.1: Dimensions of the CANEST Smart Toilet. This diagram illustrates the toilet's measurements: 28 inches deep, 16.7 inches wide, and 19.9 inches high from the floor to the top of the seat. It also indicates a 12-inch rough-in requirement.
Installation Steps (Summary - Refer to detailed guide in packaging):
- Àrea de preparació: Turn off water supply, remove old toilet, clean the flange area.
- Install Sealing Flange: Secure the new sealing flange to the floor drain.
- Posició del lavabo: Carefully place the toilet unit over the flange, aligning it correctly.
- Lavabo segur: Feu servir el kit d'accessoris de muntatge per fixar fermament el vàter al terra.
- Connectar el subministrament d'aigua: Connect the angle valve and water supply line to the toilet. Turn on water supply and check for leaks.
- Connectar l'alimentació: Plug the toilet into the grounded electrical outlet.
- Funcions de prova: Perform initial flush and test bidet functions.
5. Instruccions de funcionament
The CANEST Smart Toilet TC-300BK can be operated via the wireless remote control or the side shortcut key.
Figura 5.1: Remote Control and Shortcut Key for CANEST Smart Toilet. This image shows the layout of the wireless remote control with buttons for various functions like Stop, Rear Wash, Front Wash, Dryer, Nozzle Position, Water Pressure, Water Temp, Wind Temp, and Seat Temp. It also illustrates the side shortcut key for basic operations.
Funcions de control remot:
- Atura: Atura qualsevol funció activa de bidet o assecat.
- Rentat posterior: Activates posterior cleansing.
- Front Wash (Female Wash): Activates feminine cleansing.
- Assecador: Activates warm air drying.
- Posició del broquet: Adjusts the bidet nozzle's position.
- Pressió de l'aigua: Adjusts the water spray intensity.
- Temperatura de l'aigua: Adjusts the water temperature for washing.
- Wind Temp: Ajusta la temperatura de l'assecador d'aire calent.
- Temperatura del seient: Ajusta la temperatura del seient calefactat.

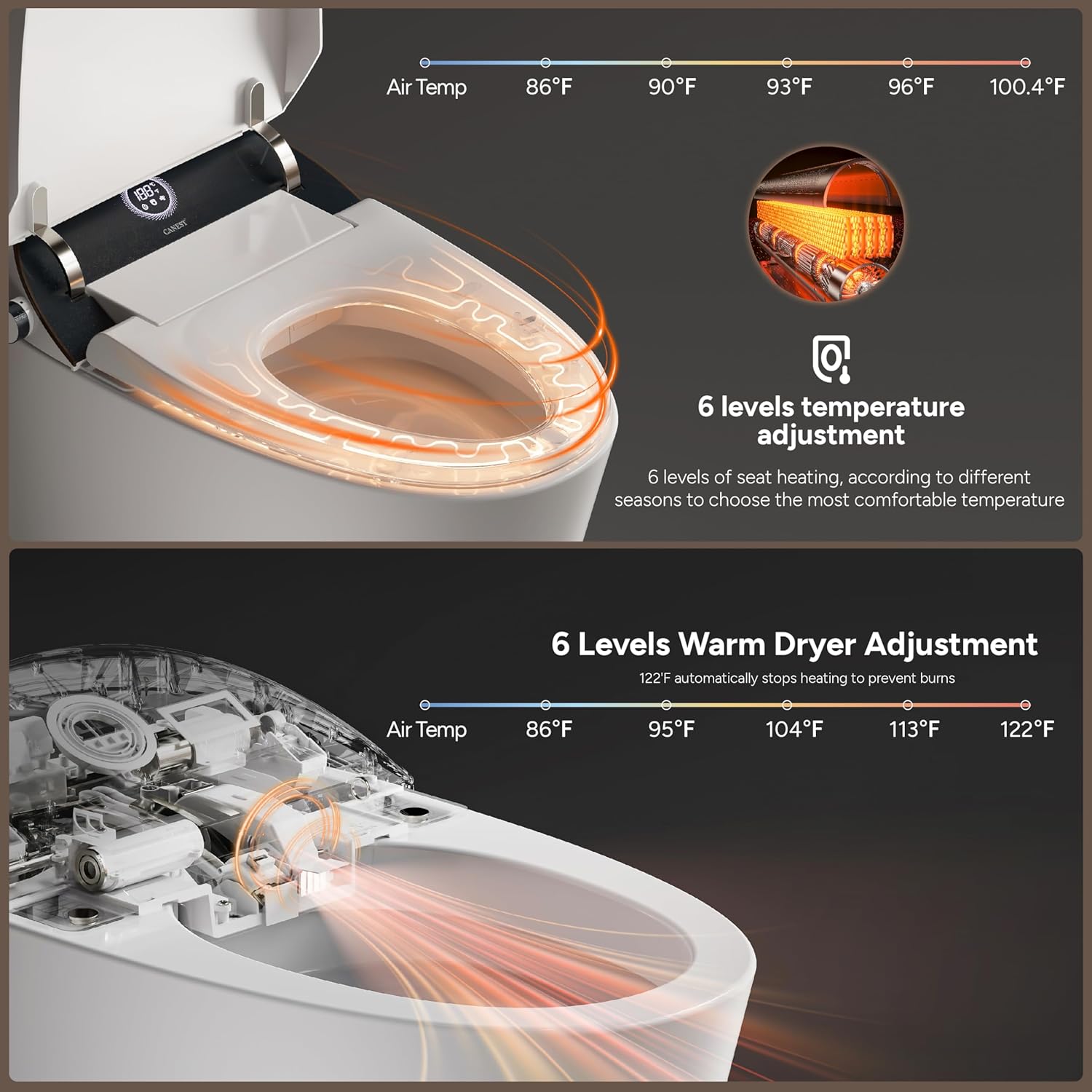

Figura 5.2: Heated Seat and Warm Dryer Temperature Adjustment. This image shows the six levels of temperature adjustment for both the heated seat (ranging from 86°F to 100.4°F) and the warm air dryer (ranging from 86°F to 122°F), indicating automatic shut-off at 122°F to prevent burns.
Bidet Cleaning Modes:
Figura 5.3: Multiple Cleaning Modes of the CANEST Smart Toilet. This image illustrates the various bidet functions: Rear Wash, Front Wash, Oscillating Cleanse, and Self-cleaning Nozzle. It also highlights the removable nozzle for easy maintenance and adjustable water temperature.
- Rentat posterior: Per a la neteja posterior.
- Rentat frontal: Per a la higiene femenina.
- Neteja oscil·lant: The nozzle moves back and forth for a wider cleaning area.
- Self-cleaning Nozzle: The nozzle automatically cleans itself before and after use.
Other Automatic Functions:
- Sensor de peu: Gently tap your foot near the sensor at the base of the toilet to activate lid opening or flushing.
- Neteja automàtica fora del seient: The toilet will automatically flush a small amount of water after you stand up.
- Llum nocturna: The soft LED night light activates in low-light conditions for visibility.
- Desodorització automàtica: The system automatically activates to neutralize odors.
- Soft Close Lid & Seat: The lid and seat close slowly and quietly to prevent slamming.
Figura 5.4: Soft Close Lid and Seat. This image demonstrates the slow, controlled closing mechanism of the toilet lid and seat, highlighting the soft-close feature.
6. Manteniment i Neteja
Regular cleaning and maintenance will ensure the longevity and optimal performance of your CANEST Smart Toilet.
Neteja general:
- Exterior: Netegeu les superfícies exteriors amb un damp cloth and a mild, non-abrasive cleaner. Avoid spraying water directly onto electrical components.
- Seient: Clean the seat with a soft cloth and mild soap. Do not use harsh detergents or abrasive pads.
- Bol: Use a standard toilet bowl cleaner and brush for the ceramic bowl.
Neteja de broquets:
Figura 6.1: Hygienic Nozzle Feature. This image highlights the self-cleaning mechanism of the bidet nozzle, showing it being effectively deep cleaned after each use to ensure hygiene.
- The bidet nozzle performs an automatic self-cleaning cycle before and after each use.
- For manual cleaning, gently pull out the nozzle and wipe it with a soft cloth and mild soap. Do not use excessive force.
- The nozzle is removable for thorough cleaning if necessary. Refer to the detailed manual for removal instructions.
Manteniment del filtre:
- Periodically check the water inlet filter for debris. Clean or replace as needed to maintain optimal water flow.
7. Solució De Problemes
If you encounter issues with your CANEST Smart Toilet, refer to the following common problems and solutions:
| Problema | Causa possible | Solució |
|---|---|---|
| Sense alimentació/pantalla LED apagada | Cable d'alimentació desconnectat, interruptor automàtic saltat, corrent apagattage. | Comproveu la connexió d'alimentació, reinicieu l'interruptor automàtic i verifiqueu el subministrament d'energia. |
| Sense ruixat d'aigua/ruixat feble | Vàlvula de subministrament d'aigua tancada, filtre d'aigua obstruït, baixa pressió d'aigua. | Open water supply valve, clean water filter, check household water pressure. |
| El seient calefactat no funciona | Funció de seient calefactable desactivada, temperatura massa baixa. | Activate heated seat via remote, increase temperature setting. |
| El vàter no es renta | Potència outage, sensor obstruction, flush mechanism issue. | Check power. For power outages, use the built-in battery box for emergency flush. Clear any obstructions around sensors. If problem persists, contact support. |
| El comandament a distància no respon | Batteries low/dead, remote out of range, signal obstruction. | Replace remote batteries, ensure remote is within range, remove obstructions. |
If the problem persists after attempting these solutions, please contact CANEST customer support.
8. Especificacions
| Característica | Especificació |
|---|---|
| Número de model | TC-300BK |
| Color | Blanc |
| Dimensions del producte (P x A x A) | 28" x 16.7" x 19.9" |
| En brut | 12 polzades |
| Material | Ceràmica (WC), Plàstic (Seient) |
| Pes de l'article | 94.8 lliures (43.09 quilograms) |
| Volum de ras | 1.28 Gallons Per Flush (GPF) |
| Tipus de ras | Pump-assisted, Jet Siphon |
| Tipus d'instal·lació | Muntat al terra |
| Font d'alimentació | 120V AC, 60Hz (Standard US) |
| Components inclosos | Remote Control, Sealing Flange, Installation Cardboard, User Manual, Angle Valve, Mounting Accessory Kit |
9. Garantia i Suport
For warranty information or technical assistance, please contact CANEST customer support. Details can typically be found on the CANEST official weblloc web o a través de la documentació de compra.
When contacting support, please have your model number (TC-300BK) and purchase date available.
