Genérico Solid Pine Wood TV Cabinet 156x37x45 cm - Model TV-814394 User Manual

1. Introducció

Thank you for choosing the Genérico Solid Pine Wood TV Cabinet. This manual provides essential information for the safe assembly, proper use, and effective maintenance of your new furniture. Please read these instructions carefully before beginning assembly and retain them for future reference.

Image 1.1: The Genérico Solid Pine Wood TV Cabinet integrated into a modern living room, showcasing its functional design beneath a wall-mounted television.

2. Informació de seguretat

Per evitar lesions o danys al producte, si us plau, seguiu les següents pautes de seguretat:

• Always assemble the product on a soft, clean surface to avoid scratches.
• Assegureu-vos que tots els cargols i elements de fixació estiguin ben ajustats abans d'utilitzar-los. Comproveu-los periòdicament i torneu-los a apretar si cal.
• Do not overload the cabinet. Distribute weight evenly across shelves and compartments.
• Mantingueu les peces petites fora de l'abast dels nens durant el muntatge per evitar riscos d'asfíxia.
• If wall mounting is required (not applicable for this model, but general safety), use appropriate hardware for your wall type and seek professional assistance if unsure.
• Avoid placing hot items directly on the wood surface without protection.

3. Muntatge i muntatge

This TV cabinet requires assembly. Please follow these steps carefully. It is recommended to have two people for assembly.

3.1. Desembalatge i inventari

• Desembaleu amb cura tots els components de l'embalatge.
• Verify that all parts and hardware listed in the included parts list are present. Contact your retailer immediately if any parts are missing or damaged.

3.2. Passos de muntatge

1. Preparar la base: Identify the base panels and connect them using the provided fasteners. Ensure they are stable and level.
2. Fixeu els panells laterals: Secure the side panels to the base.
3. Install Dividers and Shelves: Insert any internal dividers and shelves into their designated slots or attach them with fasteners.
4. Fixeu el panell superior: Place and secure the top panel to the assembled frame.
5. Instal·leu el panell posterior: Attach the back panel (typically MDF) to the rear of the cabinet using small nails or screws. This adds stability.
6. Portes de muntatge: Attach the hinges to the cabinet frame and then to the doors. Carefully align and secure each door. Adjust hinges as needed for proper door alignment.
7. Attach Handles (if applicable): Secure any handles or knobs to the doors.
8. Comprovació final: Ensure all connections are tight and the cabinet is stable.

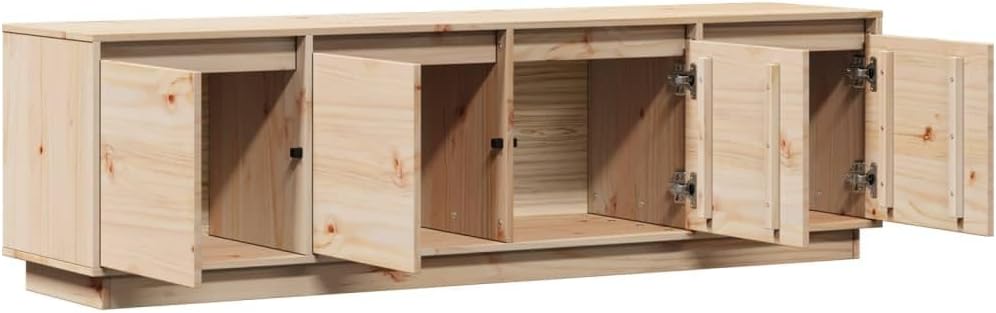

Image 3.1: The TV cabinet with its four doors open, illustrating the internal storage capacity and construction.

Imatge 3.2: La part posterior view of the TV cabinet, showing the MDF back panel which provides structural integrity.

Imatge 3.3: Una imatge detallada view of the door hinge mechanism, crucial for proper door function and alignment.

4. Instruccions de funcionament

The Genérico Solid Pine Wood TV Cabinet is designed for organizing your entertainment area.

• Col·locació: Position the cabinet on a flat, stable surface. Ensure there is adequate ventilation around electronic devices placed within or on the cabinet.
• Emmagatzematge: Utilize the four compartments for storing media devices, DVDs, remote controls, and other accessories. The doors help keep items dust-free and out of sight.
• Distribució de pes: When placing a television on top, ensure its weight is evenly distributed and does not exceed the cabinet's weight capacity (consult seller for specific capacity if needed).

Image 4.1: The top surface of the TV cabinet, demonstrating its capacity to hold decorative items and small electronic devices.

5. Manteniment i cura

To maintain the beauty and longevity of your solid pine wood TV cabinet, follow these care instructions:

• Neteja: Netegeu les superfícies amb un suau, damp cloth. Avoid abrasive cleaners or harsh chemicals that can damage the wood finish.
• Vessaments: Immediately wipe up any spills to prevent water stains or damage to the wood.
• Llum solar: Avoid prolonged exposure to direct sunlight, which can cause fading or discoloration of the wood.
• Humitat: Maintain a stable humidity level in the room to prevent the wood from cracking or warping.
• Protecció: Use coasters or protective pads under hot items or items that might scratch the surface.

Imatge 5.1: Una imatge detallada view of the pine wood grain, showing the natural characteristics of the material.

6. Solució De Problemes

Aquí teniu solucions a problemes comuns que podeu trobar:

• Armari inestable:

  Ensure all fasteners are securely tightened. Check if the cabinet is on an even surface. Use furniture levelers if necessary.
• Portes que no tanquen correctament:

  Adjust the hinges. Most furniture hinges allow for minor adjustments to align doors horizontally, vertically, and in depth.

• Ratllades o cops:

  Minor scratches can sometimes be buffed out with wood polish or a wood repair kit. For deeper damage, consult a furniture repair specialist.

7. Especificacions

Imatge 7.1: Frontal view of the TV cabinet, highlighting its dimensions and design.

8. Garantia i Suport

For information regarding warranty coverage, returns, or technical support, please refer to the documentation provided at the time of purchase or contact your retailer directly. The manufacturer's warranty terms and conditions apply.
