1. Introducció
Thank you for choosing the STARLEAD LED Bathroom Mirror. This manual provides essential information for the safe installation, operation, and maintenance of your new mirror. Please read it thoroughly before use and retain it for future reference.

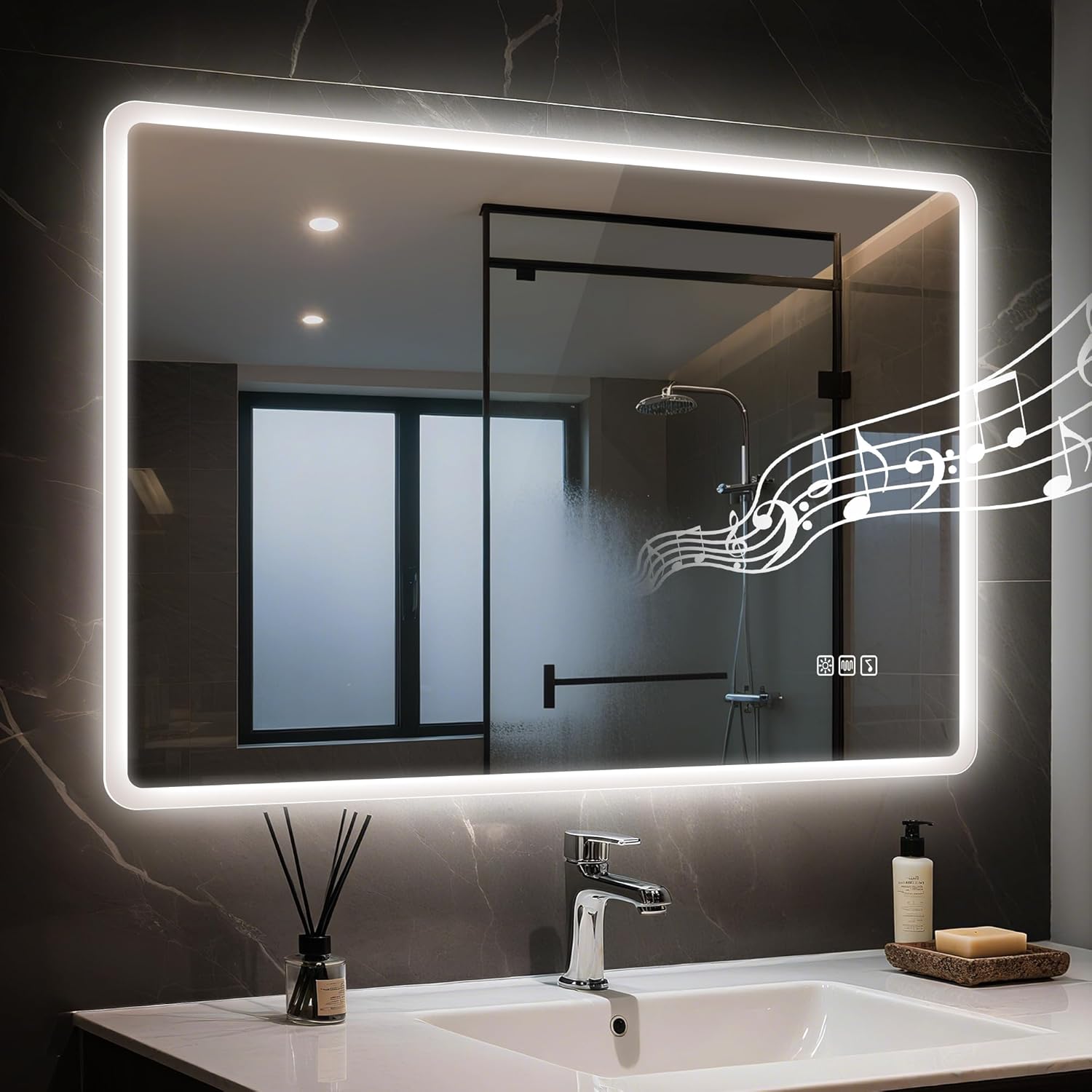

Imatge 1.1: Frontal view of the STARLEAD LED Bathroom Mirror, showcasing its illuminated edges and integrated touch controls.
2. Informació de seguretat
Si us plau, observeu les següents precaucions de seguretat per evitar lesions o danys al producte:
- Assegureu-vos que la font d'alimentació estigui desconnectada abans de la instal·lació o el manteniment.
- La instal·lació l'ha de dur a terme un electricista qualificat d'acord amb les normes elèctriques locals.
- No intenteu reparar o modificar el mirall vosaltres mateixos. Poseu-vos en contacte amb el servei d'atenció al client per obtenir ajuda.
- This mirror is made of tempered glass, which is designed to be more resistant to breakage and safer if it does break.
Image 2.1: Illustration demonstrating the safety benefits of tempered glass used in the STARLEAD mirror compared to traditional glass.
3. Característiques del producte
Your STARLEAD LED Bathroom Mirror is equipped with several advanced features:
- Explosion-Proof Design: Constructed with toughened glass for enhanced safety and impact resistance.
- Built-in Dual Bluetooth Speakers: Provides 360-degree surround sound for audio playback.
- Funció antiboira: Integrated anti-fog film keeps the mirror clear after showering.
- Il·luminació personalitzada: Offers three color temperatures (3000K Warm, 4000K Natural, 6500K Cool).
- Brillantor ajustable: Regulació continua de la intensitat del 5% al 100%.
- Funció de memòria intel·ligent: Retains preferred light brightness and color temperature settings after power cycles.
- Instal·lació flexible: Es pot instal·lar verticalment o horitzontalment.
- Impermeable: Designed for bathroom environments.
Imatge 3.1: acabatview of the mirror's key features and dimensions.
4. Configuració i instal·lació
The mirror can be installed either vertically or horizontally. You can choose between hardwiring or using a plug-in connection.
4.1 Llista de comprovació prèvia a la instal·lació
- Comproveu que tots els components estiguin presents i sense danys.
- Ensure the installation location is suitable and can support the mirror's weight.
- Desconnecteu l'alimentació principal al disjuntor abans de començar la instal·lació.
4.2 Passos d'instal·lació (generals)
- Measure and mark the desired mounting points on the wall.
- Drill holes and insert wall anchors suitable for your wall type.
- Fixeu el suport de muntatge a la paret amb cargols.
- For hardwiring: Connect the mirror's electrical wires to the household wiring (Live, Neutral, Ground) as per local electrical codes. For plug-in: Connect the power cord to a suitable outlet.
- Carefully hang the mirror onto the mounting bracket.
- Restore power and test all functions.
Image 4.1: General installation diagram for wall-mounting the mirror.
5. Instruccions de funcionament
The mirror features intuitive touch controls located on the mirror surface.
5.1 Power On/Off and Lighting Control
- Potència: Tap the power icon to turn the mirror lights on or off.
- Temperatura de color: Double-tap the light icon to cycle through the three color temperatures: 3000K (Warm Light), 4000K (Natural Light), and 6500K (Cool Light).
- Ajust de brillantor: Long-press the light icon to adjust the brightness from 5% to 100%. Release when the desired brightness is reached.
- Funció de memòria: The mirror will remember your last brightness and color temperature settings when turned off and on again.
Image 5.1: Visual representation of the three available light color temperatures.
Image 5.2: Demonstration of the stepless dimming feature, showing brightness levels from 5% to 100%.
5.2 Funció antiboira
- Tap the demist icon to activate the anti-fog function.
- The anti-fog feature will clear condensation from the mirror surface.
- Tap the icon again to turn off the anti-fog function.
Image 5.3: The anti-fog function in action, clearing a section of the mirror.
5.3 Funcionament de l'altaveu Bluetooth
- Tap the Bluetooth icon on the mirror to activate Bluetooth pairing mode.
- On your mobile device, search for available Bluetooth devices and select 'STARLEAD Mirror'.
- Once paired, you can play audio through the mirror's built-in speakers.
- Tap the Bluetooth icon again to disconnect.
Image 5.4: User enjoying music via the mirror's Bluetooth speakers.
6. Manteniment
To ensure the longevity and optimal performance of your STARLEAD LED Bathroom Mirror, follow these maintenance guidelines:
- Neteja: Utilitzeu un suau, damp cloth and a mild, non-abrasive glass cleaner to clean the mirror surface. Avoid harsh chemicals or abrasive materials that could damage the glass or frame.
- Components elèctrics: Do not spray water directly onto electrical components. Ensure the mirror is dry before restoring power after cleaning.
- Llums LED: The LED light strip has a lifespan of over 50,000 hours. No regular maintenance is required for the lights.
Image 6.1: Details of the LED light strip and its features.
7. Solució De Problemes
If you encounter any issues with your mirror, refer to the following common troubleshooting steps:
| Problema | Causa possible | Solució |
|---|---|---|
| Els llums no s'encenen | No power supply; Loose connection; Faulty switch | Check power connection; Ensure circuit breaker is on; Verify wiring connections. |
| L'antiboira no funciona | Function not activated; Electrical issue | Tap the demist icon to activate; Check power supply. |
| Bluetooth no emparellat | Mirror not in pairing mode; Device too far; Bluetooth off on device | Tap Bluetooth icon on mirror; Ensure device is within range; Turn on Bluetooth on your device. |
| Llums parpellejant o tènues | Unstable power supply; Dimmer setting too low | Check power source stability; Adjust brightness using long-press on light icon. |
If the problem persists after attempting these solutions, please contact STARLEAD customer support.
8. Especificacions
| Característica | Especificació |
|---|---|
| Marca | STARLEAD |
| Número de model | USM3017 |
| Dimensions del producte | 36" de llargada x 24" d'amplada |
| Forma | Rectangular |
| Material del marc | Vidre temperat |
| Tipus de muntatge | Muntatge de paret |
| Característiques especials | 3 Color Temperatures, Bluetooth, Fogless, Smart, Stepless Dimmable |
| Color | Silver-rectangular |
| Pes de l'article | 17.81 lliures |
| Tipus d'habitació | Bathroom, Bedroom, Dressing Room, Hallway, Living Room |
9. Garantia i Suport
Specific warranty details for the STARLEAD LED Bathroom Mirror are not provided in this document. For warranty information, technical support, or any inquiries regarding your product, please refer to the product packaging, the official STARLEAD website, or contact STARLEAD customer service directly.
You can visit the STARLEAD Store for more information: STARLEAD Store on Amazon
