Manual d'usuari del detector de fuites de refrigerant SIMBOW ALD-200 PRO HP

1. Introducció

The SIMBOW ALD-200 PRO HP is a professional-grade refrigerant leak detector designed for identifying leaks in heat pump systems and other HVAC applications. It offers high sensitivity, a flexible probe for hard-to-reach areas, and clear visual and audible indicators to pinpoint refrigerant leaks efficiently.

1.1. Producte acabatview

This device is optimized for detecting refrigerants commonly used in heat pump systems, including R410A, R407C, R32, and R1234ze. Its advanced sensor technology ensures reliable and accurate leak detection.

Image 1.1: The SIMBOW ALD-200 PRO HP Refrigerant Leak Detector, shown with its USB-C charging cable and protective carrying case.

1.2. Contingut del paquet

• SIMBOW ALD-200 PRO HP Refrigerant Leak Detector
• Cable de càrrega USB-C
• Funda protectora de transport
• Manual d'usuari (aquest document)

2. Informació de seguretat

Read all safety instructions before operating the device. Failure to follow these instructions may result in injury or damage to the device.

• Feu funcionar el dispositiu sempre en una zona ben ventilada.
• Avoid direct contact with refrigerants. Use appropriate personal protective equipment (PPE) such as gloves and eye protection.
• Do not expose the device to extreme temperatures, moisture, or corrosive substances.
• Keep the device away from open flames or ignition sources, as some refrigerants are flammable.
• No intenteu desmuntar ni modificar el dispositiu. Encarregueu tot el manteniment a personal qualificat.
• Ensure the device is fully charged before use to avoid interruptions during critical detection tasks.

3. Característiques del producte

The ALD-200 PRO HP incorporates several features designed for effective and user-friendly leak detection:

• Optimized for Heat Pumps: Specifically engineered to detect R410A, R407C, R32, and R1234ze refrigerants.
• Alta sensibilitat: Detects leaks as small as 0.14 oz./year.
• 16-inch Flexible Probe: Allows access to confined and hard-to-reach areas.
• Alarmes sonores i visuals: Provides a multi-level bar graph display and an increasing audible beep frequency to indicate leak concentration.
• Color Graphic Display: A 2.8-inch high-resolution digital LCD display for clear data visualization.
• Bateria recarregable de 3000 mAh: Offers up to 6 hours of continuous operation on a single charge.
• Sensibilitat ajustable: Three selectable sensitivity levels (High, Medium, Low) for various detection scenarios.
• Peak Function: Records the maximum leakage value detected, aiding in pinpointing the largest leak source.
• Restabliment automàtic: Resets the sensitivity benchmark for accurate detection in changing environments.
• Funció de silenci: Allows for silent operation when audible alarms are not desired.

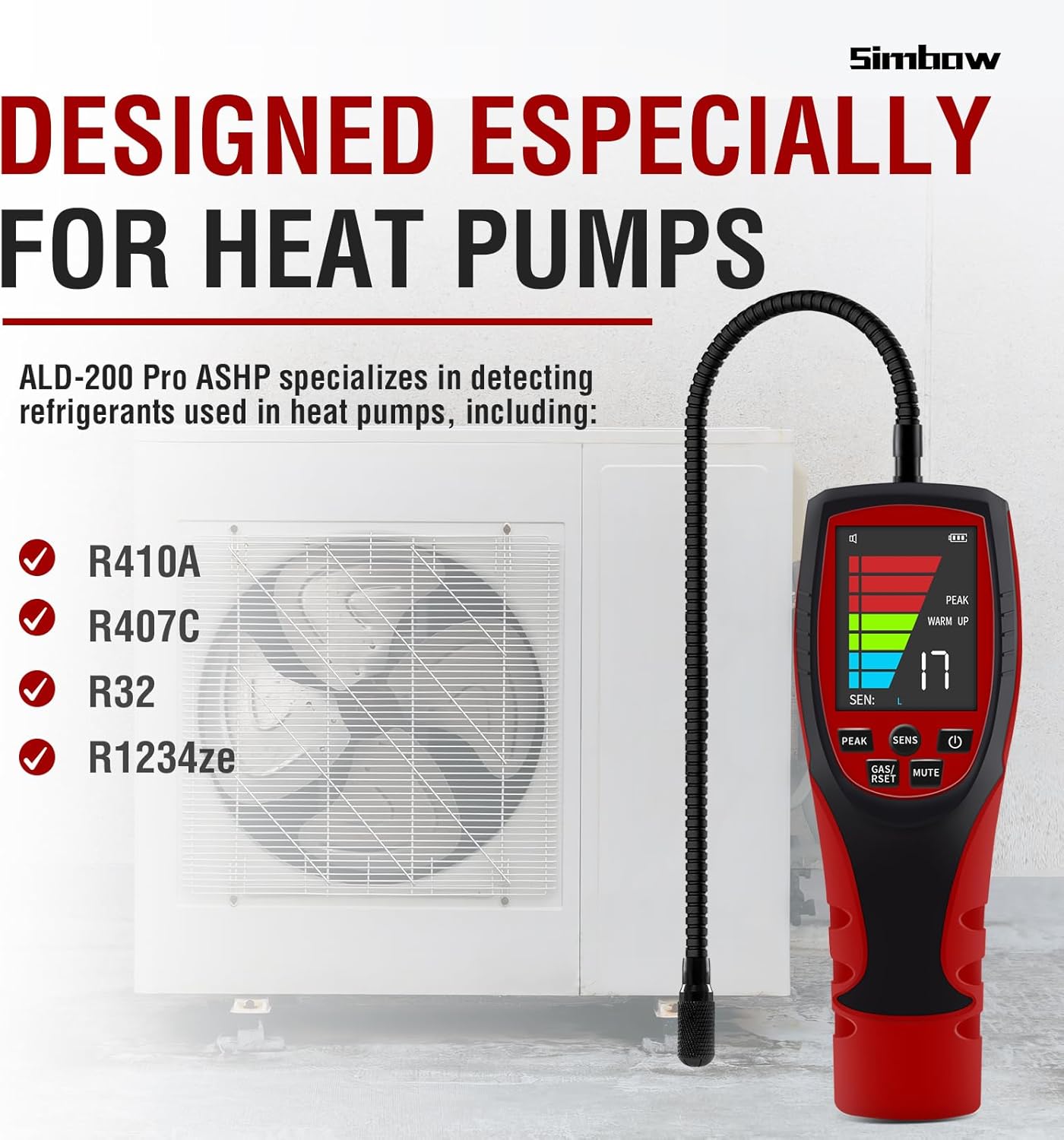

Image 3.1: The ALD-200 PRO HP is specifically designed for refrigerants used in heat pump systems, including R410A, R407C, R32, and R1234ze.

Image 3.2: The device features a 2.8-inch digital LCD display for clear visualization of leak levels and settings.

4. Configuració

4.1. Carregant la bateria

The ALD-200 PRO HP is powered by a built-in 3000mAh rechargeable Lithium-Ion battery. Before first use, fully charge the device.

1. Connect the provided USB-C charging cable to the USB port on the device.
2. Connecteu l'altre extrem del cable USB-C a un adaptador de corrent USB compatible (no inclòs).
3. The battery indicator on the display will show charging status. A full charge typically takes approximately 4 hours with a standard 2.1W charging block, or less with a 5W block.
4. Desconnecta el carregador un cop la bateria estigui plena.

Image 4.1: The device features a 3000mAh rechargeable battery and charges via a USB-C port.

4.2. Encès / apagat

Premeu i manteniu premut el botó d'engegada (normalment marcat amb un símbol d'engegada) per encendre o apagar el dispositiu.

4.3. Escalfament

After powering on, the device will undergo a warm-up period, typically lasting about 30 seconds. During this time, the display may show a "WARM UP" indicator. Wait for the warm-up to complete before beginning leak detection.

5. Funcionament

Follow these steps for effective refrigerant leak detection:

Image 5.1: Key operational buttons on the ALD-200 PRO HP: PEAK, RSET, SENS, and MUTE.

5.1. Ajust de sensibilitat

The device has three sensitivity levels: High, Medium, and Low. The default sensitivity level is typically the lowest (L). Press the SENS button to cycle through the sensitivity modes. Higher sensitivity is suitable for detecting very small leaks, while lower sensitivity helps to narrow down the leak source in areas with higher background refrigerant levels.

5.2. Leak Detection Procedure

1. Turn on the detector and allow it to complete its warm-up cycle (approximately 30 seconds).
2. Ensure the area is free of known refrigerant concentrations before starting. If necessary, move to a fresh air environment and press the GAS/RSET button to reset the baseline.
3. Slowly move the sensor probe at a distance of approximately 0.25 inches (6mm) per second near the suspected leak area.
4. Observe the display and listen for audible alarms. The alarm frequency and visual bar graph will increase as the probe approaches a leak source.
5. Once a leak is detected, move the probe away briefly and then return to confirm the location.

Image 5.2: A quick guide illustrating the basic steps for operating the leak detector, from warm-up to leak detection.

5.3. Understanding Alarms (Audible & Visual)

When a leak is detected, the device provides both audible and visual feedback:

• Alarma sonora: A buzzer will sound, increasing in frequency as the concentration of refrigerant gas rises.
• Visualització visual: The color graphic display features a bar graph that indicates the leakage level. The bars will illuminate and change color (e.g., from green to yellow to red) as the leak concentration increases, helping to visually pinpoint the source.

Image 5.3: The device provides clear audible and visual alarms, with a bar graph indicating the intensity of the detected leak.

5.4. Peak Function

Premeu el botó PIC button to activate the peak function. This feature records and displays the maximum leakage value detected during continuous operation. This is useful for identifying the most significant leak point in complex environments.

Image 5.4: The PEAK function helps identify the highest concentration of refrigerant detected, aiding in locating the primary leak source.

5.5. Automatic Reset (GAS/RSET)

El GAS/RSET button allows you to automatically reset the sensitivity benchmark. Press and hold this button for 3 seconds to reset the device's baseline. This is particularly useful when moving from an area with a high concentration of refrigerant to a cleaner area, ensuring accurate detection of new leaks.

5.6. Funció de silenci

Premeu el botó MUT button to turn the audible buzzer on or off. This allows for discreet operation in noise-sensitive environments while still relying on the visual display for leak indications.

6. Manteniment

6.1. Sensor Probe Care

The 16-inch flexible sensor probe is a critical component. Handle it with care to prevent damage. Avoid bending it sharply or exposing it to excessive force. Keep the probe tip clean and free from debris.

Image 6.1: The 16-inch flexible sensor probe allows for detection in hard-to-reach areas.

6.2. Neteja

Wipe the device's exterior with a soft, dry cloth. Do not use abrasive cleaners, solvents, or immerse the device in water. Ensure the sensor probe tip is clean for optimal performance.

6.3. Emmagatzematge

When not in use, store the ALD-200 PRO HP in its protective carrying case in a cool, dry place, away from direct sunlight and extreme temperatures. Ensure the battery is partially charged (not fully depleted or fully charged for long-term storage) to prolong battery life.

7. Solució De Problemes

8. Especificacions

9. Garantia i Suport

9.1. Garantia limitada

The SIMBOW ALD-200 PRO HP Refrigerant Leak Detector comes with a limited warranty. For specific warranty terms and conditions, please refer to the warranty card included with your product or visit the official SIMBOW weblloc.

9.2. Atenció al client

For technical assistance, troubleshooting, or service inquiries, please contact SIMBOW customer support. Contact information can typically be found on the product packaging or the official SIMBOW weblloc.
