URANT 12AWG Heavy Duty 4-in-1 AC Plug Adapter Extension Cord User Manual

1. Introducció

This manual provides essential instructions for the safe and effective use of your URANT 12AWG Heavy Duty 4-in-1 AC Plug Adapter Extension Cord. Please read this manual thoroughly before using the product and retain it for future reference.

2. Producte acabatview

The URANT 12AWG Heavy Duty Extension Cord is a versatile 4-in-1 AC plug adapter designed for various power requirements. It features a NEMA 5-15P male plug and a unique T-blade female receptacle compatible with NEMA 5-15R, 5-20R, 6-15R, and 6-20R connections. This adapter facilitates physical connection for power ranging from 15A 125V to 20A 250V, making it suitable for a wide range of heavy-duty applications.

Característiques principals:

• Compatibilitat 4 en 1: The female receptacle supports NEMA 5-15R (15A 125V), 5-20R (20A 125V), 6-15R (15A 250V), and 6-20R (20A 250V) plugs.
• Construcció resistent: Made with 12AWG pure copper conductors and a durable SJTW-certified PVC rubber protection jacket, ensuring low heat generation and stable current transmission.
• Right-Angle Plug: The NEMA 5-15P male plug is designed at a right angle to reduce strain on outlets and allow for use in tight spaces.
• Aplicacions versàtils: Ideal for connecting various appliances and equipment, including household appliances, EV chargers, and outdoor power needs.

Image: The URANT 12AWG 1FT extension cord, highlighting its NEMA 5-15P male plug and the versatile 4-in-1 female receptacle, which is ETL listed.

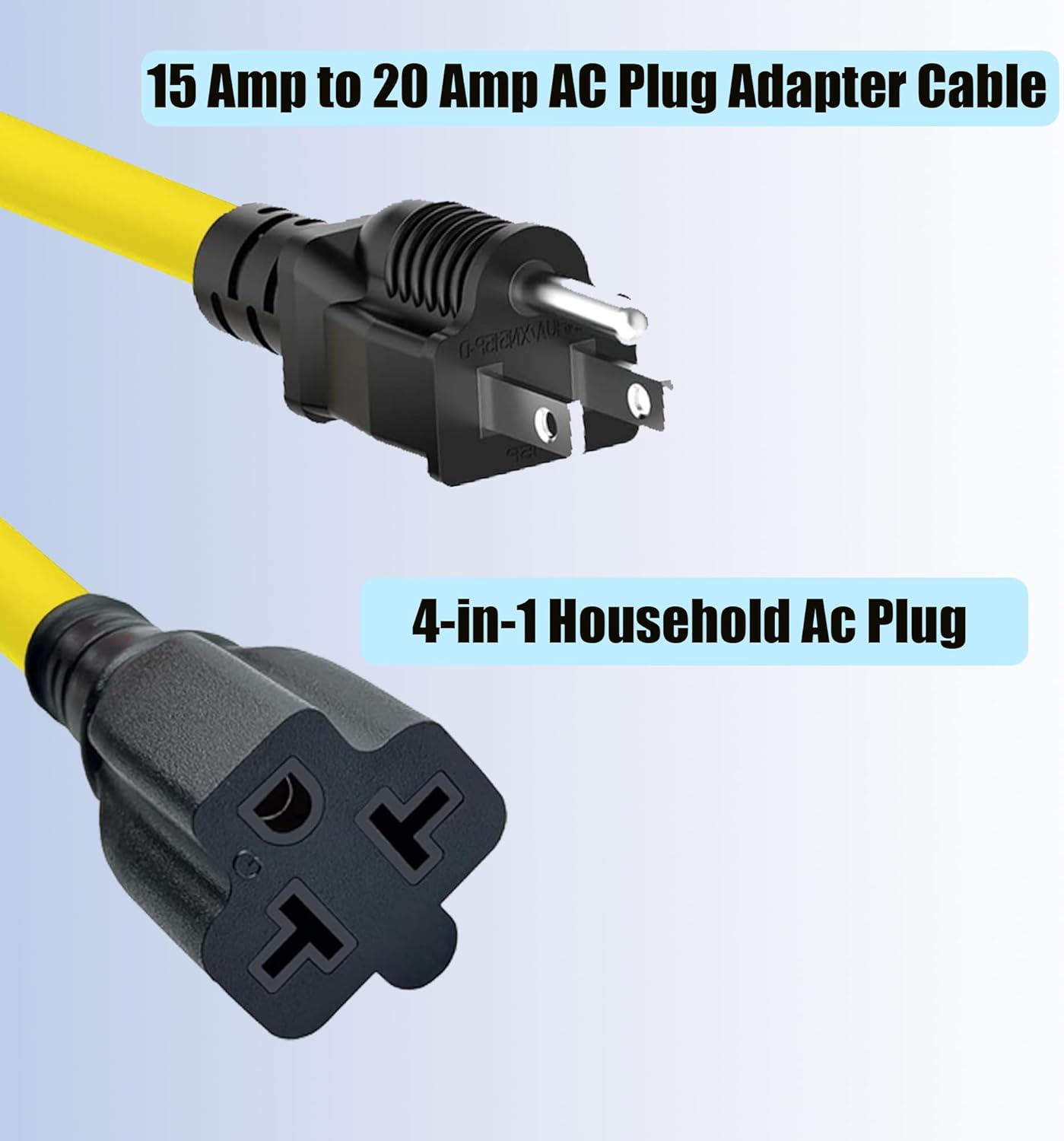

Imatge: Primer pla view de la 15 Amp male plug and the 4-in-1 female receptacle, illustrating the adapter's design.

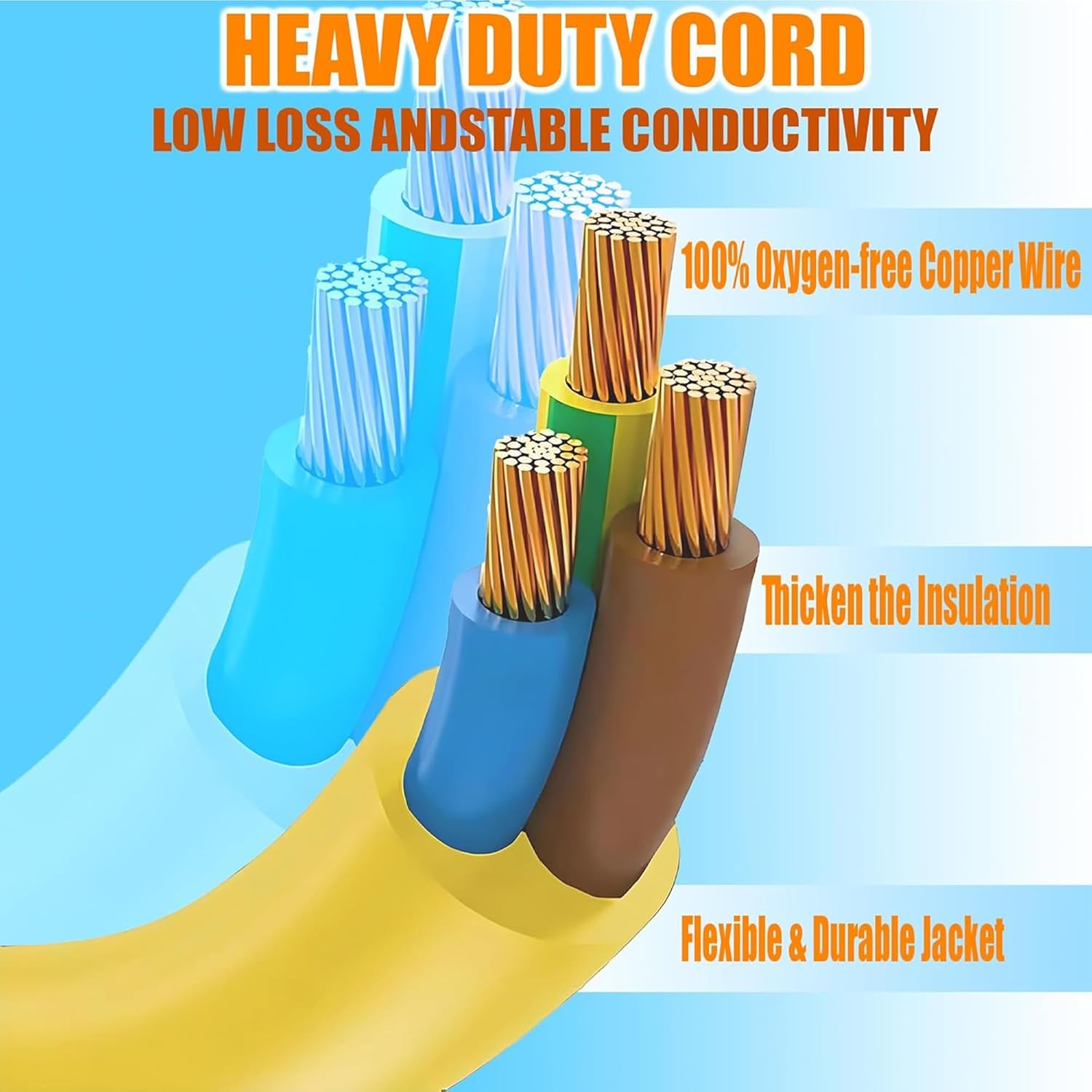

Image: Diagram illustrating the internal construction of the heavy-duty cord, featuring 100% oxygen-free copper wire, thick insulation, and a flexible, durable jacket for stable conductivity.

3. Informació de seguretat

Always follow these safety guidelines to prevent injury or damage to property:

• Voltage Compatibilitat: The male plug of this adapter is NEMA 5-15P (15A, 125V). If you are connecting a device that uses a NEMA 6-15R or 6-20R plug, your device must be designed to accept a wide voltage range (e.g., 110V to 250V). Aquest adaptador no converteix el voltage. Connecting a 125V-only device to a 250V supply via this adapter can cause severe damage to the device and pose a safety hazard.
• Amperage Limits: Do not exceed the rated amperage of the adapter (15A for 125V input, 20A for 250V output compatibility) or the connected device. Overloading can lead to overheating and fire.
• Ús interior / exterior: This cord is rated for both indoor and outdoor use (SJTW). However, avoid prolonged exposure to extreme weather conditions.
• Connexió adequada: Ensure all connections are secure and fully inserted. Loose connections can generate heat and cause electrical arcing.
• Inspecció: Before each use, inspect the cord for any signs of damage, such as cuts, frayed wires, or bent prongs. Do not use if damaged.
• Mantenir sec: Do not immerse the cord or connections in water. Avoid using in wet conditions unless specifically designed for such environments and properly protected.
• Nens i animals de companyia: Keep the cord out of reach of children and pets.
• Desconnecteu quan no estigui en ús: Desconnecteu sempre l'adaptador de la font d'alimentació quan no l'utilitzeu.

4. Configuració

Setting up your URANT 4-in-1 AC Plug Adapter is straightforward. Follow these steps:

1. Identifica els requisits d'alimentació del teu dispositiu: Before connecting, determine the voltage (125V or 250V) and amperage (15A or 20A) required by the appliance or device you intend to power. Also, identify the NEMA plug type of your device (5-15P, 5-20P, 6-15P, or 6-20P).
2. Identify Your Power Source: Ensure your wall outlet or power source provides the correct voltage and can handle the required amperage for your device. The adapter's male plug is NEMA 5-15P (15A 125V).
3. Connect the Adapter to the Power Source: Plug the NEMA 5-15P male end of the URANT adapter into a standard 15A 125V wall outlet. Ensure it is fully inserted.
4. Connect Your Device to the Adapter: Plug your device's power cord into the 4-in-1 female receptacle of the URANT adapter. The T-blade design accommodates NEMA 5-15R, 5-20R, 6-15R, or 6-20R plugs. Ensure a firm connection.
5. Verifica el voltage Compatibilitat: If your device uses a 250V plug type (NEMA 6-15R or 6-20R), it must be capable of accepting a wide voltage range (e.g., 110V to 250V) as the adapter's input is 125V. The adapter facilitates the physical connection, but the device itself must be designed to operate at the higher voltage if connected to a 250V source. Aquest adaptador no converteix el voltage.

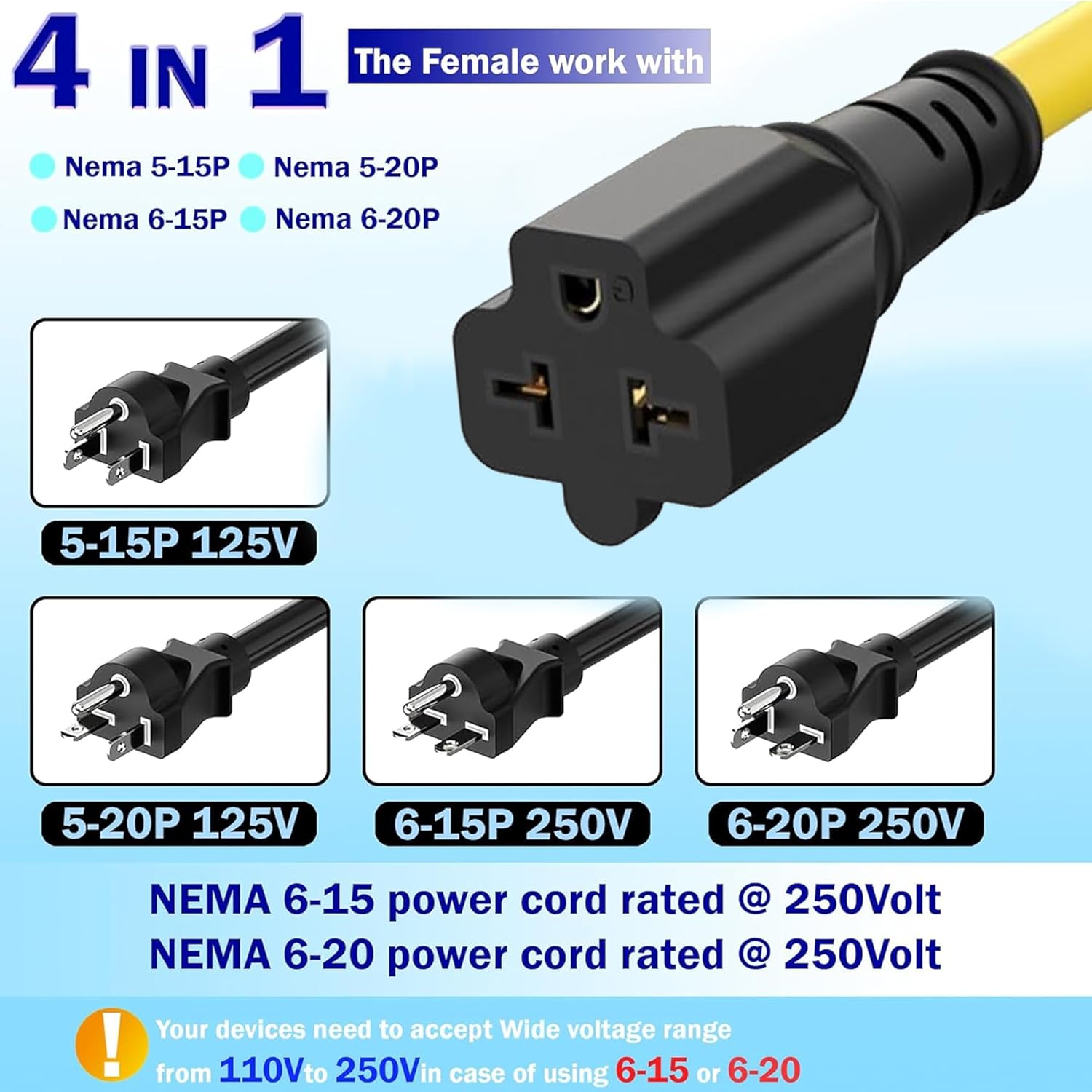

Imatge: Detallada view of the 4-in-1 female receptacle, showing its compatibility with NEMA 5-15P, 5-20P, 6-15P, and 6-20P plugs. Note the warning regarding device voltage compatibility for 6-15 and 6-20 connections.

5. Instruccions de funcionament

Once properly set up, the URANT 4-in-1 AC Plug Adapter allows you to power various devices. Always ensure the device's power requirements match the available power through the adapter.

• Ús general: Connect the adapter to a standard 15A 125V outlet. Then, plug your appliance into the adapter's female receptacle.
• Electrodomèstics d'alta potència: For appliances requiring 20A or 250V, ensure the appliance itself is rated for these specifications and that the power source can deliver them. The adapter acts as a physical connector.
• Càrrega de vehicles elèctrics: This adapter can be used for EV charging with compatible chargers that utilize NEMA 5-20R, 6-15R, or 6-20R plugs, provided the EV charger is designed to handle the input voltage i corrent.
• Aplicacions a l'aire lliure: The SJTW rating makes it suitable for outdoor use with items like outdoor lighting, RVs, generators, and marine applications. Always protect connections from direct water exposure.

Imatge: Examples of household appliances such as refrigerators, microwave ovens, drying machines, air conditioners, and TV sets that can be powered using the URANT extension cord.

Image: The 1FT extension cord connected to an electric vehicle charger, demonstrating its use for EV charging applications.

Image: The extension cord being used in diverse scenarios, including outdoor lighting, RVs, generators, and marine environments, showcasing its wide range of applications.

6. Manteniment

Un manteniment adequat garanteix la longevitat i el funcionament segur del cable d'extensió.

• Neteja: Disconnect the cord from all power sources before cleaning. Wipe with a dry, clean cloth. Do not use liquid cleaners or immerse in water.
• Emmagatzematge: Store the cord in a cool, dry place away from direct sunlight and extreme temperatures. Coil the cord loosely to prevent kinking or damage to the internal wires.
• Inspecció periòdica: Periodically check the cord and plugs for any signs of wear, cracks, or damage. Replace the cord if any damage is found.

7. Solució De Problemes

If you encounter issues with your URANT extension cord, consider the following:

• Sense alimentació al dispositiu:
  • Ensure both ends of the adapter are fully and securely plugged in.
  • Comproveu si la presa de corrent funciona provant-la amb un altre dispositiu.
  • Verify that the circuit breaker for the outlet has not tripped.
  • Confirm that the device itself is turned on and functioning correctly.
• Sobreescalfament:
  • Immediately unplug the adapter and the device.
  • Assegureu-vos el total amperage draw of your device does not exceed the adapter's rating (15A for 125V input, 20A for 250V output compatibility).
  • Check for any loose connections, which can cause resistance and heat.
  • Ensure the cord is not coiled tightly during use, which can trap heat.
• Device Damage (especially with 250V connections):
  • If a 125V-only device was connected to a 250V source via this adapter, it is likely damaged. This adapter does not convert voltage. Always verify device voltage compatibilitat.

8. Especificacions

9. Informació de la garantia

Specific warranty details are not provided in the product information. Please refer to the retailer's return policy or contact customer support for warranty inquiries.

10. Atenció al client

For any questions, concerns, or assistance with your URANT 12AWG Heavy Duty 4-in-1 AC Plug Adapter Extension Cord, please contact us through Amazon email. We are committed to providing a positive shopping experience and will address your inquiries as soon as possible.

You can typically find the "Contact Seller" option on the product page or through your order history on Amazon.
