1. Producte acabatview
The SUNVIVI ZEH003 Helmet & Cap Care Machine is designed to clean, dry, and reshape various types of headwear, including helmets and caps. It utilizes high-temperature steam, UV light, and ozone to remove odors, sanitize, and restore shape, ensuring your gear remains hygienic and fresh.
Imatge: Més deview of the SUNVIVI Helmet & Cap Care Machine highlighting its key features.
Components
Imatge: Detallada view of the machine's components, including the removable support frame, steam outlet, touch control panel, UV light, water tank inlet, and air outlet.
- Removable Support Frame: For holding hats and helmets in shape during the care process.
- Sortida de vapor: Releases high-temperature steam for cleaning and reshaping.
- Tauler de control tàctil: For selecting modes and controlling operations.
- Llum UV: Provides efficient sterilization.
- Water Tank Inlet: Where water is added for steam generation.
- Sortida d'aire: For hot and gentle air drying.
2. Instruccions de configuració
Follow these steps to set up your SUNVIVI Helmet & Cap Care Machine for first use.
- Ompliu el dipòsit d’aigua: Locate the water tank inlet. Carefully pour clean water into the tank. The maximum capacity is 200ml. Do not overfill.
- Place Headwear on Support Frame: Place your helmet or cap onto the removable support frame. Ensure it is seated securely. If the headwear is very tight, you may remove the support frame and place the headwear directly on the machine.
- Connectar l'alimentació: Plug the machine into a standard 120V power outlet.
Image: Instructions for filling the water tank and positioning a helmet.
Image: Instructions for filling the water tank and positioning a cap.
3. Instruccions de funcionament
The machine offers multiple modes for diverse care needs. Use the touch control panel to select your desired function.
Modes disponibles:
Image: The control panel displaying the six operational modes and their typical durations.
- Mode AUTOMÀTIC: A comprehensive 30-minute cycle combining steam, hot wind, and gentle wind for general care.
- Mode de vapor: A 5-minute steam cycle for refreshing and reshaping.
- Hot Wind Mode: A 13-minute cycle using hot wind and ozone for drying and deodorizing.
- Gentle Wind Mode: A 12-minute cycle using gentle wind and ozone for delicate drying and deodorizing.
- Mode UV: A 15-minute cycle for sterilization using UV light.
- Mode fosc: Activated by touching the SET button for 3 seconds, this mode operates without ambient lighting.
Temperature Control and Drying:
The machine features smart temperature control, maintaining a range of 55-70°C during drying cycles. This prevents dampness, eliminates odors, and ensures thorough drying.

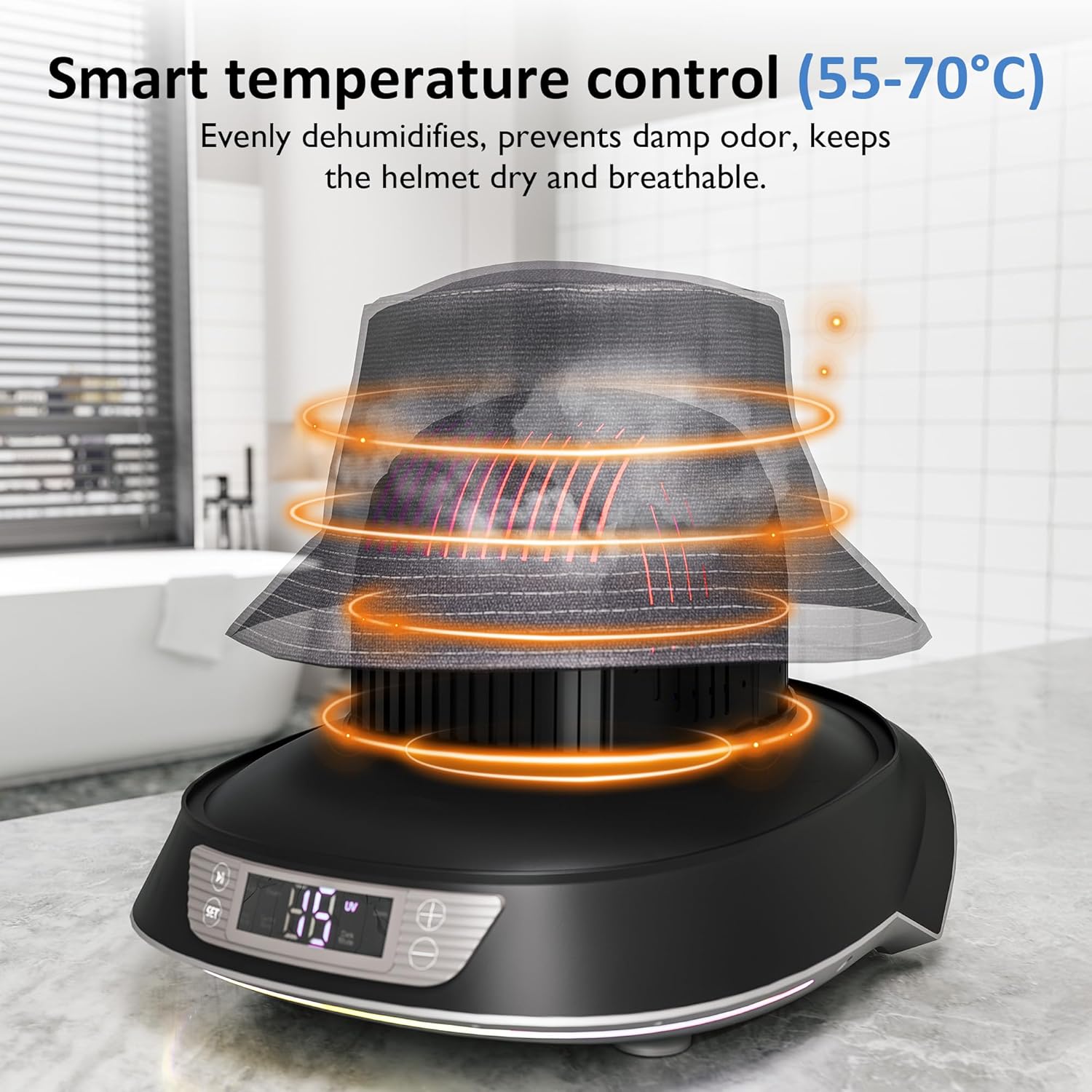

Image: The machine in operation, demonstrating the smart temperature control for drying and dehumidification.
Versatilitat:
The detachable hat holder structure accommodates various headwear types and materials, including helmets, baseball caps, bucket hats, berets, and beanies. It is suitable for polyester, cotton, linen, denim, wool, velvet, and nylon.
Imatge: Examples of different hat and helmet types, along with fabric types, compatible with the care machine.
Resultats:
After using the care machine, headwear will be refreshed, odor-free, and have its shape restored, providing a hygienic and comfortable experience.
Image: Visual comparison illustrating the benefits of using the machine, showing a fresh and clean hat after treatment.
4. Manteniment
Regular maintenance ensures the longevity and efficient performance of your machine.
Recordatori de descalcificació:
The machine features a smart descaling reminder. After approximately 100 uses, the device will alert you with a beep, indicating that descaling is recommended to remove limescale buildup and maintain powerful steam output.
Procés de descalcificació:
To begin descaling, press and hold the "Start" and "Pause" buttons simultaneously for 2 seconds.
Image: Visual guide for the smart descaling reminder and how to initiate the descaling process.
Dipòsit d'aigua:
The 200ml water tank provides sufficient capacity for multiple uses, reducing the frequency of refills. Ensure the tank is clean and free of residue.
5. Solució De Problemes
Aquesta secció ofereix solucions a problemes comuns que podeu trobar.
- La màquina no s'encén:
- Assegureu-vos que el cable d'alimentació estigui ben connectat tant a la màquina com a una presa de corrent que funcioni.
- Comproveu si la presa de corrent funciona connectant-hi un altre dispositiu.
- Sense producció de vapor:
- Verify that the water tank is filled to the appropriate level (max 200ml).
- Perform a descaling cycle if the descaling reminder has activated or if you suspect limescale buildup.
- Headwear Remains Damp After Cycle:
- Ensure the headwear is not excessively wet before placing it in the machine.
- Select a longer drying mode or repeat a hot wind/gentle wind cycle if necessary.
- Ensure proper air circulation around the machine.
- Olors inusuals durant el funcionament:
- This may be normal during the ozone cycle. Ensure the area is well-ventilated.
- If the odor persists or is unusual, clean the water tank and internal components.
6. Especificacions
| Marca | SUNVIVI |
| Nom del model | ZEH003 |
| Color | Negre |
| Característiques especials | Automatic Operation, Hat Drying, Hat Ironing, Shape Restoration, UV, Ozone, Steam |
| Dimensions del producte | 13.19 "L x 11.61" W x 10.8" H |
| Usos recomanats | Cap Maintenance, Cleaner for Various Hats and Helmets, Hat Shape Restoration |
| Material base | Policarbonat |
| Voltage | 120 Volts |
| Wattage | 1000 watts |
| Pes de l'article | 6.07 lliures |
| Capacitat del dipòsit d'aigua | 200 ml |
Image: Diagram illustrating the product dimensions.
7. Garantia i Suport
No specific warranty or detailed support information was provided in the product details. For warranty claims or technical assistance, please refer to the contact information provided with your product packaging or visit the official SUNVIVI weblloc.
