PAISEEC R1 Foldable Rollator Walker with Seat Instruction Manual

1. Producte acabatview

The PAISEEC R1 Foldable Rollator Walker with Seat is designed to provide mobility assistance and comfort. It functions as both a rollator walker and a transport chair, featuring adjustable components and a sturdy aluminum frame.

Image: The PAISEEC R1 Rollator Walker demonstrating its dual functionality as a walker and a transport chair.

2. Informació de seguretat

• Before each use, ensure all screws and knobs are fully tightened.
• If any parts feel loose or make unusual noises after proper installation, contact customer support immediately.
• Always engage the parking brakes when sitting on the seat or when the unit is stationary to prevent unintended movement.
• No supereu la capacitat màxima de pes de 300 lliures.
• When using as a transport chair, ensure the user's feet are properly placed on the footrests.

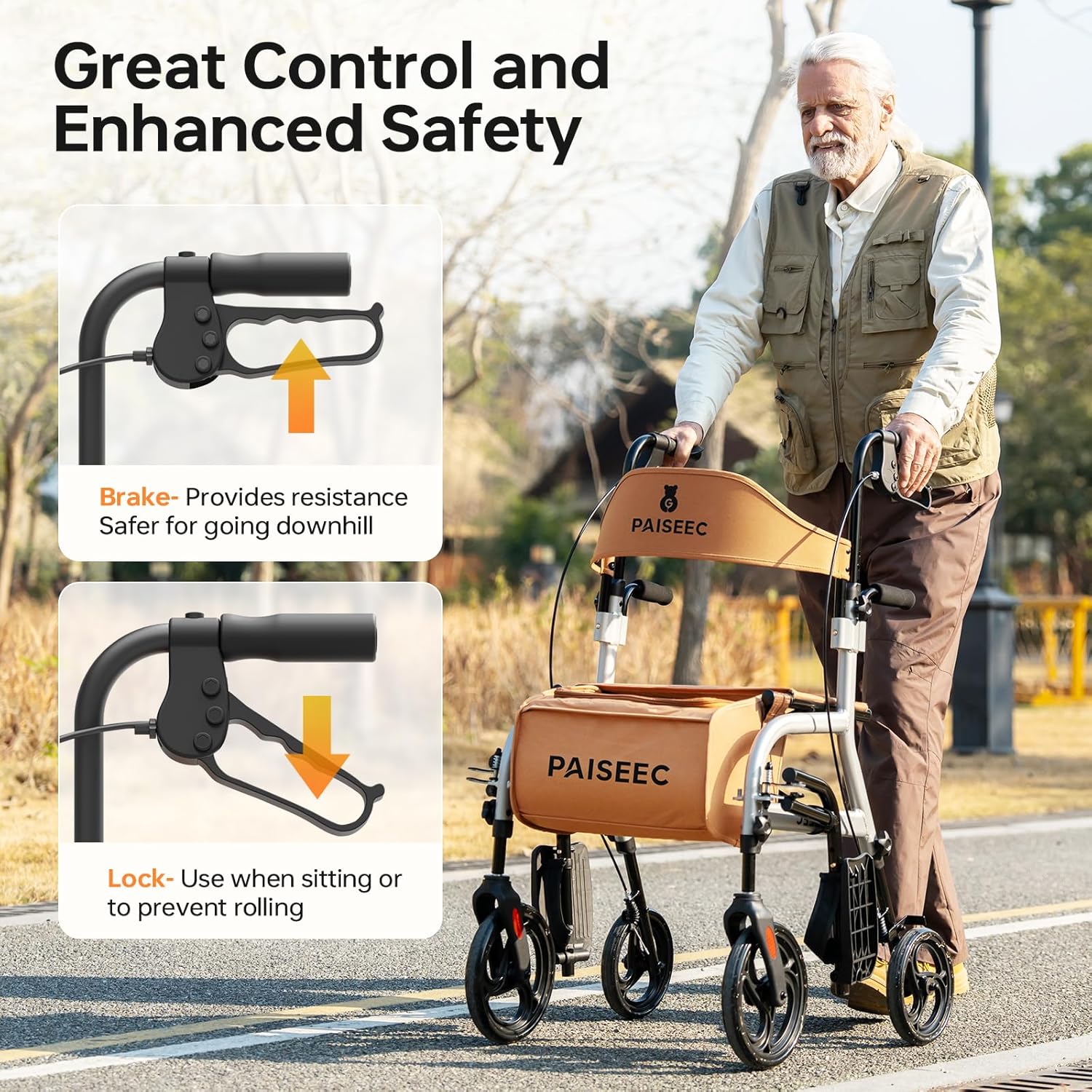

Imatge: Detallada view of the dual braking system, illustrating normal brake and parking brake functions for enhanced safety.

3. Contingut del paquet

The PAISEEC R1 Rollator Walker package includes the following components:

• Main frame with pre-attached seat and backrest
• Rodes davanteres (2)
• Rodes del darrere (2)
• Adjustable handles with braking system (2)
• Footrests (2)
• Detachable 20L storage bag
• Assembly tools (if applicable)
• Manual d'instruccions

Video: An official PAISEEC video demonstrating the unboxing and assembly process of the R1 Rollator Walker.

4. Muntatge i muntatge

Follow these steps to assemble your PAISEEC R1 Rollator Walker. Assembly typically takes approximately 10 minutes.

1. Unfold the main frame of the rollator until it locks into place.
2. Insert the front wheels into the designated slots on the front legs. Secure them by tightening the provided knobs.
3. Insert the rear wheels into the designated slots on the rear legs. Secure them by tightening the provided knobs.
4. Attach the adjustable handles to the main frame, ensuring the braking cables are correctly routed. Secure with the provided fasteners.
5. Attach the backrest to the designated points on the handles.
6. Attach the detachable storage bag under the seat using the straps.
7. For transport chair mode, attach the footrests to the front legs by aligning the pins and securing them.

Video: An official PAISEEC video providing a step-by-step guide for the installation and assembly of the R1 Rollator Walker.

5. Instruccions de funcionament

5.1. Walker Mode

To use the PAISEEC R1 as a walker, stand behind the unit and grasp the adjustable handles. Push the walker forward as you walk, maintaining a comfortable and stable pace. The 10-inch front wheels and 8-inch rear wheels provide smooth movement across various terrains.

Image: The large all-terrain wheels of the PAISEEC R1, designed for smooth navigation on various indoor and outdoor surfaces.

5.2. Transport Chair Mode

To convert the unit into a transport chair, ensure the footrests are attached and extended. The user can then sit on the padded seat, and a caregiver can push the chair using the handles. The backrest provides support for the user.

Video: An official PAISEEC video tutorial demonstrating the usage of the R1 Rollator Walker, including conversion to transport chair mode.

5.3. Sistema de frenada

The PAISEEC R1 features a dual braking system:

• Fre normal: Squeeze the brake levers on the handles to slow down or stop the rollator.
• Fre d'estacionament: Push the brake levers down until they click into place to engage the parking brake. This locks the wheels, providing stability when sitting or when the unit is stationary. Pull the levers up to release.

5.4. Ajustaments

The handles and seat height are adjustable to accommodate users from 5'1" to 6'7". To adjust, locate the adjustment pins or knobs on the handle posts and seat frame, press or loosen, set to the desired height, and re-secure.

Image: Illustration of the adjustable handle and seat heights, designed for ergonomic comfort for a wide range of users.

5.5. Plegable i emmagatzematge

To fold the rollator, lift the seat-mounted pull strap upwards. The unit will collapse for compact storage. Its lightweight design (22 lbs) makes it easy to carry and store in car trunks or tight spaces.

Image: Visual guide to the one-step folding mechanism and compact storage capability of the PAISEEC R1 Rollator Walker.

Image: The lightweight design of the PAISEEC R1 allows for easy portability, even when navigating stairs.

6. Manteniment

Un manteniment regular garanteix la longevitat i el funcionament segur del vostre caminador amb rodes.

• Periodically inspect all fasteners (screws, knobs) and tighten if necessary.
• Netegeu el marc amb anunciamp drap i detergent suau. Eviteu els netejadors abrasius.
• Check the wheels for wear and tear, and ensure they rotate freely.
• Inspect brake cables for fraying or damage and ensure brakes engage properly.
• Store the rollator in a dry place away from direct sunlight when not in use.

7. Solució De Problemes

If you encounter any issues with your PAISEEC R1 Rollator Walker, refer to the following common troubleshooting tips:

• Les rodes no giren suaument: Check for debris caught in the wheels or axles. Ensure all wheel fasteners are secure.
• Brakes not engaging: Inspect brake cables for damage. Ensure the brake levers are properly adjusted and can fully engage.
• La unitat sembla inestable: Verify that all assembly points are securely fastened. Ensure the frame is fully unfolded and locked.

For persistent issues or concerns, please contact PAISEEC customer support.

8. Especificacions

Image: Detailed dimensions and parameter specifications for the PAISEEC R1 Rollator Walker.

9. Garantia i Suport

The PAISEEC R1 Rollator Walker comes with a 1-year warranty for worry-free mobility. PAISEEC also offers lifetime after-sales support.

• Garantia: 1-year limited warranty on the product.
• Suport postvenda: Lifetime support is available for any questions or issues.
• Informació de contacte:
  • Phone Support: 1(833) 612-2678 (Mon-Sun 9:00AM-6:00PM EST)
  • Email Support: support@paiseec.com (Replies within 24 hours)

Image: PAISEEC customer support information, including phone number and email address.
