Saker Mini Multi-Functional Table Saw User Manual

1. Informació important de seguretat

Llegiu i comprengueu sempre tots els avisos de seguretat, instruccions, il·lustracions i especificacions que s'inclouen amb aquesta eina elèctrica. Si no seguiu totes les instruccions que s'indiquen a continuació, podeu patir descàrregues elèctriques, incendis i/o lesions greus.

• Seguretat de l'àrea de treball: Mantingueu la vostra zona de treball neta i ben il·luminada. Les zones desordenades o fosques conviden als accidents. No feu servir eines elèctriques en atmosferes explosives, com ara en presència de líquids, gasos o pols inflamables.
• Seguretat elèctrica: Els endolls de les eines elèctriques han de coincidir amb la presa de corrent. No modifiqueu mai l'endoll de cap manera. No maltracteu el cable. No utilitzeu mai el cable per transportar, estirar o desconnectar l'eina elèctrica. Mantingueu el cable allunyat de la calor, l'oli, les vores afilades o les peces mòbils.
• Seguretat personal: Always wear appropriate eye protection, dust mask, non-skid safety shoes, and hard hat or hearing protection for relevant tasks. Stay alert, watch what you are doing, and use common sense when operating a power tool.
• Ús i cura de l'eina: No forceu l'eina elèctrica. Feu servir l'eina elèctrica adequada per a la vostra aplicació. Desconnecteu l'endoll de la font d'alimentació abans de fer qualsevol ajust, canviar accessoris o guardar eines elèctriques.
• Specific Safety for Saker Mini Table Saw: For your safety, always ensure that the power button is turned off before plugging in the saw. The transparent baffles are designed to prevent debris from splashing during operation. Ensure they are properly in place. The bottom corners are equipped with anti-slip and shock-absorbing rubber feet; ensure the saw is placed on a stable, level surface to prevent shifting during operation.

2. Producte acabatview i Components

The Saker Mini Multi-Functional Table Saw is a compact and portable desktop electric saw designed for precision cutting of small items. It features a powerful 100W pure copper motor and adjustable speeds, making it suitable for various crafting and DIY projects.

2.1 Main Unit and Included Accessories

Figure 2.1: The Saker Mini Multi-Functional Table Saw along with its comprehensive set of accessories, including different types of saw blades, grinding heads, and essential tools for operation and maintenance.

The package includes the main table saw unit, a power adapter, a screwdriver, Allen wrenches, and a variety of attachments for different functions.

2.2 Saw Blades and Their Applications

The Saker Mini Multi-Functional Table Saw comes with 4 different types of circular saw blades, each designed for specific cutting needs. The saw blade size is 63 millimeters in diameter with a 16-millimeter inner hole. Larger saw blades are not supported.

Figure 2.2: Illustration of the four distinct types of saw blades included: PCB cutting blades, alloy saw blades, high-speed steel saw blades, and resin saw blades, each suited for different materials and applications.

• PCB Cutting Blades: Ideal for precise cuts on printed circuit boards.
• High-Speed Steel Saw Blades: Suitable for general wood and soft material cutting.
• Alloy Saw Blades: Designed for more durable materials, offering enhanced cutting performance.
• Resin Saw Blades: Best for cutting softer materials and for fine finishing.

2.3 Flexible Shaft and Drill Chucks

The saw also includes a soft shaft that can hold drilling heads with shank diameters of 0.5-3.2mm, expanding its functionality beyond just cutting to include sanding, engraving, and other fine manual work.

Figure 2.3: The flexible shaft attachment, demonstrating its use for detailed work such as engraving, with various interchangeable grinding heads.

Figure 2.4: The drill chucks integrated into the mini table saw, illustrating how different working heads can be attached for various tasks like cutting, polishing, and sanding.

3. Configuració

Before operating the Saker Mini Multi-Functional Table Saw, ensure it is properly set up and all components are securely in place.

3.1 Col·locació inicial i connexió d'alimentació

1. Place the table saw on a stable, flat, and clean surface. Ensure the anti-slip feet are firmly gripping the surface.
2. Connect the power adapter to the saw's power input port.
3. Ensure the power switch on the saw is in the 'OFF' position before plugging the adapter into a standard 120 Volts (AC) electrical outlet.

3.2 Saw Blade Installation and Replacement

Follow these steps to install or replace a saw blade:

Figure 3.1: A visual guide detailing the six steps for installing and replacing the saw blade on the Saker Mini Multi-Functional Table Saw.

1. Locate the saw blade installation position on the saw.
2. Use your thumb and index finger to loosen the screw that secures the blade clamp.
3. Remove the screw and the saw blade clamp.
4. Carefully put the desired saw blade in from above, ensuring it aligns with the motor shaft.
5. Install the saw blade clamp back into position, securing the blade.
6. Tighten the screws with an Allen wrench to fix the blade securely.

4. Instruccions de funcionament

The Saker Mini Multi-Functional Table Saw is designed for precise and efficient cutting, sanding, and engraving tasks. Always ensure proper safety measures are in place before operation.

4.1 Powering On and Speed Adjustment

The saw features 7 adjustable speed settings, allowing you to select the optimal speed for different materials and tasks.

Figure 4.1: The power adapter unit showing the 7 distinct speed settings, which can be easily adjusted with a simple button press.

1. Once the saw is plugged in, turn the power switch to the 'ON' position.
2. Locate the speed adjustment button on the power adapter.
3. Press the button to cycle through the 7 available speed settings (up to 6000 RPM), selecting the appropriate speed for your material.

4.2 Operacions de tall

The saw is compatible with materials such as PCB boards, wooden sticks, plastic sheets, thin wooden boards, cans, copper-clad panels, aluminum tubes, and copper tubes.

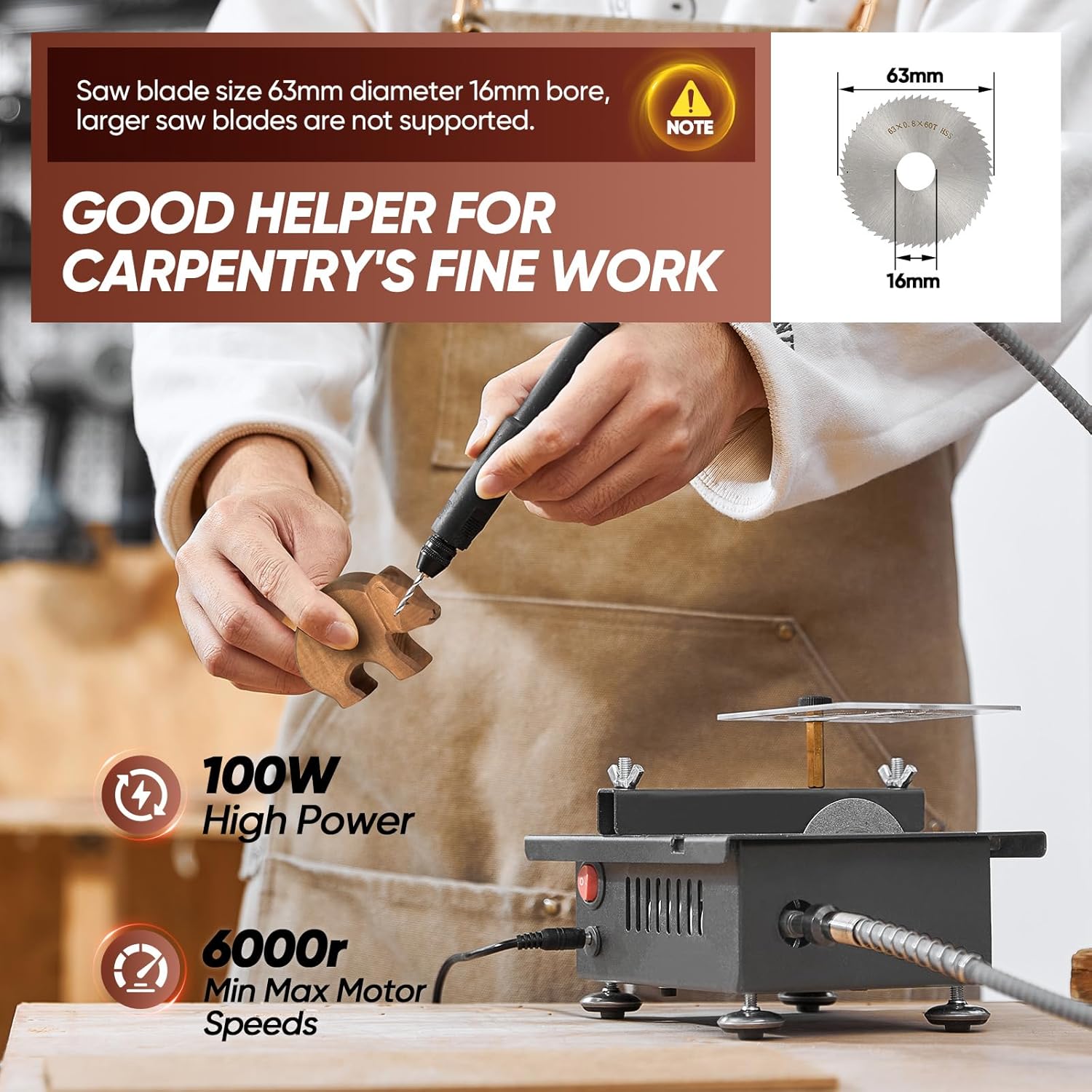

Figure 4.2: The mini table saw in action, demonstrating its capability to cut small wooden pieces with its 100W high-power motor and 6000 RPM maximum speed.

Figure 4.3: A visual representation of the diverse range of materials suitable for cutting with the Saker Mini Table Saw, including wood, PCB boards, acrylic, aluminum cans, and plastic sticks.

1. Select the appropriate saw blade for your material (refer to Section 2.2).
2. Place the material firmly against the saw's panel, aligning it with the clear markings for accurate cuts.
3. Slowly and steadily feed the material into the rotating blade. Do not force the material.

4.3 Adjustable Cutting Angle

The cutting angle can be adjusted from 0° to 90°, with a sawing depth of 16 mm, allowing for versatile cuts.

Figure 4.4: Demonstrates the process of adjusting the cutting angle on the mini table saw, highlighting the 0-90° range and the corresponding notches for precise angle setting.

1. Loosen the angle adjustment knob.
2. Adjust the cutting guide to the desired angle, aligning it with the markings on the panel.
3. Tighten the angle adjustment knob to secure the guide in place.

4.4 Using the Flexible Shaft for Sanding and Engraving

Attach the flexible shaft to the designated port on the saw. Select the appropriate grinding head (0.5-3.2mm shank diameter) and insert it into the flexible shaft's chuck. Use the flexible shaft for detailed sanding, polishing, or engraving tasks on various materials.

5. Manteniment

Regular maintenance ensures the longevity and optimal performance of your Saker Mini Multi-Functional Table Saw.

• Neteja: After each use, disconnect the power and use a soft brush or compressed air to remove dust and debris from the saw, especially around the blade area and motor vents. Do not use solvents or harsh chemicals.
• Cura de la fulla: Inspect saw blades for wear, damage, or dullness before each use. Replace dull or damaged blades promptly (refer to Section 3.2 for blade replacement). Keep blades clean and free of resin buildup.
• Flexible Shaft Maintenance: Periodically check the flexible shaft for any kinks or damage. Keep the chuck clean to ensure proper grip on grinding heads.
• Emmagatzematge: Store the saw in a clean, dry place, away from direct sunlight and extreme temperatures. Keep it out of reach of children.

6. Solució De Problemes

This section addresses common issues you might encounter with your Saker Mini Multi-Functional Table Saw.

If you encounter issues not listed here or if the suggested solutions do not resolve the problem, please contact Saker customer support for assistance.

7. Especificacions

8. Garantia i Suport

Saker is committed to providing high-quality tools and customer satisfaction. While specific warranty details may vary by region or retailer, Saker products are generally covered against defects in materials and workmanship.

For warranty claims, technical support, or any inquiries regarding your Saker Mini Multi-Functional Table Saw, please contact Saker customer support through the official Saker website or your point of purchase. Please have your model number (GJ71143-X52617) and purchase information ready when contacting support.

You can visit the official Saker store for more information and product updates: Saker Store on Amazon
