Radtel RT-4D DMR Radio User Manual

Introducció

This manual provides comprehensive instructions for the operation and maintenance of your Radtel RT-4D DMR Radio. The RT-4D is a versatile dual-band UHF/VHF walkie-talkie featuring 1024 channels and supporting both analog and digital communication modes. It is designed for efficient and reliable two-way communication.

Please read this manual thoroughly before using the radio to ensure proper operation and to maximize its performance and lifespan.

Producte acabatview i Components

The Radtel RT-4D radio is a compact and robust communication device. Familiarize yourself with its main components:

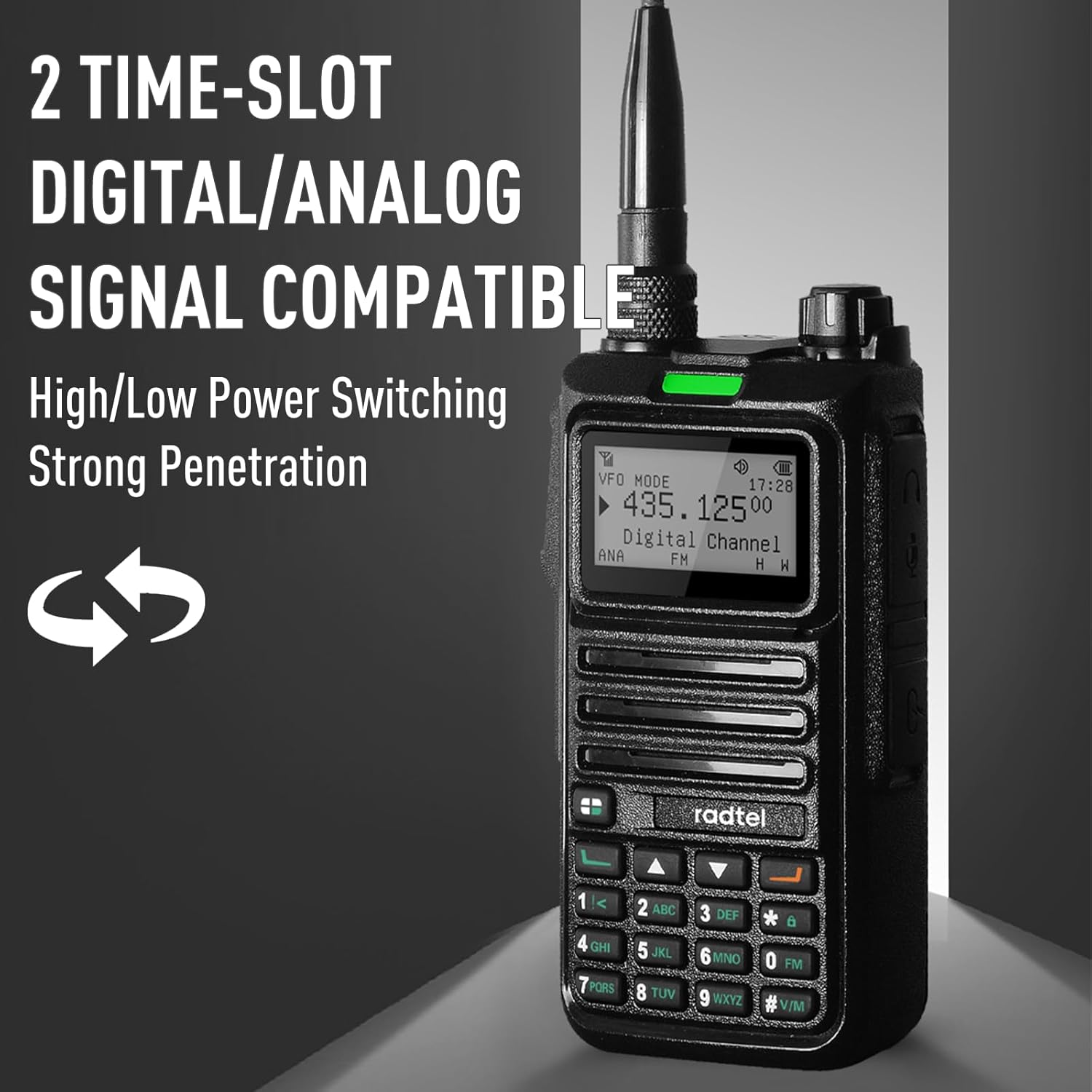

Image: Radtel RT-4D DMR Radio and included USB Programming Cable.

Característiques principals:

• Dual band UHF/VHF operation with 1024 channels.
• Supports both analog and digital communication modes.
• Dual Time Slot functionality for efficient communication in Tier 1 and Tier 2 modes.
• Analog frequency reception: 108-136 MHz (aviation AM), 136-520 MHz RX.
• Digital frequency reception: VHF 136-174 MHz / UHF 400-470 MHz RX.
• Compatible with various Radtel models including RT-4D, RT-490, RT-470, RT-470L, RT-470X, RT10, RT12, RT-890, RT-830, RT-900, RT-420, RT518, 8800 Plus, UV9D, AR-869, jc-8629.

Configuració

Càrrega inicial:

Before first use, fully charge the radio's battery. Connect the charger to a power outlet and place the radio in the charging cradle. The indicator light will show charging status.

Instal·lació de l'antena:

Screw the antenna clockwise into the connector on top of the radio until it is firmly seated. Do not overtighten.

Col·locació del clip de cinturó:

Alineeu el clip del cinturó amb els forats dels cargols de la part posterior de la ràdio i fixeu-lo amb els cargols proporcionats.

Using the USB Programming Cable:

The included USB programming cable allows you to customize radio settings, frequencies, and channels using compatible software (not included). Connect the cable to the radio's programming port and to a USB port on your computer. Refer to the software's instructions for detailed programming steps.

Image: Radtel USB Programming Cable for radio customization.

Instruccions de funcionament

Encès/apagat:

To power on the radio, rotate the power/volume knob clockwise until you hear a click. To power off, rotate it counter-clockwise until it clicks off.

Selecció de canals:

Use the channel knob or the up/down arrow keys on the keypad to select your desired channel. The display will show the current channel number or frequency.

Mode Switching (Analog/Digital):

The RT-4D supports both analog and digital modes. The radio can automatically detect the signal type or be manually switched. Refer to the radio's menu for specific mode switching options.

Image: The Radtel RT-4D supports both DMR digital and analog modes for versatile communication.

Dual Time Slot Operation:

The radio features dual time slot functionality, enabling two simultaneous conversations on a single frequency in digital mode (Tier 2). This enhances channel efficiency. Ensure your contacts are configured for the correct time slot.

Image: The RT-4D's dual time slot capability allows for efficient digital communication.

Making Calls (Single, Group, All Call):

The RT-4D supports various call types:

• Trucada única: Direct communication with a specific individual.
• Trucada de grup: Communication with a predefined group of users.
• Totes les trucades: Broadcast message to all users within range on the current channel.

Select the desired contact or group from your contact list and press the PTT (Push-To-Talk) button to transmit.

Image: The RT-4D offers flexible calling choices including single, group, and all calls.

Digital Encryption:

The radio features digital encryption capabilities to enhance communication privacy and prevent unauthorized listening or interference. This function helps secure your conversations.

Image: Digital encryption on the RT-4D provides enhanced communication security.

Frequency Range and Bands:

• Analog Reception: 108-136 MHz (Aviation AM), 136-520 MHz RX
• Digital VHF: 136-174 MHz RX
• Digital UHF: 400-470 MHz RX

Manteniment

To ensure the longevity and optimal performance of your Radtel RT-4D radio, follow these maintenance guidelines:

• Neteja: Utilitzeu un suau, damp cloth to wipe the radio's surface. Do not use harsh chemicals or abrasive cleaners.
• Cura de la bateria: Avoid overcharging or completely draining the battery. Store the radio in a cool, dry place when not in use for extended periods.
• Emmagatzematge: Mantingueu la ràdio allunyada de temperatures extremes, la llum solar directa i la humitat.
• Antena: Manipuleu l'antena amb cura per evitar que es doblegui o es faci malbé.

Resolució de problemes

If you encounter issues with your Radtel RT-4D, refer to the table below for common problems and their solutions:

Especificacions

Garantia i Suport

Radtel products are manufactured to high-quality standards. For information regarding warranty coverage, technical support, or service, please refer to the warranty card included with your product or visit the official Radtel weblloc web. Conserveu el rebut de compra com a comprovant de compra.
