Vyzzle D10 Robotic Vacuum Cleaner Replacement Parts Instruction Manual

1. Introducció

This instruction manual provides detailed guidance for the installation and maintenance of replacement parts for the Vyzzle D10 Robotic Vacuum Cleaner. Regular replacement of these consumable parts is essential to maintain the optimal performance and cleaning efficiency of your robotic vacuum.

2. Models compatibles

These replacement parts are specifically designed for use with the Vyzzle D10 Robot Vacuum Cleaner. Ensure your model is compatible before installation.

3. Contingut del paquet

The valuable package includes the following components:

• 1 x Roller Brush
• 2 x Washable Mop Cloths
• 2 x filtres
• 1 raspalls laterals

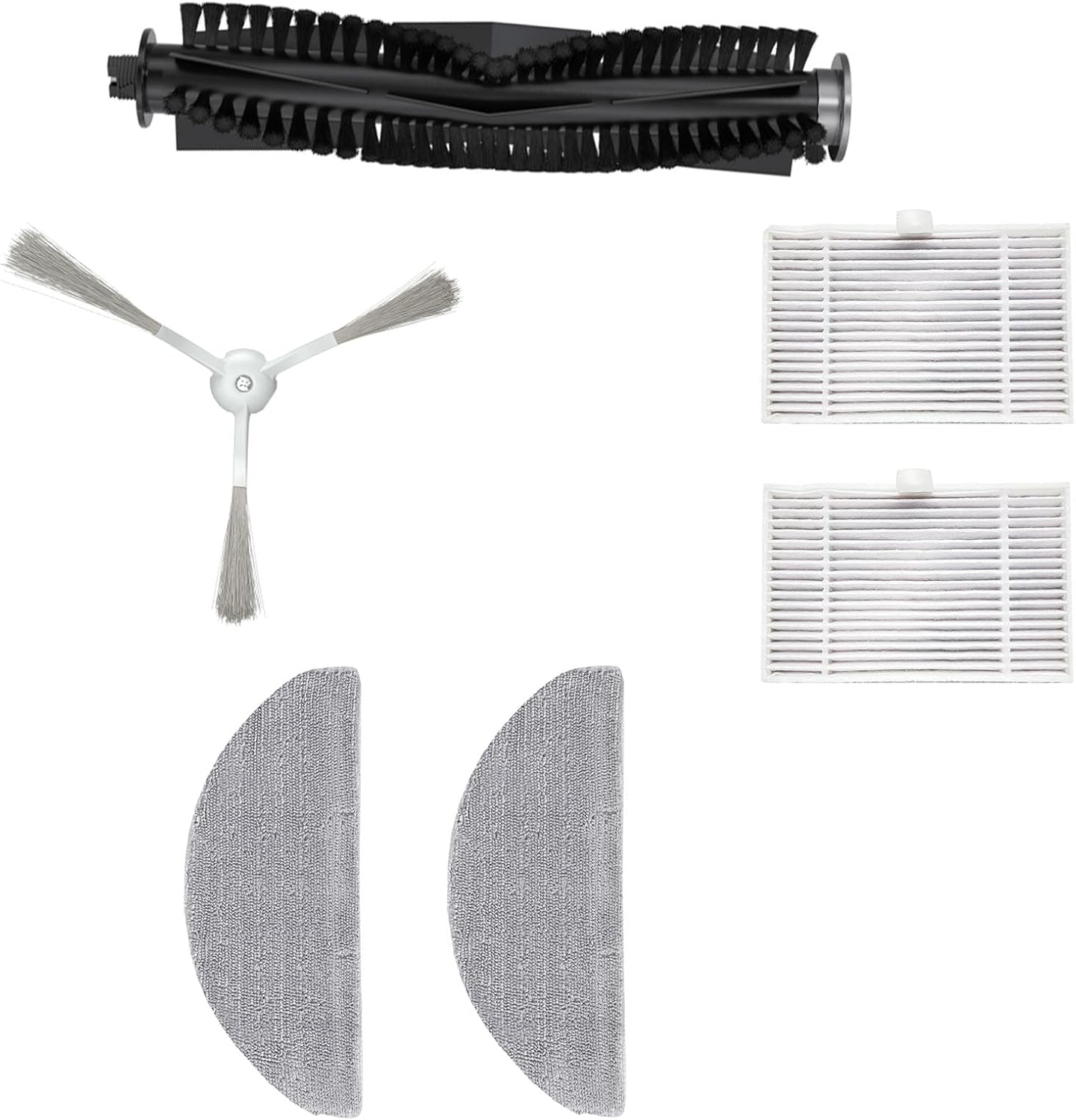

Figure 3.1: Complete set of Vyzzle D10 replacement parts.

4. Guia d'instal·lació

Before installing any replacement parts, ensure the robotic vacuum cleaner is powered off and disconnected from its charging base. Always refer to your Vyzzle D10 user manual for specific instructions on accessing component compartments.

4.1. Roller Brush Installation

1. Gira el robot aspirador cap per avall.
2. Locate the brush guard or cover, usually secured by latches or screws. Open or remove it.
3. Remove the old roller brush. Clean any debris from the brush compartment.
4. Insert the new roller brush, ensuring the ends align with the slots in the vacuum.
5. Close or reattach the brush guard/cover securely.

Figure 4.1: Roller Brush.

4.2. Instal·lació del raspall lateral

1. Gira el robot aspirador cap per avall.
2. Locate the side brush. It is typically held by a single screw.
3. Desenrosqueu i traieu el raspall lateral vell.
4. Align the new side brush with the post and secure it with the screw.

Figure 4.2: Side Brush.

4.3. Instal·lació del filtre

1. Open the top cover of the robot vacuum to access the dustbin.
2. Traieu el cubell de pols de l'aspiradora.
3. Open the dustbin cover and remove the old filter assembly.
4. Insert the new filter(s) into the designated slot within the dustbin, ensuring a snug fit.
5. Close the dustbin cover and reinsert the dustbin into the vacuum.

Figure 4.3: Filters.

4.4. Instal·lació de la mopa

1. Locate the mop cloth attachment area on the underside of the vacuum or on the water tank.
2. Remove the used mop cloth, if present.
3. Attach the new washable mop cloth securely to the designated area, ensuring it is flat and properly aligned.

Figure 4.4: Washable Mop Cloths.

5. Manteniment i cura

Regular cleaning and timely replacement of parts are crucial for the longevity and efficiency of your Vyzzle D10 robotic vacuum cleaner. It is recommended to replace consumable parts every 3-6 months, depending on usage.

5.1. Neteja del raspall del rodet

Remove the roller brush as described in Section 4.1. Use a cleaning tool or scissors to cut and remove any hair or debris tangled around the brush. Wipe the brush and its bearings with a dry cloth.

5.2. Neteja del raspall lateral

Remove the side brush as described in Section 4.2. Remove any hair or debris wrapped around the brush or its base. Wipe the brush with a dry cloth.

5.3. Neteja dels filtres

Remove the dustbin and filters as described in Section 4.3. Tap the filters gently over a trash can to remove dust and debris. The filters are washable; hand-wash them with warm water. Ensure they are completely air-dried before reinstallation to prevent damage to the vacuum.

5.4. Cleaning the Mop Cloths

Remove the mop cloths after each use. Hand-wash them with warm water and mild detergent. Rinse thoroughly and allow them to completely air dry before reattaching them to the vacuum or storing them.

6. Especificacions

Pes de l'article: 4.2 unces

Dimensions del paquet: 3.9 x 1.96 x 0.78 polzades

7. Solució De Problemes

If you experience issues after replacing parts, consider the following:

• Rendiment de neteja reduït: Ensure all brushes are free of tangles and debris. Check that filters are clean and properly seated.
• Sorolls inusuals: Verify that the roller brush and side brush are correctly installed and not obstructed.
• Mop Not Wetting Floor: Ensure the mop cloth is properly attached and the water tank (if applicable) is filled and correctly installed.
• Les peces no s'ajusten: Double-check that you have purchased the correct replacement parts for the Vyzzle D10 model.

For more complex issues, refer to your original Vyzzle D10 Robotic Vacuum Cleaner user manual or contact customer support.

8. Atenció al client

For further assistance, technical support, or inquiries regarding your Vyzzle D10 Robotic Vacuum Cleaner replacement parts, please visit the official Vyzzle weblloc o poseu-vos en contacte amb el seu departament d'atenció al client.

Assistència en línia: Visit the Vyzzle Store on Amazon

Please have your product model (Vyzzle D10) and purchase details ready when contacting support.
