1. Introducció

This manual provides essential information for the safe and effective use of the GODIYMODULES 2 PCS Motor Driver Module. This module is a high-current H-bridge driver designed for controlling DC motors or semiconductor refrigeration units, supporting a voltage range of 5V to 15V DC and currents up to 50A.

Please read this manual thoroughly before installation and operation to ensure proper functionality and to prevent damage to the module or connected devices.

2. Característiques clau

3. Especificacions

ParàmetreValor
Número de modelc32342e9-1c6f-4afc-91b5-d6ac139d7760
Entrada Voltage RangDC 5V a 15V
Corrent màxima50 Amps (pic)
Freqüència PWMFins a 200 kHz
MaterialSemiconductor
Dimensions3.94 x 1.97 x 0.8 polzades
Pes de l'article1.76 unces

Note: The 50A current rating is typically a peak or surge current. For continuous operation, it is recommended to stay within a lower average load, such as 10A or less, to prevent overheating and potential damage. Adequate heat dissipation is crucial for high current applications.

4. Contingut del paquet

Two GODIYMODULES Motor Driver Modules, top view, as included in the package.
Figure 1: Package contents showing two Motor Driver Modules.

5. Configuració i cablejat

Before connecting the module, ensure all power sources are disconnected. Incorrect wiring can damage the module and connected components.

5.1 Mòdul acabatview

A dalt view of the GODIYMODULES Motor Driver Module showing components and terminals.

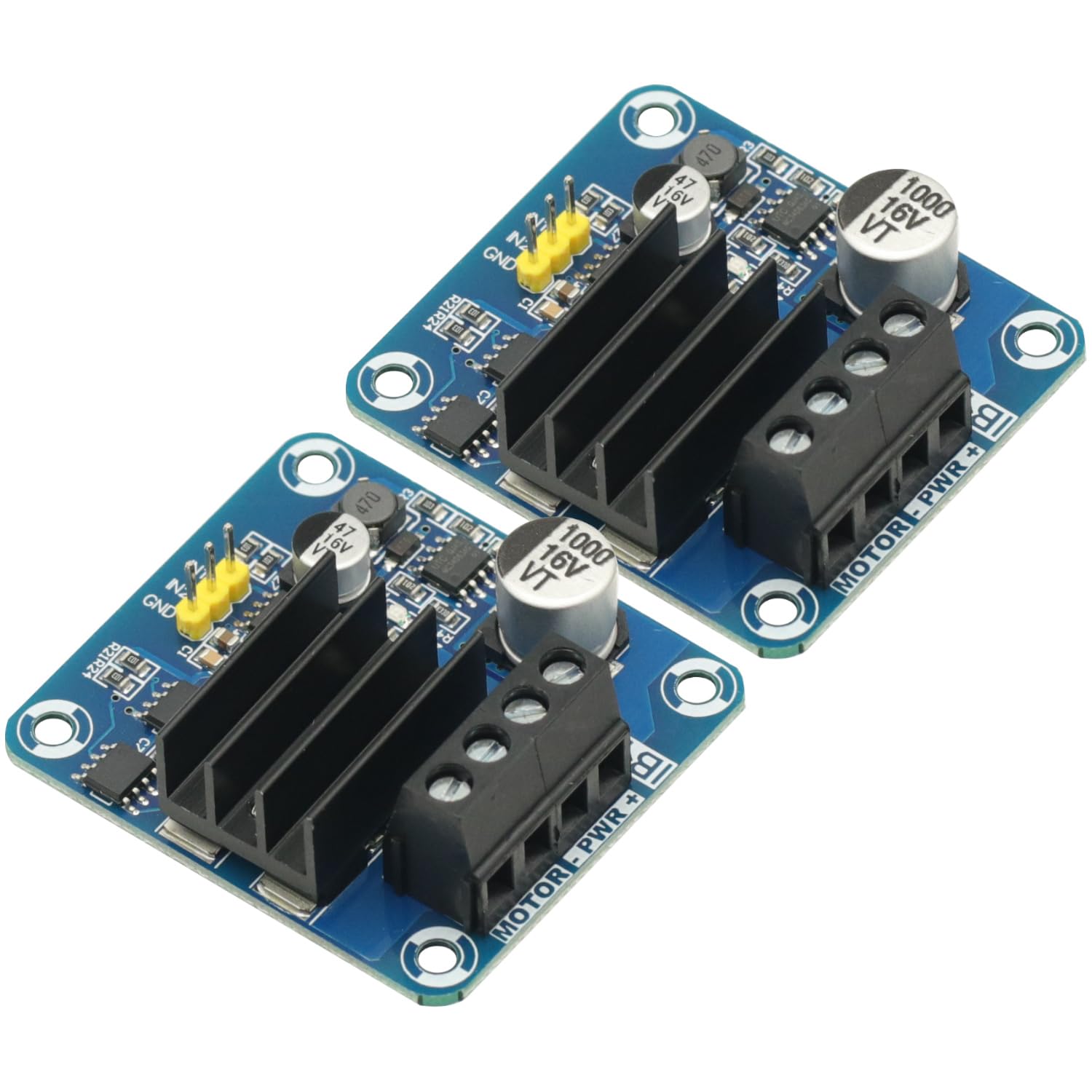

Figura 2: superior view of a single Motor Driver Module. This image displays the main components, including the heatsinks, capacitors, and terminal blocks for power and motor connections, along with the signal input pins (IN1, IN2, GND).
A baix view of the GODIYMODULES Motor Driver Module showing solder points and traces.
Figura 3: A baix view of a single Motor Driver Module. This image shows the underside of the PCB, revealing solder joints and circuit traces.

5.2 Esquema de cablejat

Refer to the following diagram for proper connection of power, motor, and control signals.

Wiring diagram for the GODIYMODULES Motor Driver Module, showing connections for power, motor, and input signals.
Figure 4: Wiring Diagram. This diagram illustrates how to connect the power supply (Power+ and Power-), the motor, and the control inputs (Input 1 and Input 2) to the module. Ensure correct polarity for power connections.

5.3 Passos de connexió

  1. Connexió d'alimentació: Connect your DC power supply (5V to 15V) to the "MOTOR-PWR+" terminal block. Ensure the positive (+) terminal of the power supply connects to the "+" screw terminal and the negative (-) terminal connects to the "-" screw terminal.
  2. Connexió del motor: Connect your DC motor to the "MOTOR" screw terminals. The polarity here will determine the initial direction of rotation.
  3. Control Signal Connection: Connect your microcontroller or control source to the input pins:
    • IN1: Input 1 for controlling motor direction/speed.
    • IN2: Input 2 for controlling motor direction/speed.
    • GND: Ground connection for the control signals, typically connected to the microcontroller's ground.
  4. Verifica les connexions: Double-check all connections for correct polarity and secure fastening before applying power.

6. Instruccions de funcionament

The module uses two input signals (IN1 and IN2) to control the motor's direction and speed via PWM. The power indicator LED will illuminate when power is supplied to the module.

6.1 Motor Control Logic

IN1 SignalIN2 SignalAcció Motora
LOW (0V)LOW (0V)Motor Stop (Brake)
HIGH (3.3V-12V)LOW (0V)Motor Forward (Speed controlled by PWM on IN1)
LOW (0V)HIGH (3.3V-12V)Motor Reverse (Speed controlled by PWM on IN2)
HIGH (3.3V-12V)HIGH (3.3V-12V)Motor Stop (Brake)

To control motor speed, apply a Pulse Width Modulation (PWM) signal to the active input (IN1 for forward, IN2 for reverse). The frequency of the PWM signal can be up to 200kHz.

The module is designed with signal isolation to protect the microcontroller from motor noise and voltage pics.

7. Manteniment

The GODIYMODULES Motor Driver Module requires minimal maintenance. Follow these guidelines to ensure longevity and reliable operation:

8. Solució De Problemes

If you encounter issues with your motor driver module, refer to the following troubleshooting steps:

ProblemaCausa possibleSolució
Module not powering on (Power LED off)No power supply, incorrect polarity, faulty power supply, loose connections.
  • Verify power supply is connected and providing 5V-15V DC.
  • Check power supply polarity (+ to +, - to -).
  • Assegureu-vos que totes les connexions d'alimentació estiguin segures.
  • Test power supply with a multimeter.
El motor no es mouIncorrect control signals, motor not connected, faulty motor, insufficient power, module damage.
  • Check IN1/IN2 signals according to the control logic table.
  • Ensure motor is correctly wired to the "MOTOR" terminals.
  • Verify motor functionality by connecting it directly to a power source (briefly).
  • Confirm power supply can deliver sufficient current for the motor.
  • Check for any visible damage on the module.
Motor moves in wrong directionIncorrect IN1/IN2 signal combination, motor polarity reversed.
  • Adjust IN1/IN2 signals as per the control logic table for desired direction.
  • Reverse the motor connections at the "MOTOR" terminals if necessary.
Module gets excessively hotOvercurrent, insufficient heat dissipation, short circuit.
  • Reduce motor load or operating current.
  • Ensure adequate ventilation around the heatsinks.
  • Check for any short circuits in the motor or wiring.
  • Verify the motor's current draw does not exceed the module's continuous rating.

9. Informació de la garantia

Specific warranty details for GODIYMODULES products may vary. Please refer to the purchase documentation or contact your retailer for information regarding warranty coverage and terms.

This warranty typically covers defects in materials and workmanship under normal use. It does not cover damage caused by misuse, improper installation, unauthorized modification, or operation outside the specified parameters.

10. Atenció al client

For technical assistance, questions, or support regarding your GODIYMODULES Motor Driver Module, please contact your point of purchase or visit the official GODIYMODULES weblloc per obtenir informació de contacte.

When contacting support, please have your product model number (c32342e9-1c6f-4afc-91b5-d6ac139d7760) and a detailed description of the issue ready.
