Manual d'instruccions de la pica d'acer inoxidable YORKING 304

Producte acabatview

The YORKING 304 Stainless Steel Utility Sink is a versatile and durable solution for various settings, including laundry rooms, garages, and kitchens. This free-standing commercial-grade single bowl sink features a pull-out faucet with both cold and hot water pipe connections, designed for ease of use and longevity.

Figure 1: YORKING 304 Stainless Steel Utility Sink, showcasing its large basin and integrated faucet. A beagle dog is shown inside the sink, illustrating its spaciousness for various uses, including pet washing.

Figure 2: The utility sink positioned in a laundry room, demonstrating its practical application alongside a washing machine and storage cabinet. The lower shelf provides additional storage space for cleaning supplies.

Figure 3: Detailed dimensions of the utility sink, including overall height (37 inches), width (35.4 inches), and depth (22.4 inches). The inner sink dimensions are 31.4 x 15.7 x 9.4 inches, and the product weighs 46 lbs.

Configuració i instal·lació

This section provides step-by-step instructions for assembling and installing your YORKING 304 Stainless Steel Utility Sink. Ensure all components are present before beginning assembly.

Llista de comprovació de components:

• Sink Bowl (A)
• Bottom Shelf (B)
• Cames (C)
• Screws (D, G, J/L, H)
• Wrenches (E, K)
• Faucet Assembly (V)
• Drain Assembly (M/N/O/P/Q, R, X)
• Water Hoses (T/U/S)
• Weight (Z/Y)

Passos de muntatge:

1. Muntar el marc base: Attach the four legs (C) to the bottom shelf (B) using the provided screws (D) and wrench (E). Ensure all connections are secure.
2. Attach the Sink Bowl: Carefully place the sink bowl (A) onto the assembled base frame. Align the pre-drilled holes.
3. Secure the Sink Bowl: Use the provided brackets (H) and screws (J/L) to firmly attach the sink bowl to the frame. Tighten all screws with the appropriate wrench (K).
4. Instal·leu l'aixeta:
   • Insert the faucet assembly (V) into the designated hole on the sink.
   • From underneath the sink, secure the faucet with the provided mounting hardware.
   • Connect the hot and cold water supply hoses (T/U/S) to the faucet. Ensure a tight seal to prevent leaks.
   • Attach the weight (Z/Y) to the pull-out hose of the faucet to ensure proper retraction.
5. Instal·leu el conjunt de drenatge:
   • Place the drain strainer (M/N/O/P/Q) into the sink's drain opening.
   • From underneath, attach the drain body (R) and tighten the locking nut to secure the strainer.
   • Connect the flexible drain hose (X) to the drain body. Ensure all connections are sealed properly.
6. Comprovació final: Verify all connections are tight and the sink is stable.

Instruccions de funcionament

The YORKING 304 Stainless Steel Utility Sink is designed for straightforward operation. The integrated pull-out faucet offers versatile water delivery options.

Funcionament de l'aixeta:

• Control de la temperatura de l'aigua: The single lever handle controls both water flow and temperature. Move the handle left for hot water and right for cold water.
• Polvoritzador extraïble: The faucet head can be pulled out to extend its reach, providing flexibility for various tasks.
• Modes de polvorització: The faucet head typically features multiple spray modes (e.g., stream, spray). Press the button on the sprayer head to switch between modes.


  Figure 4: The swivel pull-out faucet with a maximum reach of 16 inches. It features a "Sparkling Mode" for anti-splash and a "Shower Mode" for pressurized water, indicated by icons on the sprayer head.

Sistema de drenatge:

• The sink features a practical drainage system with an X-shaped water flow guideline to direct water efficiently towards the drain.
• The included pop-up drain type allows for easy opening and closing to retain or release water.


Figure 5: Key features of the sink, including the practical drainage system with X-water flow guideline, anti-scratch rounded edges for safety, and a 6-inch splash backsplash to protect walls from water damage.

Manteniment i cura

Proper maintenance will ensure the longevity and pristine appearance of your stainless steel utility sink.

• Neteja regular: Clean the sink regularly with a soft cloth or sponge and a mild, non-abrasive cleaner. Wipe in the direction of the grain to prevent streaks.


  Figure 6: A hand wiping the stainless steel surface of the sink, highlighting its easy-to-clean, rust-proof, long service life, and corrosion resistance properties.

• Eviteu els abrasius: Do not use steel wool, abrasive pads, or harsh chemical cleaners, as these can scratch the surface and damage the finish.
• Prevenir les taques d'aigua: To prevent water spots, especially in hard water areas, wipe the sink dry after each use.
• Manteniment del desguàs: Periodically remove and clean the drain strainer to prevent clogs and maintain efficient drainage.

Resolució de problemes

Aquesta secció tracta els problemes habituals que podeu trobar amb la vostra pica.

Problema	Causa possible	Solució
Water Leaks from Faucet Base	Loose connections or worn O-rings.	Check and tighten all connections. If leaks persist, inspect and replace O-rings if necessary.
Drenatge lent	Clogged drain or improper drain assembly.	Remove and clean the drain strainer. Check the flexible drain hose for kinks or blockages.

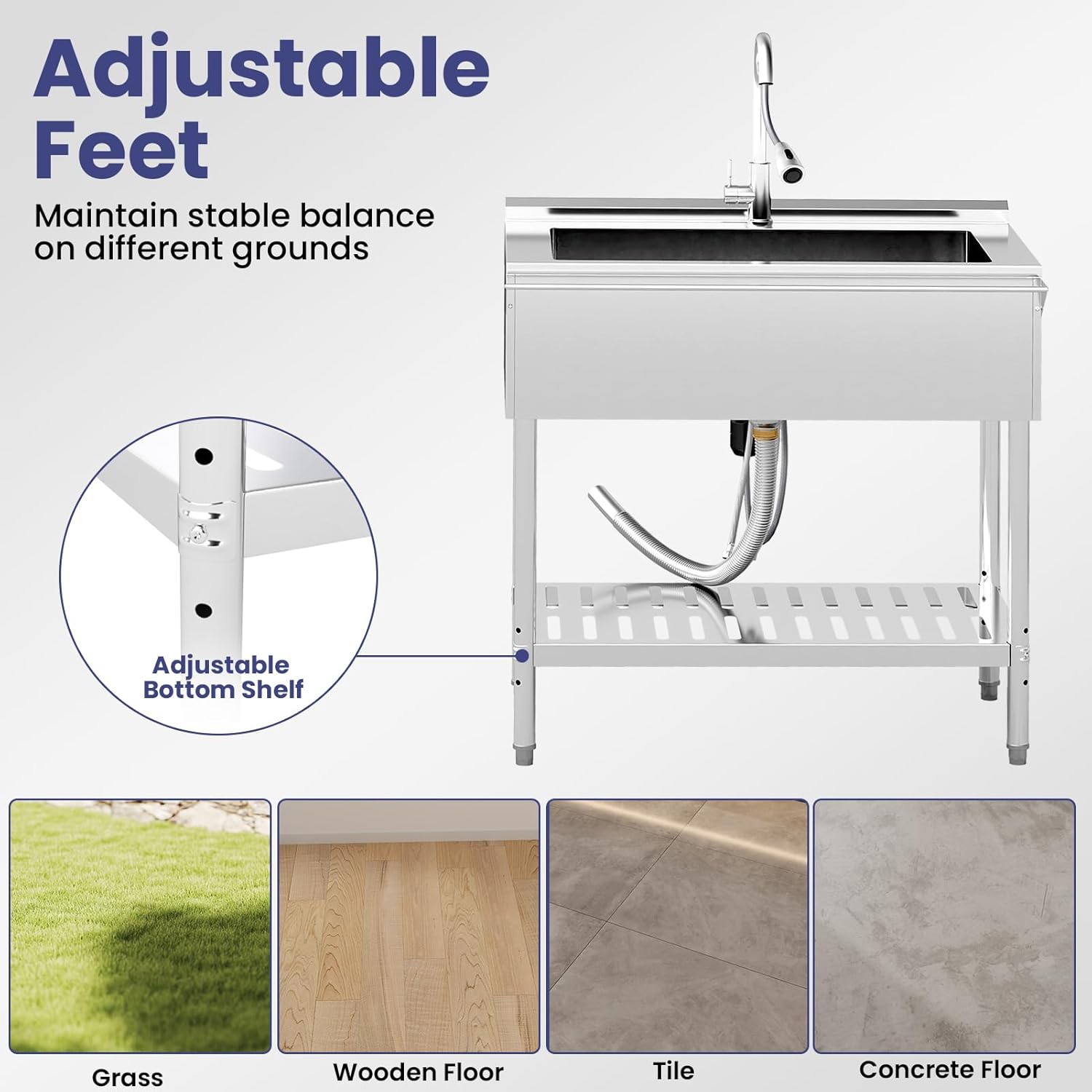

Sink Wobbles/Unstable	Uneven floor or loose leg connections.	Adjust the leveling feet at the bottom of each leg to stabilize the sink. Ensure all leg screws are tightened. Figure 7: The adjustable feet of the sink, designed to maintain stable balance on various grounds such as grass, wooden floors, tile, and concrete floors.
Faucet Spray Mode Malfunction	Mineral buildup in sprayer head.	Unscrew the sprayer head and soak it in a vinegar solution to dissolve mineral deposits. Rinse thoroughly before reattaching.

Especificacions

Garantia i Suport

For any product inquiries, technical assistance, or warranty claims, please contact YORKING customer support directly. Refer to your purchase documentation for specific warranty terms and contact information.

You may also visit the official YORKING store on Amazon for additional product information and support resources: YORKING Store
