Soundcore Liberty 5 Wireless Earbuds User Manual
Model: A3957 | Marca: Soundcore
Introducció
Welcome to the Soundcore Liberty 5 user manual. These advanced wireless earbuds are designed to provide an exceptional audio experience with cutting-edge noise cancellation, immersive sound, and crystal-clear call quality. Please read this manual carefully to ensure proper use and to maximize the performance of your earbuds.
Què hi ha a la caixa
- Soundcore Liberty 5 Earbuds
- Estoig de càrrega
- XXS/XS/S/M/L/XL Ear Tips (Size M Pre-Installed)
- Cable USB-C
Image: Soundcore Liberty 5 earbuds and their charging case.
Image: A visual representation of all items included in the Soundcore Liberty 5 packaging.
Configuració
1. Càrrega dels auriculars i l'estoig
Before first use, fully charge the earbuds and the charging case. The charging case has a battery life of 36 hours and takes approximately 4 hours to fully charge. The earbuds themselves offer up to 12 hours of playback on a single charge (ANC off).
- Col·loqueu els auriculars a la caixa de càrrega.
- Connect the USB-C cable to the charging port on the case and to a power source.
- Els indicadors LED de la carcassa mostraran l'estat de càrrega.
- La funda també admet la càrrega sense fil.
Image: The Soundcore Liberty 5 charging case with earbuds, highlighting its long battery life and wireless charging capability.
Image: A detailed graphic illustrating the ultra-long battery life of the earbuds and case under different ANC modes, including ultra-fast charging.
2. Emparellament amb el dispositiu
- Open the charging case. The earbuds will automatically enter Bluetooth pairing mode.
- On your device, enable Bluetooth and search for "Soundcore Liberty 5".
- Select the earbuds from the list to connect.
- For optimal experience, download the Soundcore app from your device's app store.
Operating Your Soundcore Liberty 5
Controls
The Liberty 5 earbuds feature intuitive touch controls on their stems. You can customize these controls via the Soundcore app.
Image: A visual guide to the touch control functions on the earbud stems, including single, double, and triple squeeze actions.
Noise Cancellation & Transparency
Experience unparalleled quiet with Adaptive ANC 3.0, which adjusts every 0.3 seconds to your environment. The earbuds offer 2x stronger voice reduction, effectively dampening human voices.
- Cancel·lació activa del soroll (ANC): Bloqueja el soroll ambiental per a una experiència auditiva immersiva.
- Mode de transparència: Allows you to hear your surroundings without removing your earbuds, ideal for conversations or awareness.
Image: A man wearing the earbuds in a busy environment, demonstrating the effectiveness of 2x stronger voice reduction.

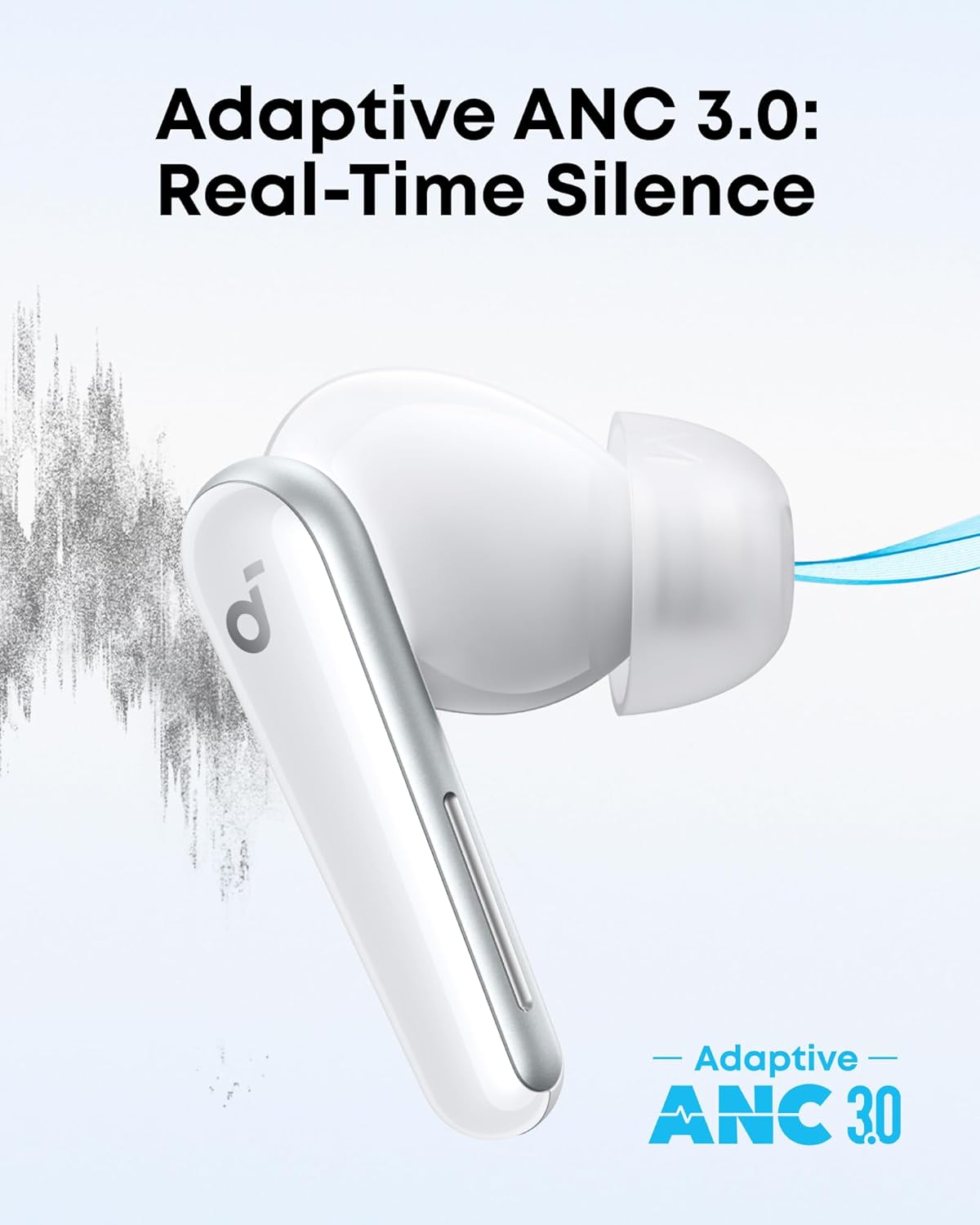

Image: A close-up of an earbud with a graphic illustrating the Adaptive ANC 3.0 technology for real-time silence.
Image: Two individuals engaged in conversation, with one wearing the earbuds, illustrating the 'True Awareness' transparency mode.
Qualitat d'àudio
Enjoy balanced, detail-rich listening powered by wool paper diaphragms, bass-enhancing tubes, LDAC, and Hi-Res Audio. The earbuds also feature immersive Dolby Audio with custom modes for music, movies, and podcasts.
Image: A man listening to music with the earbuds, emphasizing the immersive Dolby Audio experience.

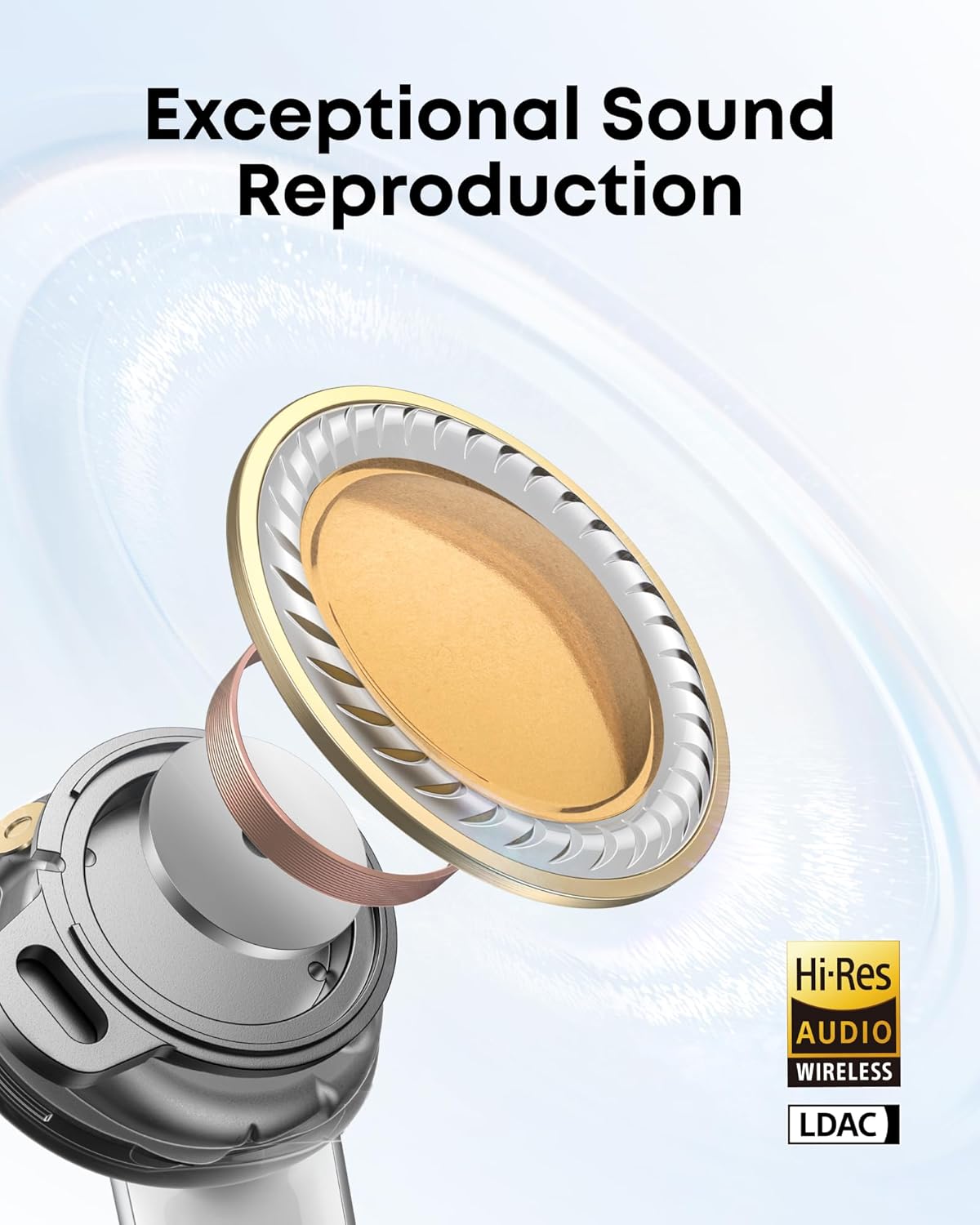

Imatge: Una explosió view of the earbud's internal components, showcasing the technology behind its exceptional sound reproduction, including Hi-Res Audio and LDAC.
Funcions de trucades
Equipped with six microphones, AI noise cancellation, and a wind-resistant algorithm, these wireless earbuds ensure natural, clear calls as if you're talking face to face.
Imatge: Una radiografia view of the earbuds highlighting the six microphones and AI-driven algorithm for crystal-clear calls.
App Features & Customization
The Soundcore app allows you to tailor the sound to your ears using HearID 4.0, which assesses your hearing and creates a personalized listening profile. You can also customize controls and ambient sound settings.
Image: Screenshots from the Soundcore app demonstrating the HearID feature for personalized sound profiles.
Connexions duals
Connect and juggle between two devices smoothly, even with LDAC enabled. Google Fast Pair adds convenience with auto-reconnection.
Image: A visual representation of the earbuds' ability to maintain dual connections with multiple devices simultaneously.
Manteniment
Resistència a l'aigua i a la pols
The Soundcore Liberty 5 earbuds are IP55 water and dust-resistant, making them suitable for workouts and outdoor activities. While they can withstand splashes and sweat, they are not designed for submersion.
Image: Earbuds shown on a surface with water droplets, indicating their IP55 water and dust-resistant rating.
Selecció i ajust de la punta de l'orella
Choosing the correct ear tip size is crucial for optimal sound quality and noise cancellation. The Liberty 5 comes with six sizes of ear tips to ensure a snug seal and bespoke fit for your ears.
- Try different sizes to find the most comfortable and secure fit.
- Un bon segellat millora la resposta dels greus i l'aïllament del soroll.
Image: An earbud displayed alongside a range of ear tip sizes, emphasizing the importance of finding the right fit.
Resolució de problemes
If you encounter any issues with your Soundcore Liberty 5 earbuds, please refer to the following common solutions:
- Sense so: Assegura't que els auriculars estiguin carregats, connectats al dispositiu i que el volum estigui alt.
- Problemes de connexió: Try re-pairing the earbuds. Ensure no other Bluetooth devices are interfering.
- ANC no funciona: Check ear tip fit. Ensure ANC mode is activated in the Soundcore app.
- Qualitat de trucada baixa: Ensure microphones are clean. Check for strong signal.
- Els auriculars no es carreguen: Clean charging contacts on both earbuds and case. Ensure USB-C cable is properly connected.
For more detailed troubleshooting, please consult the official troubleshooting guide available on the Soundcore support weblloc.
Especificacions
| Característica | Especificació |
|---|---|
| Nom del model | Llibertat 5 |
| Tecnologia de connectivitat | Sense fil (Bluetooth 5.4) |
| Control de soroll | Cancel·lació adaptativa del soroll |
| Tipus de controlador d'àudio | Conductor dinàmic |
| Mida del controlador d'àudio | 9.2 mil·límetres |
| Resposta de freqüència | 20-40000 Hz |
| Durada de la bateria (auriculars) | Fins a 12 hores (ANC desactivat) |
| Durada de la bateria (amb funda) | Fins a 48 hores (ANC desactivat) |
| Temps de càrrega | 3 Hours (Earbuds), 4 Hours (Case) |
| Nivell de resistència a l'aigua | Resistent a l'aigua IP55 |
| Tipus de control | Control tàctil |
| Pes de l'article | 57.1 grams |
| Dimensions del producte | 2.33 x 2.33 x 1.13 polzades |
Garantia i Suport
Soundcore products come with a limited warranty. For detailed warranty information and to register your product, please visit the official Soundcore weblloc.
For additional support, including the full User Guide and Troubleshooting Guide, please refer to the following resources:
