Flashpoint X100 TTL R2 On Camera Li-ion Round Head Flash

Introducció

Gràcies per la compraasing the Flashpoint X100 TTL R2 On Camera Li-ion Round Head Flash. This advanced flash unit is designed to provide powerful and versatile lighting for Canon cameras, featuring TTL auto flash, manual control, high-speed sync, and a robust lithium-ion battery. This manual will guide you through the setup, operation, and maintenance of your new flash to ensure optimal performance and longevity.

Informació de seguretat

Please read and understand all safety precautions before using this product. Improper use can lead to electric shock, fire, or other hazards.

• No desmunteu ni modifiqueu la unitat de flaix. Les reparacions només les ha de realitzar personal de servei autoritzat.
• Keep the unit dry. Do not expose to rain, moisture, or high humidity.
• Do not touch the flash tube immediately after firing, as it can be extremely hot.
• Use only the specified battery and charger. Incorrect battery or charger use can cause fire or explosion.
• Mantenir fora de l'abast dels nens.
• Eviteu l'exposició directa dels ulls al flaix, sobretot a curta distància, ja que pot causar una discapacitat visual temporal.

Què hi ha a la caixa

Verifiqueu que tots els components siguin presents en desembalar:

Image: Contents of the Flashpoint X100 package, including the flash unit, battery, charger, carrying case, and a selection of light modifiers.

• Flashpoint X100 Flash Unit
• Li-ion Battery (VB30)
• Carregador de bateria
• Maleta de transport
• Modificadors de llum:
  • Barn Doors with four flags
  • Cúpula de difusió
  • 30.5 Honeycomb Grid
  • Difusor de gran angular
  • Color Correction Gels (6 pieces)
  • Filter/Gel Holders
  • Spotlight Snoot
  • Bounce Scoop

Producte acabatview

Familiarize yourself with the main components of your Flashpoint X100.

Imatge: Frontal view of the Flashpoint X100, highlighting the round flash head and front panel.

Imatge: Anglesa view of the Flashpoint X100, showing the flash head and main body.

Imatge: Lateral view of the Flashpoint X100, illustrating the various ports and controls on the side panel.

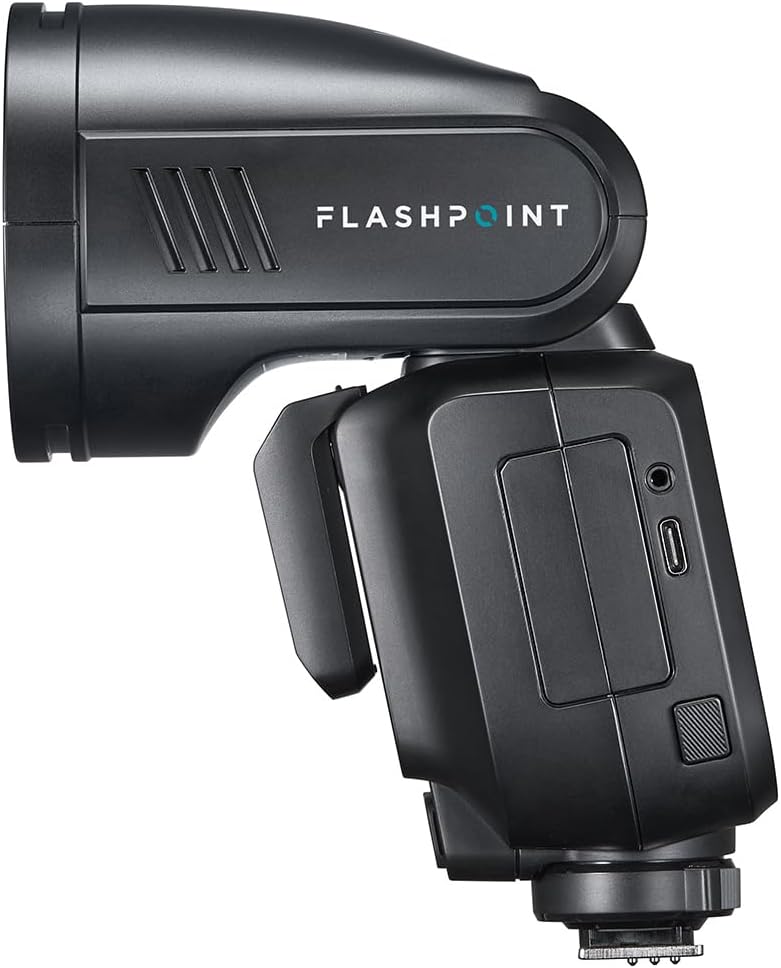

Imatge: Side profile of the Flashpoint X100, showing its compact design.

Components clau:

• Capçal de flaix rodó: Provides even and natural light distribution.
• Pantalla LCD: Shows current settings, modes, and battery status.
• Tauler de control: Buttons and dial for navigating menus and adjusting settings.
• Muntatge de sabata calenta: For attaching the flash to your camera.
• Compartiment de la bateria: Alberga la bateria de Li-ion.
• Port USB-C: Per a actualitzacions de firmware.
• Port de sincronització: For wired synchronization with cameras or triggers.

Configuració

1. Carregant la bateria

Before first use, fully charge the Li-ion battery (VB30). The battery provides up to 400 full-power flashes on a single charge.

1. Insert the VB30 battery into the provided charger.
2. Connecteu el carregador a una presa de corrent.
3. The charging indicator light will show the charging status. It typically turns green when fully charged.

2. Instal·lació de la bateria

1. Localitzeu el compartiment de la bateria a la unitat de flaix.
2. Obriu la coberta del compartiment.
3. Insert the charged VB30 battery, ensuring correct orientation according to the markings inside the compartment.
4. Tanqueu bé la tapa del compartiment de la bateria.

3. Muntatge a la càmera

The Flashpoint X100 is designed for Canon cameras.

1. Slide the flash's hot shoe mount into your camera's hot shoe slot.
2. Secure the flash by tightening the locking ring or lever on the flash unit.

4. Engegada inicial

Press and hold the power button until the LCD display illuminates. The flash will perform a self-check and display the current settings.

Instruccions de funcionament

Modes de funcionament bàsics

Image: The Flashpoint X100's LCD display showing settings in TTL mode, including exposure compensation and zoom.

Image: The Flashpoint X100's LCD display showing manual power settings, allowing precise control over flash output.

• Flaix automàtic TTL: The flash automatically adjusts its output for correct exposure. This is the default mode for most situations.
• Mode manual (M): Allows you to manually set the flash power from 1/256 to full power. Use the control dial to adjust the power level.
• Mode Multi (Estroboscòpic): Fires a series of rapid flashes during a single exposure, ideal for capturing multiple movements of a subject.

Funcions avançades

• Sincronització d'alta velocitat (HSS): Enables flash synchronization at shutter speeds up to 1/8000 seconds, allowing you to use wide apertures in bright conditions.
• R2 2.4G Wireless Transmission: The built-in R2 wireless system allows the X100 to function as a master or slave unit, controlling or being controlled by other Flashpoint R2 compatible devices within a 100m range.
• Zoom automàtic: The flash head automatically adjusts its zoom position (28-105mm) to match the focal length of your lens, ensuring optimal light coverage.
• Bounce and Swivel: The flash head can be tilted vertically from -7 to 120 degrees and rotated horizontally from 0 to 330 degrees for bounce flash photography.


  Image: Illustration of the Flashpoint X100's flash head articulation, demonstrating its ability to tilt and swivel for bounce flash.

• Magnetic Modifier Mount: Easily attach various light modifiers (barn doors, diffusion dome, grids, gels, snoot, bounce scoop) to shape and control your light.
• Durada del flaix: Offers a lightning-fast flash duration range of 1/300s to 1/20,000s, ideal for freezing fast-moving subjects.

Manteniment

• Neteja: Feu servir un drap suau i sec per netejar la unitat de flaix. Per a la brutícia persistent, feu un drap lleugerament sec.amp cloth can be used, followed by a dry one. Do not use solvents or abrasive cleaners.
• Cura de la bateria:
  • Guardeu la bateria en un lloc fresc i sec quan no la feu servir.
  • If storing for extended periods, charge the battery to about 50% capacity every 3-6 months to maintain its health.
  • No exposeu la bateria a temperatures extremes.
• Emmagatzematge: When not in use, store the flash unit in its carrying case in a dry, dust-free environment. Remove the battery if storing for a long duration.

Resolució de problemes

Especificacions

Garantia i Suport

Flashpoint products are backed by a limited warranty. For detailed warranty information, please refer to the warranty card included with your product or visit the official Flashpoint website. For technical support, troubleshooting assistance, or service inquiries, please contact Flashpoint customer service.

Assistència en línia: Visit the Flashpoint Store on Amazon
