Seiko QXM613BRH 12 Melodies in Motion Wall Clock User Manual

1. Producte acabatview

The Seiko QXM613BRH is a Melodies in Motion Wall Clock designed to provide accurate timekeeping with an engaging musical and visual display. On the hour, the clock's dial opens to reveal a turning decorative rotating pendulum and plays one of twelve pre-programmed melodies or Westminster chimes. It features a brown case with golden accents, LED lights, a light sensor, and adjustable volume control.

Imatge 1: Frontal view of the Seiko QXM613BRH clock with the dial closed, showing the time display and decorative elements.

2. Configuració i instal·lació

2.1 Instal·lació de la bateria

This clock requires 4 D batteries and 1 AA battery for operation. Batteries are included with the product.

1. Localitzeu el compartiment de la bateria a la part posterior del rellotge.
2. Insert 4 D batteries and 1 AA battery, ensuring correct polarity (+/-).
3. Tanqueu bé la tapa del compartiment de la bateria.

2.2 Muntatge del rellotge

The Seiko QXM613BRH is designed for wall mounting.

1. Select a suitable location on an indoor wall. Ensure the wall can support the clock's weight (approximately 8.4 pounds).
2. Use appropriate wall anchors and screws (not included) for secure mounting.
3. Hang the clock securely using the designated mounting point on the back.

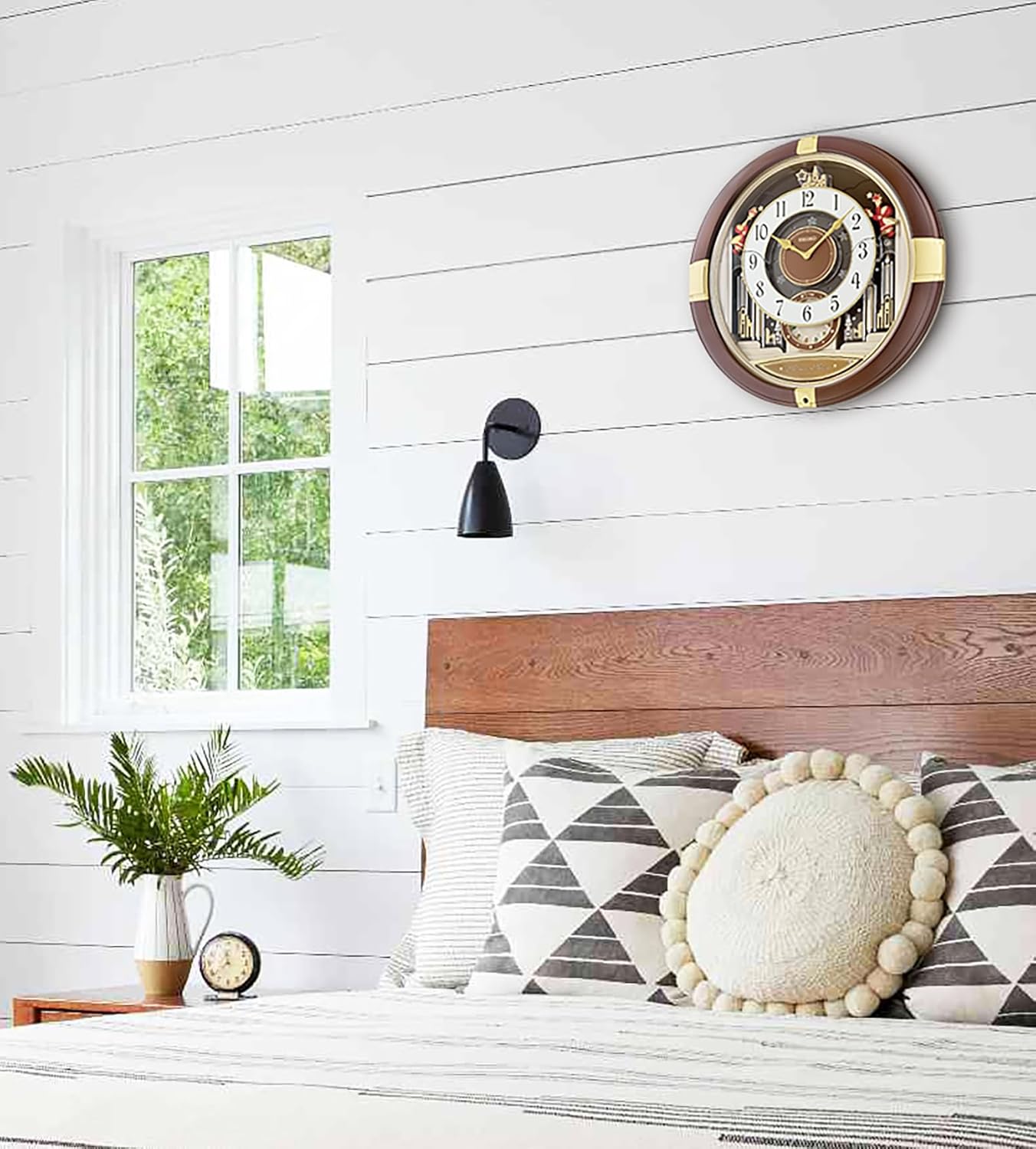

Image 2: The Seiko QXM613BRH clock displayed on a bedroom wall, illustrating typical mounting.

3. Instruccions de funcionament

3.1 Configuració de l'hora

Use the time setting knob located on the back of the clock to adjust the hour and minute hands. Rotate the knob clockwise until the correct time is displayed.

3.2 Funció Melodies en Moviment

On the hour, the clock's face will open, revealing a turning decorative rotating pendulum and playing one of 12 pre-programmed melodies or Westminster chimes. The twenty colorful sparkling LED lights will also activate during this sequence.

Image 3: Close-up of the Seiko QXM613BRH clock with the dial open, showcasing the intricate details of the rotating pendulum and musical figures.

Melodies disponibles:

• The Four Seasons "Spring"
• Kanon
• Eine Kleine Nachtmusik
• Symphony No. 6 "Pastoral"
• "Morning" From Peer Gynt
• La Traviata "Drinking Song"
• Deck The Halls
• O Tannenbaum
• Us desitgem un Bon Nadal
• Alegria Al Món
• Nit silenciosa
• Jingle Bells

3.3 Sensor de llum

The integrated light sensor automatically disengages all melodies and lights when the room becomes dark, ensuring a peaceful night without musical interruptions.

3.4 Control de volum

A volume control knob is located on the side or back of the clock. Adjust it to your preferred sound level.

3.5 Botó de demostració

Press the demonstration button (usually located on the side or front) to activate the Melodies in Motion sequence manually for a preview de les característiques.

3.6 Interruptor d'encesa/apagada

An On/Off switch is provided to completely disable the musical and motion features while maintaining timekeeping functionality.

4. Manteniment

4.1 Neteja

To clean the clock, gently wipe the glass and plastic surfaces with a soft, dry cloth. Avoid using abrasive cleaners or chemical sprays, as these may damage the finish or internal components.

4.2 Substitució de la bateria

When the melodies or motion features become weak, or the clock stops keeping accurate time, it is an indication that the batteries need to be replaced. Replace all 4 D batteries and 1 AA battery simultaneously with new, high-quality alkaline batteries for optimal performance.

5. Solució De Problemes

• El rellotge no funciona: Ensure batteries are correctly installed with proper polarity and are not depleted. Check the On/Off switch is in the "On" position.
• Melodies not playing: Verify the On/Off switch is in the "On" position. Check the light sensor; if the room is dark, the melodies will be suppressed. Ensure batteries are not low.
• Incorrect timekeeping: Replace all batteries with new ones. If the issue persists, contact customer support.
• Motion features not working: Check battery levels. Ensure no obstructions are preventing the dial from opening or the pendulum from rotating.

6. Especificacions

7. Garantia i Suport

7.1 Informació de la garantia

This Seiko QXM613BRH clock is backed by a Garantia limitada del fabricant d'1 anySi us plau, conserveu el comprovant de compra per a reclamacions de garantia. La garantia cobreix defectes de materials i fabricació en condicions d'ús normal.

7.2 Atenció al client

For further assistance, technical support, or warranty inquiries, please refer to the contact information provided with your product packaging or visit the official SEIKO weblloc.
