Manual d'usuari de l'assecadora amb bomba de calor Midea MD20EH80WB-A3

1. Informació de seguretat

Please read this manual carefully before using your appliance and retain it for future reference. Incorrect use may result in injury or damage. Always follow basic safety precautions, including the following:

• Aquest aparell està dissenyat només per a ús domèstic.
• No permeteu que els nens juguin amb l'aparell. Cal una supervisió acurada quan l'aparell s'utilitza a prop dels nens.
• Assegureu-vos que l'aparell estigui ben connectat a terra.
• Do not install the appliance in an environment with high humidity or where it may be exposed to water.
• Desconnecteu sempre l'aparell abans de netejar-lo o fer-ne el manteniment.
• No assequeu articles sense rentar a l'assecadora.
• Els articles que s'hagin embrutat amb substàncies com ara oli de cuina, acetona, alcohol, gasolina, querosè, removedors de taques, trementina, ceres i removedores de cera s'han de rentar amb aigua calenta amb una quantitat addicional de detergent abans d'assecar-los a l'assecadora.
• Traieu tots els objectes de les butxaques, com ara encenedors i llumins.
• Do not attempt to repair or replace any part of your dryer unless it is specifically recommended in this manual. All other servicing should be referred to a qualified technician.

2. Producte acabatview

The Midea MD20EH80WB-A3 is an 8 kg heat pump dryer designed for efficient and gentle laundry care. It features advanced technologies for optimal drying results and energy efficiency.

Característiques principals:

• Tecnologia de la bomba de calor: Provides gentle drying at lower temperatures, protecting fabrics and consuming less energy.
• Funció d'assecat automàtic: Automatically detects the moisture level of the laundry and adjusts drying time, preventing over-drying.
• UV Hygiene: Utilizes UV light to remove 99.9% of bacteria and viruses from laundry, ensuring a hygienic result.
• Wrinkle Protection: The drum periodically rotates after the cycle ends to prevent wrinkles, reducing the need for ironing.
• Wool Care: Woolmark certified program for gentle drying of wool garments, preventing shrinkage and maintaining softness.
• Control intel·ligent: Remote control and monitoring via a smartphone app, including program selection and energy monitoring.

3. Configuració i instal·lació

3.1 Desembalatge

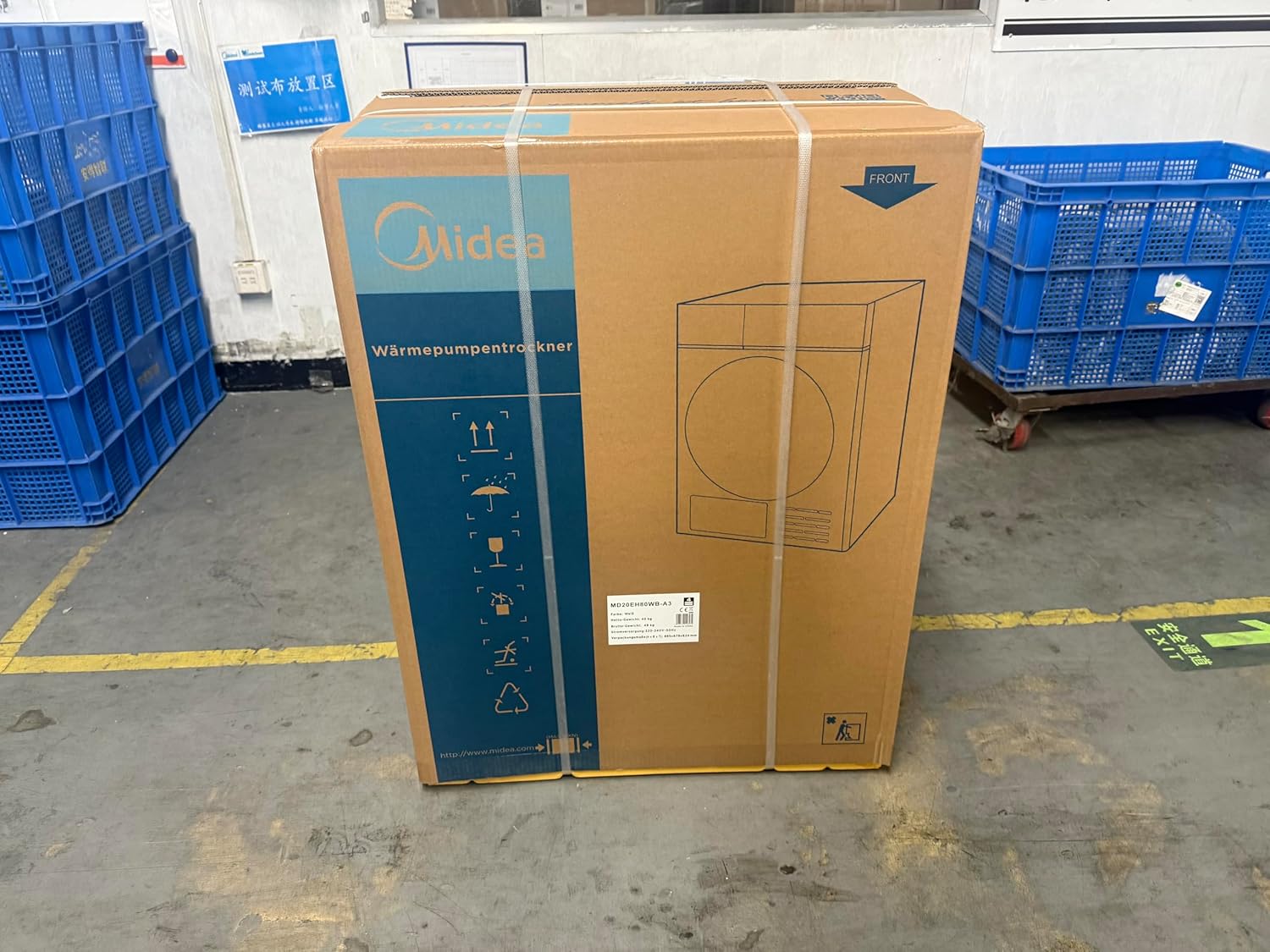

Carefully remove the dryer from its packaging. Inspect the appliance for any damage during transit. Retain packaging materials for potential future transport or service.

3.2 Col·locació

Place the dryer on a firm, level floor. Ensure there is adequate ventilation around the appliance. Do not install the dryer behind a lockable door, a sliding door, or a door with a hinge on the opposite side to that of the tumble dryer, in such a way that a full opening of the tumble dryer door is restricted.

3.3 Connexió elèctrica

Connect the dryer to a properly earthed power outlet. Refer to the rating plate for specific electrical requirements.

3.4 Connexió de drenatge

The dryer collects condensed water in a removable water tank. This tank must be emptied after each drying cycle. Alternatively, you can connect a drainage hose for direct water discharge, eliminating the need to manually empty the tank.

4. Instruccions de funcionament

4.1 Tauler de control

The dryer features an intuitive control panel, typically located on the front of the appliance, allowing for program selection and setting adjustments. Refer to the main product image for a visual guide to the control panel layout.

4.2 Càrrega de la roba

Open the dryer door and load laundry into the drum. Do not overload the dryer; ensure clothes have enough space to tumble freely for optimal drying performance. Close the door firmly.

4.3 Selecció d'un programa

Turn the program selector or use the touch controls to choose the desired drying program. Available programs include:

• Assecat automàtic: Automatically adjusts drying time based on moisture levels.
• Wool Care: Programa suau per a peces de llana.
• Refrescant: For airing out clothes without full drying.
• Assecat ràpid: For smaller loads or items requiring faster drying.
• Other specific programs for different fabric types.

4.4 Funcions especials

• UV Hygiene: Activate this function for enhanced sanitization, removing bacteria and viruses.
• Wrinkle Protection: Select this option to minimize creasing, especially useful if laundry cannot be removed immediately after the cycle.
• Inici retardat: Set a timer for the drying cycle to begin at a later time.

4.5 Smart Control (Remote Control)

The Midea MD20EH80WB-A3 can be controlled remotely via a smartphone application. Download the Midea SmartHome app, connect your dryer to your home Wi-Fi network, and follow the in-app instructions for remote operation, program downloads, and energy monitoring.

5. Manteniment

Un manteniment regular garanteix la longevitat i el rendiment òptim de la teva assecadora.

5.1 Neteja del filtre de borrissol

The lint filter should be cleaned after every drying cycle. Open the dryer door, remove the filter, and clear any accumulated lint. Rinse under running water if necessary and ensure it is completely dry before reinserting.

5.2 Buidatge del dipòsit d'aigua

If not connected to a direct drain, the condensed water tank must be emptied after each cycle. Pull out the tank, pour out the water, and reinsert it securely.

5.3 Neteja de l'intercanviador de calor

Periodically clean the heat exchanger. This model does not feature a self-cleaning heat exchanger, so manual cleaning is required. Refer to the detailed instructions in the full user manual for the correct procedure to access and clean the heat exchanger compartment.

5.4 Neteja general

Netegeu l'exterior de l'assecadora amb un damp tela. No utilitzeu netejadors abrasius ni dissolvents.

6. Solució De Problemes

If you encounter issues with your dryer, consult the following common troubleshooting steps:

• L'assecadora no arrenca: Ensure the power cord is securely plugged in, the door is fully closed, and the start button has been pressed. Check if a fuse has blown or a circuit breaker has tripped.
• La roba no s'asseca correctament: Check if the lint filter is clean and the water tank is empty. Ensure the load size is appropriate for the selected program and that the heat exchanger is not blocked.
• Soroll inusual: Verify that the dryer is level and that no foreign objects are in the drum.
• Codis d'error: If an error code appears on the display, refer to the comprehensive troubleshooting section in the full user manual for specific code meanings and solutions.

If the problem persists after attempting these steps, contact customer support.

7. Especificacions

Energy Labels and Product Information Sheets:

8. Garantia i Suport

For warranty information, please refer to the documentation provided at the time of purchase. The standard warranty period may vary by region. Keep your proof of purchase for warranty claims.

Atenció al client:

For technical assistance, spare parts, or repair inquiries, please contact your local Midea service center or the retailer from whom you purchased the appliance.

You can find more information and support on the official Midea weblloc: www.midea.com/de
