Introducció
The daylight Halo Go 2 is a portable and rechargeable magnifying lamp designed to provide precise illumination and magnification for detailed tasks. This manual provides essential information for the safe and effective use, setup, operation, and maintenance of your Halo Go 2 lamp.
Informació de seguretat
- No desmunteu ni modifiqueu el lamp. This may cause damage or injury and will void the warranty.
- Mantingueu la lamp lluny de l'aigua o altres líquids.
- Utilitzeu només el cable USB proporcionat per carregar.
- Eviteu l'exposició directa dels ulls a la llum LED durant períodes prolongats.
- Mantenir fora de l'abast dels nens.
- Assegureu-vos que lamp is placed on a stable, flat surface during use.
Contingut del paquet
Si us plau, comproveu el paquet per veure si hi ha els elements següents:
- daylight Halo Go 2 Magnifying Lamp
- Cable de càrrega USB
- Velvet Carry Case

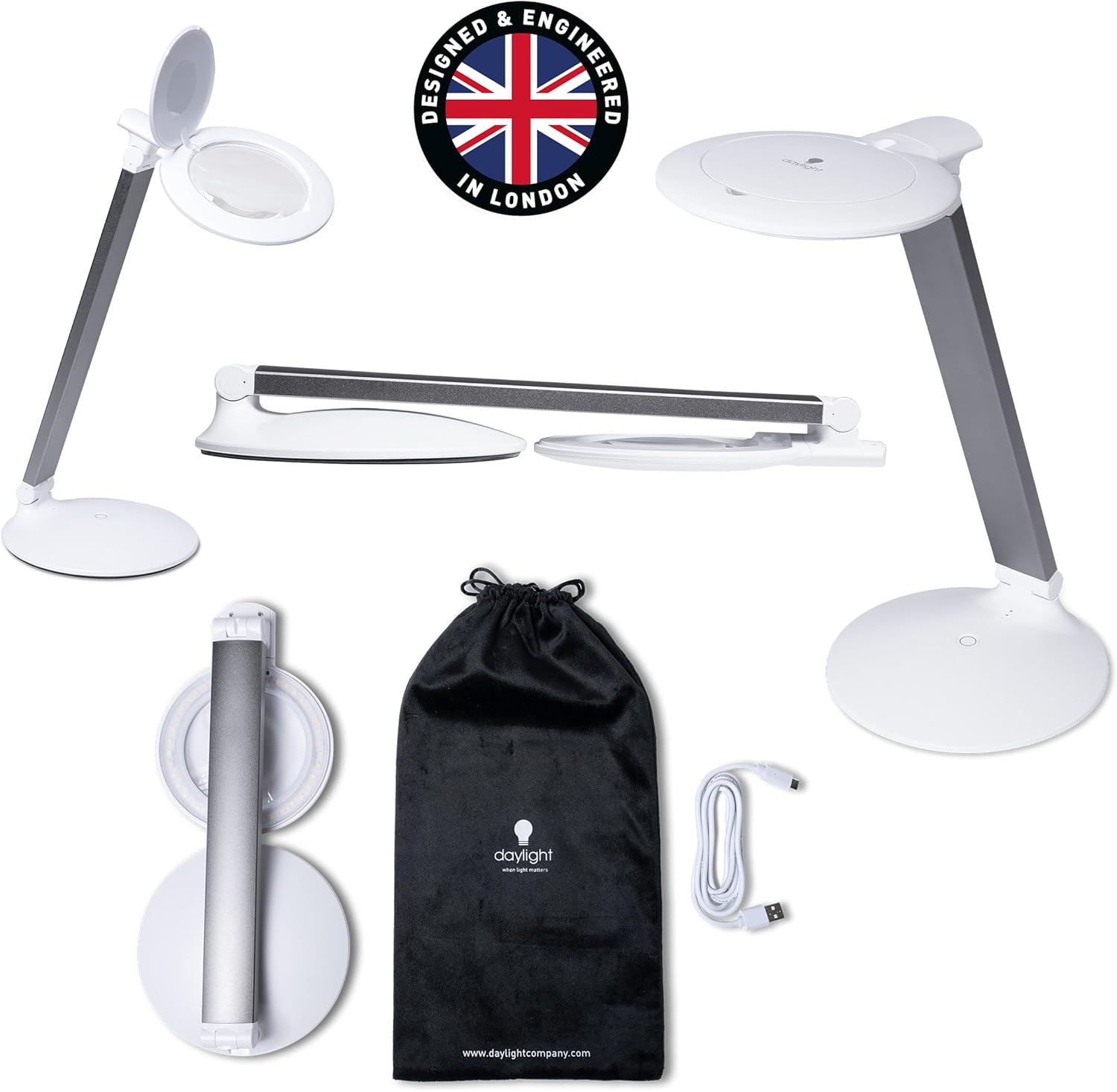

Image: The Halo Go 2 lamp, its USB charging cable, and the included velvet carry case.
Producte acabatview
The Halo Go 2 lamp features a compact, foldable design for portability and ease of storage. Key components include the lamp head with an integrated magnifying lens, an adjustable arm, a stable base, and a power/brightness control button.
Image: The Halo Go 2 lamp fully extended, showing the lamp head, arm, and base.
Imatge: Una representació visual de la lamp's foldable design, transitioning from an upright position to a compact, flat form.
Configuració
- Desembalar: Traieu amb cura tots els components de l'embalatge.
- Desplegar: Desplegueu suaument la lamp from its compact position. The arm can be adjusted to your desired angle.
- Càrrec inicial: Abans del primer ús, es recomana carregar completament elamp. Refer to the 'Charging' section for instructions.
Instruccions de funcionament
- Encès/apagat: Press the power button located on the base of the lamp to turn it on. Press again to cycle through brightness settings and turn off.
- Ajusta la brillantor: El lamp features two brightness settings. Press the power button once for the high mode (powerful light for detailed work) and a second time for the low mode (softer glow for general tasks or reading). A third press will turn the lamp apagat.
- Ús de la lupa: Open the lens safety cover to access the 5-diopter (2.25X) magnifying lens. For higher magnification, use the integrated 12-diopter (4.0X) inset lens.
- Ajust del braç: El lamp's arm is flexible, allowing you to position the light and magnifier precisely where needed.
- Standalone Lamp Ús: El lamp can be used as a regular task lamp by keeping the lens safety cover closed.
Imatge: Examples of the Halo Go 2 lamp in use for reading (low brightness) and detailed nail work (high brightness).
Image: Various applications of the Halo Go 2 lamp, demonstrating its use for detailed tasks like nail care and embroidery with magnification.
Carregant
The Halo Go 2 lamp is equipped with a rechargeable battery, offering up to 8 hours of consistent lighting on a full charge.
- Connecteu el cable de càrrega USB proporcionat al port de càrrega de l'lampla base.
- Plug the other end of the USB cable into a compatible USB power source (e.g., laptop, phone charger, USB power bank).
- The charging indicator lights (usually small LEDs on the base) will illuminate to show charging status. Refer to the product's specific indicator behavior for full charge notification.
- Once fully charged, disconnect the lamp de la font d'alimentació.
Manteniment
- Neteja de la lent: Use a soft, lint-free cloth specifically designed for optical lenses to clean the magnifying lens. Do not use abrasive cleaners or harsh chemicals.
- Neteja de Lamp Cos: Netegeu la lampsuperfície suau, damp drap. Eviteu que entri humitat a les obertures.
- Emmagatzematge: When not in use, fold the lamp into its compact form and store it in the included velvet carry case to protect it from dust and scratches.
Resolució de problemes
| Problema | Causa possible | Solució |
|---|---|---|
| Lamp no s'encén. | La bateria està esgotada. | Carregar la lamp completament amb el cable USB proporcionat. |
| Lamp no cobra. | Cable USB o adaptador de corrent defectuós. | Prova un altre cable USB o adaptador de corrent. Assegura't que les connexions siguin segures. |
| La llum parpelleja o és tènue. | Bateria baixa. | Recarrega la lamp. |
| Magnification is unclear. | Lens is dirty or smudged. | Netegeu la lent amb un drap suau i sense pelusa. |
Especificacions
- Model: Halo Go 2 (U25400)
- Ampliació: 5 Diopter (2.25X), 12 Diopter (4.0X) inset
- Font de llum: LED
- Temperatura de color: 6,000K
- Brillantor: 4,200 Lux at 15cm, 330 Lumens
- Índex de reproducció del color (CRI): 95+
- Consum d'energia: 5W
- Voltage: 5 V (CC)
- Durada de la bateria: Fins a 8 hores (amb càrrega completa)
- Vida útil LED: 25,000 hores
- Dimensions: 1.97"D x 6.1"W x 13.58"H (unfolded)
- Pes de l'article: 2.1 lliures
- Material: Lightweight Metal, Plastic
- Característiques especials: 3-Way, Adjustable Arm, Cordless, Portable, Rechargeable
- Components inclosos: Carrying Case, Power Cable
- UPC: 809802254006
Garantia i Suport
The daylight Halo Go 2 Magnifying Lamp ve amb a Garantia del fabricant de 2 anys. For warranty claims, technical support, or any inquiries regarding your product, please contact daylight customer service. Keep your proof of purchase for warranty validation.
For further assistance, please visit the official daylight weblloc web o contacteu amb els seus canals d'atenció al client.
