1. Introducció
This manual provides essential information for the safe and efficient installation, operation, and maintenance of your LEDVANCE 41W 4000K IP66 LED Floodlight, model 4099854305986. Please read this manual thoroughly before installation and retain it for future reference.
The LEDVANCE Floodlight is designed for outdoor use, offering powerful and energy-efficient illumination with a cool white light (4000 Kelvin) and a symmetrical beam distribution. Its IP66 rating ensures protection against dust and powerful water jets, making it suitable for various outdoor environments.
2. Instruccions de seguretat
AVÍS: Risc de descàrrega elèctrica. La instal·lació l'ha de dur a terme un electricista qualificat d'acord amb totes les normes elèctriques locals i nacionals.
- Disconnect power at the circuit breaker before installation, maintenance, or cleaning.
- Assegureu-vos el subministrament voltagCoincideix amb els requisits del focus (220 volts).
- Do not attempt to modify or repair the floodlight. There are no user-serviceable parts inside.
- Avoid direct eye exposure to the light source when the floodlight is operating.
- Ensure the mounting surface is capable of supporting the weight of the floodlight.
- Keep flammable materials away from the floodlight.
3. Contingut del paquet
Verifiqueu que tots els components estiguin presents i no estiguin danyats en obrir l'envàs:
- 1 x LEDVANCE 41W 4000K IP66 LED Floodlight
- Mounting bracket (pre-attached or separate)
- Manual d'instruccions

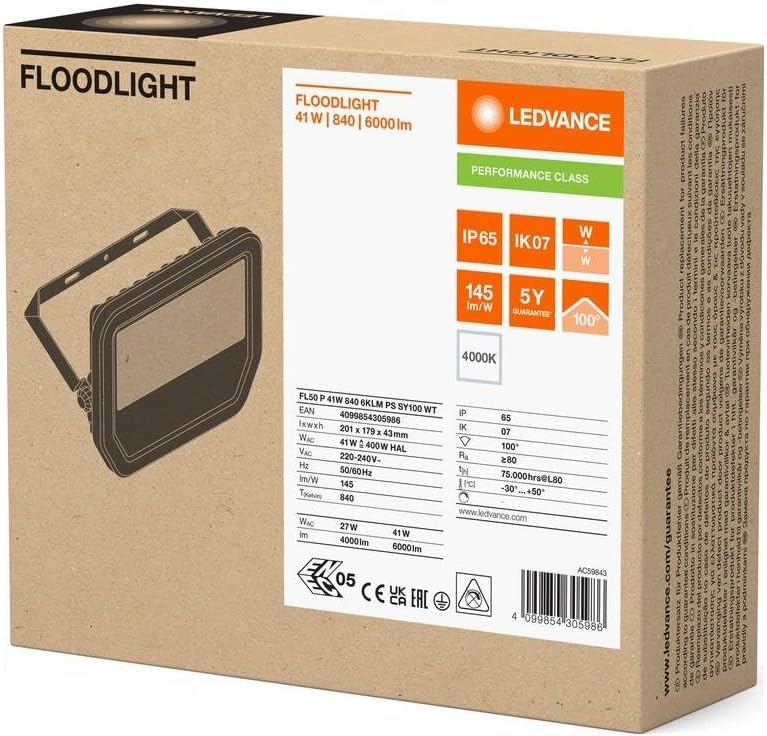

Figure 3.1: Packaging of the LEDVANCE Floodlight, showing product specifications and certifications.
4. Instal·lació i configuració
Before beginning installation, ensure the power supply is disconnected.
4.1 Mounting the Floodlight
- Seleccioneu la ubicació: Choose a suitable outdoor location for mounting, ensuring it is a stable surface capable of supporting the floodlight's weight (830 g). Consider the desired light coverage area.
- Marca els punts de perforació: Use the mounting bracket as a template to mark the drilling points on the wall or mounting surface.
- Forats: Drill holes at the marked points. Insert appropriate wall plugs if necessary (not included).
- Suport segur: Attach the mounting bracket securely to the surface using suitable screws (not included).
- Connecteu el focus: Fasten the floodlight to the mounting bracket. Ensure all screws are tightened to prevent movement.
Figure 4.1: The LEDVANCE 41W 4000K IP66 LED Floodlight with its adjustable mounting bracket.
4.2 Connexió elèctrica
- Preparació del cablejat: Carefully strip the insulation from the power supply cable and the floodlight's cable.
- Connecteu els cables: Connect the live (L), neutral (N), and earth (E) wires from the power supply to the corresponding terminals on the floodlight. Ensure connections are secure and properly insulated.
- Connexions de segell: For outdoor installations, use appropriate waterproof connectors and junction boxes to maintain the IP66 rating and prevent water ingress.
4.3 Ajust de la direcció de la llum
The floodlight features an adjustable bracket. Once mounted, you can loosen the screws on the side of the bracket, tilt the floodlight to the desired angle, and then securely tighten the screws to fix its position.
5. Instruccions de funcionament
After successful installation and electrical connection, restore power at the circuit breaker. The floodlight will illuminate. This model is non-dimmable and operates as a simple on/off fixture, typically controlled by an external switch or sensor (not included).
6. Manteniment i cura
Un manteniment regular garanteix un rendiment òptim i una llarga durada del vostre focus.
- Neteja: Desconnecteu l'alimentació abans de netejar. Feu servir un drap suau i sec.amp cloth to wipe the exterior of the floodlight. Do not use abrasive cleaners or solvents, as these can damage the finish or lens.
- Inspecció: Periodically inspect the floodlight for any signs of damage, loose connections, or wear. Ensure the mounting is secure.
- Vida útil LED: The integrated LED module has an average durability of 100,000 hours and is not user-replaceable.
7. Solució De Problemes
Si teniu problemes amb el vostre focus, consulteu els problemes i solucions habituals següents:
| Problema | Causa possible | Solució |
|---|---|---|
| El focus no s'encén. | Sense font d'alimentació. Connexió de cablejat solta. Faulty switch/sensor. | Comproveu l'interruptor. Verify all electrical connections are secure (with power off). Test external switch/sensor. |
| La llum parpelleja. | Font d'alimentació inestable. Cablejat solt. | Consulteu un electricista per comprovar l'estabilitat del subministrament elèctric. Comproveu les connexions del cablejat (amb l'alimentació apagada). |
| Reducció de la producció de llum. | Lent bruta. End of product lifespan. | Netegeu la lent amb un suau, damp cloth (with power off). Consider replacement if beyond average durability. |
If the problem persists after attempting these solutions, contact a qualified electrician or LEDVANCE customer support.
8. Especificacions tècniques
| Marca | LEDVANCE |
| Número de model | 4099854305986 |
| Potència elèctrica | 41 watts |
| Voltage | 220 Volts |
| Temperatura de color | 4000 Kelvin (blanc fred) |
| Flux lluminós | 6000 lm |
| Angle del feix | 100D (Symmetrical) |
| Classificació IP | IP66 |
| Material | Alumini |
| Color | Blanc |
| Dimensions del producte (L x A x A) | 20.1 x 4.3 x 17.9 cm |
| Pes del producte | 830 g |
| Average Durability | 100,000 hores |
| Regulable | No |
| Usos específics | Garden, Outdoor Security |

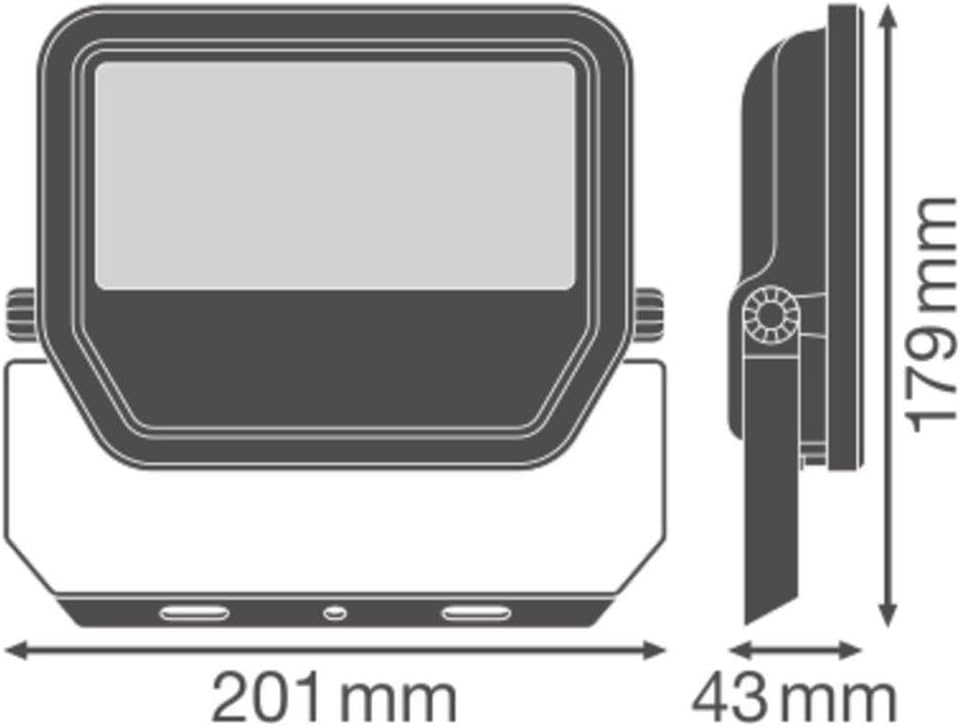

Figure 8.1: Dimensional drawing of the LEDVANCE Floodlight, showing length, width, and height.
9. Garantia i Suport
This LEDVANCE Floodlight comes with a 5 any de garantia des de la data de compra, que cobreix defectes de materials i fabricació en condicions d'ús normal. Conserveu el comprovant de compra per a reclamacions de garantia.
For technical support, warranty claims, or further inquiries, please visit the official LEDVANCE website or contact their customer service department. Refer to the product packaging or the LEDVANCE weblloc web per obtenir dades de contacte específiques a la vostra regió.
