RAF R.2862 3-in-1 Cordless Food Processor User Manual

1. Informació important de seguretat

Please read all instructions carefully before using your RAF R.2862 Cordless Food Processor. Keep this manual for future reference.

• Always ensure the appliance is fully charged before use for optimal performance.
• Mantingueu les mans i els estris fora del recipient de processament mentre esteu treballant per evitar lesions.
• Les fulles són afilades. Manipuleu-les amb molta cura durant el muntatge, el desmuntatge i la neteja.
• No submergiu la base del motor en aigua ni en cap altre líquid. Netegeu-la amb un adhesiu.amp només tela.
• Aquest aparell no està pensat per a persones amb capacitats físiques, sensorials o mentals reduïdes, o amb manca d'experiència i coneixements, llevat que hagin rebut supervisió o instruccions sobre l'ús de l'aparell per part d'una persona responsable de la seva seguretat.
• Assegureu-vos que la tapa estigui ben tancada abans de fer funcionar el processador d'aliments.
• Do not attempt to process extremely hard foods that may damage the blades or motor.

2. Producte acabatview i Components

The RAF R.2862 is a versatile 3-in-1 cordless food processor designed for chopping, mixing, and blending various ingredients. Familiarize yourself with its components:

• Base del motor: Contains the powerful 200W motor and rechargeable battery.
• Bol de processament: Transparent bowl for holding ingredients.
• Tapa amb tub d'alimentació: Secures the bowl and allows adding ingredients during operation.
• Empenjador: S'utilitza per guiar els ingredients a través del tub d'alimentació.
• Chopping Blade Assembly: Sharp blades for efficient chopping and blending.
• Disc Accessory: For slicing or grating (refer to specific disc type if included).
• Interruptor de control: On/Off and speed selection (if applicable).
• Port de càrrega: Per connectar el cable de càrrega.

Figura 2.1: Frontal view of the RAF R.2862 Cordless Food Processor.

Figura 2.2: lateral view of the RAF R.2862 Cordless Food Processor, showing the control switch.

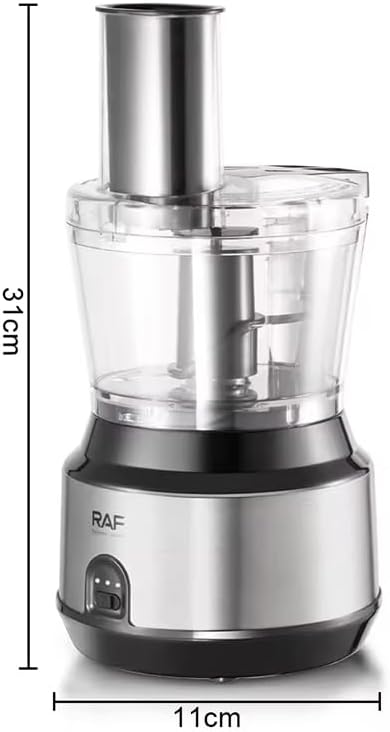

Figure 2.3: RAF R.2862 Cordless Food Processor with approximate dimensions.

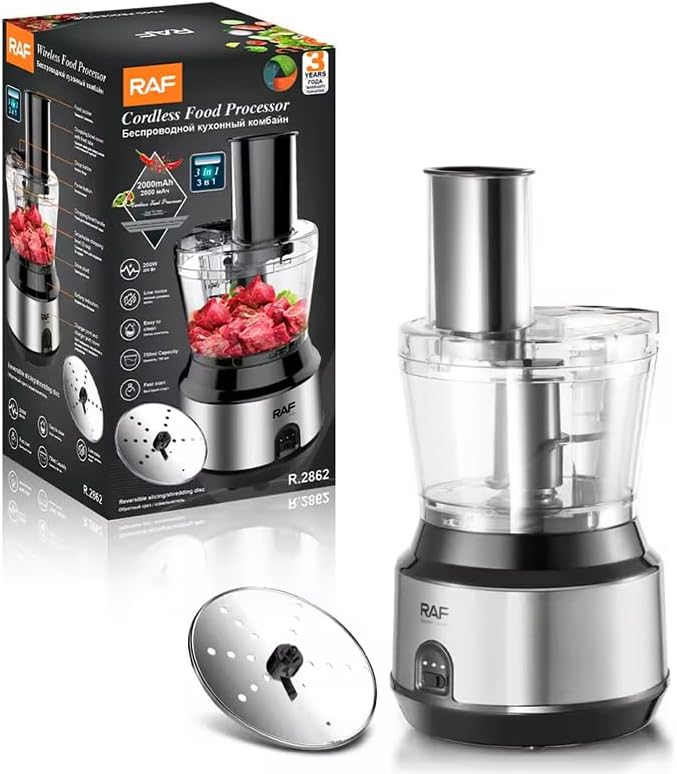

Figure 2.4: The RAF R.2862 Cordless Food Processor shown with its packaging and an example disc accessory.

3. Configuració i ús inicial

3.1 Desembalatge

1. Traieu amb cura tots els components de l'embalatge.
2. Traieu qualsevol pel·lícula protectora o material d'embalatge.
3. Inspeccioneu l'aparell per detectar qualsevol dany. No l'utilitzeu si està danyat.

3.2 Càrrega inicial

As this is a cordless appliance, it requires charging before first use.

1. Locate the charging port on the motor base.
2. Connect the provided charging cable to the port and plug the other end into a suitable power outlet.
3. Allow the unit to charge fully. The charging indicator light (if present) will change or turn off when charging is complete. This may take several hours.

3.3 Muntatge

1. Place the motor base on a clean, stable, and dry surface.
2. Carefully place the chopping blade assembly onto the central shaft inside the processing bowl. Ensure it sits firmly.
3. Place the processing bowl onto the motor base, aligning the tabs and twisting clockwise until it locks into place.
4. Place the lid onto the processing bowl, aligning the tabs and twisting clockwise until it locks securely. The appliance will not operate unless the lid is properly locked.

3.4 Neteja del primer ús

Before first use, wash all parts that will come into contact with food (processing bowl, lid, blades, pusher, discs) in warm, soapy water. Rinse thoroughly and dry completely.

4. Instruccions de funcionament

4.1 Preparació dels ingredients

• Cut large food items into smaller, uniform pieces (approximately 2-3 cm) to ensure even processing.
• Remove any hard pits, bones, or tough skins from fruits and vegetables.

4.2 Processing Food

1. Ensure the food processor is fully assembled and charged.
2. Place the prepared ingredients into the processing bowl. Do not overfill; observe the maximum fill line if indicated.
3. Securely attach the lid by twisting it clockwise until it locks.
4. If using the feeder tube for slicing/grating, place the desired disc onto the shaft before securing the lid. Then, place ingredients into the feeder tube and use the pusher to guide them.
5. Press and hold the control switch to start processing. Release to stop. For pulse action, press and release repeatedly.
6. Processar fins que s'aconsegueixi la consistència desitjada.
7. Once processing is complete, release the control switch. Wait for the blades to completely stop before attempting to remove the lid.
8. Twist the lid counter-clockwise to unlock and remove it. Carefully remove the blade assembly before emptying the bowl.

Nota: For optimal results and to prevent motor strain, avoid continuous operation for extended periods. Use pulse action for tough ingredients.

5. Manteniment i Neteja

Una neteja regular garanteix la longevitat i el funcionament higiènic del vostre robot de cuina.

5.1 Desmuntatge per a la neteja

1. Ensure the appliance is turned off and disconnected from the charger.
2. Remove the lid, then carefully remove the blade assembly or disc.
3. Remove the processing bowl from the motor base.

5.2 Cleaning Components

• Processing Bowl, Lid, Blades, Pusher, Discs: Wash these parts in warm, soapy water. Use a brush for hard-to-reach areas and exercise extreme caution when handling blades. Rinse thoroughly and dry immediately to prevent water spots and rust. These parts may be dishwasher safe (top rack only), but hand washing is recommended for longevity.
• Base del motor: Netegeu l'exterior de la base del motor amb un drap suau iamp cloth. Do not immerse the motor base in water or rinse it under running water. Ensure it is completely dry before storing or recharging.

5.3 Emmagatzematge

Store the food processor in a clean, dry place, out of reach of children. Ensure all parts are dry before reassembling for storage.

6. Solució De Problemes

Si teniu problemes amb el vostre robot de cuina, consulteu els següents problemes i solucions habituals:

7. Especificacions

8. Garantia i Suport

For warranty information, please refer to the documentation provided at the time of purchase or contact your retailer. For technical support or service inquiries, please contact the manufacturer or your local distributor.
