LARMACE Queen Size Bed Frame User Manual

1. Introducció

Thank you for choosing the LARMACE Queen Size Bed Frame. This manual provides detailed instructions for assembly, operation, maintenance, and troubleshooting to ensure safe and optimal use of your new bed frame. Please read this manual thoroughly before assembly and retain it for future reference.

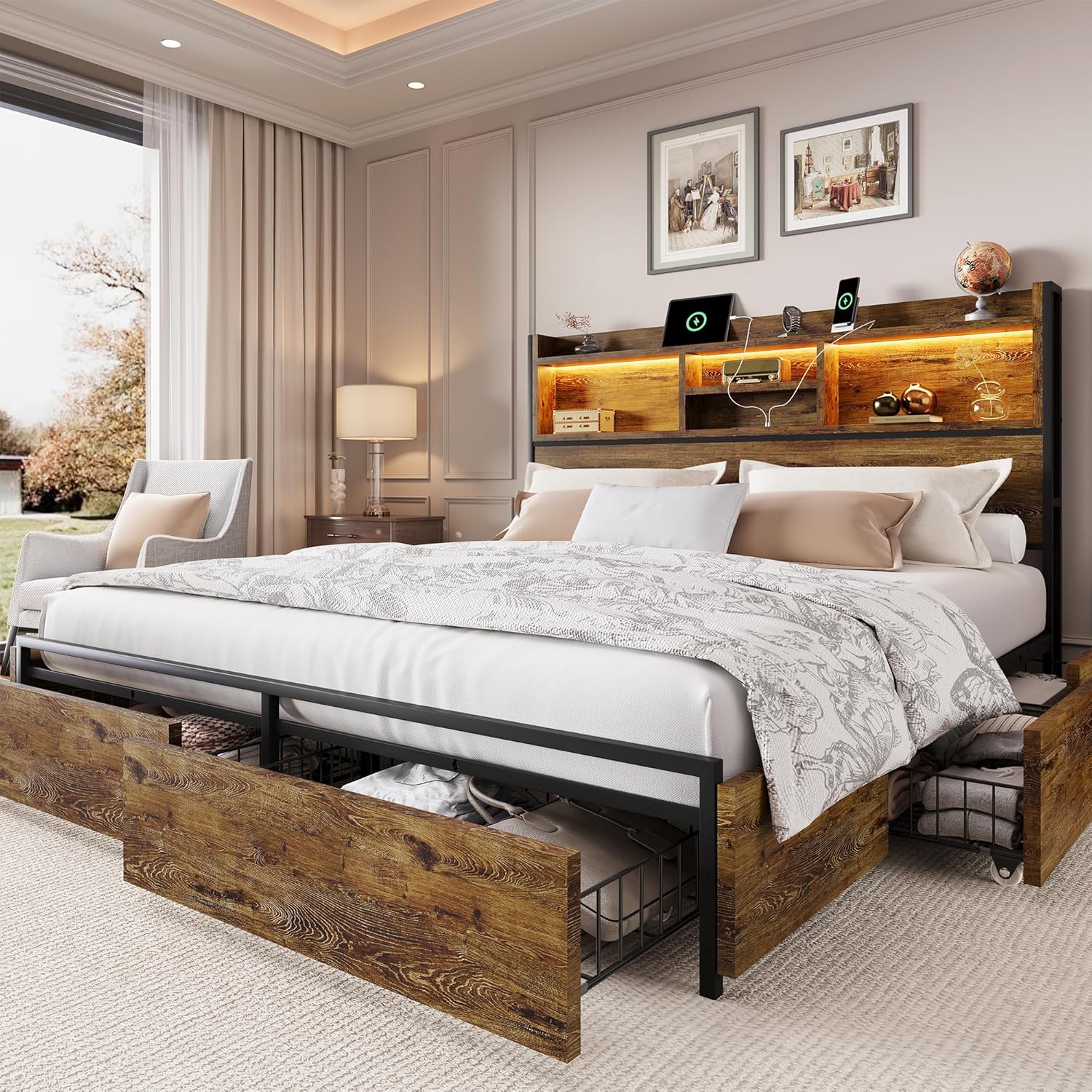

Image 1: LARMACE Queen Size Bed Frame

2. Informació de seguretat

• Do not load more than 1000 pounds onto the bed frame.
• Handle all components with care to avoid potential sharp edges.
• Ensure all screws and bolts are securely tightened during assembly and periodically checked thereafter.
• Mantingueu les peces petites fora de l'abast dels nens durant el muntatge per evitar riscos d'asfíxia.
• Do not stand on the bed frame or use it as a ladder.
• Unplug the charging station and LED lights before cleaning or maintenance.

3. Llista de peces

Abans de començar el muntatge, verifiqueu que totes les peces siguin presents i no estiguin danyades. Consulteu el vídeo de muntatge per a la identificació visual dels components.

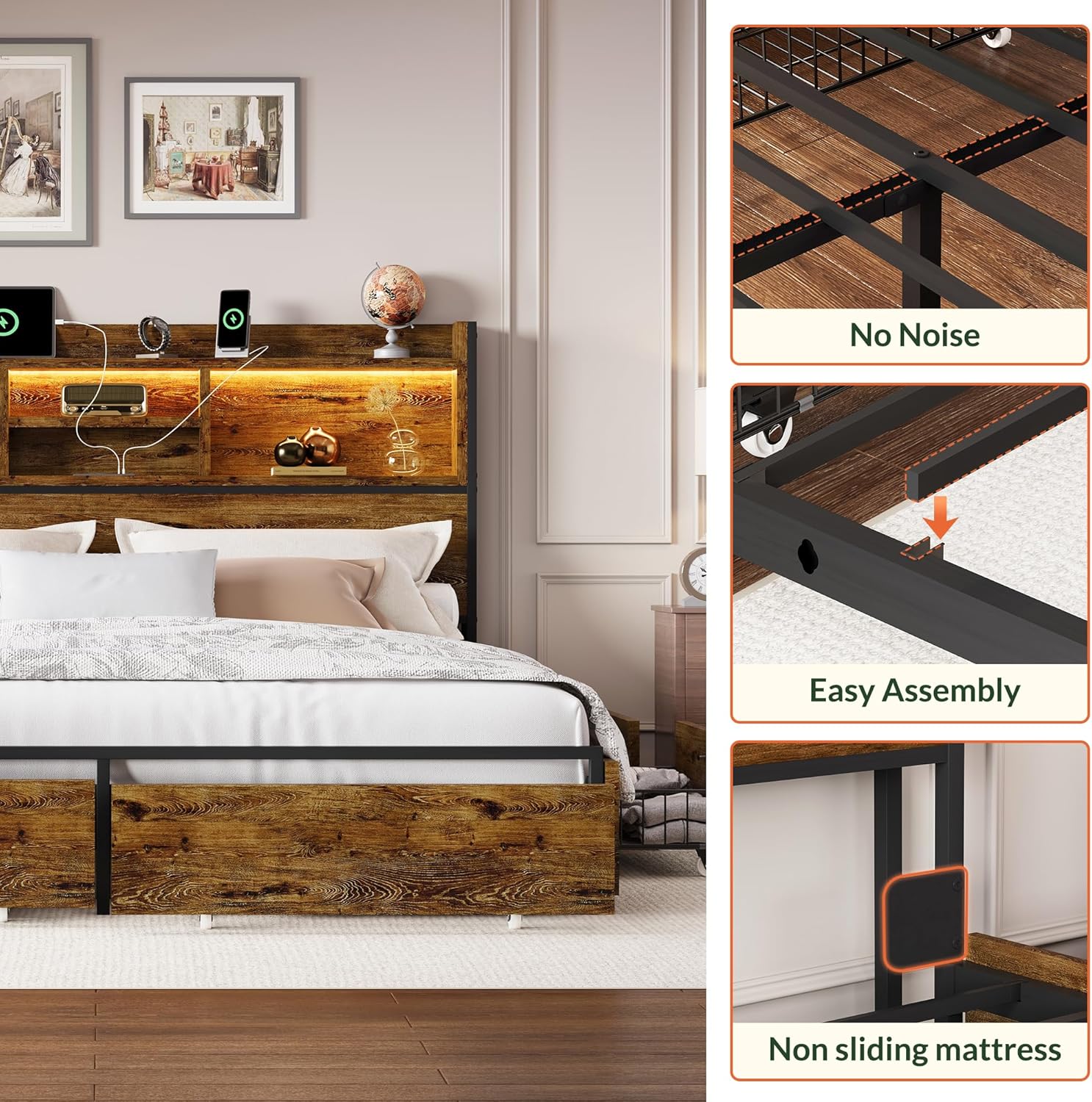

Image 2: Key components of the LARMACE Bed Frame.

• Headboard with integrated shelves, LED lights, and charging station.
• Metal bed frame components (side rails, crossbars, support legs).
• Wooden panels for headboard and drawer fronts.
• Six metal mesh storage drawers with wheels.
• Assembly hardware (screws, bolts, nuts, Allen wrench).

4. Instruccions de muntatge i instal·lació

Assembly is designed to be straightforward. All parts and tools are marked with letters or numbers for easy identification. It is recommended to assemble the bed frame with two people.

4.1. Guia de vídeo de muntatge

For a visual step-by-step guide, please watch the official LARMACE Bed Frame Installation Video:

4.2. Step-by-Step Assembly Overview

1. Headboard Shelf Assembly: Assemble the internal shelves of the headboard using the provided screws.
2. Instal·lació de l'estació de càrrega: Secure the charging station into the designated slot on the headboard.
3. Headboard Panel Attachment: Attach the main wooden panels to the headboard frame.
4. Instal·lació de tira LED: Carefully attach the LED light strip to the underside of the headboard shelves.
5. Main Bed Frame Construction: Assemble the metal side rails and crossbars, ensuring all connections are secure.
6. Headboard to Frame Connection: Attach the assembled headboard to the main bed frame.
7. Instal·lació de lames: Place the metal slats onto the bed frame, ensuring they are evenly spaced and secured.
8. Muntatge del calaix: Assemble the metal mesh drawers and attach the wooden fronts. Ensure the wheels are properly installed.
9. Drawer Placement: Insert the assembled drawers into their designated positions under the bed frame. Utilize the screw clips to secure drawers and prevent unwanted sliding.

Image 3: Six large capacity storage drawers with wheels.

5. Instruccions de funcionament

5.1. Sistema d'il·luminació LED

The integrated RGB LED lighting system can be controlled via a dedicated mobile application or the included remote control. Features include:

• Over 60,000 color options.
• Nivells de brillantor ajustables.
• Multiple lighting modes (e.g., rhythm color, static color).
• Timing function for scheduled on/off.

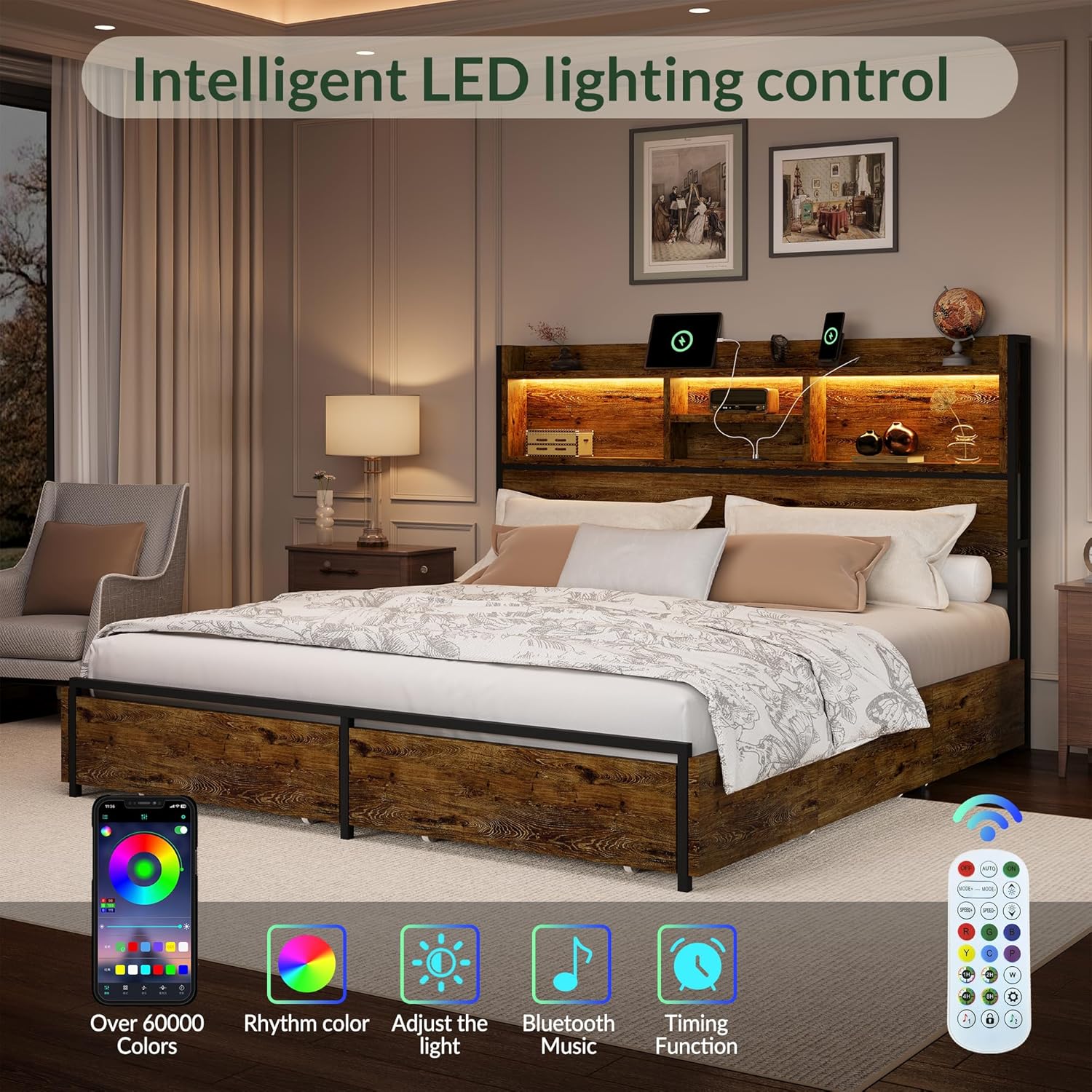

Image 4: Intelligent LED lighting control options.

5.2. Estació de càrrega

The headboard features a built-in charging station for convenient power access:

• 2 x 125V/12A AC Outlets.
• 1 x 5V/2A USB Port.
• 1 x 5V/2A Type-C Port.

To use, simply plug the bed frame's power cord into a wall outlet. Devices can then be connected to the charging station ports.

Image 5: Practical built-in charging station.

5.3. Calaixos d'emmagatzematge

The six sliding storage drawers provide ample space for various items. Each drawer is equipped with wheels for easy access. To prevent unwanted movement, utilize the integrated screw clips to secure the drawers to the bottom of the bed frame.

6. Manteniment

• Neteja: Netegeu les superfícies de fusta amb un drap suau iamp cloth. Avoid harsh chemicals. For metal parts, use a mild cleaner and dry thoroughly.
• Comprovació de maquinari: Periodically inspect all screws, bolts, and connections to ensure they remain tight. Tighten as necessary to maintain stability and prevent squeaking.
• Llums LED: If LED lights malfunction, check the power connection and remote control battery. If issues persist, contact customer support.
• Estació de càrrega: Ensure the charging station is free from dust and debris. Do not attempt to repair internal components.
• Calaixos: Keep drawer wheels clean and free of obstructions for smooth operation.

7. Solució De Problemes

8. Especificacions

• Mida: Reina
• Dimensions del producte: 86.8 cm de llargada x 61.8 cm d'amplada x 51.2 cm d'alçada
• Capacitat de pes: Fins a 1000 lliures
• Material: Fusta, metall
• Color: Brown (Vintage Brown)
• Característiques especials: LED Lighting, Charging Station (2 AC, 1 USB, 1 Type-C), 6 Storage Drawers, No Box Spring Needed, Squeak Resistant, Easy Assembly.
• Mida recomanada del matalàs: 8"-12" thickness

Image 6: Product dimensions and mattress recommendation.

9. Garantia i Suport

For warranty information, product support, or to report missing/damaged parts, please contact LARMACE customer service through your original point of purchase. Please have your order number and product model (B0DW7SQ6DL) ready for faster assistance.

You can also visit the official LARMACE store for more information: LARMACE Store on Amazon.
