1. Producte acabatview
This manual provides instructions for the ASD LED 36-inch Vanity Wall Mount Light Fixture (Model: A-LVF23-36D30CC-B). This linear light bar is designed for bathroom and vanity applications, offering adjustable color temperature (3CCT) and dimmable functionality. It is ETL Listed and Energy Star certified, ensuring safety and energy efficiency.
Figure 1: ASD LED 36-inch Vanity Light Fixture
Característiques principals:
- Brilliant & Efficient: Delivers 3150 lumens from 30 watts, providing bright illumination while saving energy.
- 3 Color Temperatures (3CCT): Select from 3000K (Warm White), 4000K (Cool White), or 5000K (Daylight) to suit your preference.
- Flicker-Free Dimming: Smoothly dims from 100% to 10% with most modern TRIAC dimmers (sold separately).
- Llarga vida útil: Rated for 50,000+ hours of consistent performance.
- Certified & Reliable: ETL Listed for safety and Energy Star for efficiency. Rated for damp ubicacions.
- Habitatge durador: Constructed with rust and impact-resistant materials.
- Acrylic Lens: Provides even light distribution without flickering or dark spots.
2. Informació de seguretat
Please read and understand all instructions before beginning installation. Failure to do so may result in electric shock, fire, or other injuries that could be hazardous or fatal. Keep this manual for future reference.
- ADVERTIMENT: Risc de descàrrega elèctrica. Desconnecteu l'alimentació al fusible o al disjuntor abans d'instal·lar o fer el servei.
- All wiring connections must be in accordance with local and national electrical codes (NEC).
- Consulteu un electricista qualificat si no esteu segur del procés d'instal·lació.
- Assegureu-vos que l'aparell estigui ben connectat a terra.
- No manipuleu l'aparell amb les mans mullades.
- No intenteu alterar l'aparell de cap manera.
- This fixture is rated for damp locations. Do not submerge in water.
3. Què hi ha a la caixa
Verifiqueu que tots els components siguin presents abans de començar la instal·lació:
- Llum (1)
- Placa de muntatge (1)
- Screws (for mounting)
- Wire Nuts (for electrical connections)
4. Especificacions
| Especificació | Valor |
|---|---|
| Número de model | A-LVF23-36D30CC-B |
| Mida | 36 polzades |
| Poder | 30W |
| Brillantor | 3150 lúmens |
| Temperatura de color (CCT) | 3000K / 4000K / 5000K (Seleccionable) |
| Voltage | 120 V |
| Regulable | Yes (TRIAC dimmers compatible) |
| CRI | 80.00 |
| Vida útil | 50,000 hores |
| Material | Acrylic, Metal, Plastic, Stainless Steel |
| Acabar | Negre |
| Dimensions | 4.5 cm de llargada x 3 cm d'amplada x 36 cm d'alçada |
| Pes | 2.1 lliures |
| Certificacions | ETL, Energy Star, cETL |
| Tipus d'instal·lació | Flush Mount, Wall Mount |
Figura 2: Diagrama d'especificacions del producte
5. Instal·lació
Follow these steps for proper installation. Ensure power is disconnected at the circuit breaker before starting.
- Preparació per a la instal·lació: Pull the power supply wires out of the outlet box. Attach the mounting bracket to the outlet box (not included) using the mounting screws.
- Connect Wiring and Select CCT: Connect the wires: black to black, white to white, green to green. Secure the connections with wire nuts. Choose the desired color temperature (2700K, 3000K, 3500K, 4000K, or 5000K) by adjusting the switch position on the backside of the fixture.
- Assegureu el dispositiu: Place the fixture body over the mounting bracket. Insert the fixture screws and tighten to secure the fixture body on the surface.
Figure 3: Mounting Bracket Installation
Figure 4: Wiring and CCT Selection
Figure 5: Fixture Attachment
For a full, detailed installation sheet, please refer to the official guide: Download Full Installation Guide (PDF)
6. Instruccions de funcionament
Selecció de temperatura de color (3CCT)
The fixture allows you to choose between three color temperatures: 3000K (Warm White), 4000K (Cool White), and 5000K (Daylight). This selection is made via a switch located on the backside of the fixture during installation. Once installed, the chosen color temperature will remain active until manually changed by accessing the switch again.

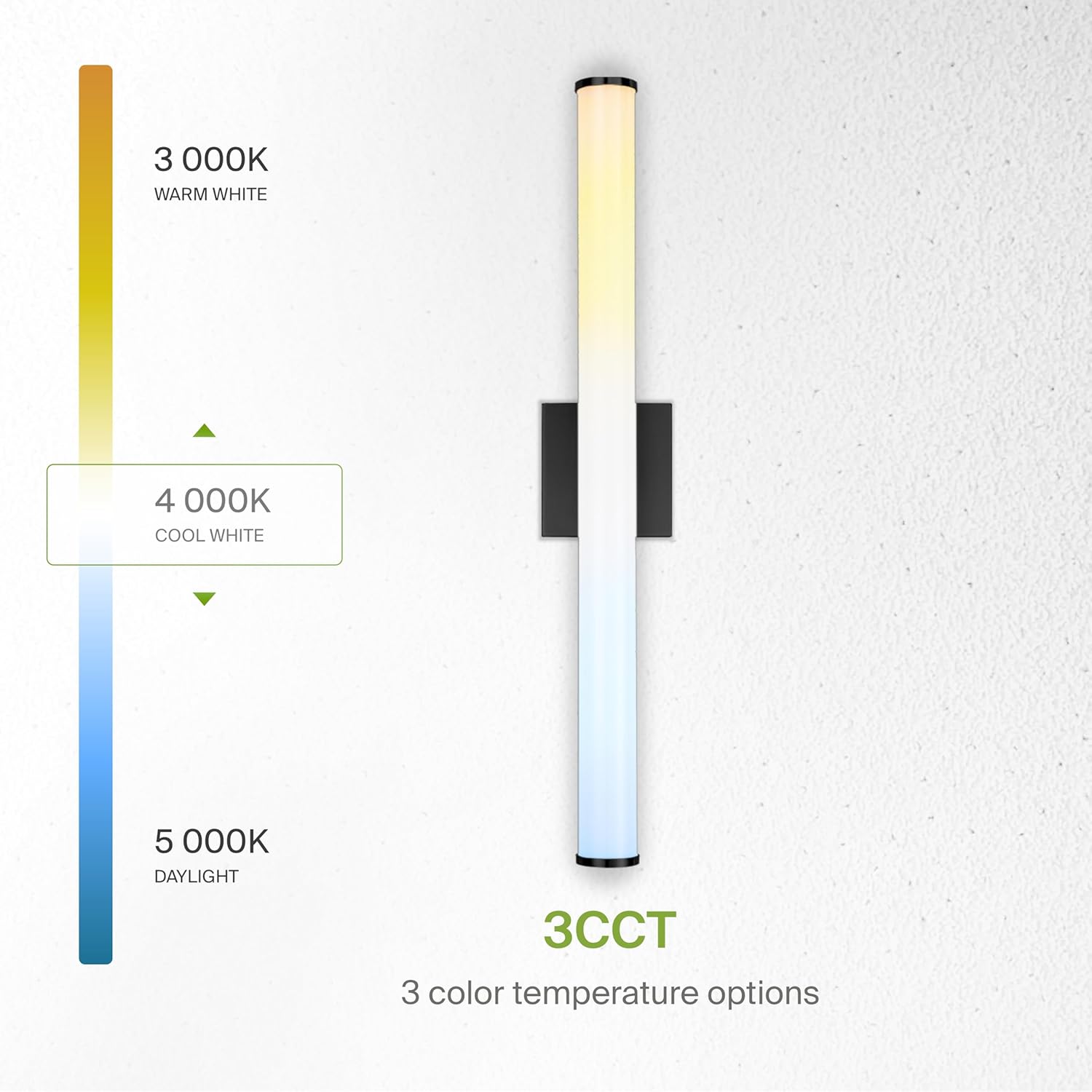

Figura 6: Opcions de temperatura de color
Funcionalitat d'atenuació
This fixture is designed to be dimmable from 100% down to 10% brightness. To utilize the dimming feature, you must connect the fixture to a compatible TRIAC dimmer switch (sold separately). Ensure the dimmer switch is rated for LED lighting to prevent flickering or damage.
Figure 7: Dimmable Light Output
Encès/Apagat
Operate the light fixture using a standard wall switch connected to the electrical circuit. Ensure the switch is compatible with the fixture's electrical requirements.
7. Manteniment
The ASD LED Vanity Light Fixture requires minimal maintenance. Follow these guidelines to ensure longevity and optimal performance:
- Neteja: Abans de netejar, assegureu-vos que l'alimentació de l'aparell estigui apagada al disjuntor. Feu servir un drap suau, sec o lleugerament humit.amp cloth to wipe the exterior surfaces. Do not use abrasive cleaners, solvents, or polishes as they may damage the finish or acrylic lens.
- Substitució de bombetes: This fixture uses integrated LED technology and does not require bulb replacement. The LEDs are designed to last for the entire lifespan of the product.
- Inspecció: Inspeccioneu periòdicament l'aparell per detectar qualsevol signe de danys o connexions soltes. Si trobeu algun problema, desconnecteu l'alimentació i consulteu un electricista qualificat.
8. Solució De Problemes
Si teniu problemes amb la vostra làmpada, consulteu els següents problemes i solucions habituals:
| Problema | Causa possible | Solució |
|---|---|---|
| La llum no s'encén | No power to the fixture; Loose wiring connection; Faulty switch or circuit breaker. | Check power supply at the circuit breaker. Ensure all wire connections are secure. Test the switch or circuit breaker. |
| La llum parpelleja | Interruptor de regulació d'intensitat incompatible; Connexió de cablejat fluixa; Voltage fluctuacions. | Ensure a TRIAC LED compatible dimmer is used. Check and secure all wiring connections. Consult an electrician for voltage qüestions. |
| Temperatura de color incorrecta | L'interruptor CCT s'ha configurat incorrectament durant la instal·lació. | Disconnect power, access the CCT switch on the back of the fixture, and adjust to the desired setting. |
| La llum és massa tènue o massa brillant | Dimmer setting; Incorrect CCT selection. | Adjust the dimmer switch. If not using a dimmer, ensure the CCT is set to a preferred brightness level. |
Si el problema persisteix després d'intentar aquestes solucions, poseu-vos en contacte amb l'atenció al client.
9. Garantia i Suport
This ASD LED Vanity Light Fixture is backed by a Garantia d'5 any sense complicacions. This warranty covers defects in materials and workmanship under normal use. For warranty claims or technical assistance, please contact our friendly and responsive US-based support team.
For more information or to contact support, visit the official ASD Store: ASD Lighting Corporation Store
10. Aplicacions del producte
The versatile design and adjustable lighting features of the ASD LED Vanity Light Fixture make it suitable for various indoor and covered outdoor applications, including:
- Banys
- Dormitoris
- Passadissos
- Cuines
- Over Mirrors
- Il·luminació del gabinet
Bathroom Application
Bedroom Application
Hallway Application
Kitchen Application
