Waterdrop 10UA PRO Under Sink Water Filter System User Manual

1. Acabatview

The Waterdrop 10UA PRO Under Sink Water Filter System is designed to provide clean, filtered water directly from your cold water line. This system, compatible with FUL12 replacement cartridges for UL12A/UL12B models, effectively reduces various contaminants while improving water taste and odor. It is certified by IAPMO against NSF/ANSI 42 & 372 standards, ensuring quality and safety.

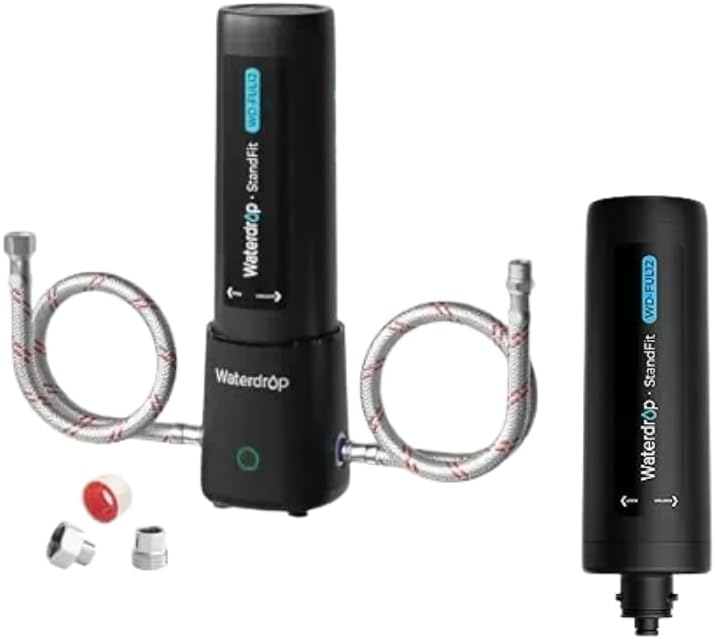

Image 1.1: The Waterdrop 10UA PRO Under Sink Water Filter System with its FUL12 replacement cartridge. The main unit connects to the cold water line, and the cartridge is easily replaceable.

1.1 Advanced Filtration Capabilities

The filter element is engineered to reduce a wide range of impurities, including PFAS, PFOA/PFOS, rust, lead, chlorine, heavy metals, chemical impurities, and sand. It also enhances the taste and odor of your drinking water. Please note that this system does not reduce Total Dissolved Solids (TDS) and is intended for cold water connections only.

Image 1.2: Visual representation of the advanced purification process, highlighting the reduction of various contaminants such as PFAS, PFOA/PFOS, VOC, rust, heavy metals, and chemical impurities. The image also notes NSF/ANSI 372 and 42 certifications.

1.2 Certificacions

The filter element is IAPMO R&T certified against NSF/ANSI Standard 42 for the reduction of specified claims and against NSF/ANSI 372 for lead-free materials (≤0.25% lead). For detailed certification information, refer to the IAPMO website and search for 'WD-UL12A'.

Image 1.3: Certificates from IAPMO R&T, confirming the product's compliance with NSF/ANSI 42 and 372 standards for material safety and contaminant reduction.

2. Informació de seguretat

• Use only with cold water. Do not connect to a hot water supply.
• No l'utilitzeu amb aigua microbiològicament insegura o de qualitat desconeguda sense una desinfecció adequada abans o després del sistema.
• Assegureu-vos que totes les connexions estiguin ben fixades per evitar fuites.
• The product is made from BPA-free and lead-free materials, ensuring safety for all users.
• Keep the filter system away from direct sunlight and heat sources.
• No estrenyeu massa les connexions, ja que això pot causar danys.

Image 2.1: A couple enjoying filtered water, emphasizing that the product is made from BPA-free and lead-free materials for family water safety.

3. Components del producte

The Waterdrop 10UA PRO system typically includes the following components:

• Waterdrop 10UA PRO Filter Unit
• Waterdrop FUL12 Replacement Filter Cartridge (pre-installed or separate)
• 3/8" Water Line Hoses
• 3/8" to 1/2" Converter (for faucet connection)
• Suction Cup Base (for stability)
• Manual d'usuari (aquest document)

Image 3.1: The Waterdrop filter system, illustrating its compatibility with UL12A/UL12B under sink filters. It highlights features like NSF/ANSI certification, no leakage, easy installation, and long lifespan.

4. Configuració i instal·lació

The Waterdrop 10UA PRO system is designed for drill-free, under-sink installation, saving time and effort. It connects directly to your cold water line.

4.1 Llista de comprovació prèvia a la instal·lació

• Ensure you have adequate space under your sink for the filter unit.
• Locate your cold water supply line and shut-off valve.
• Gather any necessary tools (e.g., adjustable wrench for tightening connections).

4.2 Passos d'instal·lació

1. Shut off Water Supply: Turn off the cold water supply to your sink at the angle stop valve. Open the faucet to relieve pressure and drain any remaining water.
2. Connect to Filter: Connect the provided water lines to the inlet and outlet ports of the Waterdrop 10UA PRO filter unit. Ensure the flow direction arrow on the filter aligns with the water flow.
3. Connectar el subministrament d'aigua: Disconnect your existing cold water line from the faucet. Connect one end of the filter's inlet hose to the cold water angle stop valve.
4. Connecta't a l'aixeta: Connect the other end of the filter's outlet hose to your faucet's cold water inlet. Use the 3/8" to 1/2" converter if your faucet connection requires it.
5. Assegurar la unitat: Place the filter unit on its suction cup base in a stable position under the sink. The suction cup base helps maintain stability.
6. Comproveu si hi ha fuites: Slowly turn on the cold water supply. Check all connections for leaks. If leaks occur, tighten connections as needed.
7. Netegeu el sistema: Let the water run from the filtered faucet for 5-10 minutes to flush out any carbon fines and air from the system.

Image 4.1: A visual guide demonstrating the easy installation process. Step 1 shows connecting to the filter, Step 2 connecting to the water supply, and Step 3 connecting to the faucet.

5. Funcionament

Once installed, the Waterdrop 10UA PRO operates automatically whenever you turn on your cold water faucet. The system provides a continuous supply of filtered water.

5.1 Ús inicial

After installation and flushing, your filter system is ready for use. It is normal for the water to appear cloudy or contain small air bubbles initially; this will clear up after a few minutes of use.

5.2 Flow Rate

The upgraded 3/8" outlet ensures a fast flow rate of approximately 5.03 liters per minute, providing efficient water delivery without significant pressure drop.

6. Manteniment

Regular maintenance, primarily filter replacement, is crucial for optimal performance and water quality.

6.1 Filter Life Reminder

The Waterdrop 10UA PRO system features a built-in indicator to remind you when it's time to replace the filter cartridge. This smart reminder ensures you always have clean water.

• Llum verda intermitent: Time to replace the battery for the indicator.
• Red light flashing and beep: Time to replace the filter cartridge.
• If no light or a steady green light is displayed, the filter and battery are functioning correctly. Tap the unit to check.

Image 6.1: Illustration of the filter life reminder system, showing a green light for battery replacement and a red light with a beep for filter replacement.

6.2 Substitució del filtre

The FUL12 filter cartridge has a superior lifespan, supporting up to 11,000 gallons or approximately 12 months, depending on water quality and usage. Replace the filter when the indicator signals or when you notice a significant drop in flow rate or water quality.

1. Shut off Water Supply: Tanca el subministrament d'aigua freda de la pica.
2. Elimina el filtre antic: Twist the old filter cartridge counter-clockwise to unlock it from the filter head. Pull it down to remove.
3. Instal·la un filtre nou: Insert the new FUL12 replacement cartridge into the filter head. Align the arrows and twist clockwise until it locks securely into place.
4. Restaurar el subministrament d'aigua: Slowly turn on the cold water supply.
5. Flush New Filter: Run water from the filtered faucet for 5-10 minutes to flush the new cartridge.

Image 6.2: A visual comparison illustrating the larger filtration surface of the Waterdrop filter (20X filtration efficiency) compared to a single-layer thin paper filter, designed to extend the filter's lifespan and improve dirt absorption.

7. Solució De Problemes

8. Especificacions

Image 8.1: A detailed diagram illustrating the high-performance filtration process, showing how the polyester membrane and activated carbon block work together to reduce chlorine, taste & odor, heavy metals, sand, VOC, chloroform, turbidity, rust, and chlorobenzene.

9. Garantia i assistència

9.1 Informació de la garantia

For specific warranty details regarding your Waterdrop 10UA PRO Under Sink Water Filter System, please refer to the warranty card included with your product or visit the official Waterdrop weblloc. Els termes de la garantia solen cobrir els defectes de fabricació durant un període especificat a partir de la data de compra.

9.2 Atenció al client

If you have any questions, require technical assistance, or need to order replacement parts, please contact Waterdrop customer support. You can find contact information on the official Waterdrop weblloc web o a través del venedor on vau comprar el producte.
