Manual d'usuari de la bicicleta elèctrica isinwheel M10

1. Introducció

This manual provides essential instructions for the safe assembly, operation, and maintenance of your isinwheel M10 Electric Bike. Please read this manual thoroughly before your first ride to ensure proper usage and to maximize the lifespan of your e-bike. Retain this manual for future reference.

Advertència de seguretat: Always wear a helmet and appropriate safety gear when riding. Familiarize yourself with local traffic laws and regulations. Regular maintenance is crucial for safe operation.

2. Contingut del paquet

Upon unpacking, verify that all components listed below are present and undamaged. If any items are missing or damaged, please contact customer support.

• isinwheel M10 Electric Bike Frame (partially assembled)
• Roda davantera
• Removable Lithium-Ion Battery (36V 10.4AH)
• Carregador ràpid de 42 V i 2 A
• Pedals (esquerra i dreta)
• Seat with Seatpost
• Far davanter
• Reflector posterior
• Toolkit (including Allen wrenches and spanner)
• Bomba de pneumàtics
• Manual d'usuari

Image: All components included in the isinwheel M10 Electric Bike package.

3. Muntatge i muntatge

The isinwheel M10 Electric Bike comes 85% pre-assembled. Follow these steps to complete the assembly:

1. Unboxing: Carefully remove all components from the packaging. Keep the packaging materials until assembly is complete and you are satisfied with the product.
2. Instal·lació del manillar: Attach the handlebar to the stem using the provided Allen wrenches. Ensure the handlebar is centered and tightened securely.


Image: Installing the handlebar.

3. Instal·lació de la roda davantera: Secure the front wheel to the front fork. Ensure the brake rotor aligns correctly with the caliper and the quick-release skewer is properly tightened.


Image: Attaching the front wheel.

4. Instal·lació de fars: Mount the front headlight onto the designated bracket on the front fork or handlebar, and connect its cable.
5. Instal·lació de pedals: Identify the left (L) and right (R) pedals. The left pedal tightens counter-clockwise, and the right pedal tightens clockwise. Use the spanner to secure them firmly.

Image: Installing the pedals.
6. Instal·lació del seient: Insert the seatpost into the frame's seat tube. Adjust the height for comfortable riding and secure it with the quick-release lever.


Image: Adjusting and securing the seat.

7. Rear Reflector Installation: Attach the rear reflector to the seatpost or rear rack (if applicable) for increased visibility.
8. Instal·lació de la bateria: Slide the battery into its designated slot on the frame and lock it with the key.


Image: Installing the removable battery.

9. Gestió de cables: Ensure all cables are neatly routed and secured, away from moving parts.

4. Instruccions de funcionament

4.1 Encès/Apagat

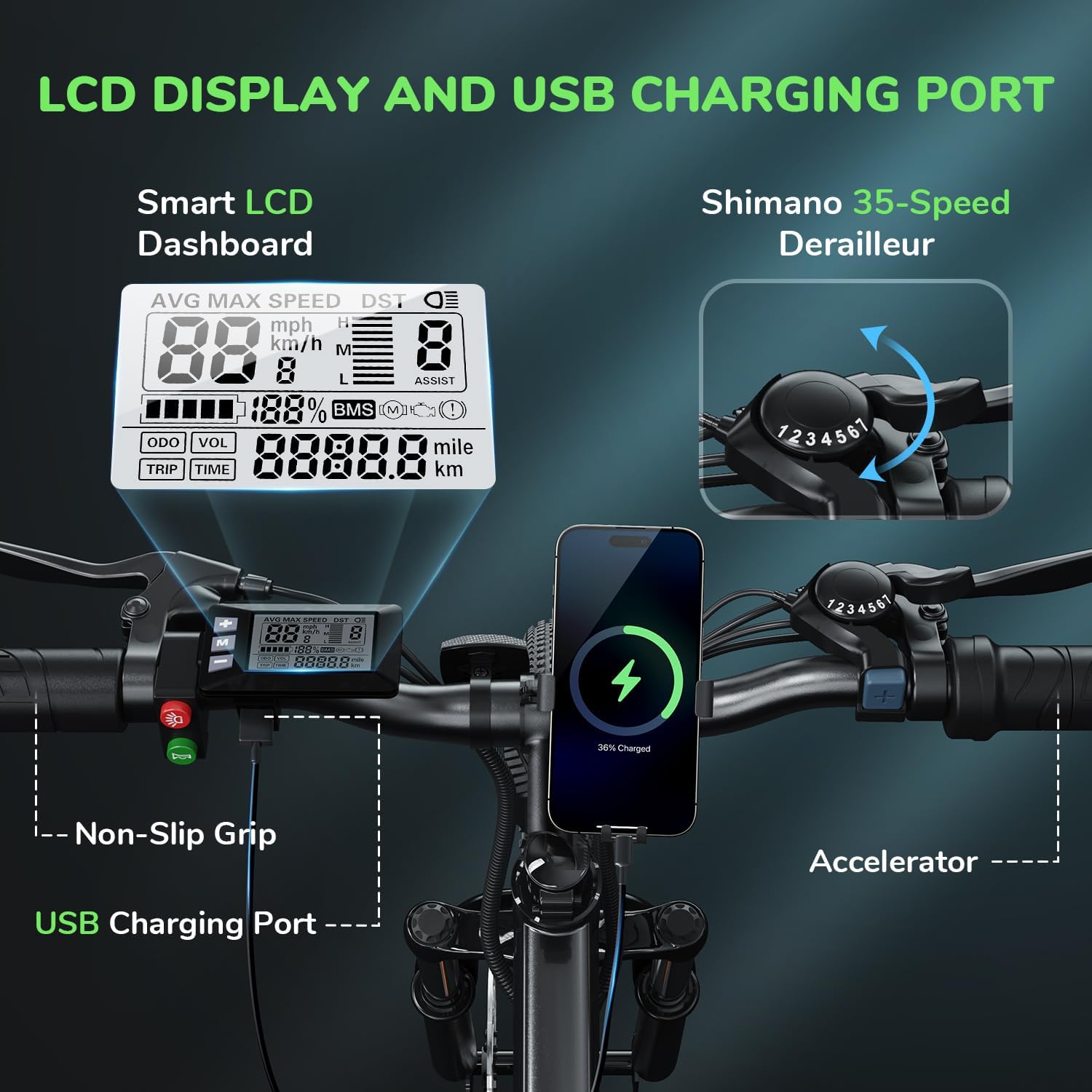

• To power on the bike, press and hold the power button on the LCD display for a few seconds until the screen illuminates.
• Per apagar l'aparell, premeu i manteniu premut el botó d'engegada de nou fins que la pantalla s'apagui.

4.2 Modes de conducció

The M10 Electric Bike offers multiple riding modes:

• Mode d'assistència al pedaleig (PAS): Provides motor assistance as you pedal. Adjust the assist level (1-5) using the '+' and '-' buttons on the control panel. Higher levels provide more assistance.
• Mode totalment elèctric (accelerador): Engage the throttle for motor power without pedaling. This mode is typically used for quick acceleration or when you need a break from pedaling.
• Mode manual: Ride the bike like a traditional bicycle without any motor assistance.

Sistema de canvis Shimano 4.3 de 7 velocitats

The bike is equipped with a Shimano 7-speed transmission system. Use the gear shifter on the handlebar to change gears according to terrain and desired speed. Lower gears are for uphill climbing, and higher gears are for flat terrain or downhill riding.

4.4 Funcions de la pantalla LCD

The smart LCD display provides real-time riding data:

• Velocitat: Current, average, and maximum speed.
• Temps de conducció: Duration of your ride.
• Kilometratge: Distància recorreguda i comptaquilòmetres total.
• Nivell de bateria: Càrrega restant de la bateria.
• Nivell d'assistència: Current pedal assist level (1-5).

5. Gestió de la bateria

5.1 Extracció i instal·lació de la bateria

The 36V 10.4AH Lithium-Ion battery is removable for convenient charging or storage.

• Eliminació: Unlock the battery with the provided key, then slide it out from the frame.
• Instal·lació: Align the battery with the frame slot and slide it in until it clicks into place. Lock it with the key to secure.

5.2 Instruccions de càrrega

Use only the provided 42V 2A Fast Charger.

1. Ensure the bike is powered off.
2. Localitza el port de càrrega a la bateria.
3. Connecteu el carregador al port de càrrega.
4. Connecteu el carregador a una presa de corrent estàndard.
5. The charger indicator light will show red during charging and turn green when fully charged.
6. La càrrega completa sol trigar entre 3 i 4 hores.
7. Desconnecteu el carregador un cop finalitzada la càrrega.

6. Manteniment

Un manteniment regular garanteix la longevitat i el funcionament segur de la teva bicicleta elèctrica.

• Neteja: Neteja la bicicleta amb anunciamp drap. Eviteu rentar directament els components elèctrics a alta pressió.
• Pressió dels pneumàtics: Check tire pressure before each ride. Maintain recommended pressure (usually indicated on the tire sidewall) using the included pump.

Air Inflation Instructions Video

Video: Demonstrates how to properly inflate the tires of the isinwheel M10 Electric Bike using the provided pump.
• Frens: Regularly inspect brake pads and rotors for wear. Ensure brake levers engage smoothly and provide adequate stopping power. Adjust or replace as needed.
• Cadena: Keep the chain clean and lubricated to prevent rust and ensure smooth gear changes.
• Elements de fixació: Periodically check all bolts and nuts for tightness, especially on the handlebars, seatpost, and wheels.
• Cura de la bateria: Guardeu la bateria en un lloc fresc i sec. Si la guardeu durant períodes prolongats, carregueu-la al 50-70% cada 2-3 mesos.

7. Solució De Problemes

If you encounter issues with your isinwheel M10 Electric Bike, refer to the following common problems and solutions:

If you cannot resolve an issue using the troubleshooting guide, please contact isinwheel customer support for assistance.

8. Especificacions

Key technical specifications for the isinwheel M10 Electric Bike:

Image: isinwheel M10 Electric Bike dimensions and rider height guide.

9. Garantia i Suport

The isinwheel M10 Electric Bike comes with a 12-month warranty from the date of purchase. This warranty covers manufacturing defects in materials and workmanship. It does not cover damage caused by misuse, accidents, unauthorized modifications, or normal wear and tear.

For warranty claims, technical support, or any questions regarding your e-bike, please contact isinwheel customer service. Provide your purchase details and a description of the issue for prompt assistance.

Informació de contacte: Please refer to your purchase documentation or the official isinwheel weblloc web per obtenir les dades de contacte d'atenció al client més actualitzades.
