COSWHEEL MIRAI S Electric Moped Instruction Manual

1. Introducció

Gràcies per la compraasing the COSWHEEL MIRAI S Electric Moped. This manual provides essential information for the safe and efficient operation, maintenance, and care of your new electric moped. Please read this manual thoroughly before using the product and retain it for future reference. Proper understanding and adherence to these instructions will ensure a safe and enjoyable riding experience.

Image 1.1: The COSWHEEL MIRAI S Electric Moped. This image displays the full view of the electric moped, highlighting its robust frame, fat tires, and integrated lighting system.

2. Informació de seguretat

Operating an electric moped requires attention to safety. Always wear a helmet and appropriate protective gear. Familiarize yourself with local traffic laws and regulations regarding electric mopeds and 50cc class vehicles. Ensure the moped is in good working condition before each ride.

• Always wear a certified helmet and protective clothing.
• Perform a pre-ride inspection: check brakes, tires, lights, and battery level.
• Do not operate the moped under the influence of alcohol or drugs.
• Maintain a safe speed and distance from other vehicles.
• Be aware of your surroundings and road conditions.
• Avoid riding in adverse weather conditions if possible.

3. Producte acabatview

The COSWHEEL MIRAI S is a 50cc class electric moped designed for urban and light off-road use. It features a powerful motor, hydraulic disc brakes, and a removable battery for convenient charging.

Característiques principals:

• Sortida del motor: 500W (50cc class equivalent)
• Assistència de pedals: Sí
• Sistema de frenada: Frens de disc hidràulics davanters i posteriors
• Mida del pneumàtic: 20" x 4" fat tires
• Pes del vehicle: Aproximadament 38 kg
• Velocitat màxima: Approximately 45 km/h
• Material del marc: Aliatge d'alumini
• Tipus de suspensió: Suspensió total
• Port USB: Integrated USB Type-A port for device charging

Image 3.1: A rider standing next to the COSWHEEL MIRAI S. This image illustrates the moped's size and design in a real-world setting, with a person for scale.

4. Configuració

4.1 Muntatge inicial

Your COSWHEEL MIRAI S may require minor assembly upon arrival. This typically includes attaching the handlebars, pedals, and front wheel. Refer to the included assembly guide for detailed, step-by-step instructions. Ensure all bolts and fasteners are securely tightened before first use.

4.2 Instal·lació de la bateria i càrrega inicial

The moped is equipped with a removable battery. Insert the battery securely into its compartment. Before your first ride, fully charge the battery. Connect the charger to the moped's charging port and then to a power outlet. The charging indicator on the charger will show the charging status. A full charge for the standard 10Ah battery takes approximately 3 hours.

Image 4.1: Battery and charging specifications. This graphic details the standard 10Ah battery offering 30km range and 3-hour charge time, and an optional 20Ah battery providing 60km range and 6-hour charge time. It also shows the removable battery design.

5. Instruccions de funcionament

5.1 Encès/Apagat

To power on the moped, press and hold the power button on the display unit. The display will illuminate, indicating the system is active. To power off, press and hold the power button again until the display turns off.

5.2 Modes de conducció

The COSWHEEL MIRAI S offers multiple riding modes, including pure electric (throttle only) and pedal-assist. Use the controls on the handlebar to switch between modes and adjust the level of pedal assistance. The 500W motor provides strong acceleration, making uphill climbs easier.

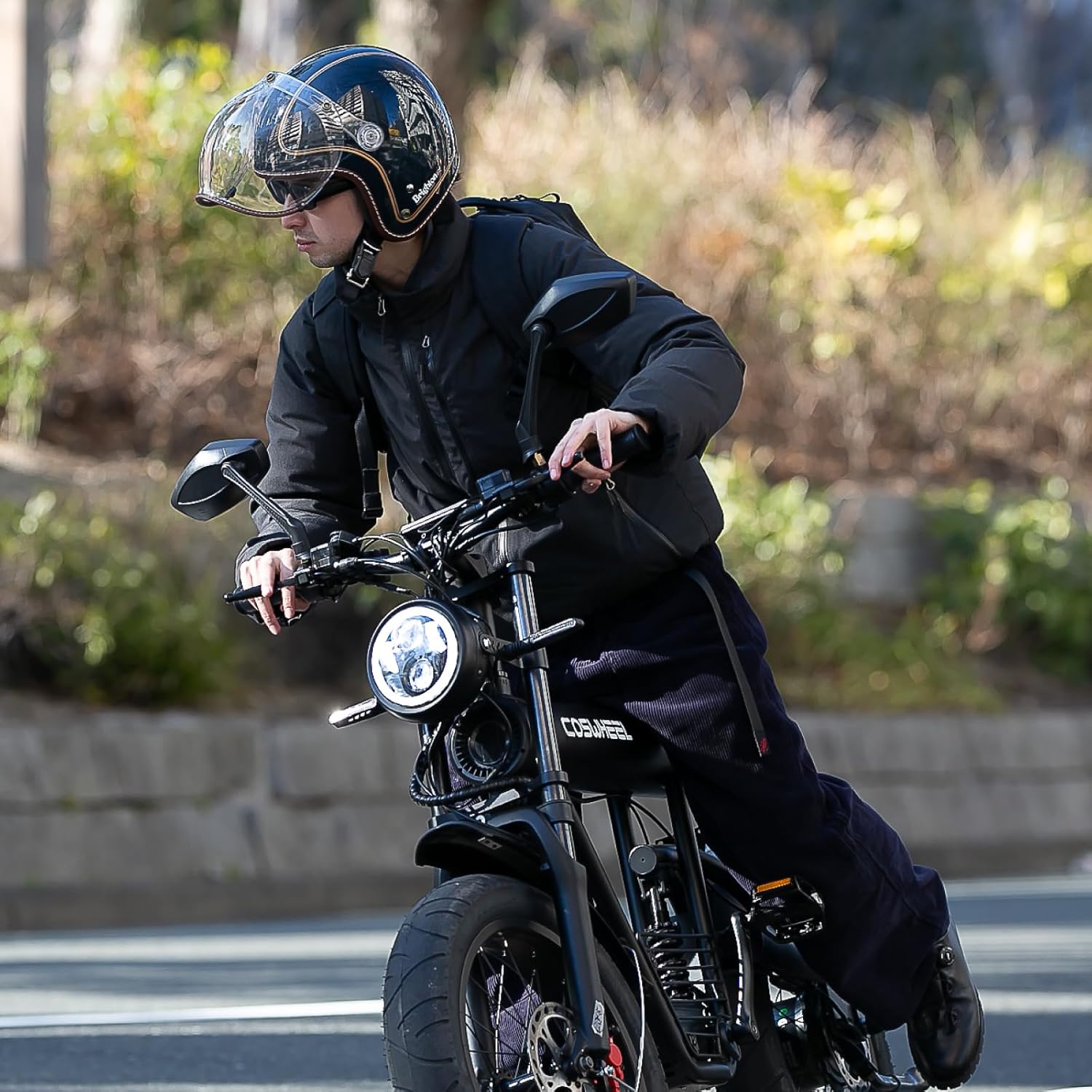

Image 5.1: A rider actively operating the COSWHEEL MIRAI S. This image shows the rider's posture and interaction with the moped's controls during use.

5.3 Frenades

The moped is equipped with front and rear hydraulic disc brakes for reliable stopping power. Apply both brakes smoothly and evenly to slow down or stop. Avoid sudden, harsh braking, especially at high speeds or on slippery surfaces.

Imatge 5.2: Primer pla view of the hydraulic disc brake system on the COSWHEEL MIRAI S. This image highlights the brake caliper and rotor, emphasizing the moped's reliable stopping capability.

5.4 port de càrrega USB

The COSWHEEL MIRAI S includes a USB Type-A port, allowing you to charge your mobile devices or power accessories while riding. This feature is useful for navigation apps or emergency charging.

Image 5.3: A smartphone connected to the USB charging port on the COSWHEEL MIRAI S. This image demonstrates the convenience of charging mobile devices directly from the moped.

6. Informació de la bateria

The COSWHEEL MIRAI S uses a 48V removable battery. The standard battery is 10Ah, providing a range of approximately 30km and requiring about 3 hours for a full charge. An optional 20Ah battery is available, extending the range to approximately 60km with a charging time of about 6 hours.

6.1 Pautes de càrrega

• Always use the original charger provided with your moped.
• Carregueu la bateria en una zona ben ventilada, allunyada de materials inflamables.
• No deixeu la bateria carregant-se sense supervisió durant períodes prolongats.
• Eviteu esgotar completament la bateria abans de tornar-la a carregar per allargar-ne la vida útil.
• The battery can be charged while installed on the moped or removed.

7. Manteniment

Regular maintenance is crucial for the longevity and safe operation of your COSWHEEL MIRAI S.

7.1 Comprovacions rutinàries

• Pneumàtics: Check tire pressure regularly. The 20" x 4" fat tires provide excellent grip and stability, but proper inflation is essential.
• Frens: Inspect brake pads and rotors for wear. Ensure brake levers operate smoothly and provide adequate stopping power.
• Cadena: Keep the chain clean and lubricated to ensure smooth pedaling and power transfer.
• Llums: Verify that the headlight, taillight, and turn signals are functioning correctly.
• Elements de fixació: Periodically check all bolts and nuts for tightness.

Image 7.1: Close-up of the 20x4 inch fat tire on the COSWHEEL MIRAI S. This image emphasizes the tire's robust tread pattern, which contributes to stability and grip.

7.2 Neteja

Clean your moped with a damp cloth and mild detergent. Avoid using high-pressure washers directly on electrical components. Dry thoroughly after cleaning.

8. Solució De Problemes

This section addresses common issues you might encounter with your COSWHEEL MIRAI S.

If you encounter issues not listed here or require further assistance, please contact COSWHEEL customer support.

9. Especificacions

Detailed technical specifications for the COSWHEEL MIRAI S Electric Moped.

Imatge 9.1: posterior view of the COSWHEEL MIRAI S, showing the rear wheel, motor, and a display indicating a maximum speed of approximately 45 km/h. This image highlights the moped's power and speed capabilities.

10. Garantia i Suport

For warranty information, please refer to the warranty card included with your product or visit the official COSWHEEL website. If you require technical support, spare parts, or have any questions regarding your COSWHEEL MIRAI S, please contact COSWHEEL customer service through their official channels. Keep your purchase receipt as proof of purchase for warranty claims.
