Manual d'usuari de l'escalfador de pati exterior de propà Pamapic de 41,000 BTU

1. Producte acabatview

The Pamapic 41,000 BTU Propane Outdoor Patio Heater is designed to provide efficient outdoor heating. It features a stainless steel burner and operates on liquid propane, producing a clean, smokeless flame. Heat reflectors distribute warmth effectively. This unit is CSA certified for safety and includes a protective cover.

Image 1.1: Pamapic 41,000 BTU Propane Outdoor Patio Heater with its protective cover.

Image 1.2: The patio heater displaying its 41,000 BTU output and CSA certification.

2. Informació de seguretat

Important: Read and understand all safety warnings and instructions before assembling, operating, or servicing this heater. Failure to follow these instructions may result in fire, explosion, property damage, personal injury, or death.

• This heater is for només per a ús exterior. Do not operate indoors or in enclosed spaces.
• Mantenir una distància adequada respecte a materials combustibles.
• Assegureu-vos que l'escalfador estigui col·locat en una superfície estable i plana.
• Connect the heater only to a 20 lbs propane tank (not included).
• Always check for gas leaks using a soap and water solution before operation.
• The heater is equipped with an automatic shut-off mechanism if it tips over.
• Flame-out protection is integrated to ensure safe operation.
• This product is CSA certified, indicating compliance with North American safety standards.
• Transportation of this item is subject to hazardous materials regulations.

3. Instruccions de muntatge

Assembly of the Pamapic Patio Heater is designed to be straightforward. Refer to the included manual for detailed diagrams and step-by-step instructions. Ensure all components are present before beginning assembly.

• Carefully unpack all parts and verify against the parts list in your manual.
• Follow the diagrams precisely for correct component placement.
• Secure all fasteners tightly, but do not overtighten.
• Attach the four universal wheels to the base, ensuring the two lockable wheels are positioned for easy access.

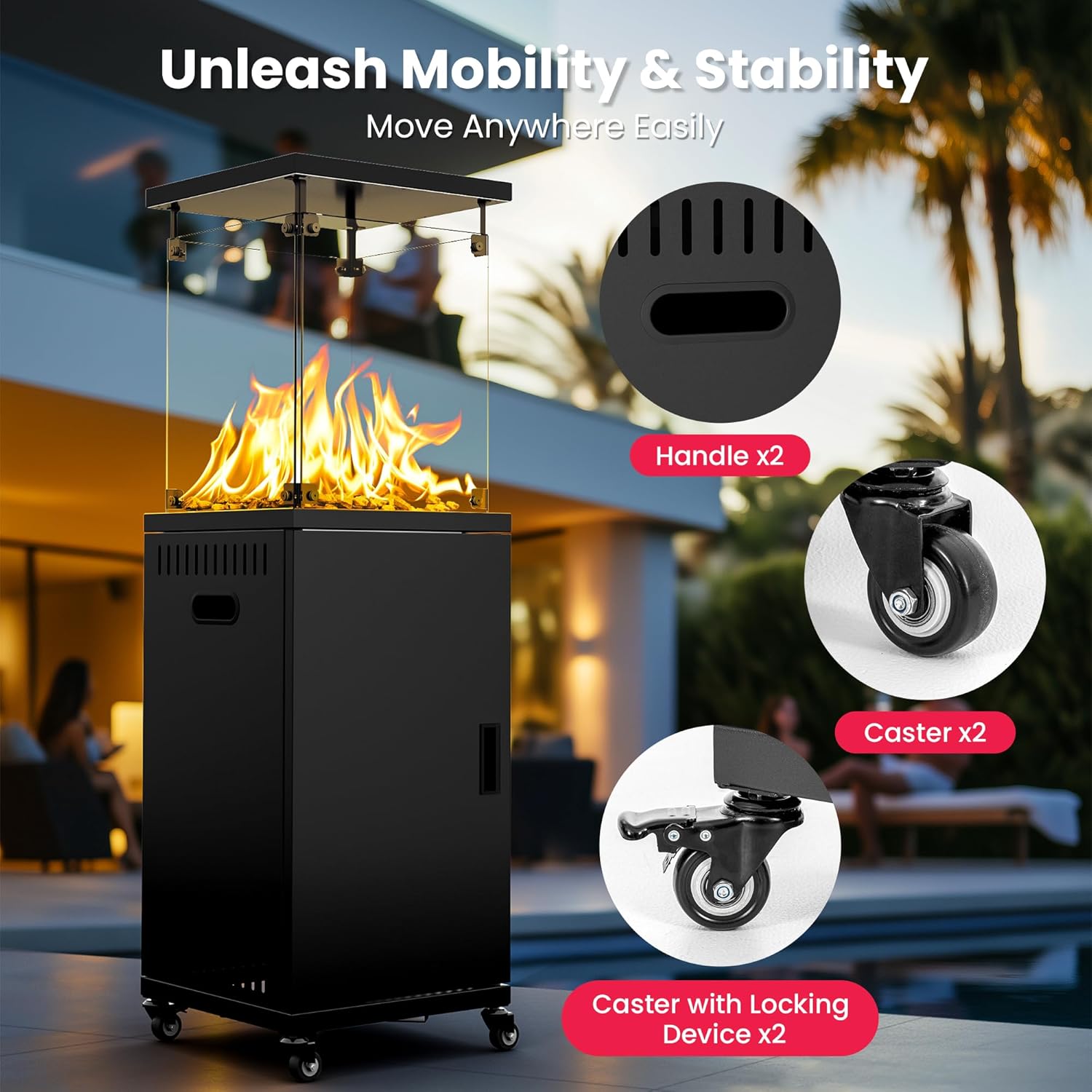

Image 3.1: Components for mobility and stability, including handles and lockable casters.

Image 3.2: Key material components: heat reflector, tempered glass panels, and the stainless steel burner.

4. Configuració

Before operating the heater, ensure it is correctly set up in a well-ventilated outdoor area.

1. Connecteu el dipòsit de propà: Attach the heater to a standard 20 lbs propane gas tank (not included). Ensure the connection is secure and free of leaks.
2. Posicionament: Place the heater on a firm, level surface. Use the lockable wheels to secure its position.

Image 4.1: Product dimensions and illustration of the required 20 lb propane tank.

5. Instruccions de funcionament

The Pamapic Patio Heater features a safety pulse ignition system for easy and reliable startup.

1. Attach Propane Tank: Ensure the heater is securely connected to a 20 lbs propane tank (not included).
2. Turn Gas Control Knob: Slowly turn the gas control knob to the 'IGNITE' position.
3. Press Ignition Button: Press and hold the ignition button until the flame ignites. You may hear a click. Continue to hold for a few seconds after ignition to ensure the flame is established.
4. Adjust Flame Size: Once ignited, release the ignition button and adjust the gas control knob to your desired flame size and heat output (Low to High).
5. Apagar: To turn off the heater, turn the gas control knob to the 'OFF' position. Close the valve on the propane supply cylinder. Allow the heater to cool completely before moving or covering. A 5-minute complete shutoff period is required before the appliance can be re-lit.

Image 5.1: Step-by-step guide for the safety pulse ignition system.

6. Manteniment

Regular maintenance ensures the longevity and efficient operation of your patio heater.

• Neteja: The heater is designed for easy cleaning. Wipe exterior surfaces with a damp cloth. Ensure the burner area is free from debris.
• Emmagatzematge: When not in use, especially during off-season or inclement weather, use the provided dust cover to protect the heater from elements. The cover features a zipper for easy application and removal.
• Inspecció: Periodically inspect the gas hose and connections for any signs of wear, damage, or leaks.

7. Solució De Problemes

If you encounter issues with your Pamapic Patio Heater, refer to the following common troubleshooting steps:

• L'escalfador no s'encén:
  • Assegureu-vos que la vàlvula de la bombona de propà estigui completament oberta.
  • Check that the gas control knob is in the 'IGNITE' position and the ignition button is pressed correctly.
  • Verify the propane tank has sufficient fuel.
  • Inspect the igniter electrode for damage or obstruction.
• Low flame or inconsistent heat:
  • Comproveu el nivell del dipòsit de propà.
  • Ensure gas connections are tight and there are no leaks.
  • Clean the burner and surrounding area of any debris.
• Heater shuts off unexpectedly:
  • Verify the heater is on a stable, level surface to prevent tip-over sensor activation.
  • Check for strong winds that might extinguish the flame, activating the flame-out protection.
  • Assegureu-vos que hi hagi una ventilació adequada al voltant de l'escalfador.

For persistent issues not resolved by these steps, contact customer support.

8. Especificacions

9. Atenció al client

For any questions, assistance, or to report issues with your Pamapic Patio Heater, please contact customer support through the retailer where the product was purchased. Refer to your purchase documentation for specific contact details.
