Euhomy WC003-X3BS-USZX Bottom Loading Water Dispenser User Manual

1. Introducció

Thank you for choosing the Euhomy WC003-X3BS-USZX Bottom Loading Water Dispenser. This manual provides essential information for the safe and efficient operation of your new appliance. Please read these instructions thoroughly before installation and use, and retain them for future reference.

This water dispenser is designed to provide instant access to cold, warm, and hot water, accommodating 3 or 5-gallon water bottles with a convenient bottom-loading design.

2. Informació de seguretat

To reduce the risk of injury or property damage, always follow basic safety precautions when using electrical appliances. This includes, but is not limited to, the following:

• Llegiu totes les instruccions abans d'utilitzar l'aparell.
• Assegureu-vos que la font d'alimentació coincideixi amb el voltags'especifica a l'etiqueta de classificació de l'aparell.
• No feu servir cap aparell amb un cable o un endoll danyats, o després que l'aparell funcioni malament o s'hagi fet malbé de cap manera.
• Mantingueu el cable d'alimentació lluny de superfícies escalfades.
• No submergiu l'aparell, el cable o l'endoll en aigua o altres líquids.
• Seguretat de l'aigua calenta: The hot water dispenser reaches temperatures up to 203°F (95°C). Exercise extreme caution. This unit features a child safety lock on the hot water button to prevent accidental scalding. Always engage the child lock when not dispensing hot water, especially in households with children.
• Place the dispenser on a firm, level surface. Do not place it in direct sunlight or near heat sources.
• Allow adequate ventilation around the unit. Maintain at least 4 inches (10 cm) of space from walls.
• Només feu servir aigua potable embotellada amb aquest aparell.
• Desendolleu el dispensador abans de netejar-lo o fer-ne cap manteniment.

3. Producte acabatview

The Euhomy WC003-X3BS-USZX water dispenser offers convenient access to water at three different temperatures. Its bottom-loading design eliminates the need for heavy lifting of water bottles.

Característiques principals:

• Disseny de càrrega inferior: Accommodates 3 or 5-gallon water bottles, reducing physical strain during bottle replacement.
• Three Temperature Modes: Provides cold (41-51°F), warm (room temperature), and hot (185-194°F) water.
• Pany de seguretat infantil: A two-step operation for hot water dispensing ensures safety, preventing accidental burns.
• Llums indicadores: Clearly displays operational status for hot water, cold water, warm water, and low water level.
• Safata de degoteig extraïble: Fàcil de netejar i mantenir.

Components:

Refer to the image below for a visual representation of the water dispenser's main components.

Figura 3.1: Frontal view of the Euhomy Bottom Loading Water Dispenser, showing the dispensing area, control panel, and the lower cabinet for the water bottle.

4. Instruccions de configuració

Follow these steps to set up your water dispenser for the first time.

4.1 Desembalatge

1. Carefully remove the water dispenser from its packaging.
2. Traieu tots els materials d'embalatge, inclosa la cinta adhesiva o la pel·lícula protectora.
3. Inspeccioneu la unitat per detectar qualsevol signe de danys. Si està danyada, no l'utilitzeu i poseu-vos en contacte amb el servei d'atenció al client.

4.2 Col·locació

• Place the dispenser on a flat, stable, and level surface capable of supporting its weight when full.
• Ensure the dispenser is placed in a cool, dry area, away from direct sunlight and heat sources (e.g., ovens, dishwashers).
• Allow at least 4 inches (10 cm) of clearance from walls and other objects to ensure proper ventilation.

4.3 Instal·lació d'ampolles d'aigua

This dispenser features a bottom-loading design for easy water bottle replacement.

Figure 4.1: Illustration of a 5-gallon water bottle being inserted into the bottom compartment of the dispenser.

1. Obriu la porta inferior de l'armari del dispensador.
2. Traieu el tap d'una ampolla d'aigua nova de 3 o 5 galons.
3. Introduïu la sonda del dispensador a l'obertura de l'ampolla d'aigua. Assegureu-vos que la sonda estigui completament inserida.
4. Slide the water bottle into the cabinet and close the door securely.

4.4 Initial Priming and Power Connection

1. Before plugging in the unit, allow water to fill the internal tanks. Press each dispensing button (cold, warm, hot) until water flows steadily from each spout. This ensures the tanks are full and prevents damage to heating elements.
2. Once water flows from all spouts, plug the power cord into a grounded electrical outlet.
3. The indicator lights on the control panel will illuminate, signaling that the dispenser is powered on and beginning to cool and heat the water.

5. Instruccions de funcionament

Your Euhomy water dispenser is designed for simple operation.

5.1 Dispensació d'aigua

Figure 5.1: Detail of the dispensing area, highlighting the three temperature options: Hot, Warm, and Cold.

• Place a cup or container under the desired water spout.
• For Cold Water: Press the blue button.
• For Warm Water: Premeu el botó verd.
• Per aigua calenta: Slide the child safety lock (red switch) to the 'ON' position, then press the red button. Release the button to stop dispensing.

5.2 Bloqueig de seguretat infantil

The child safety lock is a crucial feature for preventing accidental hot water dispensing.

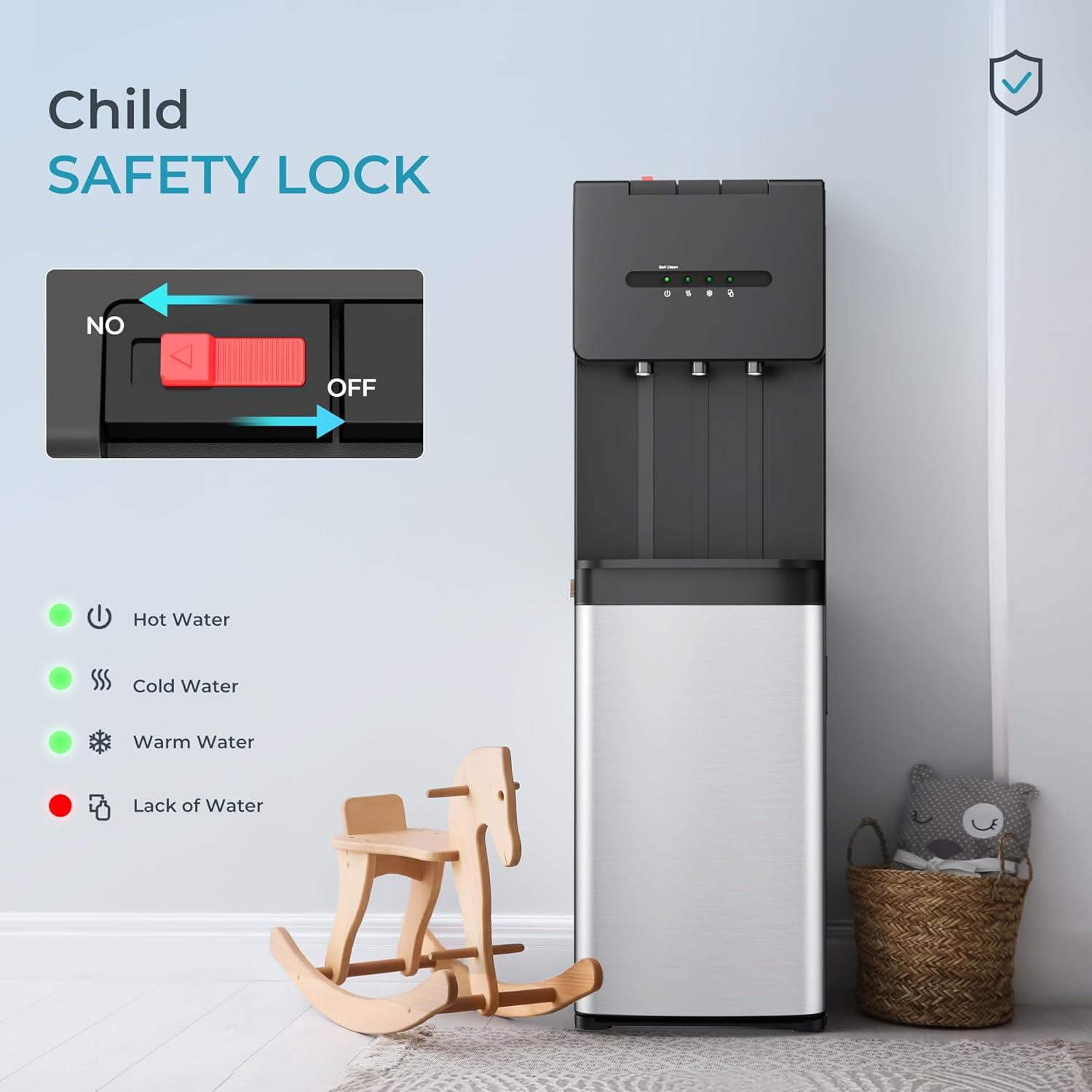

Figura 5.2: Detallada view of the child safety lock mechanism, showing the 'NO' and 'OFF' positions.

• To dispense hot water, slide the red safety lock switch to the 'ON' position (or away from 'NO').
• While holding the safety switch, press the red hot water button.
• Release the button to stop the flow of hot water.
• Always ensure the child safety lock is in the 'OFF' position when hot water is not being dispensed.

5.3 Llums indicadors

• Green Light (Hot Water): Illuminates when the hot water tank is heating and turns off when the desired temperature is reached.
• Blue Light (Cold Water): Illuminates when the cold water tank is cooling and turns off when the desired temperature is reached.
• Green Light (Warm Water): Indicates the warm water function is active.
• Red Light (Lack of Water): Illuminates when the water bottle is empty or nearly empty, signaling it's time for a replacement.

6. Manteniment

Regular cleaning and maintenance will ensure the longevity and optimal performance of your water dispenser.

6.1 Neteja de la safata de degoteig

Figure 6.1: Steps for removing and cleaning the removable drip tray.

1. La safata de degoteig s'ha de buidar i netejar regularment per evitar el desbordament i el creixement de bacteris.
2. Gently lift the drip tray from its position below the spouts.
3. Buideu l'aigua acumulada i renteu la safata amb aigua tèbia i sabó suau.
4. Rinse thoroughly and dry before replacing it.

6.2 Neteja exterior

• Desendolleu el dispensador de la presa de corrent abans de netejar-lo.
• Netegeu les superfícies exteriors amb un damp tela. No utilitzeu netejadors abrasius ni dissolvents.
• Ensure no water enters the ventilation openings or electrical components.

6.3 Descaling (Recommended Annually)

Over time, mineral deposits can build up inside the hot water tank. Descaling helps maintain efficiency.

1. Unplug the dispenser and drain all water from the hot and cold tanks.
2. Prepare a descaling solution (e.g., a mixture of white vinegar and water, or a commercial descaling agent designed for water dispensers).
3. Pour the solution into the hot water tank (refer to specific instructions for accessing the tank, usually via a cap on top or back).
4. Deixeu reposar la solució durant 30 minuts o una hora.
5. Escorreu completament la solució.
6. Rinse the tanks thoroughly with clean water several times to remove any residual descaling solution.
7. Refill with fresh water and perform initial priming before plugging back in.

7. Solució De Problemes

If you encounter issues with your water dispenser, refer to the table below for common problems and solutions.

Si el problema persisteix després d'intentar aquestes solucions, poseu-vos en contacte amb l'atenció al client.

8. Especificacions

Detailed technical specifications for the Euhomy WC003-X3BS-USZX Water Dispenser.

Figure 8.1: Dimensions of the Euhomy Water Dispenser.

9. Garantia i Suport

9.1 Informació de la garantia

Euhomy provides a one-year warranty service for this bottom loading water cooler. This warranty covers defects in materials and workmanship under normal use.

9.2 Atenció al client

If you have any questions, require assistance with setup, operation, or troubleshooting, or need to make a warranty claim, please contact Euhomy customer service. Refer to your purchase documentation or the official Euhomy weblloc web per obtenir la informació de contacte més actualitzada.
