Manual d'usuari del suport per a monitor dual ARES WING

1. Producte acabatview

The ARES WING Dual Monitor Stand is engineered for heavy-duty computer monitors, specifically designed to support both flat and curved ultrawide screens. This robust mount provides an ergonomic solution to optimize your workspace, offering extensive adjustability and integrated features like USB ports and cable management.

It is compatible with monitors ranging from 24 to 57 inches, supporting flat monitors up to 59 lbs and curved monitors up to 48 lbs. The stand features a durable steel and aluminum construction with a gas spring system for smooth and stable positioning.

Figure 1: ARES WING Dual Monitor Stand and included components, including the main stand, monitor arms, VESA plates, and mounting hardware.

Figure 2: The monitor stand supports flat screens up to 59.4 lbs and curved screens up to 48.4 lbs, designed for unmatched strength with ultrawide displays.

2. Contingut del paquet

Before beginning installation, please verify that all components are present and undamaged. If any parts are missing or damaged, please contact customer support.

• Main Pole Assembly
• Braços per a monitors duals (2 unitats)
• VESA Mounting Plates (2 units)
• C-Clamp Base de muntatge
• Base de muntatge amb ulleres
• USB-A and USB-C Cable (integrated into base)
• Kit de ferramenta (cargols, volanderes, separadors)
• Eines (claus Allen)

Figura 3: Detallada view of all components included in the package, ensuring you have everything needed for assembly.

3. Configuració i instal·lació

3.1 Compatibilitat amb l'escriptori

The monitor stand offers two mounting options to suit various desk types:

• C-Clamp Muntatge: Fits desk thickness from 0.47 inches to 1.77 inches (12mm - 45mm).
• Muntatge de grommet: Fits desk thickness from 0.47 inches to 1.97 inches (12mm - 50mm). Requires an existing hole in the desk.

Figure 4: Illustration of the two mounting methods: C-clamp for desk edges and grommet for desks with existing holes, showing compatible desk thicknesses.

3.2 Passos de muntatge

1. Trieu el mètode de muntatge: Decide between C-clamp or grommet mount based on your desk.
2. Attach Base to Desk: Secure the chosen mounting base to your desk. For C-clamp, estrènyer el clamp. For grommet, insert the bolt through the desk hole and secure with the nut from underneath.
3. Install Main Pole: Insert the main pole into the secured base and tighten any retaining screws.
4. Attach Monitor Arms: Slide the monitor arms onto the main pole at your desired height and secure them.
5. Fixeu les plaques VESA als monitors: Secure the VESA mounting plates to the back of your monitors using the provided screws. The stand supports VESA patterns of 75x75mm, 100x100mm, 100x200mm, 200x100mm, and 200x200mm.
6. Muntar els monitors als braços: Carefully lift each monitor and slide its VESA plate onto the corresponding arm's mounting head until it clicks into place. Ensure it is securely seated.
7. Connecteu els cables USB: Connect the integrated USB-A and USB-C cables from the stand's base to your computer's USB ports to enable the charging and data passthrough functionality.

4. Funcionament i ajustos

4.1 Monitor Positioning

The ARES WING monitor stand offers extensive flexibility for optimal ergonomic positioning:

• Ajust d'alçada: The arms can be moved up and down the main pole. The maximum height is 25.8 inches (65.5 cm) from the desk surface.
• Extensió del braç: Each arm can extend up to 29.7 inches (75.4 cm) from the pole.
• Inclinació: Adjust the monitor tilt from +70° to -45° to reduce glare and find your preferred viewangle de ing.
• Girar: Swivel the monitor +90° to -90° horizontally.
• Rotació: Gireu el monitor 360° per a l'orientació vertical o horitzontal.

Figure 5: The stand is designed to elevate ultrawide screens up to a maximum of 57 inches, providing ample space and flexibility for large displays.

Figure 6: The monitor stand offers a wider height range, allowing for up to 19 inches of vertical adjustment to tailor the monitor position for ultimate flexibility.

Figure 7: The stand provides flexible adjustment capabilities including +70° to -45° tilt, +90° to -90° swivel, and 360° rotation for perfect viewangles d'ajust.

4.2 Ajust de la tensió de la molla de gas

The gas spring mechanism allows for smooth and stable monitor movement. If your monitor is too heavy and sags, or too light and floats up, you may need to adjust the gas spring tension. Use the provided Allen wrench to turn the adjustment screw located on the arm. Turn clockwise to increase tension for heavier monitors, and counter-clockwise to decrease tension for lighter monitors.

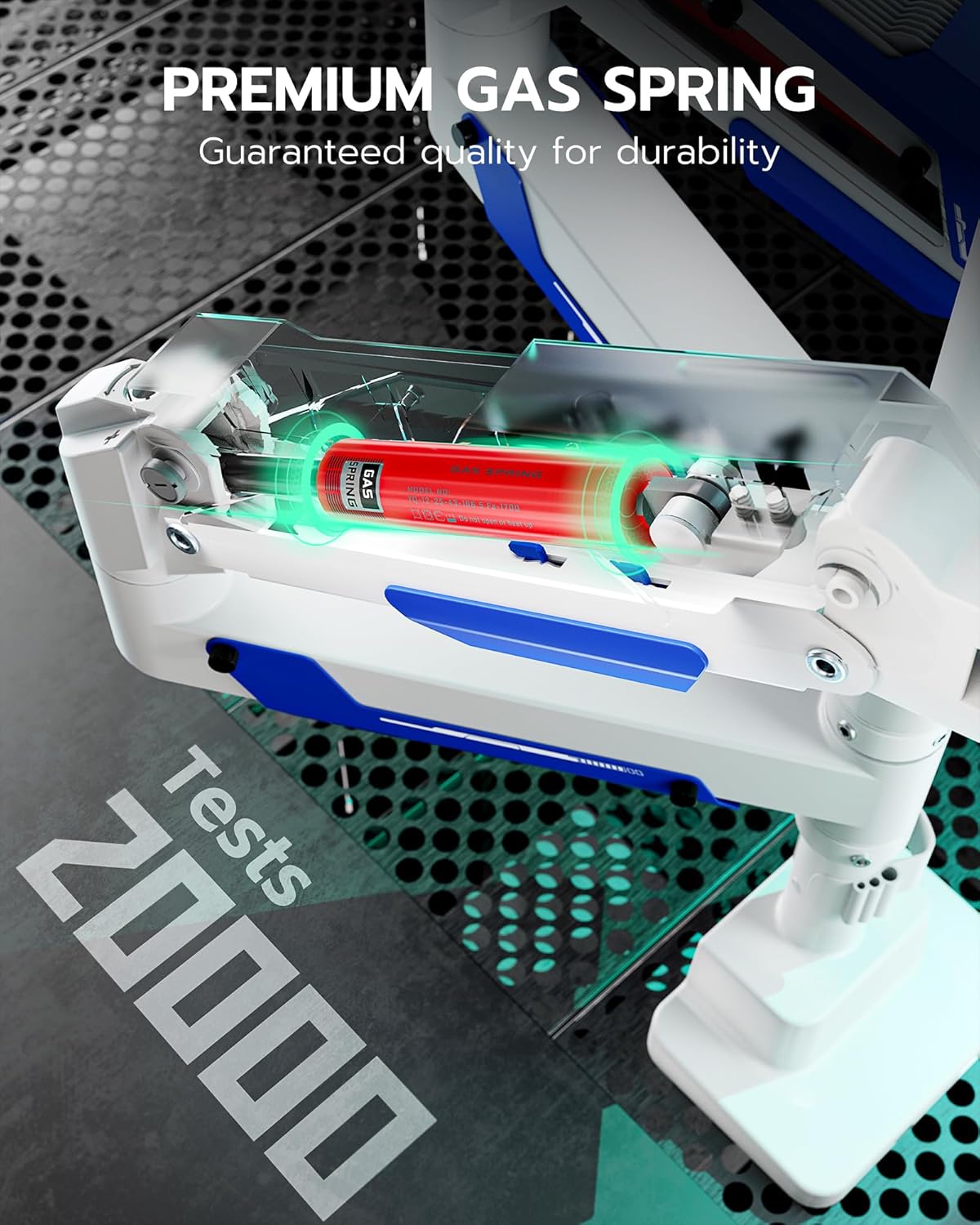

Figure 8: The premium gas spring inside the arm ensures smooth and durable operation, having undergone over 20,000 fatigue tests for reliability.

4.3 USB Ports and Cable Management

The stand features integrated USB-A 3.0 and USB-C ports in the base, providing convenient access for charging and data transfer. These ports offer 5Gbps data transmission and 10W charging. Utilize the built-in cable management system along the arms and pole to route and conceal your monitor and power cables, maintaining a clean and organized workspace.

Figure 9: The stand includes convenient USB-A 3.0 and USB-C ports for 5Gbps data transmission and 10W charging, compatible with various devices.

5. Manteniment

To ensure the longevity and optimal performance of your ARES WING Dual Monitor Stand, follow these simple maintenance guidelines:

• Neteja: Wipe the stand surfaces with a soft, damp cloth. Avoid using abrasive cleaners or solvents, as they may damage the finish.
• Comprovacions periòdiques: Reviseu periòdicament tots els cargols i connexions per assegurar-vos que romanen ajustats. Torneu a apretar-los si cal.
• Molla de gas: The gas spring is designed for long-term durability. If you notice a change in the arm's movement or stability, re-adjust the tension as described in Section 4.2.

6. Solució De Problemes

• Monitor Sags or Floats:

  This indicates incorrect gas spring tension. Adjust the gas spring screw on the arm. Turn clockwise to increase tension for heavier monitors, counter-clockwise for lighter monitors. Make small adjustments and test.

• El suport oscil·la:

  Ensure the mounting base (C-clamp or grommet) is securely tightened to the desk. Check that the main pole is firmly seated in the base and its retaining screws are tight.
• Els ports USB no funcionen:

  Verify that the integrated USB-A and USB-C cables from the stand's base are properly connected to active USB ports on your computer or power source.

• Difficulty Adjusting Monitor Position:

  Ensure all adjustment points (tilt, swivel, rotation) are not overly tightened. If the gas spring tension is too high or low, it can also affect ease of movement. Refer to Section 4.2 for gas spring adjustment.

7. Especificacions

8. Garantia i Suport

For warranty information and customer support, please refer to the documentation included with your purchase or visit the official ARES WING website. You can also contact the seller directly for assistance with product inquiries or technical support.
