Bewinner A78SD3 AM3 Motherboard User Manual

Introducció

This manual provides detailed instructions for the installation, operation, and maintenance of your Bewinner A78SD3 Motherboard. Please read this manual thoroughly before proceeding with installation to ensure proper setup and functionality.

Producte acabatview

The Bewinner A78SD3 is an AM3 socket motherboard designed for desktop computers, supporting DDR3 memory and featuring integrated graphics, sound, and network capabilities. It offers a stable platform for various computing needs.

Característiques principals:

• Àmplia connectivitat: Features 4 USB 2.0 ports and 4 Serial ATA 3.0 ports for versatile expansion capabilities and storage options.
• Rendiment potent: Supports AM3 interface APU processors and up to 16GB DDR3 memory (8GB per slot) for flexible applications.
• Seamless Visuals & Audio: Equipped with High Definition Multimedia Interface and VGA outputs for display, 100Mbps Ethernet for network connectivity, and an integrated 6-channel sound chip for audio.
• Stability Guaranteed: Utilizes a 4-phase power supply system and multi-phase power design for optimal performance and system stability.
• AmpEmmagatzematge: Provides 4 SATA 3.0 ports to accommodate multiple hard drives or SSDs, addressing high-capacity storage needs.

Disseny dels components:

This diagram illustrates the main components and ports of the A78SD3 motherboard, including the CPU socket, DDR3 memory slots, PCI-E X16 slot, SATA ports, and I/O panel connectors.

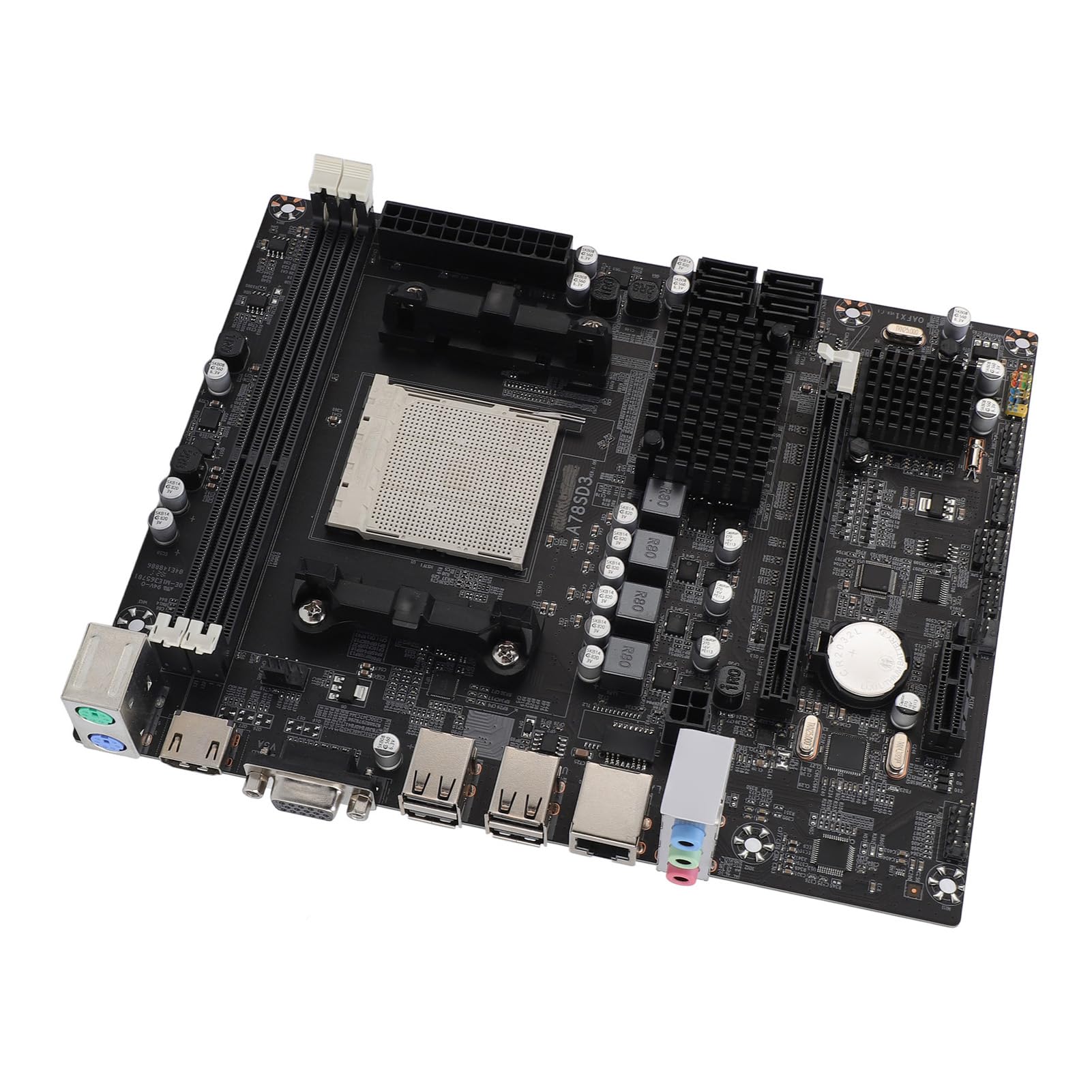

Un general view of the Bewinner A78SD3 motherboard, highlighting its compact design and component placement.

Configuració i instal·lació

Abans de començar:

• Ensure your power supply is disconnected from the wall outlet.
• Porteu una polsera antiestàtica per evitar danys per descàrrega electrostàtica (ESD) als components.
• Gather necessary tools: a Phillips head screwdriver and thermal paste (if your CPU cooler does not have it pre-applied).

Instal·lació pas a pas:

1. Instal·leu la CPU: Open the CPU socket lever. Carefully align the CPU with the socket, matching the triangle or arrow indicator on the CPU to the one on the socket. Gently place the CPU into the socket without forcing it, then close the lever to secure it.
2. Instal·leu el refrigerador de la CPU: Apply thermal paste to the CPU (if not pre-applied on the cooler). Secure the CPU cooler onto the motherboard according to its manufacturer's instructions.
3. Instal·lar memòria (RAM): Open the clips on the two DDR3 memory slots. Align the RAM module with the notch in the slot, then press firmly on both ends of the module until the clips snap into place. The A78SD3 has two DDR3 slots.

This image shows the two DDR3 memory slots. Ensure RAM modules are correctly oriented and fully seated.

4. Muntar la placa base: Install the I/O shield into your computer case. Carefully align the motherboard with the standoffs inside the case and secure it with screws.
5. Connectar l'alimentació: Connect the 24-pin ATX power connector and the 4-pin CPU power connector from your power supply unit (PSU) to the corresponding ports on the motherboard.
6. Connectar dispositius d'emmagatzematge: Connect your SATA hard drives or SSDs to the SATA 3.0 ports on the motherboard using SATA data cables. Also, connect power cables from the PSU to these devices.
7. Instal·leu les targetes d'expansió (opcional): If you are using a dedicated graphics card or other PCI-E cards, insert them into the PCI-E X16 slot and secure them with a screw or retention clip.
8. Connecteu els cables del panell frontal: Connect the power button, reset button, USB ports, and audio jacks from your computer case to the corresponding headers on the motherboard. Refer to your case manual for specific pin assignments.
9. Connecteu els perifèrics: Connect your keyboard, mouse, monitor, and other external peripherals to the appropriate I/O ports on the back of the motherboard.

The motherboard is shown alongside its accessories: a SATA data cable and the I/O shield, which should be installed in the computer case before mounting the motherboard.

Instruccions de funcionament

Primer arrencada:

After completing the hardware installation, connect your monitor, keyboard, and mouse. Connect the power supply to a wall outlet and power on your system. The system should display the BIOS/UEFI screen or begin the operating system installation process.

Configuració de la BIOS/UEFI:

To enter the BIOS/UEFI setup, press the designated key (commonly DEL or F2) during the initial startup sequence. Within the BIOS/UEFI interface, you can configure boot order, system time, and other hardware-related settings. Consult the on-screen interface for specific options and navigation.

Instal·lació del controlador:

After successfully installing your operating system, it is crucial to install the necessary drivers for the motherboard's integrated components (chipset, audio, network, graphics). These drivers are typically provided on a CD/DVD included with the motherboard or can be downloaded from the official Bewinner support weblloc.

Manteniment

Neteja:

• Regularly clean dust from the motherboard and other internal components using compressed air. Always ensure the system is powered off and unplugged from the wall outlet before performing any cleaning.
• Avoid using liquid cleaners directly on electronic components.

Actualitzacions de firmware:

• Periodically check the Bewinner support website for BIOS/UEFI updates. These updates can improve system stability, enhance compatibility with new hardware, and optimize performance. Follow the provided update instructions carefully to avoid potential system damage.

Resolució de problemes

Sense energia:

• Verify all power connections: the 24-pin ATX connector, the 4-pin CPU power connector, and the power supply connection to the wall outlet.
• Ensure the power supply's main switch is in the 'ON' position.
• Confirm that the case's power button cable is correctly connected to the corresponding header on the motherboard.

Sense pantalla:

• Ensure your monitor is properly connected to the correct video output port and is powered on.
• If a dedicated graphics card is installed, check that it is properly seated in its PCI-E slot and has all necessary power cables connected.
• If using integrated graphics, ensure the monitor is connected to the motherboard's VGA or HDMI port.
• Try reseating the RAM modules in their slots.

Inestabilitat/Avaries del sistema:

• Monitor CPU and GPU temperatures. Overheating can lead to system instability and unexpected shutdowns.
• Ensure all motherboard and component drivers are correctly installed and up to date.
• If you suspect a memory issue, test RAM modules individually or run a memory diagnostic tool.

Sense àudio:

• Verify that your speakers or headphones are correctly connected to the appropriate audio jacks on the motherboard's I/O panel.
• Ensure audio drivers are installed and updated.
• Check the audio output settings within your operating system.

Especificacions

The physical dimensions of the motherboard are approximately 17cm (6.7 inches) in width and 21.3cm (8.4 inches) in length.

Garantia i Suport

Informació de la garantia:

Please refer to the warranty card included with your product packaging for specific warranty terms and conditions. Bewinner typically provides a limited warranty for manufacturing defects. Retain your proof of purchase for warranty claims.

Atenció al client:

For technical assistance, troubleshooting, or warranty claims, please contact Bewinner customer support through their official website or the retailer where the product was purchased. When contacting support, please have your purchase receipt and product serial number readily available.
