RUIZHI Wireless Controller for PS4 User Manual

Introducció

This manual provides detailed instructions for the RUIZHI Wireless Controller, designed for use with PlayStation 4 consoles (PS4, PS4 Pro, PS4 Slim) and PC. It covers setup, operation, maintenance, and troubleshooting to ensure optimal performance and user experience.

Contingut del paquet

• 1 x RUIZHI Wireless Controller for PS4
• 1 cable de dades USB-C
• 1 x Manual d'usuari

Producte acabatview

Familiarize yourself with the controller's layout and functions.

Imatge: Anvers i revers view of the RUIZHI Wireless Controller with labels indicating R1, R2, L1, L2 buttons, USB-C charging port, LED light, Share button, Touch Pad, Options button, D-pad, Action Buttons, Left Joystick, Right Joystick, Home Button, and 3.5mm Headphone Jack.

Button Details:

• R1/R2/L1/L2 Buttons: Shoulder and trigger buttons for in-game actions.
• Port de càrrega USB-C: Used for charging the controller and initial wired connection.
• Llum LED: Indicates controller status, player number, and charging status.
• Botó Compartir: Allows sharing gameplay content.
• Touch Pad: Multi-touch, clickable pad for enhanced interaction.
• Botó d'opcions: Accesses in-game menus and options.
• D-pad: Directional pad for precise movement and menu navigation.
• Botons d'acció (Triangle, Cercle, Creu, Quadrat): Primary input buttons for gameplay.
• Joysticks esquerre/dret: 360° analog sticks for movement and camera control.
• Botó d'inici: Returns to the system home screen or powers on/off the console/controller.
• Presa d'auriculars de 3.5 mm: Connects compatible headsets for audio and chat.

Configuració

Initial Connection to PS4:

1. Assegura't que la teva consola PS4 estigui engegada.
2. Connect the RUIZHI Wireless Controller to your PS4 console using the provided USB-C data cable.
3. Premeu el botó Botó d'inici on the controller. The controller will pair and activate with the console.
4. Once paired, you can disconnect the USB-C cable to use the controller wirelessly via Bluetooth.

Connexió al PC:

• Connexió per cable: Connect the controller to your PC using the USB-C data cable. The PC should automatically detect and install the necessary drivers.
• Connexió Bluetooth sense fil: If your PC has a built-in Bluetooth module, you can pair the controller wirelessly. If not, a separate Bluetooth receiver (not included) is required.
• To pair wirelessly, press and hold the Botó Compartir i el Botó d'inici simultaneously until the light bar flashes rapidly. Then, search for Bluetooth devices on your PC and select the controller to pair.

Instruccions de funcionament

Funcions bàsiques:

• Encès: Premeu el botó Botó d'inici.
• Apagar: Manteniu premut el botó Botó d'inici for approximately 10 seconds, or turn off the console.

Característiques avançades:

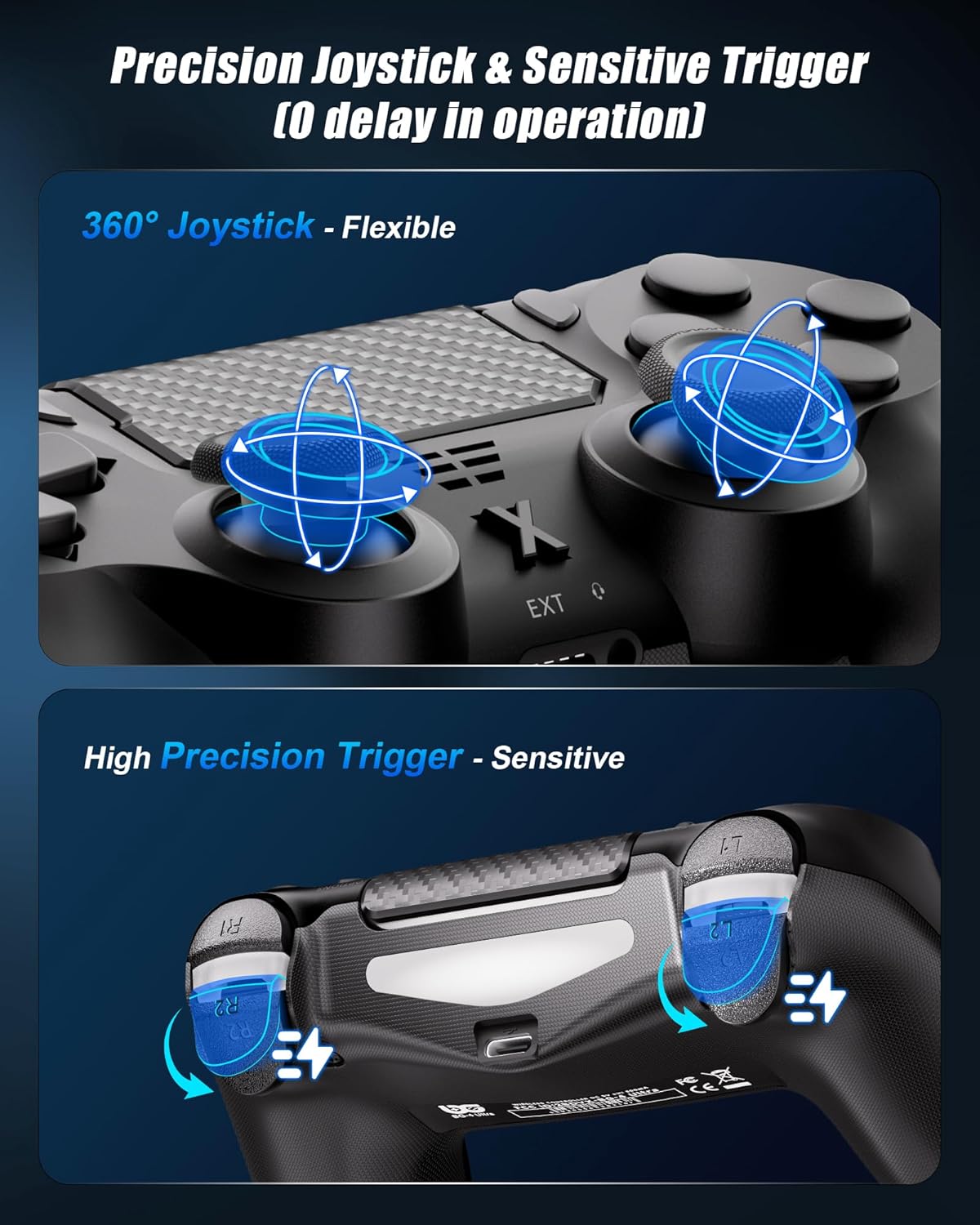

Imatge: Detallada view of the controller's 360° joysticks and high-precision triggers, illustrating their flexible and sensitive response.

• Precision Joysticks & Sensitive Triggers: Experience precise control with 360° joysticks and responsive triggers, designed for zero delay in operation.


Image: The controller shown with arrows indicating 6-axis motion sensing and vibration patterns, demonstrating its immersive capabilities in racing and action games.

• Vibració dual: Built-in dual vibration motors provide tactile feedback for a more immersive gaming experience, reacting to in-game actions.
• Giroscopi de 6 eixos: The integrated 6-axis sensor offers enhanced motion control, allowing for more freedom and smoothness in compatible games.
• Touchpad: The multi-touch touchpad optimizes command precision and offers additional input methods for various games.


Image: A gamer wearing headphones connected to the controller via the 3.5mm audio jack, enjoying an immersive gaming session.

• Conector d'àudio de 3.5 mm: Connect your favorite gaming headset directly to the controller for in-game audio and voice chat.

Carregant

The controller features a built-in 1000mAh Lithium-ion battery.

Image: The controller's USB-C port connected to a charging cable, illustrating the 1000mAh battery capacity and charging time of 2-3 hours for up to 15 hours of playtime.

• Temps de càrrega: Aproximadament 2-3 hores per a una càrrega completa.
• Temps de joc: Up to 10-15 hours of continuous use on a full charge.
• Mètode de càrrega: Connect the controller to a PS4 console, PC, or a standard USB charger (5V/1A) using the provided USB-C cable.
• The LED light will indicate charging status.

Compatibilitat

The RUIZHI Wireless Controller is compatible with a range of gaming platforms.

Image: The controller displayed with icons for Android (6.0+), VR, PS3/PS4, Switch, PC (10/11/7), TV, and iOS/iPadOS (13+), indicating its wide compatibility.

• PlayStation 4: PS4, PS4 Pro, PS4 Slim.
• PC: Compatible with Windows 7/10/11.
• Altres: Also compatible with Android (6.0+), VR, PS3, Nintendo Switch, TV, and iOS/iPadOS (13+).

Manteniment

• Mantingueu el controlador sec i allunyat de temperatures extremes.
• Netegeu el controlador amb un drap suau i sec. No utilitzeu productes químics agressius ni materials abrasius.
• Eviteu deixar caure el controlador o sotmetre'l a impactes forts.
• Store the controller in a safe place when not in use.

Resolució de problemes

El controlador no es connecta/s'emparella:

• Assegureu-vos que el controlador estigui completament carregat.
• For PS4, try connecting with the USB-C cable first to re-establish the connection.
• Reset the controller: Locate the small reset button on the back of the controller (often near the L2 button). Use a thin object (like a straightened paperclip) to press and hold the button for 3-5 seconds. Then, try pairing again.
• Assegureu-vos que cap altre dispositiu Bluetooth interfereixi amb la connexió.

Retard d'entrada o desconnexions:

• Ensure the controller is within the 8-meter wireless range of the console/PC.
• Check for potential wireless interference from other devices (e.g., Wi-Fi routers, other Bluetooth devices).
• Ensure the controller's battery is not low.
• If on PC, ensure your Bluetooth drivers are up to date.

La vibració no funciona:

• Revisa la configuració del joc per assegurar-te que la vibració estigui activada.
• Ensure the controller's battery is sufficiently charged.

Especificacions

Garantia i Suport

Information regarding product warranty and customer support was not provided in the available data. Please refer to the product packaging or the seller's website for details on warranty coverage and how to contact customer support for assistance.
