Joolz Hub² Compact Stroller

Introducció

Thank you for choosing the Joolz Hub² Compact Stroller. This manual provides essential information for the safe and proper use, maintenance, and care of your stroller. Please read it thoroughly before assembly and use, and keep it for future reference.

Informació de seguretat

• Feu servir sempre l'arnès de 5 punts per assegurar el vostre fill.
• No deixeu mai el vostre fill sense vigilància al cotxet.
• Assegureu-vos que tots els dispositius de bloqueig estiguin enganxats abans d'utilitzar-los.
• Do not overload the storage basket; maximum weight is 22 lbs (10 kg).
• The stroller is designed for one child only.
• Maximum child weight for the seat is 48.5 lbs (22 kg).
• Accioneu sempre el fre quan aparqueu el cotxet.
• Keep children clear of moving parts when adjusting the stroller.
• Aquest cotxet no és apte per córrer o patinar.

Components inclosos

Your Joolz Hub² Compact Stroller package includes the following items:

• Stroller chassis with wheels
• Unitat de seient
• Cradle (bassinet) - Note: Cot sold separately as an option.
• Cistella de compra
• Capota solar
• Barra de seguretat
• Corretja de transport
• Manual d'usuari

Configuració

1. Desembalatge i muntatge inicial

Carefully remove all components from the packaging. The stroller chassis comes with wheels pre-attached for convenience.

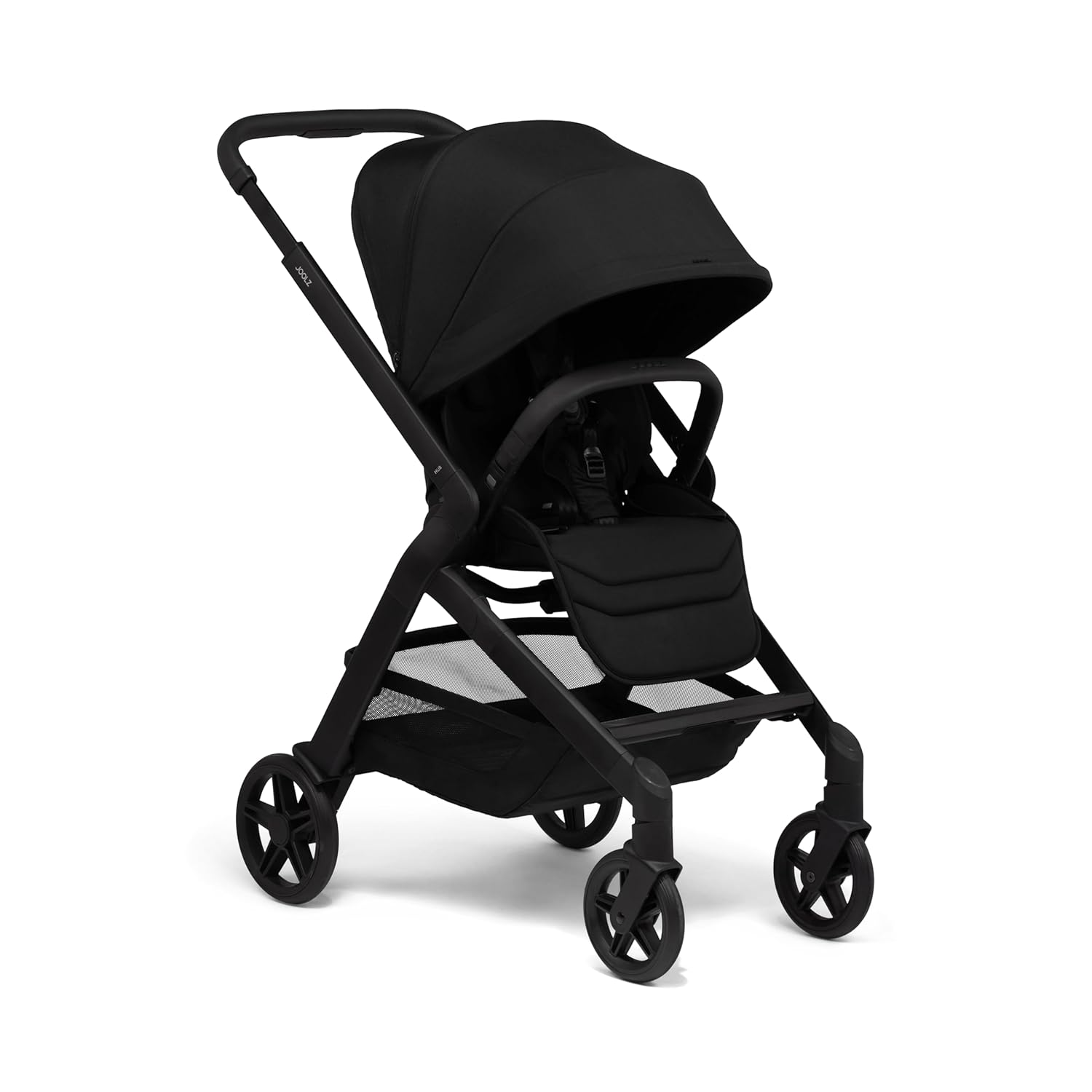

Figure 1: Fully assembled Joolz Hub² Compact Stroller.

2. Attaching the Seat Unit

1. Align the seat unit's connectors with the corresponding slots on the stroller chassis.
2. Push down firmly until you hear a click, indicating it is securely locked in place.
3. Verify the seat is firmly attached by gently pulling upwards.

3. Adjusting the Handlebar

The handlebar is height-adjustable to suit different users. Locate the adjustment buttons on either side of the handlebar. Press them simultaneously and move the handlebar to your desired height. Release the buttons to lock it in one of the 4 available positions.

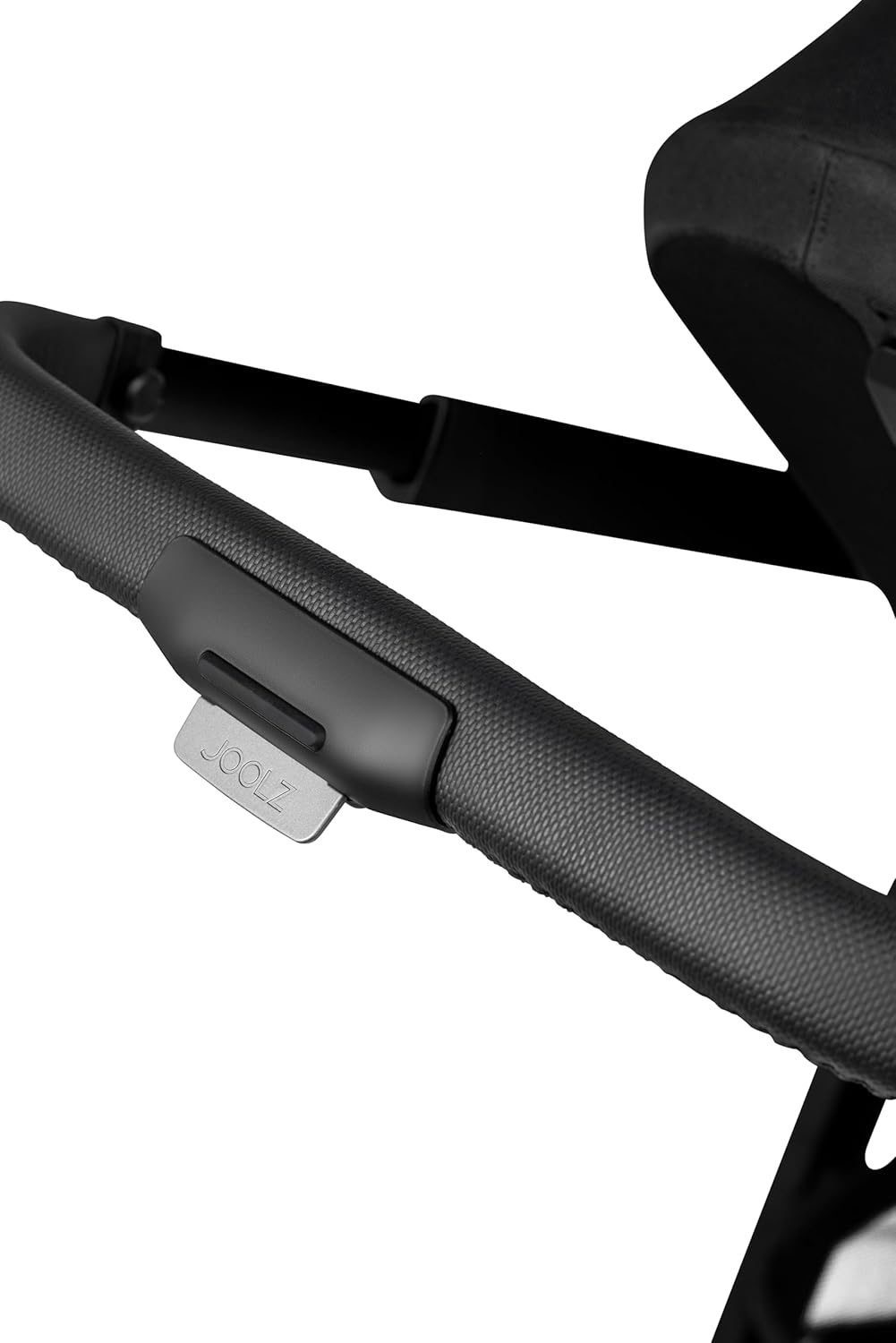

Figure 2: Handlebar adjustment mechanism.

Instruccions de funcionament

1. Plegar i desplegar

The Joolz Hub² features a convenient one-hand fold mechanism. This allows for quick and easy storage or transport.

To fold: Ensure the seat is in the forward-facing position. Locate the folding release mechanism (often near the handlebar or seat base). Activate the mechanism and guide the stroller to fold inwards until it locks into its compact, self-standing position. The built-in carry strap can then be used for hands-free portability.

To unfold: Release the folding lock and allow the chassis to extend. Push firmly until the frame clicks into its fully open position.

Figure 3: Stroller in its compact, folded state, emphasizing its small footprint.

2. Ajust del seient

• Reclinat: The seat offers 8 recline positions, including a flat newborn position. Locate the recline lever/button on the back of the seat and adjust to the desired angle.
• Revés: The seat can be easily reversed to face either the parent or the world. To reverse, disengage the seat from the chassis, turn it around, and re-attach until it clicks securely.
• Leg Rest: The integrated leg rest is adjustable to provide optimal comfort for your child as they grow.

3. Ús de la marquesina

The extendable sun canopy provides UPF 50+ protection. Simply pull the canopy forward to extend it. It also features all-season ventilation for airflow.

4. Cistella d'emmagatzematge

The large storage basket located beneath the seat can hold up to 22 lbs (10 kg) or 5.3 gallons (24 liters) of essentials. Ensure items are placed securely and do not obstruct the wheels or folding mechanism.

Figure 4: The spacious under-seat storage basket.

5. Sistema de frens

To engage the brake, press down firmly on the brake pedal located near the rear wheel until it locks. To release, lift the pedal upwards. Always ensure the brake is fully engaged when the stroller is stationary.

Manteniment

1. Neteja

• Parts de tela: Netejar amb anunciamp cloth and mild soap. Do not machine wash or tumble dry unless specified on the fabric care label. Allow to air dry completely.
• Marc i peces de plàstic: Netegeu amb un anunciamp tela. Eviteu els netejadors abrasius.
• Rodes: Regularly remove dirt and debris from the wheels and axles to ensure smooth operation.

2. Emmagatzematge

Store the stroller in a dry place, away from direct sunlight and extreme temperatures. When storing for extended periods, ensure it is clean and dry to prevent mold or mildew.

Resolució de problemes

Especificacions

Garantia i Suport

1. Joolz 10-Year Transferable Warranty

The Joolz Hub² Compact Stroller comes with a unique 10-year transferable warranty. This warranty covers material and manufacturing defects, ensuring your stroller lasts for years and can even be passed on to another family. For full terms and conditions, and to register your product, please visit the official Joolz weblloc.

Figure 5: Joolz 10-Year Transferable Warranty information.

2. Atenció al client

For any questions, concerns, or assistance with your Joolz Hub² Compact Stroller, please contact Joolz customer support through their official website or the contact information provided in your product registration materials. Please have your model number and purchase date ready when contacting support.
