Moni Multi-Set Car Seat with Royal Isofix Base, i-Size (40-87 cm)

1. Introducció i informació de seguretat

This manual provides essential instructions for the safe installation, operation, and maintenance of your Moni Multi-Set Car Seat with Royal Isofix Base. This car seat is designed for infants from birth up to 13 kg, or a body height of 40 to 87 cm, and must be installed rearward-facing.

Advertències importants de seguretat:

• Always install the car seat rearward-facing.
• Ensure the 3-point safety harness is correctly adjusted and securely fastened around your child.
• No deixeu mai el vostre fill sense vigilància al seient del cotxe.
• Do not use the car seat on a passenger seat equipped with an active front airbag.
• Regularly check all components for wear or damage. Discontinue use if any damage is found.
• Follow all installation steps carefully to ensure maximum safety.

2. Components mésview

The Moni Multi-Set includes the following main components:

• Moni i-Size Car Seat: Designed for infants (40-87 cm).
• Royal Isofix Base: For secure installation in the vehicle.
• Ergonomic Carrying Handle: Adjustable for transport.
• Reposacaps ajustable: With memory foam for comfort and support.
• Dosser solar: Adjustable and removable for sun protection.
• Arnès de seguretat de 3 punts: With shoulder pads and lower buckle covers.
• Soft Full-Body Support Cushion: For newborns and smaller infants.

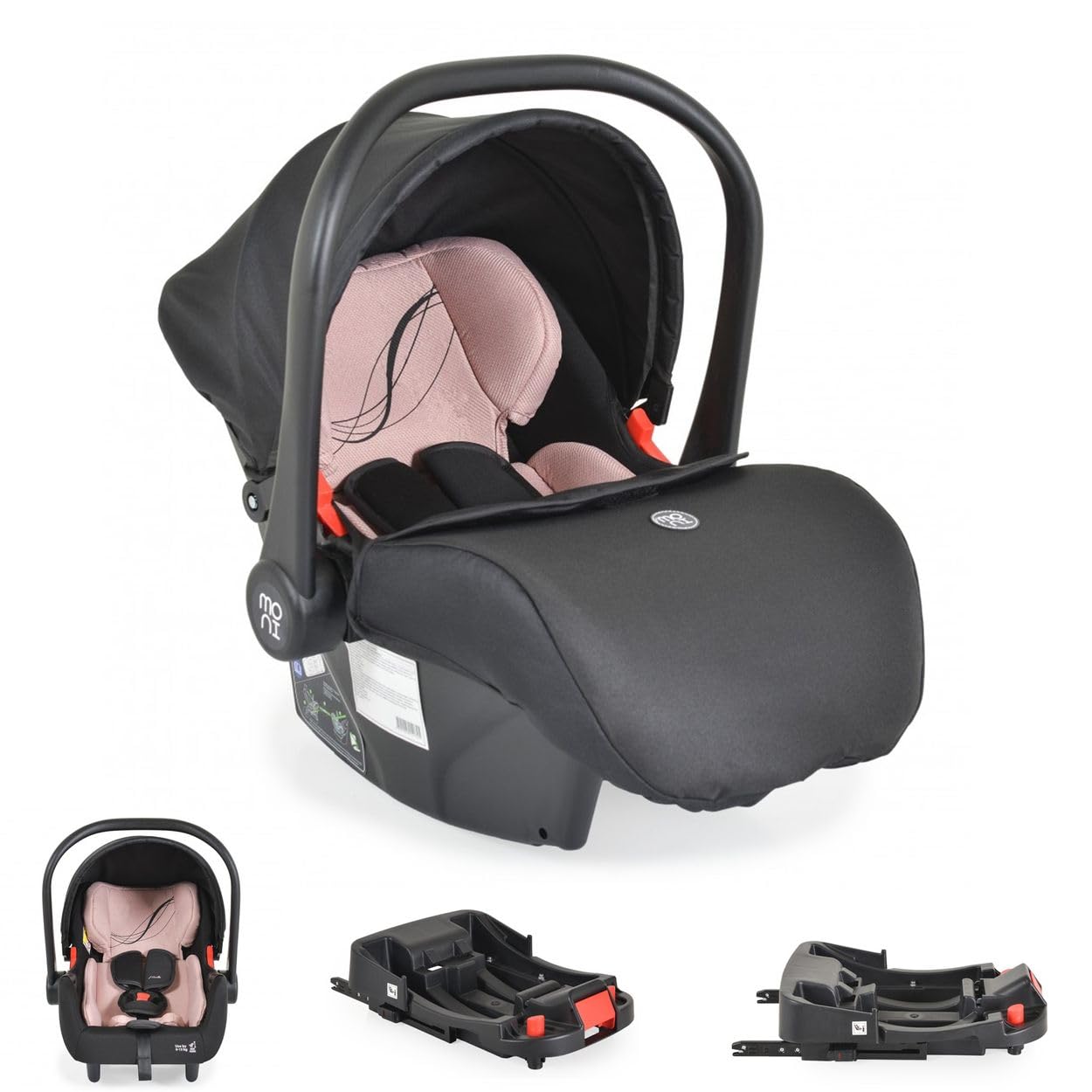

Image 1: Moni Multi-Set Car Seat with Royal Isofix Base. This image shows the car seat with its adjustable carrying handle and sun canopy extended, ready for use.

3. Configuració i instal·lació

Proper installation is crucial for your child's safety. Always refer to your vehicle's owner's manual for specific car seat installation instructions.

3.1 Isofix Base Installation

1. Place the Royal Isofix Base on the desired rearward-facing vehicle seat.
2. Extend the Isofix connectors from the base.
3. Align the Isofix connectors with your vehicle's Isofix anchor points and push firmly until they click into place. Visual indicators on the base should turn green, confirming correct attachment.
4. Push the base firmly against the vehicle seat back to ensure a tight fit.
5. Extend the support leg to the vehicle floor. Ensure it is firmly planted and the indicator shows green (if applicable).

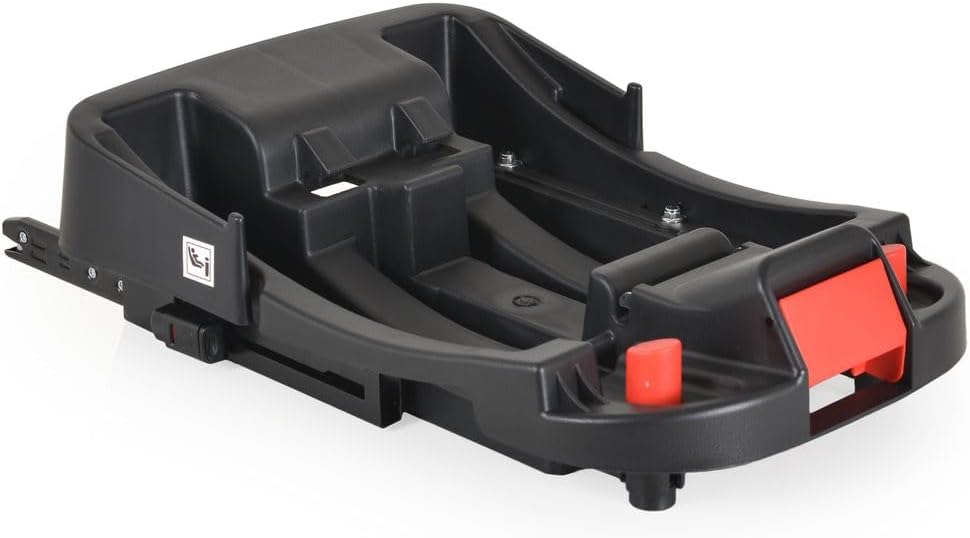

Image 2: Royal Isofix Base with extended connectors. This image illustrates the Isofix base with its extendable connectors, ready to be secured to the vehicle's Isofix anchor points.

3.2 Car Seat Attachment to Isofix Base

1. Once the Isofix base is securely installed, place the Moni Car Seat onto the base.
2. Push down firmly until you hear an audible 'click' and the visual indicators on the base confirm the car seat is correctly locked into position.
3. Gently pull up on the car seat to ensure it is securely attached to the base and does not wobble excessively.

Image 3: Royal Isofix Base. This image displays the Isofix base from a top-down perspective, showing the cradle where the car seat attaches.

4. Instruccions de funcionament

4.1 Placing Your Child in the Car Seat

1. Unfasten the 3-point safety harness.
2. If your child is a newborn or very small infant, ensure the soft full-body support cushion is in place.
3. Place your child carefully into the car seat.
4. Bring the shoulder straps over your child's shoulders and fasten the buckle between their legs. Ensure the straps are not twisted.
5. Tighten the harness straps until they are snug against your child's body, allowing only one finger to fit between the strap and your child's collarbone.

Image 4: Car seat interior with 3-point harness. This image shows the car seat's internal padding and the 3-point safety harness with shoulder pads, ready for a child.

4.2 Adjusting Features

• Nansa de transport: The ergonomic carrying handle can be adjusted to 3 different positions. Press the buttons on both sides of the handle simultaneously to adjust its angle.
• Reposacaps: The foam headrest is adjustable to accommodate your child's growth. Follow the instructions on the car seat for specific adjustment mechanisms.
• Dosser solar: The sun canopy can be adjusted to provide shade or removed entirely if not needed.

5. Manteniment

To maintain hygiene and prolong the life of your car seat:

• The car seat cover is removable and washable. Wash at 30 °C on a gentle cycle. Do not tumble dry or bleach.
• Wipe plastic parts of the car seat and Isofix base with a damp drap i sabó suau.
• No utilitzeu productes químics ni productes de neteja abrasius.
• Allow all parts to air dry completely before reassembling or using.

6. Solució De Problemes

• El seient del cotxe sembla fluix després de la instal·lació: Recheck all Isofix connections and the support leg. Ensure all indicators are green. Push the base firmly against the vehicle seat.
• L'arnès és difícil d'ajustar: Ensure the harness straps are not twisted. Check for any obstructions in the adjustment mechanism.
• Buckle is difficult to fasten/unfasten: Ensure no fabric or debris is obstructing the buckle mechanism.
• If you encounter any persistent issues or have concerns about the safety or functionality of your car seat, please contact Moni customer support or your retailer.

7. Especificacions

8. Garantia i Suport

For warranty information and customer support, please refer to the documentation provided at the point of purchase or visit the official Moni weblloc web. Conserveu el comprovant de compra per a qualsevol reclamació de garantia.
