Manual d'instruccions de la pica YORKING de 36''

1. Introducció

Welcome to your new YORKING 36'' Utility Sink. This manual provides detailed instructions for assembly, operation, maintenance, and troubleshooting to ensure optimal performance and longevity of your sink. Please read thoroughly before beginning installation or use.

2. Producte acabatview

Característiques clau

• Utility Free-Standing Laundry Sink: Equipped with hot and cold water inlet pipes, a pull-out faucet that can rotate 360 degrees, a stainless steel draining basket, soap dispenser, a towel bar, a featured washbasin, a spacious drainage ditch, and storage rack. Suitable for any commercial location.
• Stainless Steel Utility Sink: This freestanding sink is made of high-quality and sturdy 304 stainless steel, offering rust resistance, scratch resistance, and durability. Its surface has been polished to a glossy finish, making it long-lasting and aesthetically pleasing. Our stainless sink set is very easy to clean in daily use.
• Large Capacity Utility Sink Set: YORKING utility sink with an inner bowl size of 31.4'' x 15.7'' x 9.4'' and overall dimensions of 35.4"W x 22.4"D x 37" H. The bottom shelf provides space for daily necessities. Additionally, the height of the four legs is adjustable, making it highly useful equipment for backyard or garden grilling.
• Sistema de drenatge eficient: The commercial stainless steel sink set equipped with a stainless steel drainage unit and a detachable filter prevents food and debris from clogging the drainpipe. With its efficient drainage system, water is swiftly drained, reducing moisture in the sink and preventing water stains and pooling, ensuring cleanliness and hygiene. This helps maintain food safety and extends the lifespan of the sink.

Components

The YORKING 36'' Utility Sink comes with all necessary components for assembly and immediate use. Please ensure all parts are present before beginning installation.

Figure 2.1: All components included with the YORKING 36-inch utility sink, laid out on a white surface.

3. Muntatge i muntatge

Follow these steps carefully for proper assembly. It is recommended to have two people for certain steps.

Guia de vídeo de muntatge

Instruccions de muntatge pas a pas

1. Attach Legs to Bottom Shelf: Insert the four leg poles into the designated slots on the bottom storage shelf. Secure them using the provided screws and tools. Ensure all connections are firm and stable.
2. Mount Sink Basin to Legs: Carefully lift the sink basin and align it with the top of the assembled leg structure. Lower the basin onto the legs, ensuring it sits firmly and securely.
3. Instal·leu l'aixeta: Insert the pull-out faucet into the designated hole on the sink basin. From underneath, connect the hot and cold water supply lines to the faucet. Tighten all connections to prevent leaks.
4. Instal·leu el conjunt de drenatge: Place the drain assembly into the sink's drain opening. Secure it from underneath with the provided nuts and washers, ensuring a watertight seal.
5. Attach Towel Bar and Soap Dispenser: Install the towel bar to the side of the sink using the provided brackets and screws. Insert the soap dispenser into its designated opening and secure the bottle from underneath.
6. Ajustar els peus de nivellació: Adjust the leveling feet at the bottom of each leg to ensure the sink is stable and level on any surface.

4. Instruccions de funcionament

Ús de l'aixeta

The pull-out faucet offers both sparkling (anti-splash) and shower (pressurized water) modes. Pull the faucet head down to extend the hose for greater reach. The faucet can rotate 360 degrees for maximum flexibility.

Figure 4.1: The pull-out faucet features sparkling and shower modes for versatile use.

Sistema de drenatge

The efficient drainage system includes a detachable filter to prevent clogging. Regularly clean the filter to maintain optimal drainage and prevent water accumulation.

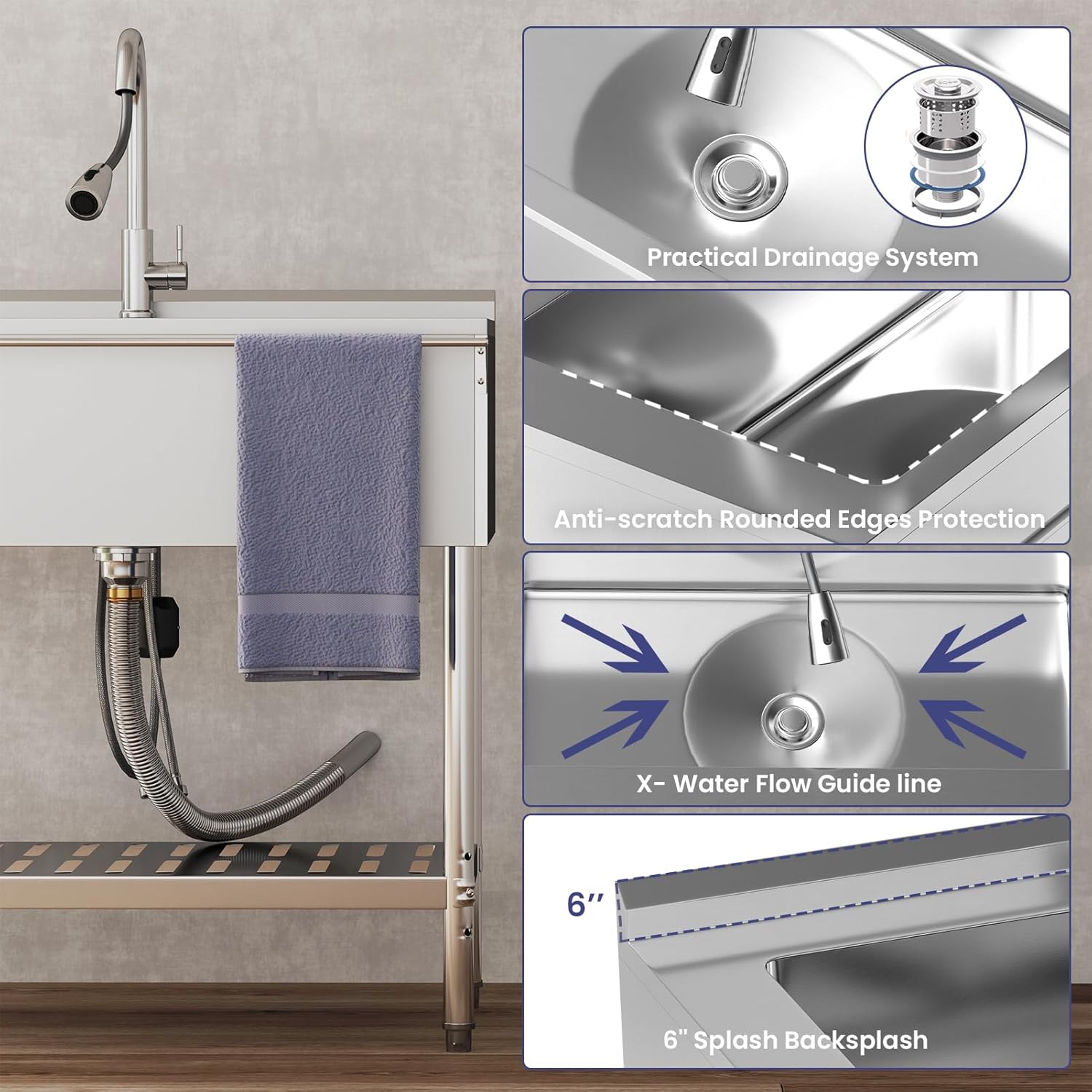

Figure 4.2: Features of the sink's drainage system and basin disseny.

5. Manteniment

To ensure the longevity and appearance of your stainless steel utility sink, follow these maintenance guidelines:

• Neteja regular: Wipe down the sink surface with a soft cloth and mild detergent after each use to prevent water spots and residue buildup.
• Eviteu els abrasius: No utilitzeu netejadors abrasius, llana d'acer ni productes químics agressius, ja que poden ratllar o danyar l'acabat d'acer inoxidable.
• Filtre de drenatge: Periodically remove and clean the detachable drain filter to prevent blockages and maintain efficient water flow.
• Faucet Care: Clean the faucet with a soft cloth and non-abrasive cleaner. Check water connections periodically for any signs of leaks.

Figure 5.1: The 304 Stainless Steel construction ensures easy cleaning and durability.

6. Solució De Problemes

This section addresses common issues you might encounter with your utility sink. For problems not listed here, please contact customer support.

7. Especificacions

Figure 7.1: Detailed dimensions of the YORKING 36'' Utility Sink.

8. Garantia i assistència

YORKING provides a professional after-sales guarantee for your stainless steel utility sink. If you have any questions or require assistance, please feel free to contact our professional after-sales team at any time. Rest assured in your purchase.

Consulteu la documentació de compra per conèixer els termes específics de la garantia i la informació de contacte.
